Step 4 Adjust the Gas Spring Tension

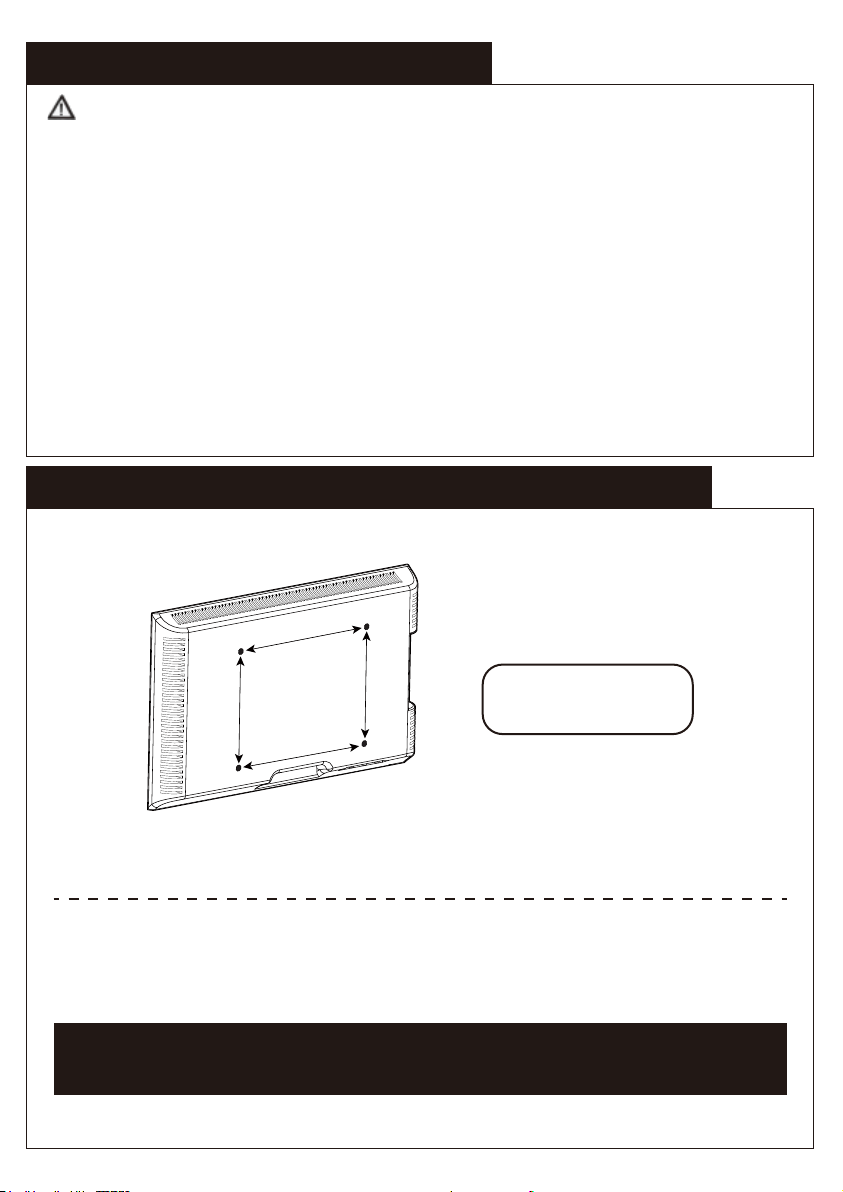

Step 3 Secure the Monitors to Arm Assembly
The tension is preset at 4-5kg.
After hanging the monitor to the
mount, please release the monitor
slowly to prevent it from falling
suddenly
J

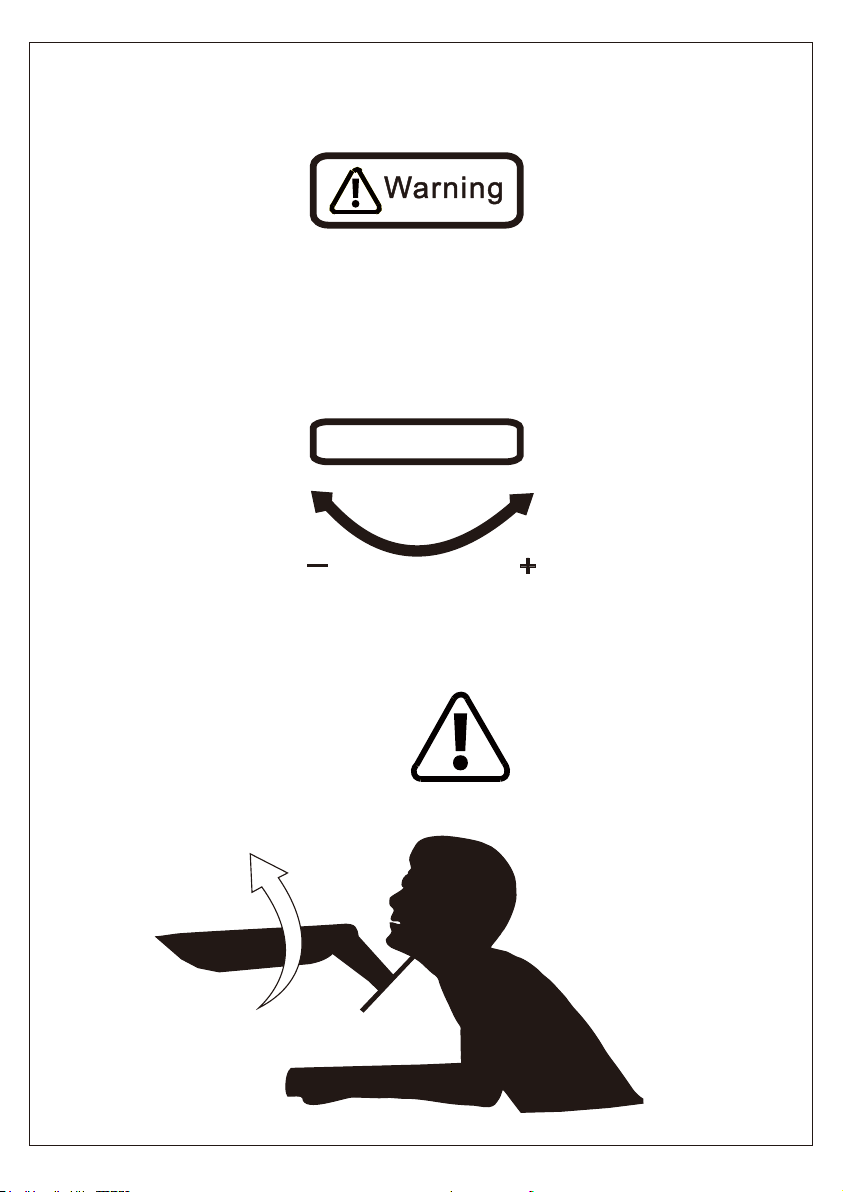

Be sure to keep the arm in
horizontal position during
adjustment. Or else, it would be
difficult to adjust the mount or
damage the mount.

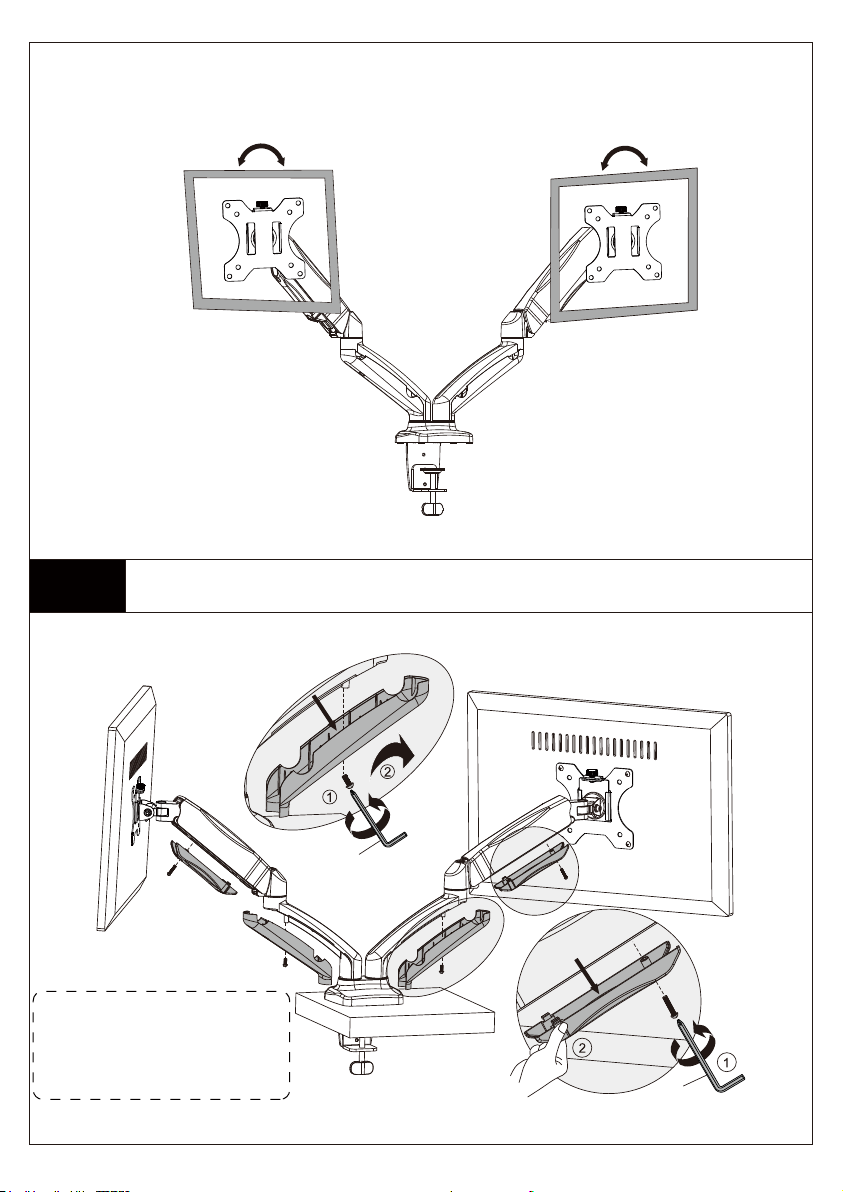

1. If the monitor can stay at the desired height by
itself, no adjustment needed.
2. If the monitor rises up, press the arm to keep it in
horizontal position and then use the 13/64in.(5mm)
Alley key [M] to turn the bolt clockwise(“-” direction)
to reduce tension of the arm only until the monitor
can stay at the desired height by itself.
3. If the monitor falls down, lift the arm to keep it in
horizontal position and then use the 13/64in.(5mm)
Alley key [M] to turn the bolt counter-clockwise(“+”
direction) to increase tension of the arm only until the
monitor can stay at the desired height by itself.
M
