Equinox Systems Krypton EQLED21 Manuel utilisateur

KRYPTON

order code: EQLED21

user manual

www.prolight.co.uk

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

CAUTION!

Keep this equipment away from rain,

moisture and liquids.

SAFETY INSTRUCTIONS

Every person involved with the installation, operation & maintenance of this

equipment should:

- Be competent

- Follow the instructions of this manual

CAUTION! TAKE CARE USING THIS EQUIPMENT!

HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!!

Before your initial start-up, please make sure that there is no damage caused during

transportation. Should there be any, consult your dealer and do not use the

equipment.

To maintain the equipment in good working condition and to ensure safe operation, it is necessary

for the user to follow the safety instructions and warning notes written in this manual.

Please note that damages caused by user modications to this equipment are not

subject to warranty.

Equinox Krypton Safety

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused

by the non-observance of this manual or any unauthorised modication to the

equipment.

• Never let the power-cable come into contact with other cables. Handle the power-cable

and all mains voltage connections with particular caution!

• Never remove warning or informative labels from the equipment.

• Do not open the equipment and do not modify the equipment.

• Do not connect this equipment to a dimmer-pack.

• Do not switch the equipment on and off in short intervals, as this will reduce the

system’s life.

• Only use the equipment indoors.

• Do not expose to ammable sources, liquids or gases.

• Always disconnect the power from the mains when equipment is not in use or before

cleaning! Only handle the power-cable by the plug. Never pull out the plug by pulling the

power-cable.

• Make sure that the available voltage is between 220v/240v.

• Make sure that the power-cable is never crimped or damaged. Check the equipment and

the power-cable periodically.

• If the equipment is dropped or damaged, disconnect the mains power supply immediately.

Have a qualied engineer inspect the equipment before operating again.

• If the equipment has been exposed to drastic temperature uctuation (e.g. after

transportation), do not switch it on immediately. The arising condensation might damage

the equipment. Leave the equipment switched off until it has reached room temperature.

• If your product fails to function correctly, discontinue use immediately. Pack the unit

securely (preferably in the original packing material), and return it to your Prolight dealer

for service.

• Only use fuses of same type and rating.

• Repairs, servicing and power connection must only be carried out by a qualied

technician. THIS UNIT CONTAINS NO USER SERVICEABLE PARTS.

• WARRANTY; One year from date of purchase.

OPERATING DETERMINATIONS

If this equipment is operated in any other way, than those described in this manual,

the product may suffer damage and the warranty becomes void.

Incorrect operation may lead to danger e.g.: short-circuit, burns, electric shocks,

lamp failure etc.

Do not endanger your own safety and the safety of others!

Incorrect installation or use can cause serious damage to people and property.

You should nd inside the Equinox carton the following items:

1, Kryton Unit 2, Power cable 3, Instruction manual

Technical Specications:

Voltage: AC 230 ~ 50Hz

27 Ultra bright 10mm LED’s (R: 9, G: 9, B:9)

Dimensions: 370 x 175 x 155mm

Weight: 3.6Kg

Operating modes: 1, Stand Alone

2, Programme Selection

3, Sound Active

4, Master/Slave

5, DMX-512: 6 channels

Function Settings:

1, Stand Alone, set all dipswitches to off. Then use

dipswitches 5 - 8 to control the speed.(5=slow, 8=fast)

2, Programme Selection, set dipswitches 1,2,3 or 4 to on and all others to off. Then use

dipswitches 5 - 8 to control the speed.(5=slow, 8=fast)

3, Sound Activated 1, set dipswitch 9 to on and all others to off. (colour change)

4, Sound Activated 2, set dipswitch 1 + 9 to on and all others to off. (colour change with dimming)

5, Sound Activated 3, set dipswitch 2 + 9 to on and all others to off. (colour change and colour change with dimming)

6, Master/Slave mode. To set the unit as Master use the Sound or Auto mode as above.

For Slave mode operation, set dipswitch 10 to on and all others to off

7, For DMX operation set dipswitch 10 to on, then set the desired address using dip

switches 1 - 9

When used in DMX mode please follow the channel function chart on the next page:

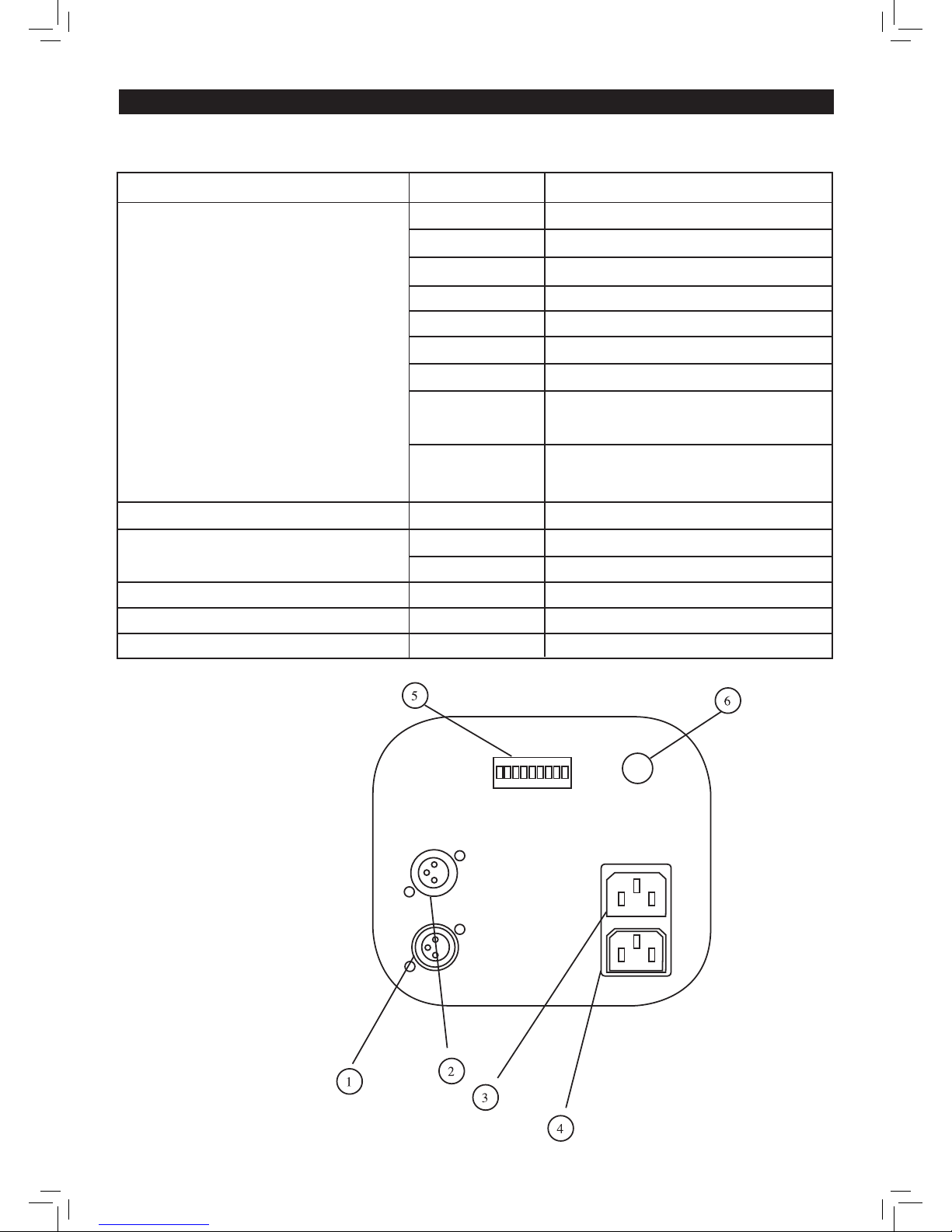

Equinox Kryton Technical specications

Overview:

1, DMX input

2, DMX output

3, Power input

4, Power output

5, Dipswitches

6, Fuse (0.5A)

000-027

028-055

056-083

084-111

112-139

140-167

168-195

196-223

224-255

000-255

000-015

016-255

000-255

DMX table:

Equinox Kryton DMX Tables

Channel DMX Number Function

Channel 1

Channel 2

Dimming

3 colour change

7 colour change

Colour fade

Colour dream

Auto run

7 colour change via Sound active

7colour change dimmimg via

Sound active

7 colour change and 7 colour

dimming via Sound active

Speed

Off

Strobe

Red

Green

Blue

Channel 3

Channel 4

Channel 5

Channel 6

DMX Control Mode

Operating in a DMX control mode environment gives the user the greatest exibility when it comes

to customising or creating a show. In this mode you will be able to control each individual trait of

the xture and each xture independently.

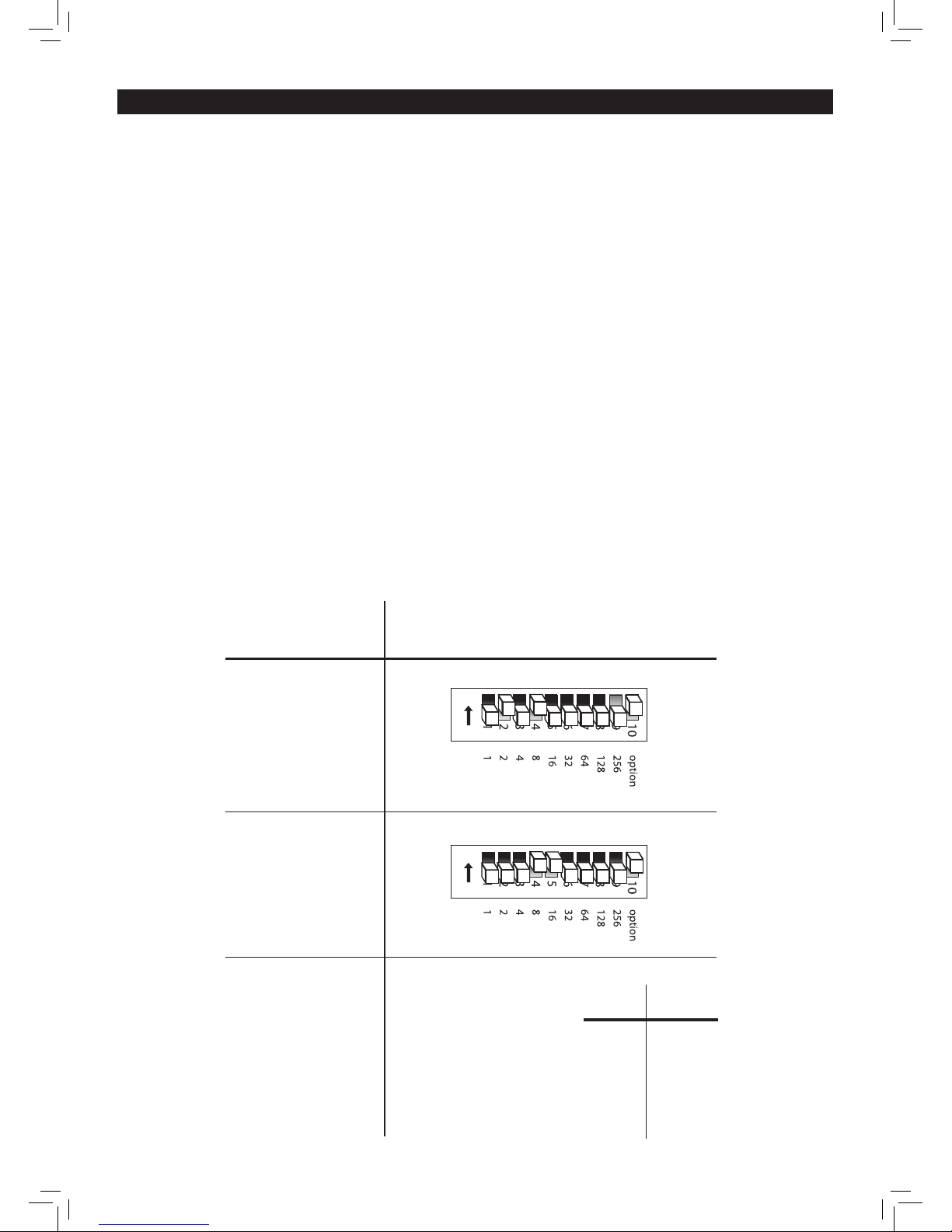

Setting the DMX address

The DMX mode enables the use of a universal DMX controller. Each xture requires a

“start address” from 1- 511. A xture requiring one or more channels for control begins to read the

data on the channel indicated by the start address. For example, a xture that occupies or uses 7

channels of DMX and was addressed to start on DMX channel 100, would read data from

channels: 100,101,102,103,104,105 and 106. Choose a start address so that the channels used

do not overlap. E.g. the next unit in the chain starts at 107.

Set the start address using the group of dip switches located usually on the back of the xture.

Each dipswitch has an associated value. Adding the value of each switch in the ON position will

provide the start address. Determining which switches to toggle ON given a specic start address

can be accomplished in the following manner. By subtracting the largest switch value possible

from the selected start address until zero is achieved.

EXAMPLE STARTING ADDRESS

Address 10

Pin NO: 4 = 8

Pin NO: 2 = 2

Total = 10

Address 24

Pin NO: 5 = 16

Pin NO: 4 = 8

Total = 24

DMX address using

simple maths

233 - (128 = 105,Turn on dip No: 8

105 - (64) = 41,Turn on dip No:7

41 - (32) = 9,Turn on dip No: 6

9 - (8) = 1,Turn on dip No: 4

1 - (1) = 0,Turn on dip No:1

You will most likely use the first available

number which maybe Number 1.This

number was selected for

example purposes

DIP SWITCH (DMX VALUE)

128

256

Equinox Kryton DMX control mode

DMX-512:

• DMX (Digital Multiplex) is a universal protocol used as a form of communication between

intelligent xtures and controllers. A DMX controller sends DMX data instructions form the

controller to the xture. DMX data is sent as serial data that travels from xture to xture via the

DATA “IN” and DATA “OUT” XLR terminals located on all DMX xtures (most controllers only have

a data “out” terminal).

DMX Linking:

• DMX is a language allowing all makes and models of different manufactures to be linked together

and operate from a single controller, as long as all xtures and the controller are DMX compliant.

To ensure proper DMX data transmission, when using several DMX xtures try to use the

shortest cable path possible. The order in which xtures are connected in a DMX line does not

inuence the DMX addressing. For example; a xture assigned to a DMX address of 1 may be

placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a

xture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to

address 1 to that unit, no matter where it is located in the DMX chain.

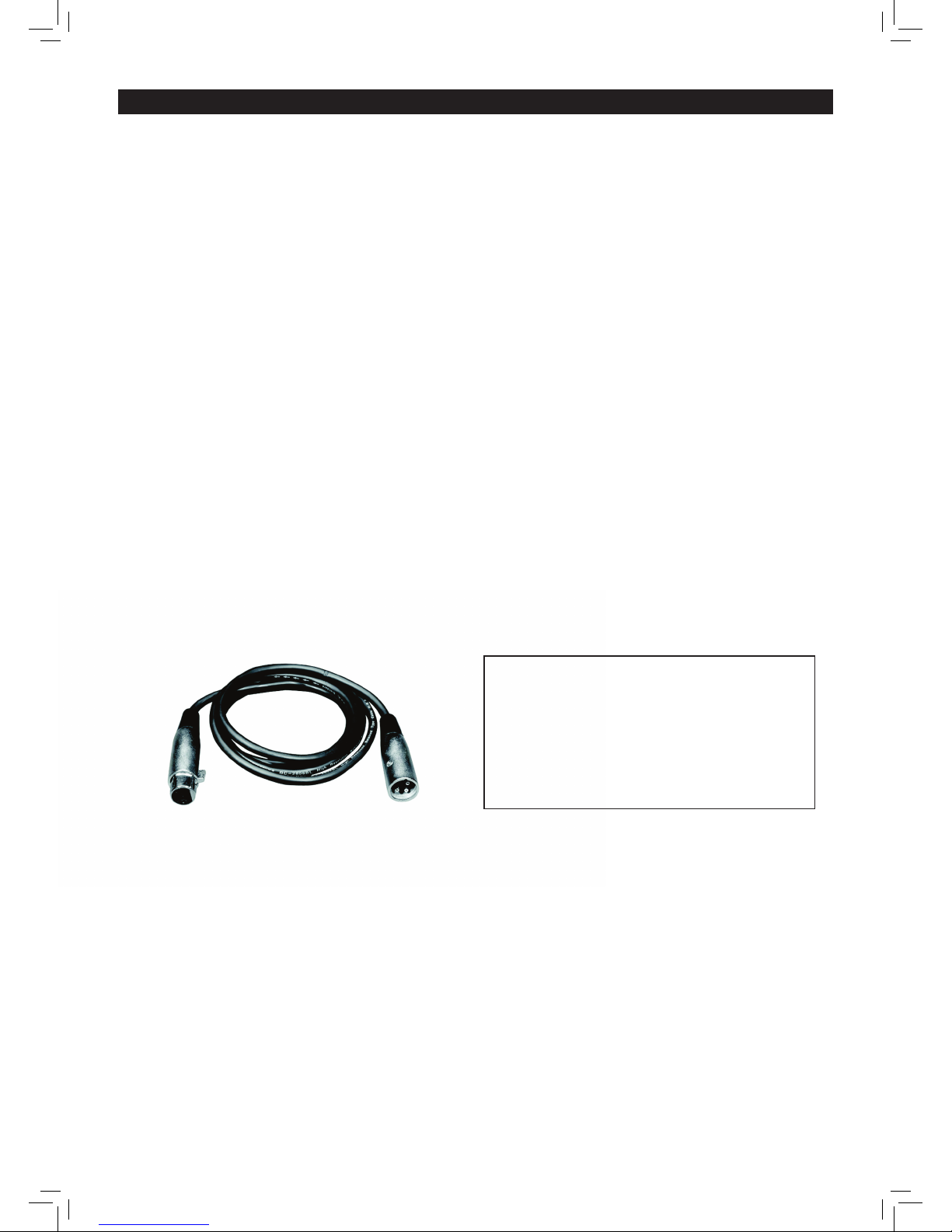

DATA Cable (DMX cable) requirements (for DMX operation):

• The Equinox Kryton can be controlled via DMX-512 protocol. The DMX address is set on the

back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for

data input/output (gure 1).

Figure 1

Also remember that DMX cable must be daisy chained and cannot be split.

Equinox Kryton DMX Set up

Further DMX cables can be purchased from all

good sound and lighting suppliers or Prolight

dealers.

Please quote:

CABL10 – 2M

CABL11 – 5M

CABL12 – 10M

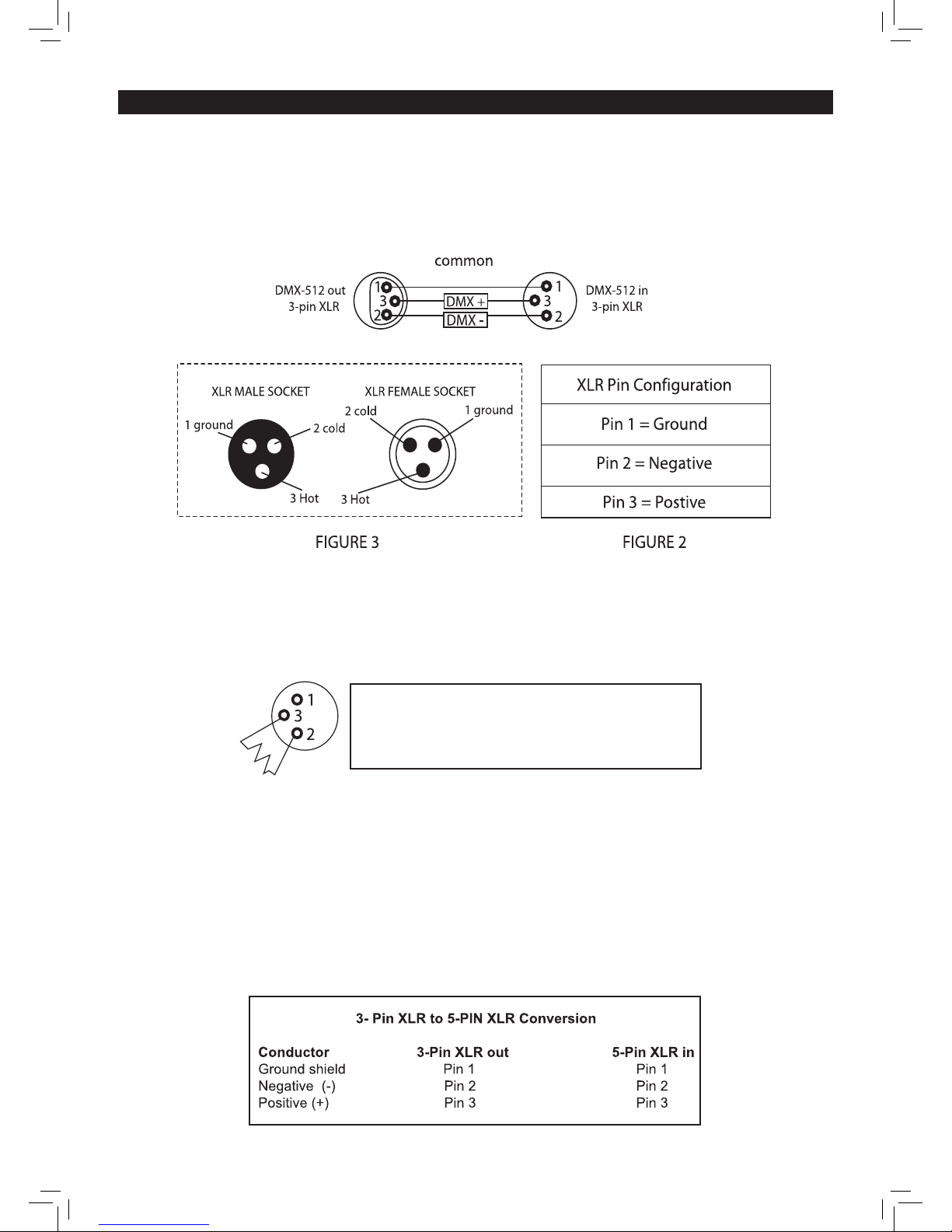

Notice:

• Be sure to follow gures 2 & 3 when making your own cables. Do not connect the cable’s shield

conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer

casing. Grounding the shield could cause a short circuit and erratic behaviour.

Special Note: Line termination:

• When longer runs of cable are used, you may need to use a terminator on the last unit to

avoid erratic behaviour.

Using a cable terminator (part number CABL90) will decrease the possibilities of erratic

behaviour.

5-Pin XLR DMX Connectors:

• Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-Pin

XLR xtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin

XLR connectors in to a 3-pin line a cable adaptor must be used. The Chart below details the

correct cable conversion.

Termination reduces signal transmission problems

and interferance. it is always advisable to connect a

DMX terminal, (resistance 120 Ohm 1/4 W) between

pin 2 (DMX-) and pin 3 (DMX+) of the last fixture.

Equinox Kryton DMX Set up

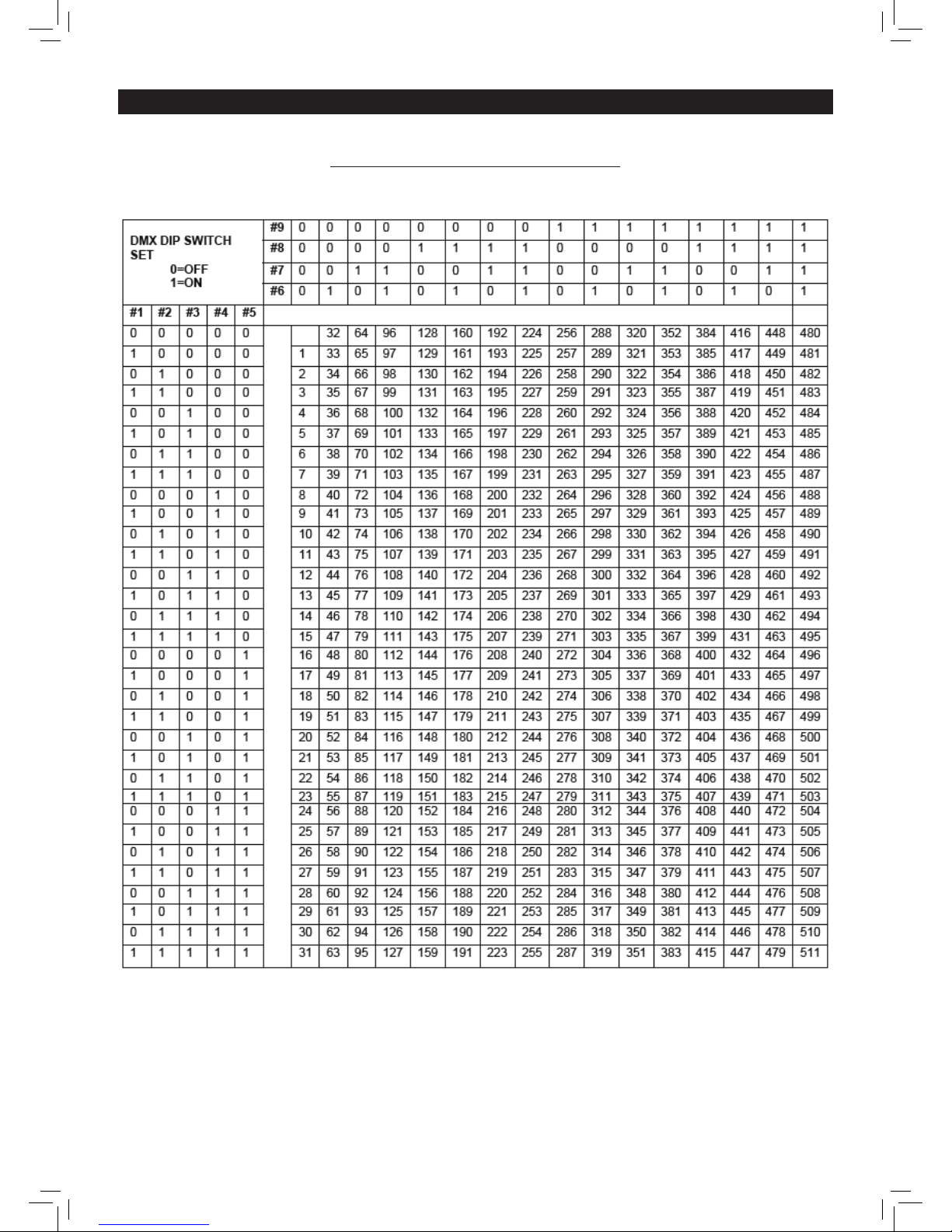

Equinox Kryton Dip Switch Reference Chart

DMX Dip Switch Quick Reference Chart

Dip Switch Position

Dip Switch position DMX Address
