Equinox Systems FUSION SPOT XP Manuel utilisateur

EQUINOX

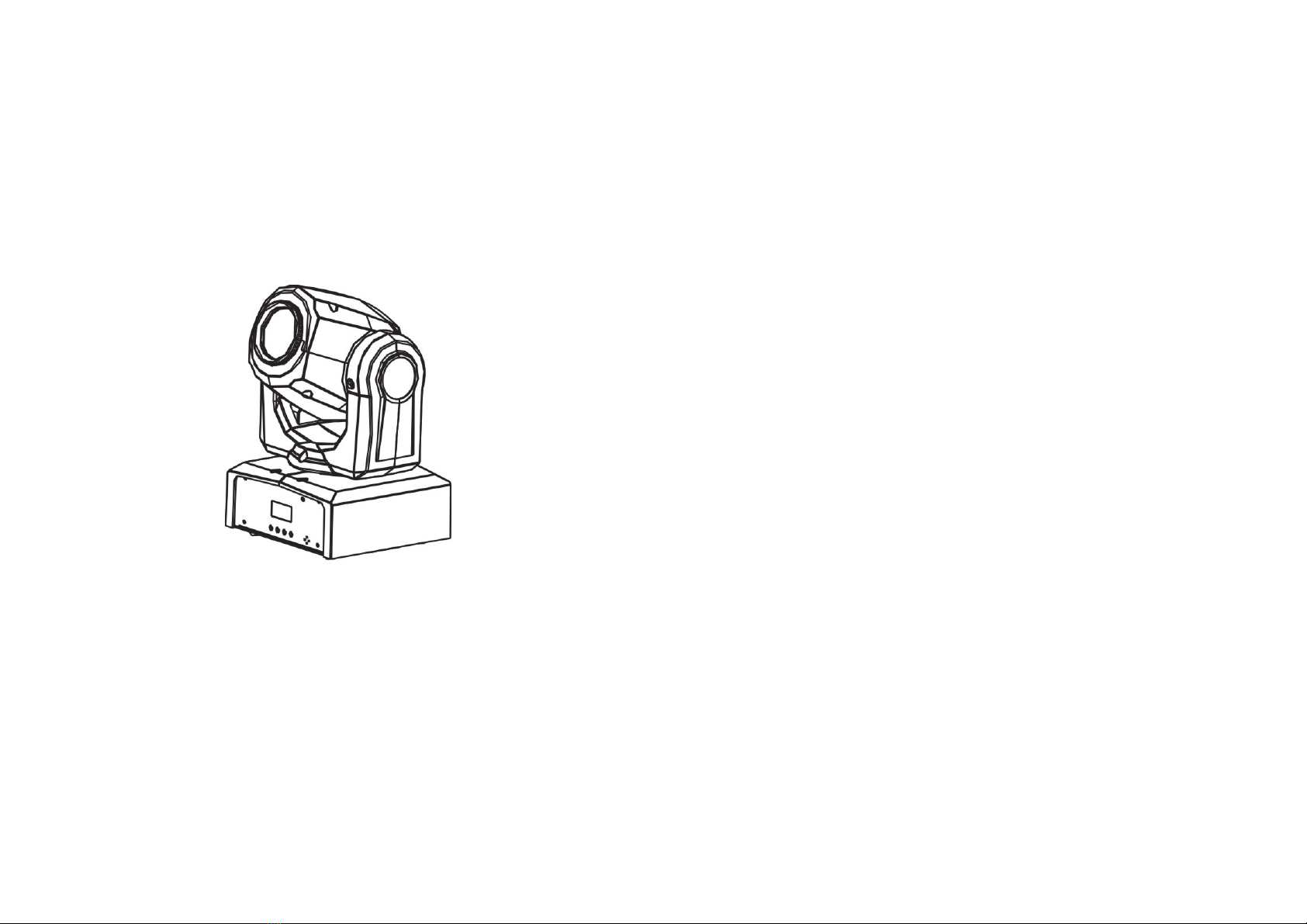

FUSION SPOT XP

User Manual

Order code: EQLED004

Contents

1. Safety Instructions

2. Features & Specifications

3. How To Set The Unit

4. Troubleshooting

5. Fixture Cleaning

1. Safety Instruction

WARNING

Please keep this User Guide for future consultation. If you sell the unit to

another user be sure that they also receive this.

Unpack and check carefully that there is no transportation damage before

using the unit.

! Before operating, ensure that the voltage and frequency of the power

supply match the power requirements of the unit.

! It’s important to ground the yellow/green conductor to earth in order to

avoid electric shock.

! The unit is for indoor use only. Use only in a dry location.

! The unit must be installed in a location with adequate ventilation, at

least 50cm from adjacent surfaces. Be sure that no ventilation slots are

blocked.

! Disconnect the mains power before replacement or servicing.

! Make sure there are no flammable materials close to the unit while

operating as they may cause a fire hazard.

! Always use a safety cable when installing this unit. Do not carry the unit

with its head only; always carry it using the base.

! The maximum ambient temperature is: 40°. Don’t operate it where the

temperature is higher than this.

! In the event of a serious operating problem stop using the unit

immediately. Never try to repair the unit by yourself. Repairs carried out

by unskilled people can lead to damage or malfunction.

Please contact the nearest authorized technical assistance center.

Always use the same type spare parts.

! Do not touch any power cables during operation as the high voltage

may cause an electric shock.

Warning

! To prevent o r r educe t h e risk o f e lect r ical s h ock or f i re, do no t e xpose

the unit to rain or moisture.

Do not open the unit within five minutes after switching off.

! The housing and lenses must be replaced if they are visibly damaged.

! This lighting fixture is for professional use only - it is not designed for or

suitable for household use. The product must be installed by a qualified

technician in accordance with local territory regulations. The safety of

the installation is the responsibility of the installer. The fixture presents

risks of severe injury or death due to fire hazards, electric shock

and falls.

! Warning! Risk Group 2 LED product according to EN 62471. Do not view

the light output with optical instruments or any device that may

concentrate the beam.

! WARRANTY: One year from date of purchase.

Installation

The unit should be mounted via its screw holes onto the bracket. Always

ensure that the unit is firmly fixed to avoid vibration and slipping while

operating. Make sure that the structure to which you are attaching the

unit to is secure and is able to support a weight of 10 times of the unit’s

weight. Always use a safety cable that can hold 12 times of the weight of

the unit when installing the fixture.

The equipment must be installed by professionals and it must be

installed in a place where is out of the reach of people and no one can

pass by or under it.

Please read the instructions carefully as they include

important information about installation, usage and

maintenance.

2. Features & Technical Specifications

◇Control: Sound active, Auto, Master/slave and DMX-512 modes

◇DMX Channels: 1CH/8CH/10CH

◇Gobos: 7 Gobos + open

◇Colors: 7 Colors + Open

◇Electronic dimming: 0-100%

◇Compact size and light-weight

3. How To Set The Unit

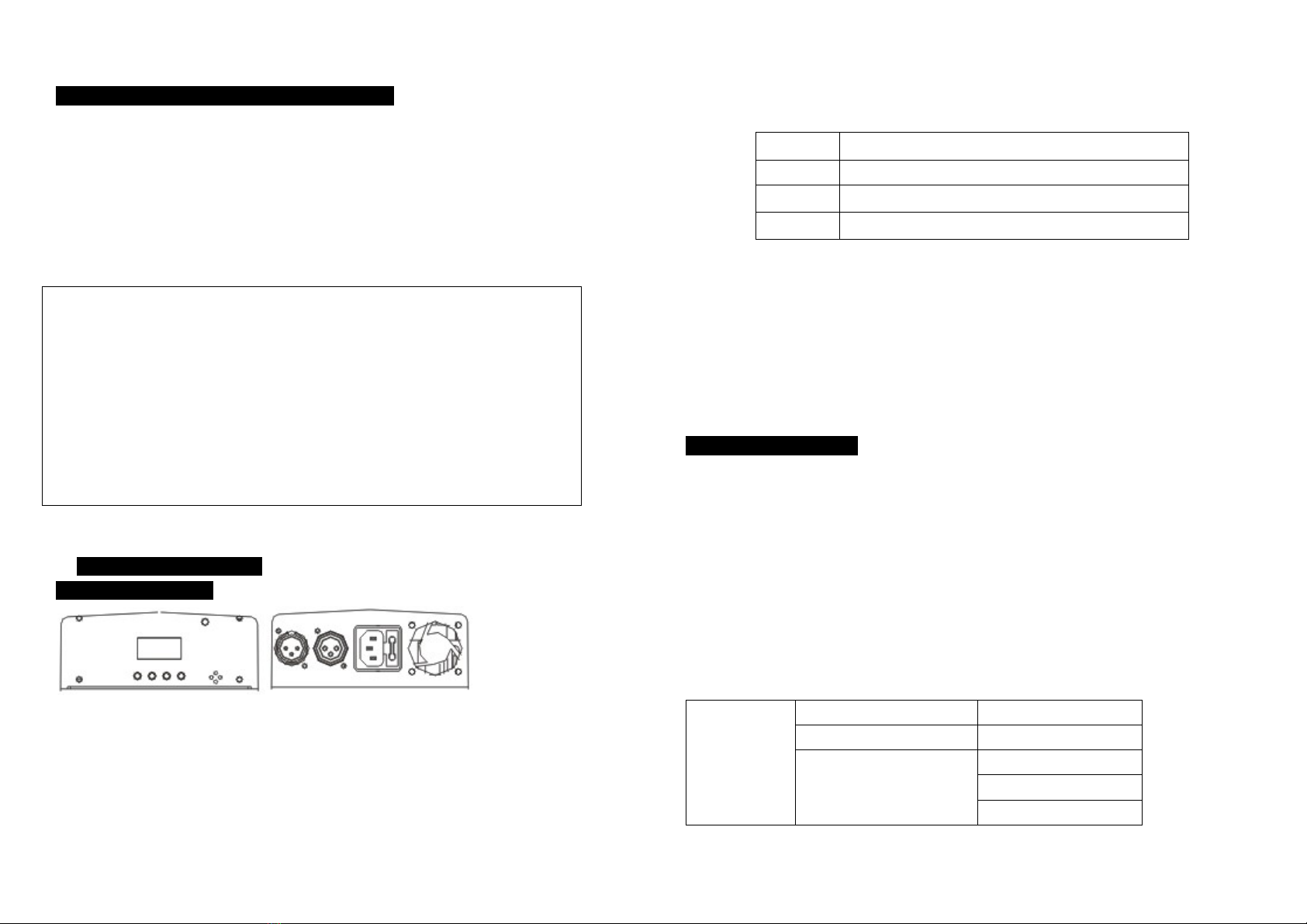

3.1 Control panel

Display

Shows the various menus and selected functions

Buttons

Selects the programming functions

DOWN

To go ba c kward in t h e selec t ed func t ions

To go f o r ward in t h e s elec t ed func t ions

ENTER

Confirms the selected functions

Mains input

Connection to the power supply.

DMX input/output

For DMX 512 linking. Use a 3-pin XLR cables to link to the controller or to

other units.

3.2 Main Functions

To sele c t any of the gi v e n f unct i ons, pr ess the MENU button up to where

the required function is showing on the display. Select the function by

pressing the ENTER button and the display will blink. Use the DOWN and

UP buttons to change the mode. Once the required mode has been

selected, press the ENTER button to confirm. To go back to the functions

without any changes, press the MENU button again. Press and hold the

MENU button for one second or wait for one minute to go back to the

main menu.

The main functions are as below:

ADDR

001-512

CHND

1CH/8CH/10CH

SLMD

MAST

SL1

SL2

Voltage: 100V~240V, 50/60Hz

Fuse: T6.3A 250V

Power consumption: 82W

Light source: 1 x 50W white LED

Dimension: 159 x 147 x 265mm

Weight: 2.6 kg

Pan/Tilt: 540°/190°

Power sockets:IEC power input

XLR sockets: 3-Pin XLR input/output

SHND

SH1

SH2

SH3

SH4

SOUN

OFF

SENS

000-100

LED

OFF

DISP→INVERT

PAN INVERT

YES

TILT INVERT

YES

TEST

Self-Test

VER

Software Version

RSET

DMX Address Setting

Press the MENU button to select . Press the ENTER button and the

display will blink. Use the DOWN and UP buttons to choose the address

to confirm. To go back to the functions without any changes press the

MENU button again. Press and hold the MENU button for one second or

wait for one minute to go back to the main menu.

Channel Mode

Press the MENU button to select . Press the ENTER button and the

display will blink. Use the DOWN and UP buttons to select the

(1 Channel) mode, (8 Channel) mode or (10 Channel) mode.

Once the mode has been selected, press the ENTER button to confirm. To

go back to the functions without any changes press the MENU button

again. Press and hold the MENU button for one second or wait for one

minute to go back to the main menu.

Master Mode or Slave Mode

Press the MENU button to select . Press the ENTER button and the

display will blink. Use the DOWN and UP buttons to select the

(Slave 1), (Slave 2) or (Master) mode. Once the mode has

been selected, press the ENTER button to confirm. To go back to the

functions without any changes press the MENU button again. Press and

hold the MENU button for one second or wait for one minute to go back to

the main menu.

Show Mode

Press the MENU button to select . Press the ENTER button and the

display will blink. Use the DOWN and UP buttons to select the

(show 1) or (show 2) or (show 3) or (show 4) mode.

Once the mode has been selected, press the ENTER button to confirm. To

go back to the functions without any changes press the MENU button

again. Press and hold the MENU button for one second or wait for one

minute to go back to the main menu.

Sound Mode

Press the MENU button to select . Press the ENTER button and the

display will blink. Use the DOWN and UP buttons to select the

(sound on) or (sound off) mode. Once the mode has been

selected, press the ENTER button to confirm. To go back to the functions

without any changes press the MENU button again. Press and hold the

MENU button for one second or wait for one minute to go back to the

main menu.

Sound Sensitivity

Press the MENU and use the UP and DOWN buttons to select and

select the sound sensitivity between value 0 and 100. Press the ENTER

button for confirmation after value selection. To go ba c k to the f u nctio n s

without any changes press the MENU button again.

Led Display

Press the MENU button to select . Press the ENTER button and the

display will blink. Use the DOWN and UP buttons to select the

(Led display on) or (Led display off) mode. Once the mode has

been selected, press the ENTER button to confirm. To go back to the

functions without any changes press the MENU button again. Press and

hold the MENU button for one second or wait for one minute to go back to

the main menu.

Display Inversion

Press the MENU button to select . Press the ENTER button to change

the mode (display normal), it will be automatically saved after 8

seconds. Press the ENTER button again to select the mode (display

inversion). To go back to the functions press the MENU button. Press and

hold the MENU button for one second or wait for one minute to go back to

the main menu.

Display normal mode is for floor standing the unit.

Display inversion mode is for hanging the unit upside down.

Pan Inversion

Press the MENU button to select . Press the ENTER button and the

display will blink. Use the DOWN and UP buttons to select the

(normal) or (pan inversion) mode. Once the mode has been

selected, press the ENTER button to confirm. To go back to the functions

without any changes press the MENU button again. Press and hold the

MENU button for one second or wait for one minute to go back to the

main menu.

Tilt Inversion

Press the MENU button to select . Press the ENTER button and the

display will blink. Use the DOWN and UP buttons to select the

(normal) or (tilt inversion) mode. Once the mode has been

selected, press the ENTER button to confirm. To go back to the functions

without any change press the MENU button again. Press and hold the

MENU button for one second or wait for one minute to go back to the

main menu.

Auto-Test

Press the MENU button to select . Press the ENTER button and the

unit will run a self-test with its built-in programs. To go back to the

functions without any changes press the MENU button again. Press and

hold the MENU button for one second or wait for one minute to go back to

the main menu.

Software version

Press the MENU button up to when the is blinking on the display.

Pressing ENTER button and the display will show the version of software of

the unit. To go back to the functions press the MENU button.

Reset

Press the MENU button to select . Press the ENTER button and all

channels of the unit will return to their standard position.

4. How To Control The Unit

1. Master/slave built-in preprogram function

2. Universal DMX controller

There is no need to turn the unit off when you change the DMX address as

new DMX address setting will take effect at once. Every time you turn the

unit on, it will show “ ”on the display and move all the motors to

their ‘home’ position and you may hear some noises for about 20 seconds.

After that the unit will be ready to receive a DMX signal or run the built in

programs.

4.1 Master/Slave Built In Preprogrammed Function

By linking the units in master/slave connection, the first unit will control

the other units to give an automatic, sound activated, synchronized light

show. This function is good when you want an instant show. You have to

set the first unit as master and select show 1, show 2, show 3 or show

4from the Show Mode. The other unigts must be set to either Slave 1

(normal) or Slave 2 (2 light show) mode. A DMX cable between the units

for daisy chaining is needed.

2-light show

In slave mode, Slave 1 means the unit works normally and Slave 2

means 2-light show. In order to create a great light show, you can set

Slave 2 on the second unit to get a random mirror image of master unit

includes pan and tilt inversion.

4.2 DMX Controller

By using a universal DMX controller to control the units, you will need to

set a DMX address from 1 to 512 so that the units can receive a DMX

signal. Press the MENU button until is showing on the display.

Press the ENTER button and the display will blink. Use the DOWN and

UP buttons to change the DMX-512 address. Once the address has been

selected, press the ENTER button to confirm. To go back to the functions

without any changes press the MENU button again. Press and hold the

MENU button one second or wait for one minute to go back to the main

menu.

Please refer to the below diagram to address your first 4 units：

Channel

mode

Unit 1

Address

Unit 2

Address

Unit 3

Address

Unit 4

Address

1 channel

8 channel

10 channel

4.3 DMX 512 Configuration

1 CHANNEL MODE

8 CHANNEL MODE

Channel

Function

Value

Percent / Setting

Pan

000-255

Pan 0°~ 540°

Tilt

000-255

Tilt 0°~ 190°

Colour

000-007

008-014

015-021

022-028

029-035

036-042

043-049

050-056

057-127

128-189

190-193

194-255

White

Light Blue

Pink

Orange

Green

Blue

Yellow

Red

Split colors

Color Scroll Fast to Slow

Stop

Color Scroll Slow to Fast

Gobo

000-007

008-015

016-023

024-031

032-039

040-047

048-055

056-063

064-071

072-079

080-087

088-095

096-103

104-111

112-119

120-127

128-189

190-193

194-255

120-127

128-189

190-193

194-255

Gobo 1 (Open)

Gobo 2

Gobo 3

Gobo 4

Gobo 5

Gobo 6

Gobo 7

Gobo 8

Gobo 1 Shake

Gobo 2 Shake

Gobo 3 Shake

Gobo 4 Shake

Gobo 5 Shake

Gobo 6 Shake

Gobo 7 Shake

Gobo 8 Shake

Gobo Scroll, Fast to Slow

Stop

Gobo Scroll , Slow to Fast

Gobo 8 Shake

Gobo Scroll, Fast to Slow

Stop

Gobo Scroll , Slow to Fast

Shutter

000-007

008-015

016-131

132-139

140-181

182-189

190-231

232-239

240-247

248-255

Open

Strobe Slow->Fast

Open

Fast Close Slow Open

Open

Fast Open Slow Close

Open

Random Strobe

Open

Pan/Tilt Speed

000-255

Fast -> Slow

Channel

Function

Value

Blackout

000-007

Show 1

008-067

Show 2

068-127

Show 3

128-187

Show 4

188-247

Random shows

248-255

Function

000-069

070-079

080-089

090-099

100-109

110-119

120-199

200-209

210-249

250-255

Null

Blackout while Pan/Tilt Move

Null

Blackout when Color changes

Null

Blackout when Gobo changes

Null

Reset All

Null

Sound Active

Dimmer

000-255

0~100%

10 CHANNEL MODE

Channel

Function

Value

Percent / Setting

Pan1

000 - 255

Pan 0°~ 540°

Pan Fine

000 - 255

0~100%

Tilt

000-255

Tilt 0°~ 190°

Tilt Fine

000-255

0~100%

Colour

000-007

008-014

015-021

022-028

029-035

036-042

043-049

050-056

057-127

128-189

190-193

194-255

White

Light Blue

Pink

Orange

Green

Blue

Yellow

Red

Split colors

Color Scroll Fast to Slow

Stop

Color Scroll Slow to Fast

Gobo

000-007

008-015

016-023

024-031

032-039

040-047

Gobo 1 (Open)

Gobo 2

Gobo 3

Gobo 4

Gobo 5

Gobo 6

048-055

056-063

064-071

072-079

080-087

088-095

096-103

104-111

112-119

120-127

128-189

190-193

194-255

Gobo 7

Gobo 8

Gobo 1 Shake

Gobo 2 Shake

Gobo 3 Shake

Gobo 4 Shake

Gobo 5 Shake

Gobo 6 Shake

Gobo 7 Shake

Gobo 8 Shake

Gobo Scroll, Fast to Slow

Stop

Gobo Scroll , Slow to Fast

Shutter

000-007

008-015

016-131

132-139

140-181

182-189

190-231

232-239

240-247

248-255

Open

Strobe Slow->Fast

Open

Fast Close Slow Open

Open

Fast Open Slow Close

Open

Random Strobe

Open

Pan/Tilt Speed

000-255

Fast -> Slow

Function

000-069

070-079

080-089

090-099

100-109

110-119

120-199

200-209

210-249

250-255

Null

Blackout while Pan/Tilt Move

Null

Blackout when Color changes

Null

Blackout when Gobo changes

Null

Reset All

Null

Sound Active

Dimmer

000-255

0~100%

4.Troubleshooting

Following are a few common problems that may occur during

operation and some suggestions for easy troubleshooting:

A. The unit does not work, no light and the fan does not work

1. Check the connection of the power and the main fuse.

B. Not responding to DMX controller

1. DMX LED should be on. If not, check DMX cables to see if linked

correctly.

2. If the DMX address is showing but no response to the controller,

check the address settings and DMX polarity.

3. Try another DMX controller.

C. No response to the sound

1. Make sure the unit is not receiving a DMX signal.

2. Check the microphone to see if it is good by tapping it. The

microphone is located on the bottom plate of the unit.

5. Fixture Cleaning

The cleaning of external optical lenses must be carried out periodically to

optimize light output. Cleaning frequency depends on the environment in

which the fixture operates: damp, smoky or particularly dirty surrounding

can cause a greater accumulation of dirt on the unit’s optics.

Clean with a soft cloth using normal glass cleaning fluid or mild soapy

water.

! Always dry the parts carefully.

! Clean the external optics at least every 20 days.

---------------------www.prolight.co.uk----------------------------------

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Equinox Systems Équipement d'éclairage

Equinox Systems

Equinox Systems 400W UV Cannon Manuel utilisateur

Equinox Systems

Equinox Systems CAPRICORN EQLA22 Manuel utilisateur

Equinox Systems

Equinox Systems SpectraPix Lithium Batten Manuel utilisateur

Equinox Systems

Equinox Systems PREDATOR Manuel utilisateur

Equinox Systems

Equinox Systems FUSION SPOT MAX MKII Manuel utilisateur

Equinox Systems

Equinox Systems Terminator 2 Manuel utilisateur

Equinox Systems

Equinox Systems EQLED032A Manuel utilisateur

Equinox Systems

Equinox Systems Cirrus Manuel utilisateur

Equinox Systems

Equinox Systems Domin8r IIEQLED53 Manuel utilisateur

Equinox Systems

Equinox Systems Interceptor MKII Manuel utilisateur

Equinox Systems

Equinox Systems Megabar System EQLED63 Manuel utilisateur

Equinox Systems

Equinox Systems QUADZILLA Manuel utilisateur

Equinox Systems

Equinox Systems TRICLOPS EQLED50 Manuel utilisateur

Equinox Systems

Equinox Systems Party Par EQLED015 Manuel utilisateur

Equinox Systems

Equinox Systems Fusion 260ZR Manuel utilisateur

Equinox Systems

Equinox Systems Kaleido EQLED85 Manuel utilisateur

Equinox Systems

Equinox Systems Fusion 150 Manuel utilisateur

Equinox Systems

Equinox Systems Comet EQLED29 Manuel utilisateur

Equinox Systems

Equinox Systems EQLED040 Manuel utilisateur

Equinox Systems

Equinox Systems PIXELpoint Batten Manuel utilisateur

Equinox Systems

Equinox Systems Power Par Series Manuel utilisateur

Equinox Systems

Equinox Systems KAMIKAZE EQLA14 Manuel utilisateur

Equinox Systems

Equinox Systems EQLED013 Manuel utilisateur

Equinox Systems

Equinox Systems QUADRILLE Manuel utilisateur

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur
