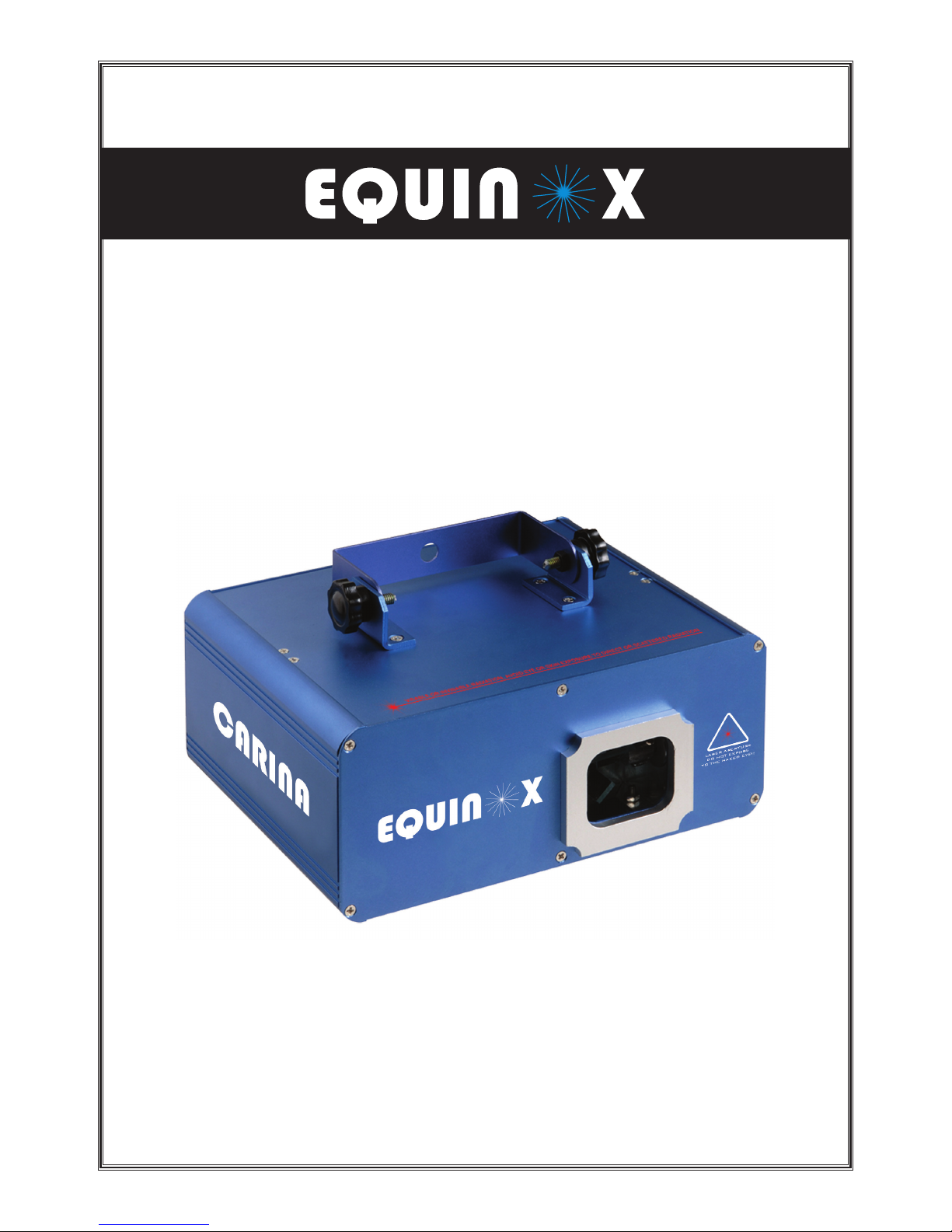

CARINA

order code: EQLA03

user manual

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

CAUTION!

Keep this equipment away from rain,

moisture and liquids.

SAFETY INSTRUCTIONS

Every person involved with the installation, operation & maintenance of this

equipment should:

- Be competent

- Follow the instructions of this manual

CAUTION! TAKE CARE USING THIS EQUIPMENT!

HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!!

Before your initial start-up, please make sure that there is no damage caused during

transportation. Should there be any, consult your dealer and do not use the

equipment.

To maintain the equipment in good working condition and to ensure safe operation, it is necessary

for the user to follow the safety instructions and warning notes written in this manual.

Please note that damages caused by user modications to this equipment are not

subject to warranty.

Equinox Carina Laser Safety

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused

by the non-observance of this manual or any unauthorised modication to the

equipment.

• Never let the power-cable come into contact with other cables. Handle the power-cable

and all mains voltage connections with particular caution!

• Never remove warning or informative labels from the equipment.

• Do not open the equipment and do not modify the equipment.

• Do not connect this equipment to a dimmer-pack.

• Do not switch the equipment on and off in short intervals, as this will reduce the

system’s life.

• Only use the equipment indoors.

• Do not expose to ammable sources, liquids or gases.

• Always disconnect the power from the mains when equipment is not in use or before

cleaning! Only handle the power-cable by the plug. Never pull out the plug by pulling the

power-cable.

• Make sure that the available voltage is between 220v/240v.

• Make sure that the power-cable is never crimped or damaged. Check the equipment and

the power-cable periodically.

• If the equipment is dropped or damaged, disconnect the mains power supply immediately.

Have a qualied engineer inspect the equipment before operating again.

• If the equipment has been exposed to drastic temperature uctuation (e.g. after

transportation), do not switch it on immediately. The arising condensation might damage

the equipment. Leave the equipment switched off until it has reached room temperature.

• If your product fails to function correctly, discontinue use immediately. Pack the unit

securely (preferably in the original packing material), and return it to your Prolight dealer

for service.

• Only use fuses of same type and rating.

• Repairs, servicing and power connection must only be carried out by a qualied

technician. THIS UNIT CONTAINS NO USER SERVICEABLE PARTS.

• WARRANTY; One year from date of purchase.

OPERATING DETERMINATIONS

If this equipment is operated in any other way, than those described in this manual,

the product may suffer damage and the warranty becomes void.

Incorrect operation may lead to danger e.g.: short-circuit, burns, electric shocks,

lamp failure etc.

Do not endanger your own safety and the safety of others!

Incorrect installation or use can cause serious damage to people and property.

You should nd inside the Laser carton the following items:

1, Pegasus Laser 2, Power cable

3, DMX cable 4, Instruction manual

Technical Specications:

Voltage: 240V AC 50Hz

Laser diode: 50mW Green (532nm) DPSS laser

Operating modes: 1, Stand Alone Sound Activated

2, Stand Alone Auto programme

3, Master/Slave

4, DMX-512 8 channels

Features:

Over 50 laser patterns, with adjustable scan rate, position and size giving a total of over 200

effects.

Function Settings:

1, Stand Alone Sound Activated, set all dip switches to off. Then use the

sensitivity control to set the desired activation level.

2, Stand Alone Auto Programme change, set dip switch 10 to on and all others to off.

Turn the sensitivity control to full on, the unit will then scroll through it’s internal patterns.

3, Master/Slave mode. To set the unit as Master use the Sound or Auto mode as above.

For Slave mode operation, set dip switch 1 to on and all others to off

4, For DMX operation set dip switch 10 to off, then set the desired address using dip

switches 1 - 9

When used in DMX mode please note:

Set Channel 1 to DMX No: 0to 50 for sound active mode.

Set Channel 1 to DMX No: 51 to 101 then using Channel 2 you can scroll through the 58 patterns

as listed below.

Set Channel 1 to DMX No: 102 to 152 then using Channel 3 you can obtain the single shapes

listed. With the single shapes selected you can then use

- Channel 4 to zoom

- Channel 5 for rotation

- Channel 6 for X movement

- Channel 7 for Y movement

- Channel 8 for scan speed

Set Channel 1 to DMX No: 153 to 203, the laser will then go into Auto run mode

Set Channel 1 to DMX No: 204 to 255, the laser will then go into blackout mode.

Note: The maximum number of units that can be linked in Master/Slave mode is 32. The patterns

are not perfect (squares, circles, triangles etc) as the unit uses stepper motors and not Galvo’s but

are ideal for use with smoke machines and to make lines and tunnels etc.

When using long DMX runs or multiple heads. A DMX terminator plug should be used on the last

head in the chain.

Equinox Carina Laser Technical specications

0-50

51-101

102-152

153-203

204-255

0-03

04-07

08-11

12-15

16-19

20-23

24-27

28-31

32-35

36-39

40-43

44-47

48-51

52-55

56-59

60-63

64-67

68-71

72-75

76-79

80-83

84-87

88-91

92-95

96-99

100-103

104-107

108-111

112-115

116-119

DMX table:

Equinox Carina Laser DMX Tables

Channel DMX Number Function

Channel 1

Channel 2

(Pattern mode 1)

Sound Activated mode

Pattern mode 1

Pattern mode 2

Auto running

Blackout

Circle zoom in/out

Short line rotation

Circle rotates around “X” axis

Circle rotates around “Y” axis

Circle

Circle rotates around “Y” axis

Circle moves left and right

Half circle

Half circle rotates around X” axis

Half circle rotates around “Y” axis

Half circle moves right and left

“W” rotation around “X” axis

“W” rotation around “Y” axis

Wave rotation around “X” axis

Line ows like waves

Waves move left and right

Square zoom in

Square moves around “X” axis

Square moves around “Y” axis

Square zoom out and rotation

Triangle zoom in/out

Triangle zoom out and rotation

Moving triangle

Moving line

Moving pentangle

Pentangle moves right and left

Line moves up and down

Line rotation

Line rotates around “Y” axis

Vertical line moves right to left

120-123

124-127

128-131

132-135

136-139

140-143

144-147

148-151

152-155

156-159

160-163

164-167

168-171

172-175

176-179

180-183

184-187

188-191

192-195

196-199

200-203

204-207

208-211

212-215

216-219

220-223

224-227

228-255

0-50

51-101

102-152

153-203

204-255

0-255

DMX table Cont:

Equinox Carina Laser DMX Tables

Channel DMX Number Function

Channel 2

vertical line rotates around “X” axis

Rotating leaf

Leaf zoom in/out

Hexagon zoom in/out

Hexagon Rotation

Small circle moves left and right

Small circle moves around

Dot move around

Short line ows like wave

Cloud moves left and right

Cloud rotation around Y axis

Cloud zoom out around X axis

Moving “V” shape

“V” rotation around “X” axis

“V” rotation around “Y” axis

“V” zoom in/out

“V” rotation around “Z” axis

Single wave rotation

Short line ows around single wave

Short line ows around double wave

Double wave zoom in

Rotating “+” shape

Zooming “+” sign

Line rotation around centre

Short line ows around “8” shape

“8” rotation

Rectangle rotation

Single shape 1 (line)

Single shape 2 (circle)

Single shape 3 (square)

Single shape 4 (dot)

Single shape 5 (triangle)

Single shape zoom in/out

Channel 3

Channel 4

0-49

50-149

150-255

0-255

DMX table Cont:

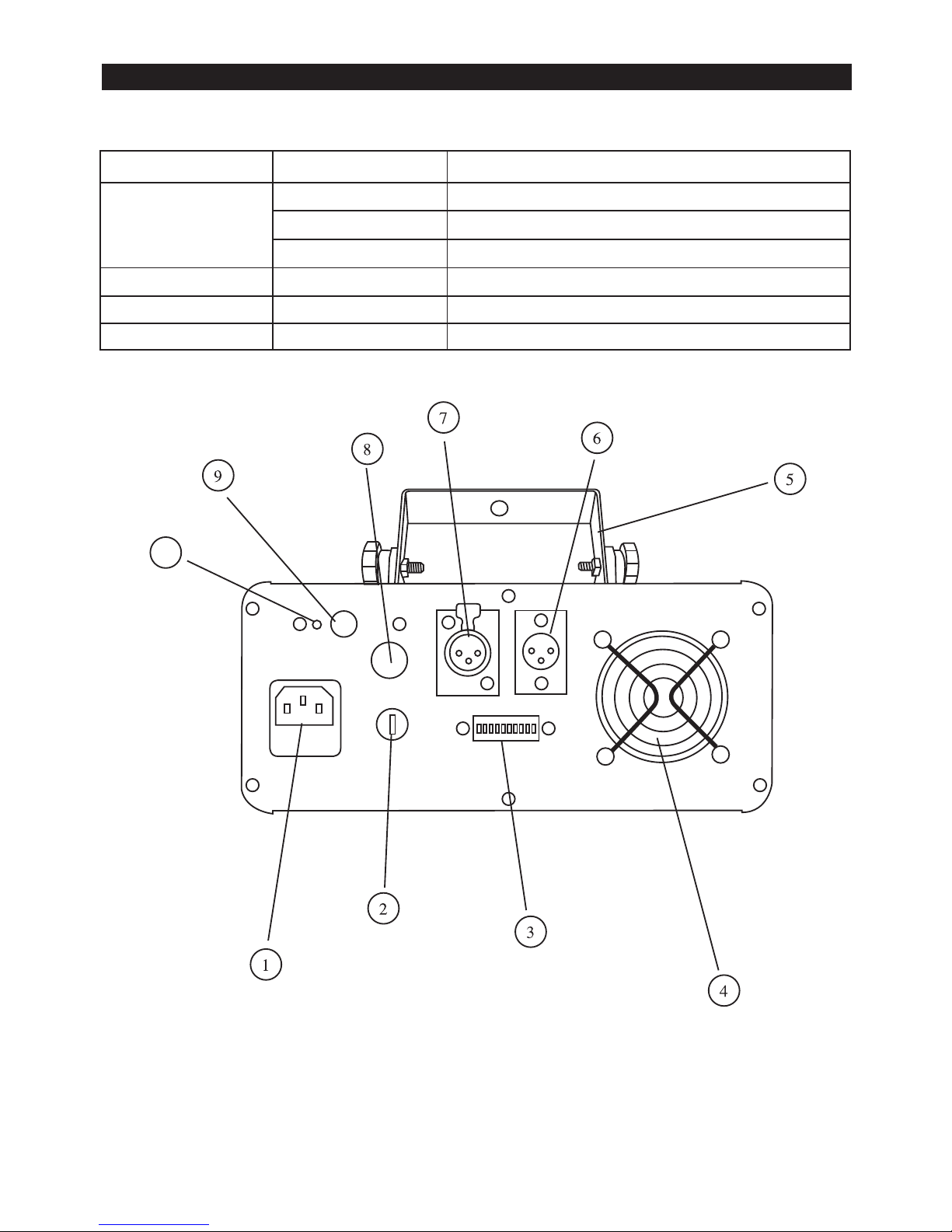

Back view:

Identication:

1, Power input

2, Power switch

3, Dip switches

4, Cooling fan

5, Hanging bracket

6, DMX in

7, DMX out

8, Volume Control

9, Microphone

10, LED power indicator

Equinox Carina Laser DMX Tables

Channel DMX Number Function

Channel 6

Single shape stops rotation

Single shape rotate anti-clockwise

Single shape rotate clockwise

Single shape moves around X axis

Single shape moves around Y axis

Controls the speed of single shape scanning

Channel 7

Channel 8

Channel 5

DMX Control Mode

Operating in a DMX control mode environment gives the user the greatest exibility when it comes

to customising or creating a show. In this mode you will be able to control each individual trait of

the xture and each xture independently.

Setting the DMX address

The DMX mode enables the use of a universal DMX controller. Each xture requires a

“start address” from 1- 511. A xture requiring one or more channels for control begins to read the

data on the channel indicated by the start address. For example, a xture that occupies or uses 7

channels of DMX and was addressed to start on DMX channel 100, would read data from

channels: 100,101,102,103,104,105 and 106. Choose a start address so that the channels used

do not overlap. E.g. the next unit in the chain starts at 107.

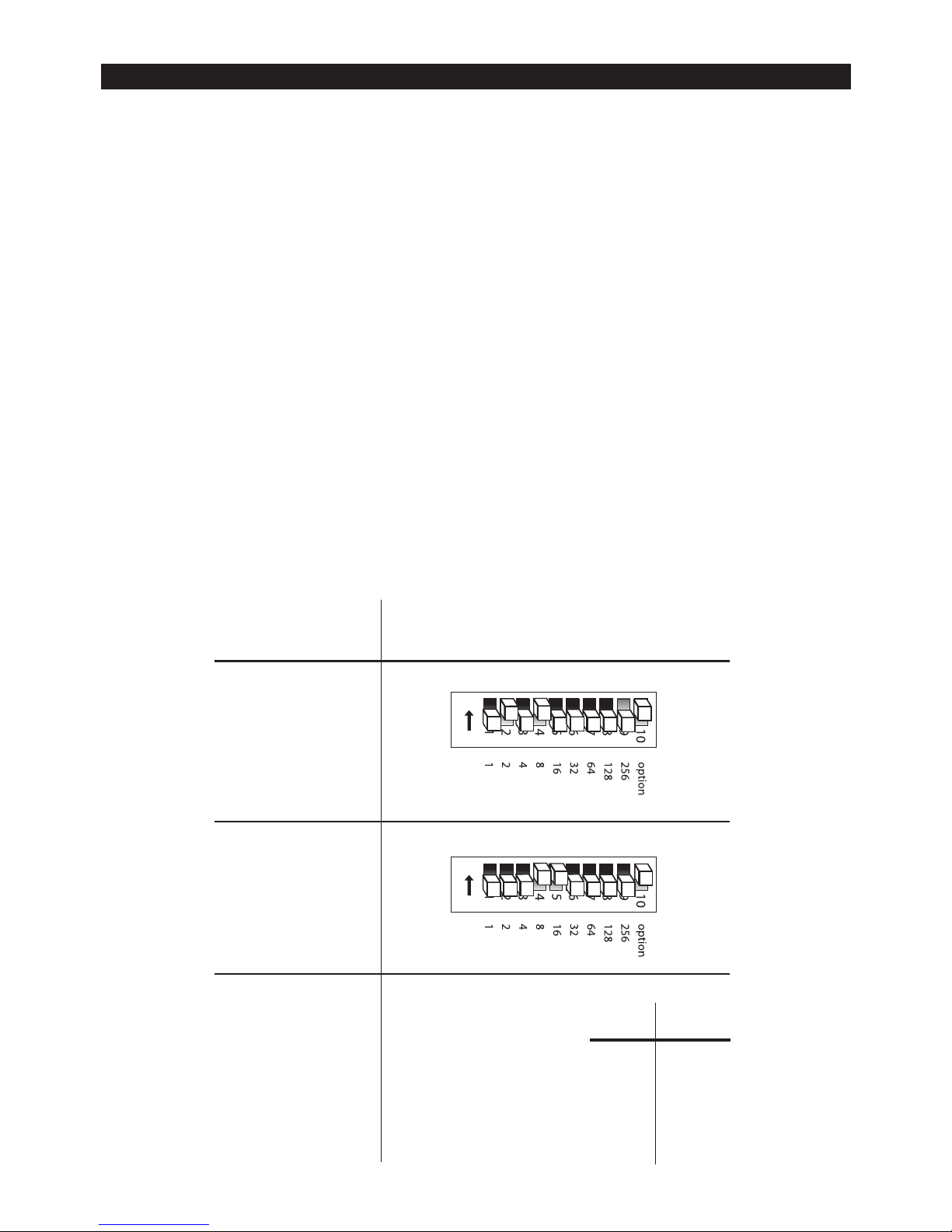

Set the start address using the group of dip switches located usually on the back of the xture.

Each dipswitch has an associated value. Adding the value of each switch in the ON position will

provide the start address. Determining which switches to toggle ON given a specic start address

can be accomplished in the following manner. By subtracting the largest switch value possible

from the selected start address until zero is achieved.

EXAMPLE STARTING ADDRESS

Address 10

Pin NO: 4 = 8

Pin NO: 2 = 2

Total = 10

Address 24

Pin NO: 5 = 16

Pin NO: 4 = 8

Total = 24

DMX address using

simple maths

233 - (128 = 105,Turn on dip No: 8

105 - (64) = 41,Turn on dip No:7

41 - (32) = 9,Turn on dip No: 6

9 - (8) = 1,Turn on dip No: 4

1 - (1) = 0,Turn on dip No:1

You will most likely use the first available

number which maybe Number 1.This

number was selected for

example purposes

DIP SWITCH (DMX VALUE)

128

256

Equinox Carina Laser DMX control mode

DMX-512:

• DMX (Digital Multiplex) is a universal protocol used as a form of communication between

intelligent xtures and controllers. A DMX controller sends DMX data instructions form the

controller to the xture. DMX data is sent as serial data that travels from xture to xture via the

DATA “IN” and DATA “OUT” XLR terminals located on all DMX xtures (most controllers only have

a data “out” terminal).

DMX Linking:

• DMX is a language allowing all makes and models of different manufactures to be linked together

and operate from a single controller, as long as all xtures and the controller are DMX compliant.

To ensure proper DMX data transmission, when using several DMX xtures try to use the

shortest cable path possible. The order in which xtures are connected in a DMX line does not

inuence the DMX addressing. For example; a xture assigned to a DMX address of 1 may be

placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a

xture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to

address 1 to that unit, no matter where it is located in the DMX chain.

DATA Cable (DMX cable) requirements (for DMX operation):

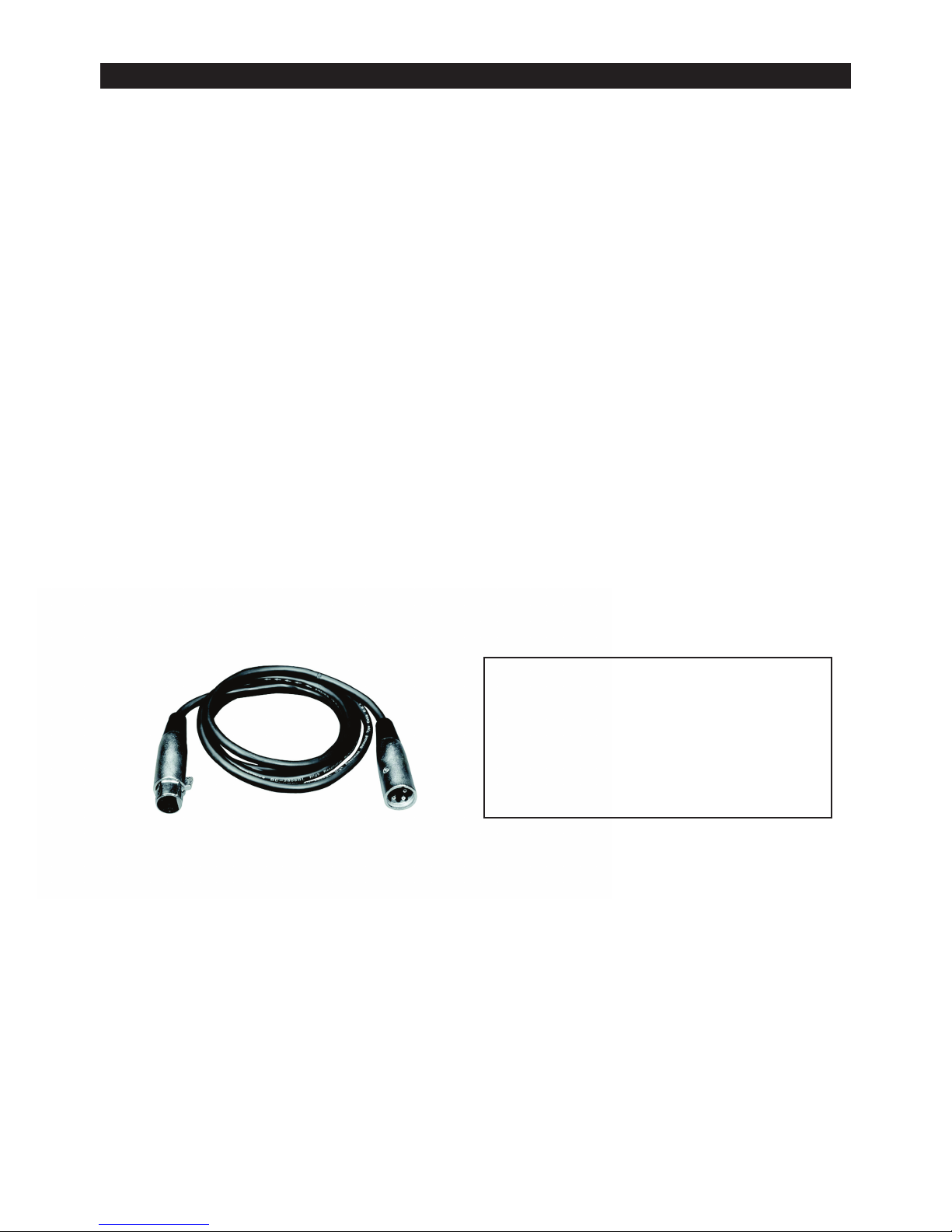

• The Equinox laser can be controlled via DMX-512 protocol. The DMX address is set on the back

of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data

input/output (gure 1).

Figure 1

Also remember that DMX cable must be daisy chained and cannot be split.

Equinox Carina Laser DMX set up

Further DMX cables can be purchased from all

good sound and lighting suppliers or Prolight

dealers.

Please quote:

CABL10 – 2M

CABL11 – 5M

CABL12 – 10M

Notice:

• Be sure to follow gures 2 & 3 when making your own cables. Do not connect the cable’s shield

conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer

casing. Grounding the shield could cause a short circuit and erratic behaviour.

Special Note: Line termination:

• When longer runs of cable are used, you may need to use a terminator on the last unit to

avoid erratic behaviour.

Using a cable terminator (part number CABL90) will decrease the possibilities of erratic

behaviour.

5-Pin XLR DMX Connectors:

• Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-Pin

XLR xtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin

XLR connectors in to a 3-pin line a cable adaptor must be used. The Chart below details the

correct cable conversion.

Termination reduces signal transmission problems

and interferance. it is always advisable to connect a

DMX terminal, (resistance 120 Ohm 1/4 W) between

pin 2 (DMX-) and pin 3 (DMX+) of the last fixture.

Equinox Carina Laser DMX Set Up

Table des matières

Autres manuels Equinox Systems Équipement d'éclairage

Equinox Systems

Equinox Systems COBALT Manuel utilisateur

Equinox Systems

Equinox Systems PEGASUS II Manuel utilisateur

Equinox Systems

Equinox Systems Nova Par 64 Manuel utilisateur

Equinox Systems

Equinox Systems Interceptor MKII Manuel utilisateur

Equinox Systems

Equinox Systems Explo Strobe EX-2500 Manuel utilisateur

Equinox Systems

Equinox Systems Fusion 150 Manuel utilisateur

Equinox Systems

Equinox Systems MidiPar Tri Plus Manuel utilisateur

Equinox Systems

Equinox Systems Goboceptor Manuel utilisateur

Equinox Systems

Equinox Systems EQLED203 Manuel utilisateur

Equinox Systems

Equinox Systems PREDATOR Manuel utilisateur

Equinox Systems

Equinox Systems TRICLOPS EQLED50 Manuel utilisateur

Equinox Systems

Equinox Systems PIXELpoint Batten Manuel utilisateur

Equinox Systems

Equinox Systems Saturn Spot Manuel utilisateur

Equinox Systems

Equinox Systems GEMINI Manuel utilisateur

Equinox Systems

Equinox Systems ATRIA Manuel utilisateur

Equinox Systems

Equinox Systems SpectraPix Lithium Batten Manuel utilisateur

Equinox Systems

Equinox Systems Party Par EQLED015 Manuel utilisateur

Equinox Systems

Equinox Systems ARIES EQLA20 Manuel utilisateur

Equinox Systems

Equinox Systems Power Par Series Manuel utilisateur

Equinox Systems

Equinox Systems UV Mini Batten 9 Manuel utilisateur

Equinox Systems

Equinox Systems NEBULA Manuel utilisateur

Equinox Systems

Equinox Systems Power Flower EQLED77 Manuel utilisateur

Equinox Systems

Equinox Systems Vortex Manuel utilisateur

Equinox Systems

Equinox Systems CONSTELLA Manuel utilisateur

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur
