Epson DM-D500 Series Manuel utilisateur

DM-D500

Installation Guide

401467401

English

form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written

permission of Seiko Epson Corporation. No patent liability is assumed with respect to the use of the information

contained herein. While every precaution has been taken in the preparation of this book, Seiko Epson Corporation

assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use

of the information contained herein.

Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for

damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of

this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to

strictly comply with Seiko Epson Corporation’s operating and maintenance instructions.

Seiko Epson Corporation shall not be liable against any damages or problems arising from the use of any options or

any consumable products other than those designated as Original Epson Products or Epson Approved Products by

Seiko Epson Corporation.

EPSON is a registered trademark of Seiko Epson Corporation in Japan and other countries/regions.

General Notice: Other product and company names used herein are for identification purpose only and may be

trademarks of their respective companies.

NOTICE: The contents of this manual are subject to change without notice.

DM-D500 Installation Guide 1

English

Safety Precautions

This section presents important information intended to ensure

safe and effective use of this product. Read this section carefully,

and store it in an accessible location.

WARNING:

Shut down your equipment immediately if it produces smoke, a strange

odor, or unusual noise. Continued use may lead to fire or electric shock.

Immediately turn the power off and contact your dealer or a SEIKO

EPSON service center for advice.

Never attempt to repair this product yourself. Improper repair work can

be dangerous.

Never disassemble or modify this product. Tampering with this product

may result in injury, fire, or electric shock.

Be sure to use the specified power source. Connection to an improper

power source may cause fire or shock.

Do not allow foreign matter to fall into the equipment. Penetration by

foreign objects may lead to fire or shock.

If water or other liquid spills into this equipment, immediately turn the

power off and contact your dealer or a SEIKO EPSON service center for

advice. Continued usage may lead to fire or shock.

CAUTION:

Do not plug the cable differently from the instruction in this manual.

Wrong connection may cause equipment damage and fire.

Be sure to set this equipment on a firm, stable, horizontal surface.

Product may be damaged or cause injury if it falls.

Do not use in locations subject to high humidity or dust levels. Excessive

humidity and dust may cause equipment damage, fire, or shock.

Do not place heavy objects on top of this product. Equipment may be

damaged and cause injury if it falls.

Do not attach more than one extension support. The product may be

damaged or cause injury if it falls.

A stopper limits the horizontal rotation of the display. Do not try to force

it to turn beyond the limits of the stopper. Doing so may damage the

equipment.

2DM-D500 Installation Guide

English

Unpacking

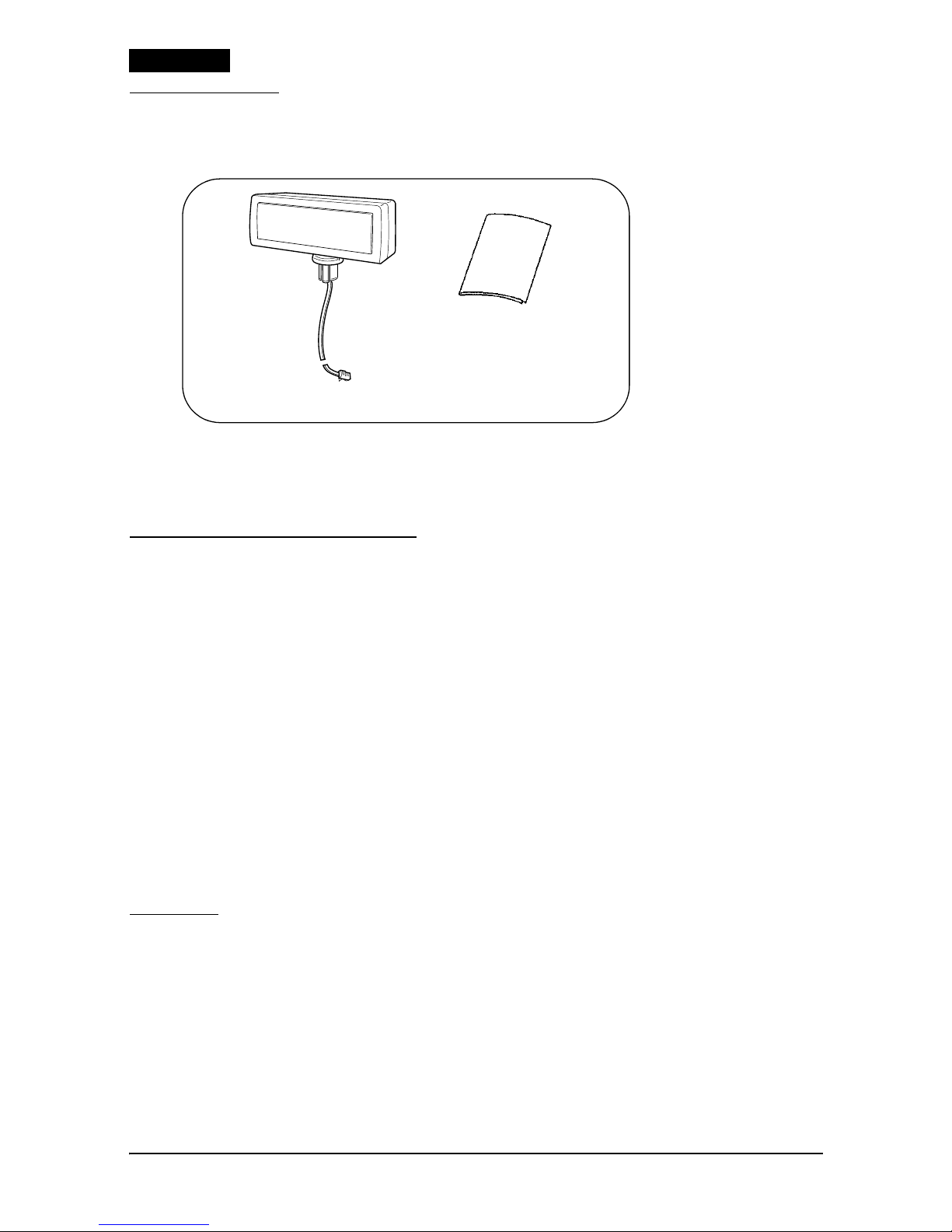

The items shown in illustration 1 are in the box.

Make sure that you have all the items shown, and that none has

been damaged. If you find anything missing or damaged, contact

your DM-D500 dealer.

Cautions on Handling

When you use the DM-D500, note the following points:

❏Avoid locations that are subject to high temperature and

humidity.

❏Avoid dirty and dusty locations.

❏Avoid locations that are unstable or are subject to high levels of

vibration.

❏When connecting or disconnecting cables, make sure that the

power switch of the DM-D500 and printers connected to the

DM-D500 are turned off.

❏Do not drop the DM-D500, because you may damage the built-

in vacuum fluorescent display.

Usage

The DM-D500 can be used with the following equipment.

❏TM-H5000II and TM-J8000 printers. You can attach the

DM-D500 to TM-H5000II and TM-J8000 printers using the

“DM-D pole unit for TM printers (Type B)” (DP-503). (See

page 5.)

User’s Manual

display (DM-D500)

DM-D500 Installation Guide 3

English

❏TM-U950 printer. You can attach the DM-D500 to the TM-U950

printer using the “DM-D pole unit for TM printers (Type A)”

(DP-502). (See page 7.)

❏TM-H6000 series and TM-U675 printers. You can attach the

DM-D500 to TM-H6000 series and TM-U675 printers using the

“DM-D pole unit for TM printers (Type A)” (DP-502). (See

page 9.)

❏TM-T88II, TM-U210, TM-U230, TM-T90, and TM-L90 printers.

You can attach the DM-D500 to these printers using the “DM-D

pole unit for TM printers” (DP-505). (See page 14.)

❏Other TM printers. You can attach the DM-D500 using the

“DM-D pole unit for TM printers (Type A)” (DP-502) and

Velcro tapes or screws. (See page 18.)

❏DM-D stand. You can attach the DM-D500 directly to the

DM-D stand using the “DM-D stand unit for DM-D500”

(DP-501). When using the DM-D stand, an optional power

supply unit (PS-180) is required. Also, if you want to raise the

height of the DM-D500, an optional extension support unit

(DP-105) is required. (See page 21.)

Precautions When Connecting to a TM Printer

Before the DM-D500 is connected to a TM printer, check the serial

number on the label affixed to the rear or bottom of the TM printer.

If the serial number is one of the numbers listed in the following

table, the printer can be connected to the DM-D500 without an

additional board. If the serial number is not listed in the table, the

DM-D500 requires the latest model of the UB-S01 board (Part code:

C8233610200).

4DM-D500 Installation Guide

English

*1: If your printer is a TM-H5000, always purchase the latest model of the UB-S01 before using it with

the DM-D500.

If your TM printer is not listed above, it can be connected to the

DM-D500 without any special modifications.

If an old model of the UB-S01 (Part code: C8233610000) is

connected to the TM printer, purchase and install the latest model

of the UB-S01 board (Part code: C8233610200).

If the RS-232 interface of the TM printer or the UB-S01 board has a

blue seal or a scribed square (as shown in illustrations 2 and 3), it

can be connected to the DM-D500 without an additional board.

Printer Model Serial No. Printer Model Serial No.

TM-H5000 —None *1 TM-U590 101 ART0 010001 and higher

TM-H5000II 001 AR30 010001 and higher 111 ARU0 003001 and higher

011 AR40 040001 and higher ARU0 510001 and higher

AR40 530001 and higher 131 ARY0 003001 and higher

021 AR50 040001 and higher ARY0 510001 and higher

AR50 510001 and higher 141 BUV0 000001 and higher

031 AR60 040001 and higher BUV0 510001 and higher

AR60 510001 and higher TM-H6000

series

001 BMQ0 020001 and higher

041 AR70 040001 and higher 011 BMR0 020001 and higher

AR70 510001 and higher 021 BMS0 020001 and higher

091 BFX0 000001 and higher 031 BMT0 020001 and higher

BFX0 510001 and higher 041 BV40 020001 and higher

161 BKS0 000001 and higher 061 BX50 020001 and higher

BKS0 510001 and higher 071 B7R0 020001 and higher

181 BNV0 000001 and higher TM-U675 001 BMK0 020001 and higher

BNV0 510001 and higher 011 BML0 020001 and higher

201 B430 000001 and higher 021 BMM0 020001 and higher

B430 510001 and higher 061 BX30 020001 and higher

211 B5X0 000001 and higher TM-T285 001 2XT0 010001 and higher

B5X0 510001 and higher TM-J8000 011 AQS0 010001 and higher

scribed square

blue seal

DM-D500 Installation Guide 5

English

Assembling

Attaching to the TM-H5000II or TM-J8000

The DM-D500 can be attached directly to a TM-H5000II or

TM-J8000 printer using the “DM-D pole unit for TM printers

(Type B)” (DP-503).

Required items

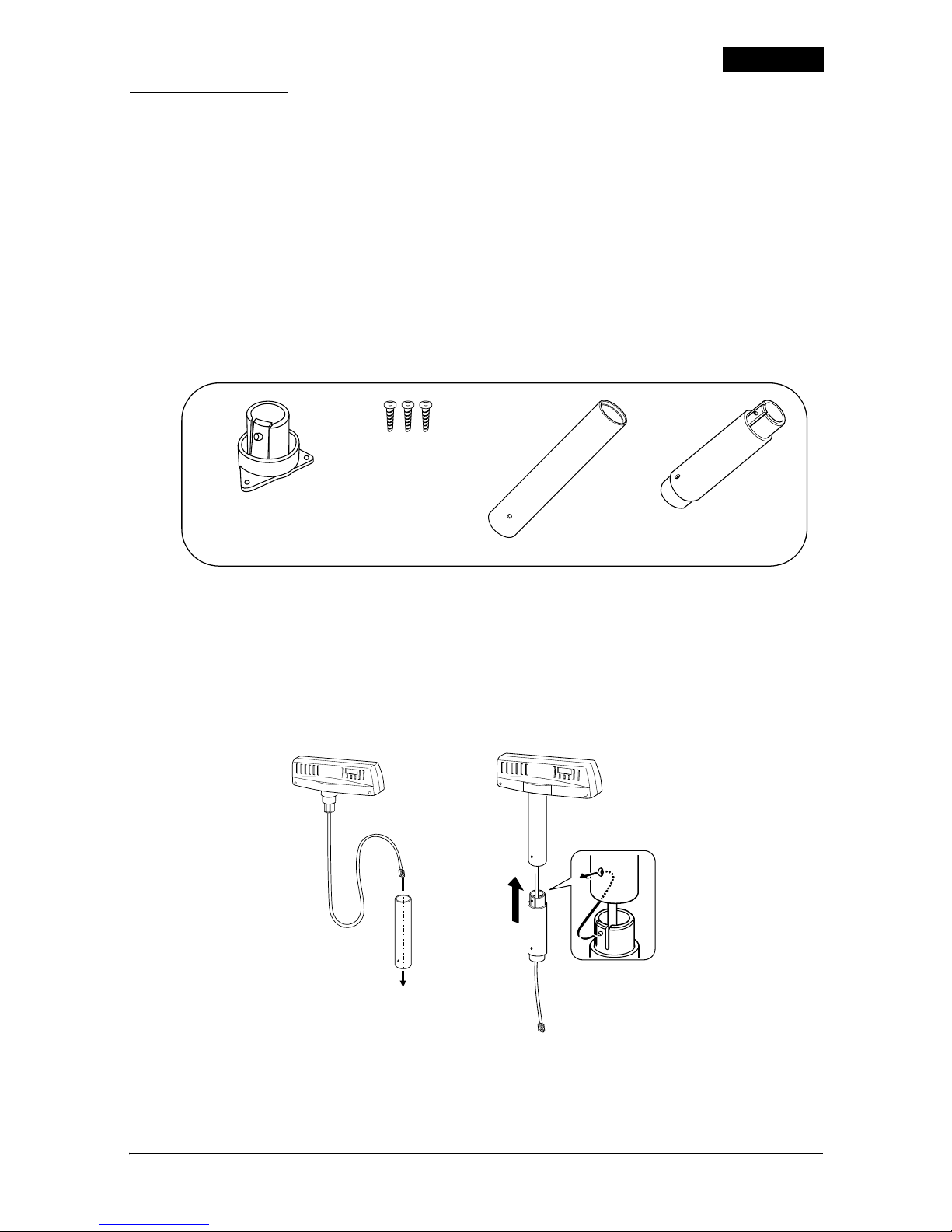

The items shown in illustration 4 are used to attach the DM-D500 to

a TM-H5000II or TM-J8000 printer. These items are packed with the

“DM-D pole unit for TM printers (Type B)” (DP-503).

Assembling

1. Pass the cable for the DM-D500 through support C, and attach

support C to the DM-D500 as shown in illustration 5. When

using support B for extension, insert the tab on support B into

the hole on support C as shown in illustration 6 until you feel it

click.

support B

(for extension)

fixing screws

base

support C

when using support B

for extension

6DM-D500 Installation Guide

English

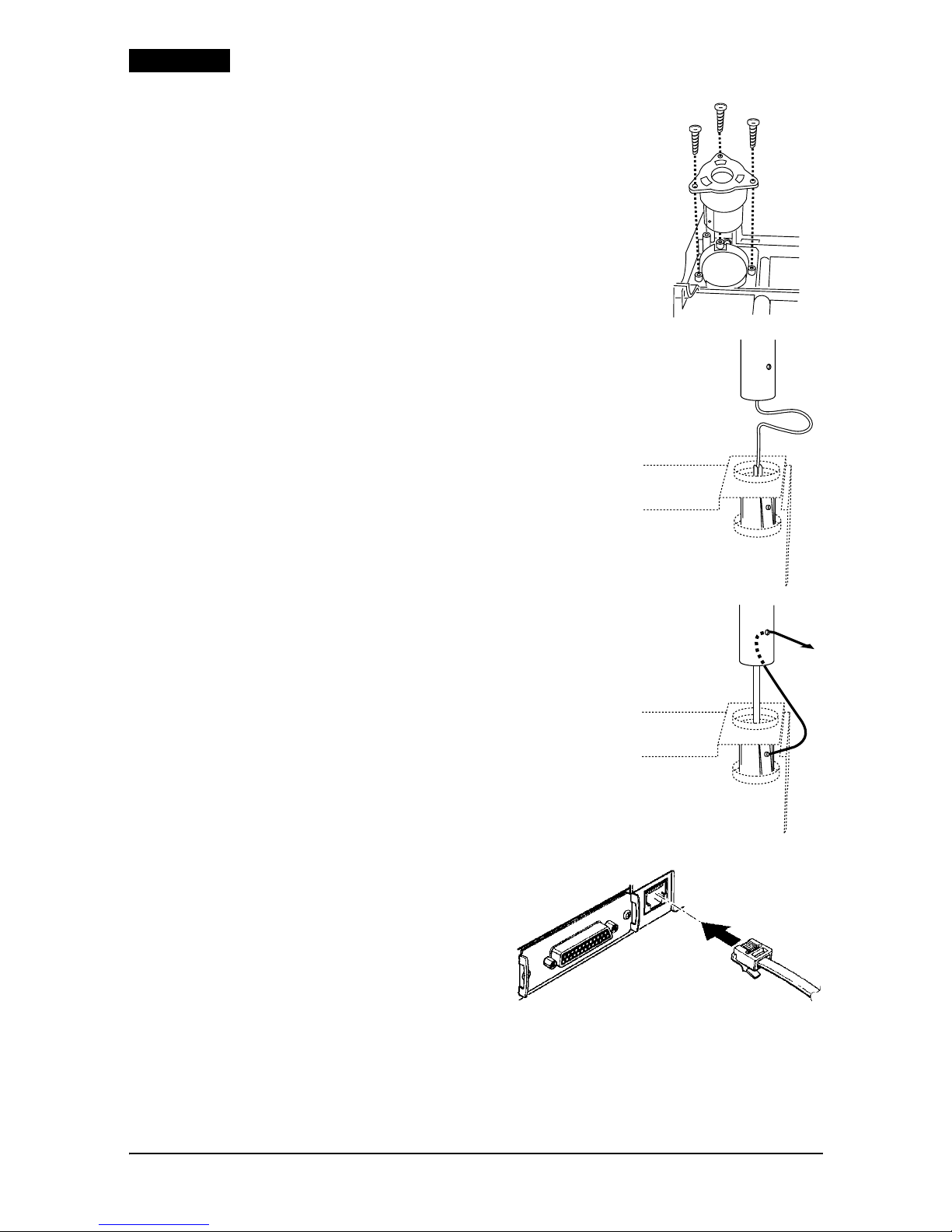

2. Attach the base to the setting position on

the TM printer, and secure it with the

screws as shown in illustration 7.

3. Pass the cable for the DM-D500 through

the base as shown in illustration 8.

4. Insert the tab on the base into the hole on

the support as shown in illustration 9

until you feel it click.

5. Connect the cable for the

DM-D500 to the DM

connector on the TM printer

as shown in illustration 10.

DM-D500 Installation Guide 7

English

Attaching to the TM-U950

The DM-D500 can be attached directly to a TM-U950 printer using

the “DM-D pole unit for TM printers (Type A)” (DP-502).

Required items

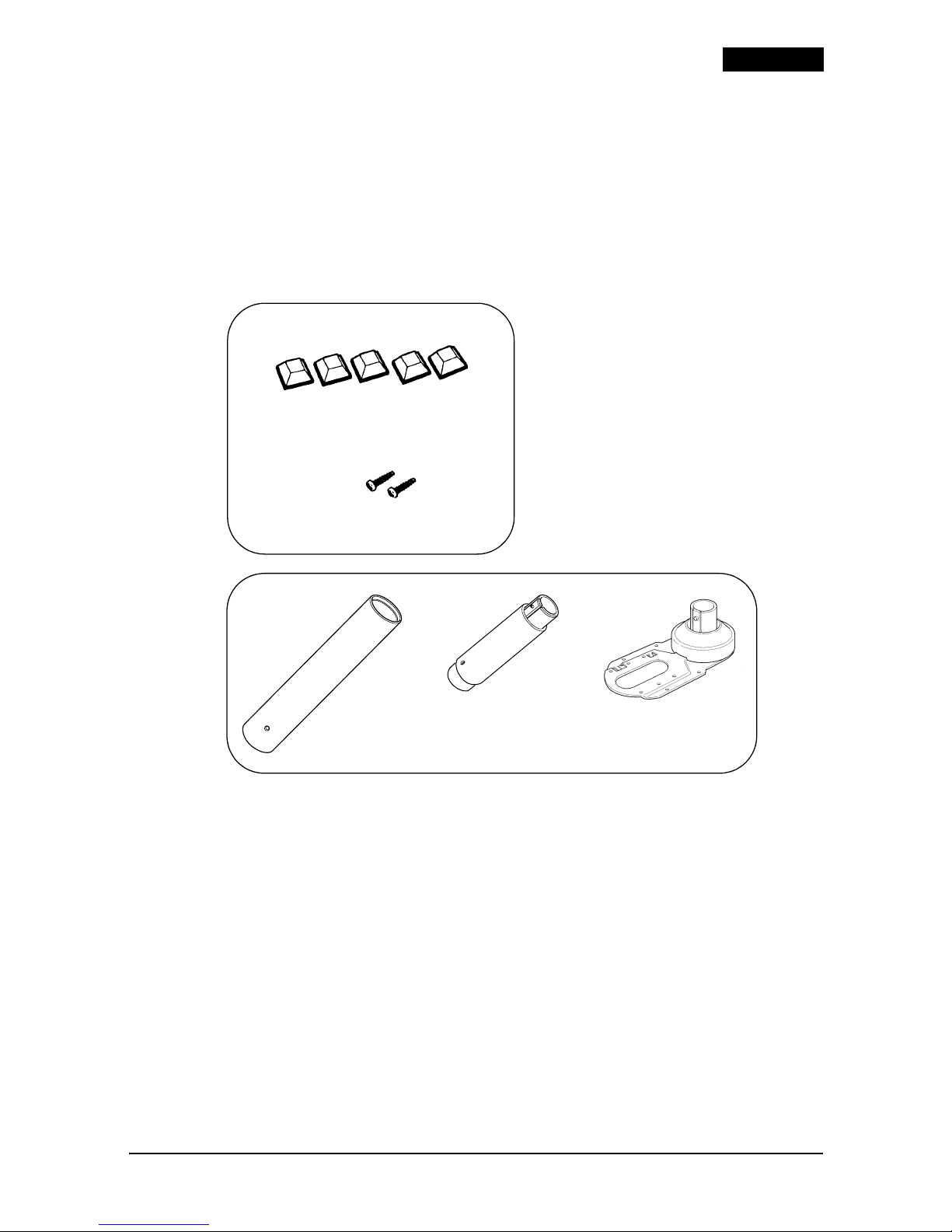

The items shown in illustrations 11 or 12 are used to attach a

DM-D500 to a TM-U950 printer. These items are packed with the

“DM-D pole unit for TM printers (Type A)” (DP-502).

rubber feet

(square)

fixing screws

support C

support B

for extension fixing plate A

8DM-D500 Installation Guide

English

Assembling

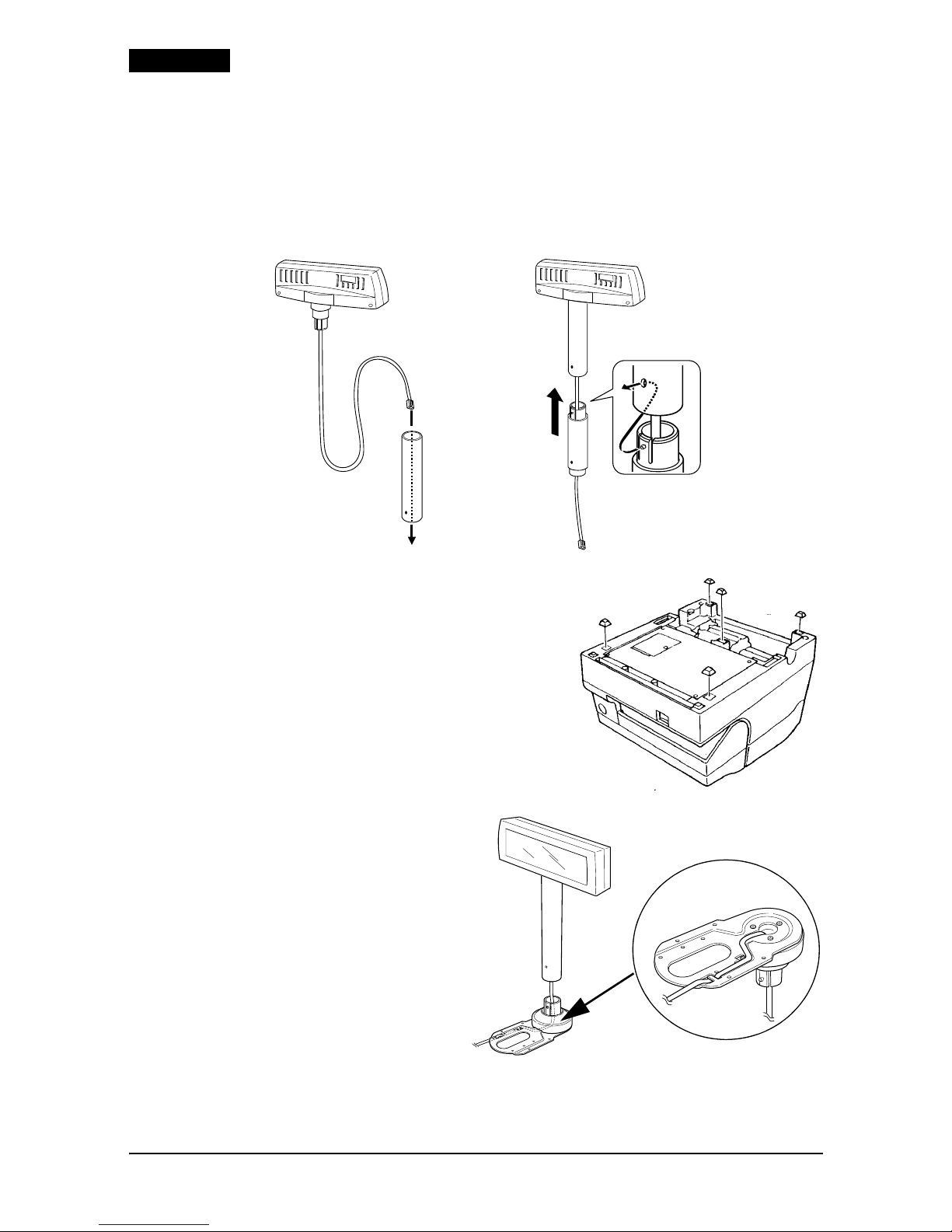

1. Pass the cable for the DM-D500 through support C, and attach

support C to the DM-D500 as shown in illustration 13. When

using support B for extension, insert the tab on support B into

the hole on support C as shown in illustration 14 until you feel

it click.

2. Attach the rubber feet to the printer

as shown in illustration 15.

3. Pass the cable for the

DM-D500 through the

hole on fixing plate A,

and fix the cable at the

bottom as shown in

illustration 16.

when using support B

for extension

13 14
