Epson PowerLite S5 series, 77c Manuel utilisateur

PowerLite®S5 Series/77c

Multimedia Projector

User’sGuide

Important Safety Information

WARNING: Never look into the projector lens when the lamp is turned on; the bright light can damage your eyes.

Never let children look into the lens when it is on. Never open any cover on the projector, except the lamp and

filter covers. Dangerous electrical voltages inside the projector can severely injure you. Except as specifically

explained in this User’s Guide, do not attempt to service this product yourself. Refer all servicing to qualified service

personnel.

WARNING: The projector and its accessories come packaged in plastic bags. Keep plastic bags away from small

children to avoid any risk of suffocation.

Caution: When you replace the lamp, never touch the new lamp with your bare hands; the invisible residue left by

the oil on your hands may shorten the lamp life. Use a cloth or glove to handle the new lamp.

any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior

written permission of Seiko Epson Corporation. The information contained herein is designed only for use with

this Epson product. Epson is not responsible for any use of this information as applied to other products.

Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for

damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of

this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to

strictly comply with Seiko Epson Corporation’s operating and maintenance instructions.

Seiko Epson Corporation shall not be liable for any damages or problems arising from the use of any options or

any consumable products other than those designated as Original Epson Products or Epson Approved Products by

Seiko Epson Corporation.

Trademarks

Epson and Instant Off are registered trademarks, and Exceed Your Vision is a trademark of Seiko Epson

Corporation.

PowerLite, PrivateLine, and Presenters Club are registered trademarks; SizeWise is a trademark; and Epson Store

and Extra Care are service marks of Epson America, Inc.

Pixelworks, DNX, and the DNX logo are trademarks of Pixelworks, Inc.

General Notice: Other product names used herein are for identification purposes only and may be trademarks of

their respective owners. Epson disclaims any and all rights in those marks.

Contents

Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Getting the Most from Your Projector . . . . . . . . . . . . . . . . . 8

Using Your Documentation . . . . . . . . . . . . . . . . . . . . . . . . . 9

Getting More Information . . . . . . . . . . . . . . . . . . . . . . . 9

Registration and Warranty . . . . . . . . . . . . . . . . . . . . . . . . . 10

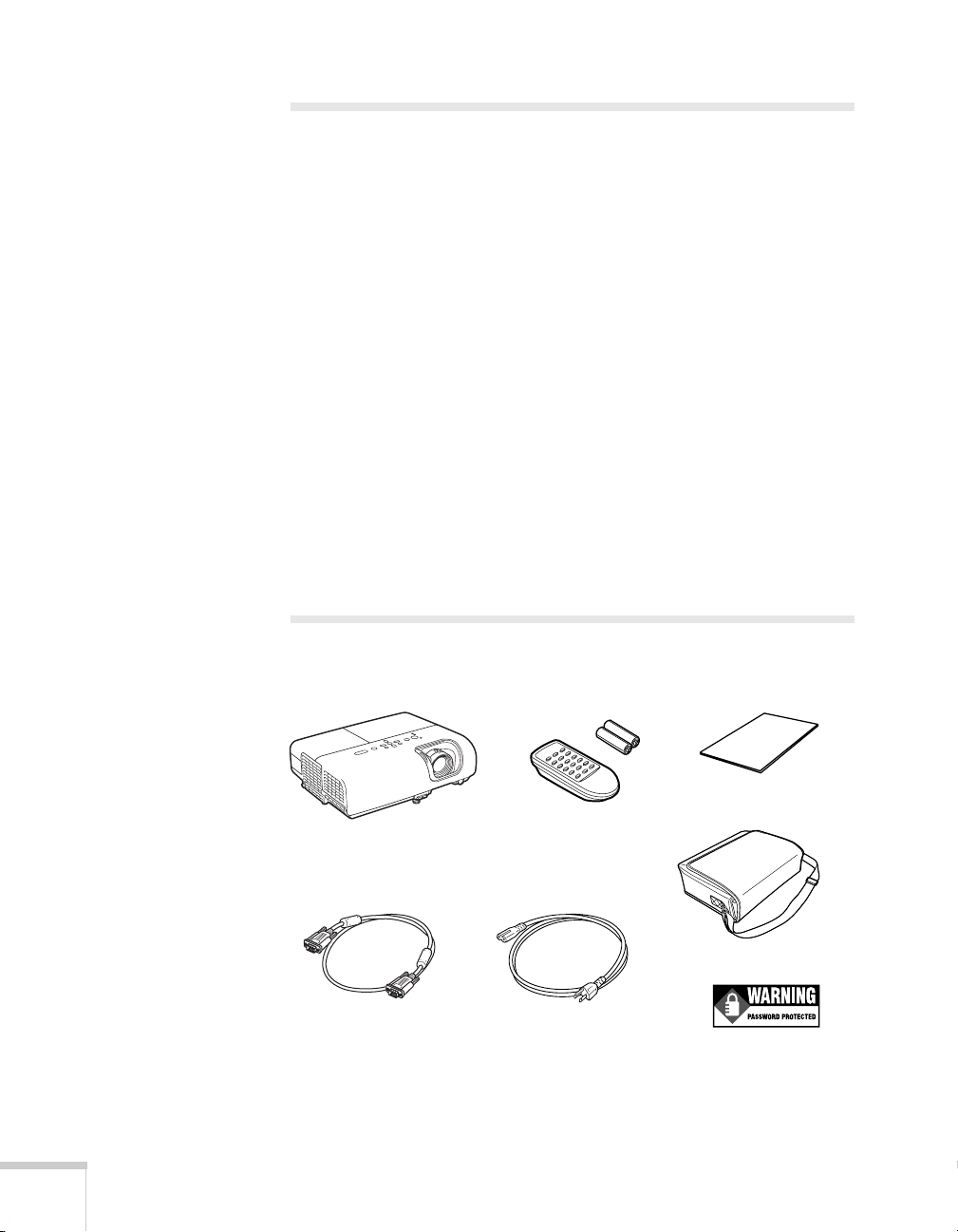

Unpacking the Projector. . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Projector Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Back. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Bottom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

PowerLite S5 Series Control Panel . . . . . . . . . . . . . . . . 12

PowerLite 77c Control Panel . . . . . . . . . . . . . . . . . . . . 12

Additional Components . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Optional Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

1Setting Up the Projector . . . . . . . . . . . . . . . . . . . . 15

Positioning the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Other Installations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Connecting to a Computer. . . . . . . . . . . . . . . . . . . . . . . . . 18

Connecting with the VGA Cable . . . . . . . . . . . . . . . . . 19

Connecting with a VGA-5BNC Cable. . . . . . . . . . . . . 20

Connecting a USB Cable for Remote Presentation

Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Connecting an External Monitor . . . . . . . . . . . . . . . . . 22

Playing Sound Through the Projector . . . . . . . . . . . . . 23

Connecting to Video Sources . . . . . . . . . . . . . . . . . . . . . . . . 24

Connecting a Composite Video Source . . . . . . . . . . . . . 25

Connecting an S-Video Source . . . . . . . . . . . . . . . . . . . 26

Connecting an RGB Video Source. . . . . . . . . . . . . . . . . 27

Connecting a Component Video Source . . . . . . . . . . . . 28

Playing Sound Through the Projector . . . . . . . . . . . . . . 29

2Projecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Turning On Your Equipment . . . . . . . . . . . . . . . . . . . . . . . 32

Turning On the Projector . . . . . . . . . . . . . . . . . . . . . . . 32

Selecting the Image Source. . . . . . . . . . . . . . . . . . . . . . . 34

What To Do If You See a Blank Screen . . . . . . . . . . . . . 34

Adjusting the Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Focusing and ZoomingYour Image

(PowerLite S5 Series). . . . . . . . . . . . . . . . . . . . . . . . 37

Focusing and ZoomingYour Image

(PowerLite 77c). . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Adjusting the Height of Your Image . . . . . . . . . . . . . . . 39

Adjusting the Image Shape. . . . . . . . . . . . . . . . . . . . . . . 39

Adjusting the Brightness . . . . . . . . . . . . . . . . . . . . . . . . 40

Correcting Computer Images. . . . . . . . . . . . . . . . . . . . . 41

Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Shutting Down the Projector . . . . . . . . . . . . . . . . . . . . . . . . 42

3Using the Remote Control . . . . . . . . . . . . . . . . . . . 43

Controlling the Picture and Sound. . . . . . . . . . . . . . . . . . . . 44

Switching Between Picture Sources . . . . . . . . . . . . . . . . 44

Adjusting the Color Mode . . . . . . . . . . . . . . . . . . . . . . . 44

Turning Off the Picture and Sound. . . . . . . . . . . . . . . . 46

Stopping Action . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Zooming Your Image. . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Changing the Image’s Aspect Ratio . . . . . . . . . . . . . . . . 48

Changing Presentation Slides . . . . . . . . . . . . . . . . . . . . . . . . 48

Replacing the Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

4Fine-tuning the Projector . . . . . . . . . . . . . . . . . . . 51

Using the Projector’s Menu System . . . . . . . . . . . . . . . . . . . 52

Changing Menu Settings. . . . . . . . . . . . . . . . . . . . . . . . 53

Adjusting Colors and Clarity . . . . . . . . . . . . . . . . . . . . . . . . 55

Adjusting the Input Signal . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Customizing Projector Features . . . . . . . . . . . . . . . . . . . . . . 61

Selecting Projector Setup Options . . . . . . . . . . . . . . . . . . . . 63

Viewing Lamp Usage and Other Information . . . . . . . . . . . 65

Using the Projector’s Security Features. . . . . . . . . . . . . . . . . 66

Creating Your Own Screen Logo. . . . . . . . . . . . . . . . . . 67

Setting a Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Turning On the Password and User’s Logo . . . . . . . . . . 69

Starting the Projector with a Password. . . . . . . . . . . . . . 70

Disabling the Projector’s Buttons . . . . . . . . . . . . . . . . . 71

Installing Security Locks . . . . . . . . . . . . . . . . . . . . . . . . 71

Restoring the Default Settings . . . . . . . . . . . . . . . . . . . . . . . 72

5Maintenance and Transportation . . . . . . . . . . 73

Cleaning the Lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Cleaning the Projector Case . . . . . . . . . . . . . . . . . . . . . . . . . 74

Cleaning and Replacing the Air Filter . . . . . . . . . . . . . . . . . 75

Replacing the Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Resetting the Lamp Timer . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Transporting the Projector. . . . . . . . . . . . . . . . . . . . . . . . . . 79

6Solving Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Using On-Screen Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

What To Do When the Lights Flash . . . . . . . . . . . . . . . . . . 83

Solving Problems with the Image or Sound . . . . . . . . . . . . . 85

Solving Password Problems . . . . . . . . . . . . . . . . . . . . . . . . . 91

Solving Problems with the Remote Control . . . . . . . . . . . . . 92

Where To Get Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Speak to a Support Representative . . . . . . . . . . . . . . . . . 93

ATechnical Specifications . . . . . . . . . . . . . . . . . . . . . 95

General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Projection Lamp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Mouse Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Safety and Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Compatible Video Formats . . . . . . . . . . . . . . . . . . . . . . . . . 98

Compatible Computer Display Formats. . . . . . . . . . . . . . . . 99

BNotices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Important Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . 101

Remote Control Information . . . . . . . . . . . . . . . . . . . . . . . 103

FCC Compliance Statement. . . . . . . . . . . . . . . . . . . . . . . . 104

Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Welcome

The PowerLite®S5 Series/77c is an ultra-portable projector that

offers 2000 ANSI lumens (S5 Series) or 2200 ANSI lumens (77c) of

brightness. From conference rooms to auditoriums, your full-color

presentations and videos will be bright and visible even in ordinary

indoor lighting.

Images are displayed at a native resolution of 800 × 600 pixels

(PowerLite S5 Series) or 1024 × 768 pixels (PowerLite 77c). Epson®

3LCD technology ensures accurate color and remarkable saturation,

even in well-lit rooms. Support for S-Video contributes to

theater-quality performance.

You can connect the projector to a wide range of computers, including

IBM®-compatible PCs and laptops, Apple®Macintosh,

Power

Macintosh®series (including G4 and G5 systems), PowerBook®

computers, and many iMac®and iBook®series systems. With Epson’s

patented SizeWise™technology, the projector supports a wide range

of computer displays.

You can use any of the following video sources: HDTV, VCR, DVD

player, gaming console (such as Microsoft®Xbox,

™Sony®

PlayStation®3, and Nintendo Wii™), camcorder, or digital camera.

The projector supports NTSC, PAL, and SECAM video formats.

You can connect up to three devices to the projector at the same time.

The source buttons let you easily switch among them. With the

projector’s Source Search button, you don’t even have to identify

your input source. Just press the button until you see the image you

want on the screen.

8Welcome

To prevent unauthorized use of the projector, you can assign a

password, create a user logo which is displayed at startup to identify

the projector, and disable the projector’s buttons through the

Operation Lock feature. For more information about security features,

see page 66.

Getting the Most from Your Projector

Depending on your presentation, you can take advantage of any or all

of these options:

■Connecting to a laptop or other computer

If you want to connect the projector to a laptop or desktop

computer, see page 18. For additional presentation control, you

can connect a USB cable to the projector for running slide shows,

and connect an external monitor to view the presentation on your

computer simultaneously.

■Connecting to video sources

You can connect a DVD player, VCR, HDTV, camcorder, digital

camera, and other video sources to your projector. See page 24 for

instructions.

■Using the remote control

The remote control lets you switch from computer to video

sources, zoom in on part of your image, freeze or mute the

presentation, and adjust many other projector features. For

details, see Chapter 3.

By connecting a USB cable to your projector, you can also use the

remote control to click through computer-based presentations

(such as PowerPoint®) from up to 20 feet away. For more

information, see page 48.

Welcome 9

Using Your Documentation

Your documentation includes a Quick Setup sheet, warranty

brochures, and an Epson PrivateLine®Support card.

The Quick Setup sheet gives instructions to quickly set up your

projector and connect it to a computer or video device.

This book contains all the information you need to set up and use

your projector. Please follow these guidelines as you read through it:

■Warnings must be followed carefully to avoid bodily injury.

■Cautions must be observed to avoid damage to your equipment.

■Notes contain important information about your projector.

Getting More Information

Need tips on giving presentations? How about quick steps for setting

up your projector? Here’s where you can look for help:

■www.presentersonline.com

Includes a library of articles covering presentation tips, tricks, and

technology. The site provides templates, clip art, and sound clips,

as well as Presenters Services to use on the road. Even more

resources and services are available if you register to join the

Presenters Club®—and it’s free.

■Built-in help system

Press the Help button on the remote control or projector to get

quick solutions for common problems. See page 82 for details.

■epson.com/support

Download FAQs (frequently asked questions) and e-mail your

questions to Epson support.

If you still need help after checking this User’s Guide and the sources

listed above, you can use the Epson PrivateLine Support service to get

help fast. Call (800) 637-7661 and enter the PIN on your PrivateLine

Support card. See page 93 for more information.

10 Welcome

Registration and Warranty

Your projector comes with a basic carry-in warranty and an

international warranty that let you project with confidence anywhere

in the world. For details, see the warranty brochures that came with

your projector.

In addition, Epson offers free Extra CareSM Road Service. In the

unlikely event of an equipment failure, you won’t have to wait for

your unit to be repaired. Instead, Epson will ship you a replacement

unit anywhere in the United States or Canada, usually via overnight

delivery. See the Extra Care Road Service brochure for details.

To register, complete the registration form that came with your

projector and mail it to Epson. Or register your product online at:

http://www.epson.com/webreg

Registering also lets you receive special updates on new accessories,

products, and services.

Unpacking the Projector

After unpacking the projector, make sure you have all these items:

Projector

Remote control

and batteries

VGA computer cable

Quick Setup sheet

Power cord

Password Protected

Sticker

Carrying case

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Epson Projecteur

Epson

Epson EMP-710 Manuel utilisateur

Epson

Epson EH-TW5910 Manuel utilisateur

Epson

Epson V11H389020 Manuel utilisateur

Epson

Epson PowerLite 1880 Fiche technique

Epson

Epson EMP-52 Manuel utilisateur

Epson

Epson PowerLite U50 Fiche technique

Epson

Epson PowerLite S10+ Manuel utilisateur

Epson

Epson 745c - PowerLite XGA LCD Projector Fiche technique

Epson

Epson 7850p - PowerLite XGA LCD Projector Manuel utilisateur

Epson

Epson CPD-17904 Manuel utilisateur

Epson

Epson EB-595Wi Manuel utilisateur

Epson

Epson 740c - PowerLite XGA LCD Projector Instructions générales

Epson

Epson Pro L1490UNL Manuel utilisateur

Epson

Epson PowerLite 62c Manuel utilisateur

Epson

Epson PowerLite 600p Manuel utilisateur

Epson

Epson PowerLite 51c Manuel utilisateur

Epson

Epson PowerLite 8300i withEasyMP.net module Fiche technique

Epson

Epson PowerLite 54c Manuel utilisateur

Epson

Epson BrightLink 450Wi - Interactive Projector Mode d’emploi

Epson

Epson EX21 Manuel utilisateur

Epson

Epson 1715C - PowerLite XGA LCD Projector Manuel utilisateur

Epson

Epson EB-915W Manuel utilisateur

Epson

Epson VS315W Instructions d'utilisation et de sécurité

Epson

Epson PowerLite Presenter L Guide de l'utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur

Asus

Asus ZenBeam Latte Manuel utilisateur

BOXLIGHT

BOXLIGHT CP-322i/CP-634i Manuel utilisateur

JVC

JVC 1108TTH-AO-AO Manuel utilisateur
