Contents 3

Contents

Introduction 7

Projector Parts 8

Front 8

Back 8

Bottom 9

Projector Control Panel 9

Remote Control Button Map 10

Optional Accessories 11

Registration and Warranty 11

Using This Manual 12

Setting Up the Projector 13

Choosing a Location 13

Installing the Projector 17

Connecting the Cables 19

Connecting Video and Computer Equipment 19

Making Other Connections 21

Installing Batteries in the Remote Control 22

Turning the Projector On and Off 22

Turning On the Projector 22

Turning Off the Projector 23

Selecting the Image Source 24

Positioning the Image 25

Making Basic Adjustments 27

Focusing and Zooming 27

Choosing the Aspect Ratio 28

Choosing the Color Mode 29

4Contents

Advanced Color Adjustments 30

Adjusting the Gamma Setting 30

Adjusting RGBCMY 31

Locking the Projector 32

Making Detailed Adjustments 33

Using the Menu System 33

Changing How the Menus Display 35

Adjusting the Picture Quality 35

Input Brightness Settings 35

Sharpness and Picture Quality Settings 37

Color Settings 39

Adjustments for Computer Images 41

Selecting Memory Settings and Resetting the Projector 42

Selecting Memory Settings 42

Creating Memory Settings 42

Deleting Saved Memory Settings 42

Resetting the Projector 43

Customizing Projector Features 44

Image Sizing 44

Screen Options 45

Other Setup Options 45

Maintenance 47

Cleaning the Lens 47

Cleaning the Projector Case 48

Cleaning and Replacing the Air Filter 48

Replacing the Lamp 50

Resetting the Lamp Usage Timer 53

Checking the Projector Status 53

Storing the Projector 54

Transporting the Projector 54

Contents 5

Problem Solving 55

What To Do When the Lights Come On or Flash 55

Solving Picture Problems 57

Solving Remote Control Problems 60

Where To Get Help 61

Specifications 63

General 63

Lamp 63

Remote Control 64

Dimensions 64

Electrical 64

Environmental 64

Safety 64

Compatible Video Formats 65

ESC/VP21 Command Codes 67

Notices 69

Important Safety Information 69

FCC Compliance Statement 71

Declaration of Conformity 72

Epson America, Inc. Limited Warranty 73

Index 75

6Contents

Introduction 7

Introduction

The PowerLite®Pro Cinema 7100 projector lets you enjoy theater-quality images in the

relaxing environment of your own home. Designed especially for home cinema use, it offers

these outstanding features:

■Native 1080p (1920 × 1080) resolution, dynamic contrast ratio up to 18000:1, and up to

1800 lumens of brightness (white light output and color light output) for incredibly rich,

sharp images in any room lighting

■Auto Iris system that constantly controls the lamp intensity based on the gamma and

black/white levels of your projected content, for perfectly adjusted images and deepest

blacks

■Epson®Crystal Fine 3LCD technology for reliable picture quality, increased contrast

ratio and uniform colors

■1080Perfect™video processing for more film-like images free of noise or artifacts

■10-bit color quality for unmatched color accuracy, with over a billion colors available

■Epson AccuCinema™color management delivered by the built-in optical Cinema Filter

blocks out excess light for an expanded, purer color range and sophisticated grayscale

tracking

■HDMI™(High Definition Multimedia Interface™) port for superior, uncompressed

digital video

■True 16:9 wide-format projection

■Flexible setup configurations, including front projection and ceiling mounted, with

vertical and horizontal offset lens shift

■Seven color modes, including x.v.Color™, to quickly optimize viewing for different

lighting environments, and a vast array of custom color adjustments

8Introduction

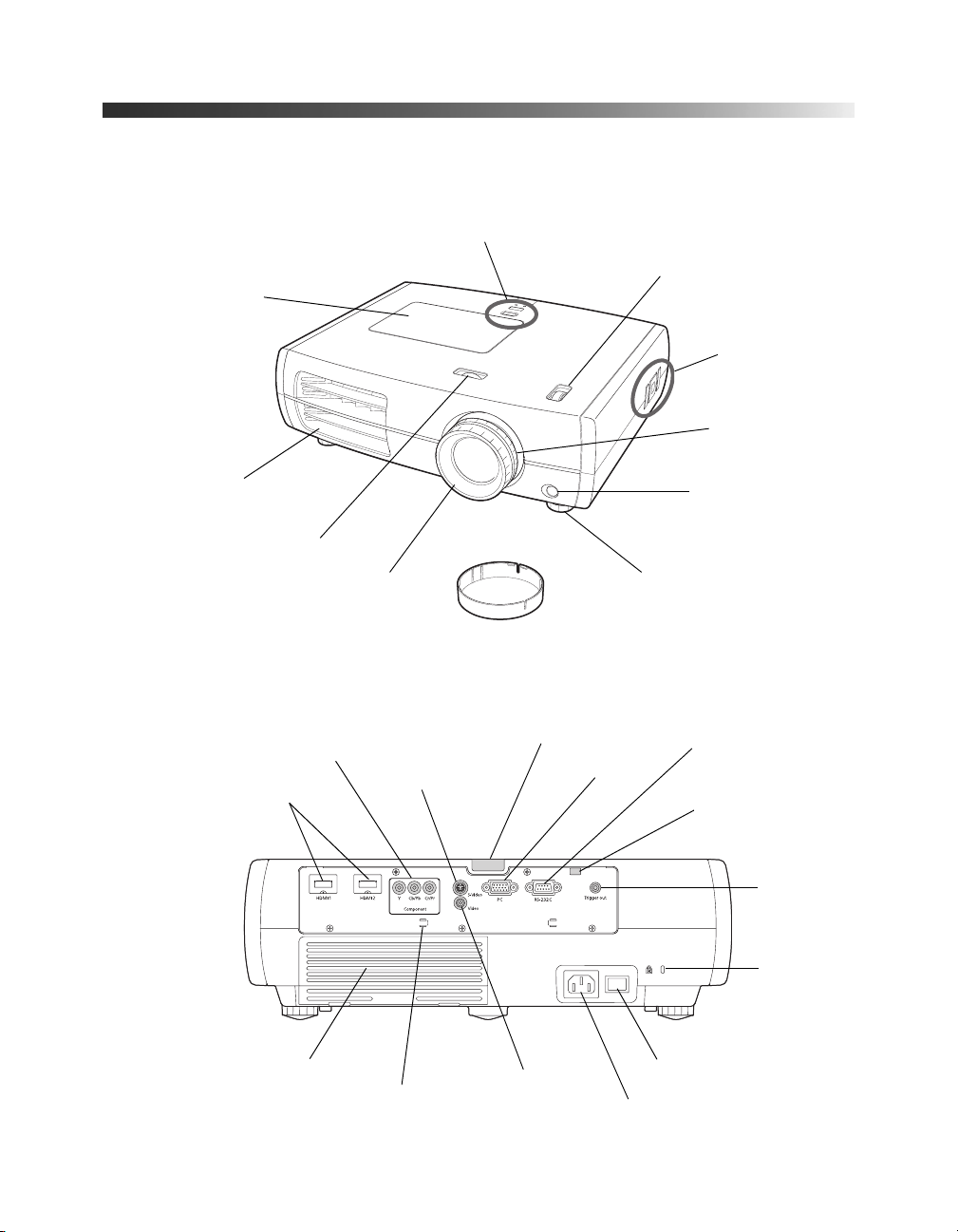

Projector Parts

Control panel (top)

Ventilation slots

Lens cover

Vertical lens shift dial

Adjustable foot

Video port

HDMI ports

Component

video port

AC power inlet

Infrared receiver

Kensington®

lock port

Infrared receiver

Horizontal lens shift dial

S-Video port

Control (RS-232C) port

Trigger out

port

PC port

Zoom ring

Focus ring

Main power switch

Front

Back

Lamp cover

Control panel

(side)

Air intake (filter)

Lamp cover release

Cable holder

Introduction 9

Power

button

Menu navigation

button

Esc button

Exits the current

menu item

Menu button

Displays the

menus

Warning lights

Mounting bracket

attachment points

Enter button

Selects menu items or

opens the line menu

Bottom

Projector Control Panel

Optional cable cover

attachment points

(brass colored)

Top control panel Side control panel

Source button

Switches the

video input source

10 Introduction

Remote Control Button Map

Source buttons

Switch between equipment

connected to the projector

Color Mode button

Optimizes viewing for

different lighting environments

Power button

Turns projector on or off

Memory button

Recalls custom

picture settings

Menu navigation

buttons

Pattern button

Displays test patterns

to adjust the image

Menu button

Displays the projector’s menus

Aspect button

Changes the picture’s aspect ratio

Esc (escape) button

Exits the current menu item

Blank button

Temporarily stops projection or

hides the menu screen

Enter/Line Menu button

Selects menu items or opens

the line menu

Gamma button

Adjusts the gamma values

of the screen display

Default button

Restores default settings

when menu is displayed

Sharpness button

Adjusts image sharpness

Illumination button

Lights the remote control

buttons for easy viewing

RGBCMY button

Adjusts the hue,

saturation, and brightness

for each color
