Epson Stylus Office TX600FW Series Mode d’emploi

EPSON STYLUS OFFICE TX600FW

Wireless Printer Installation Guide

By using Wireless Router and Access Point

Installation Checklist:

Step 1: Confirm the computer has been connected to network. Check the SSID (Network

Name) and Passphrase (Security key and password).

Step 2: Setup the Wireless LAN on the printer panel.

Step 3: Confirm the connection status.

Step 4: Install the printer driver by Infrastructure mode

Before installation, please check the following information:

1. SSID (network name)

2. Type of Security Setting

Note: The printer supports WEP-64bit、WEP-128bit、WPA-PSK TKIP or WPA-PSK

AES only.

3. Security Key and Passphrase

Hints:

a. In order to protect your wireless network and data transmission, we recommend using a

security and encryption technologies with a particular SSID and security or Passphrase

to prevent intrusion from unknown users.

b. For any details information about wireless router and access point, please contact

Technical Hotline of those products directly.

Installation procedures:

Step 1: Confirm the computer has been connected to network. Check the SSID (Network

Name) and Passphrase (Security key and password).

(1) Confirm network setting:

 SSID (Network Name)

 Network Security Type

 None

 WEP-64bit

 WEP-128bit

 WPA-PSK TKIP

 WPA-PSK AES

Note: If your security setting is not the below setting, please change your security setting

from Wireless Router or Access Point.

 Security Key and Passphrase

Step 2: Setup the Wireless LAN on the printer panel

(1) After initialize, press 「」bottom on printer panel, select “Setup”, then press 「OK」

button.

(2) Select “Network Setting” under “Setup”, then press 「OK」button.

(3) Select “Wireless LAN Setup” then press 「OK」button.

(4) LCD display shows the confirmation message, select “Yes”, then press 「OK」button.

(5) After enter “Wireless LAN Setup” menu, select “Enable”, then press 「OK」button.

(6) Select “Manual Wireless LAN setup” , then press 「OK」button.

(7) Press 「OK」button again to enter Setup page

(8) LCD display shows the Warning message, select “Yes” and then press 「OK」button.

(9) Select “Infrastructure Mode” under “Communication Mode Setup” Menu, then press

「OK」button.

(10) Select “SSID Input method”

10.1 Search SSID: Select the correct SSID

Hints:

A. If your SSID (your Network Name) cannot be shown, please check your Access Point

and Wireless Router.

B. If SSID is hidden as security issue, press「Back」button to return last step, and select

“Enter SSID”

Enter SSID: Enter the SSID manually

10.2 Security Setting: please select the same security setting as used for your access point or

wireless router.

10.3 For select WEP-64bit or WEP-128bit

If the character of WEP Key is 5 or 13, please select “Alphanumeric”.

If the character of WEP Key is 10 or 26, please select “Hexadecimal”.

10.4 Security Setting of WEP-64 bit: Enter 64-bit WEP key, then press 「OK」button.

(Press〝〞button to change character mode)

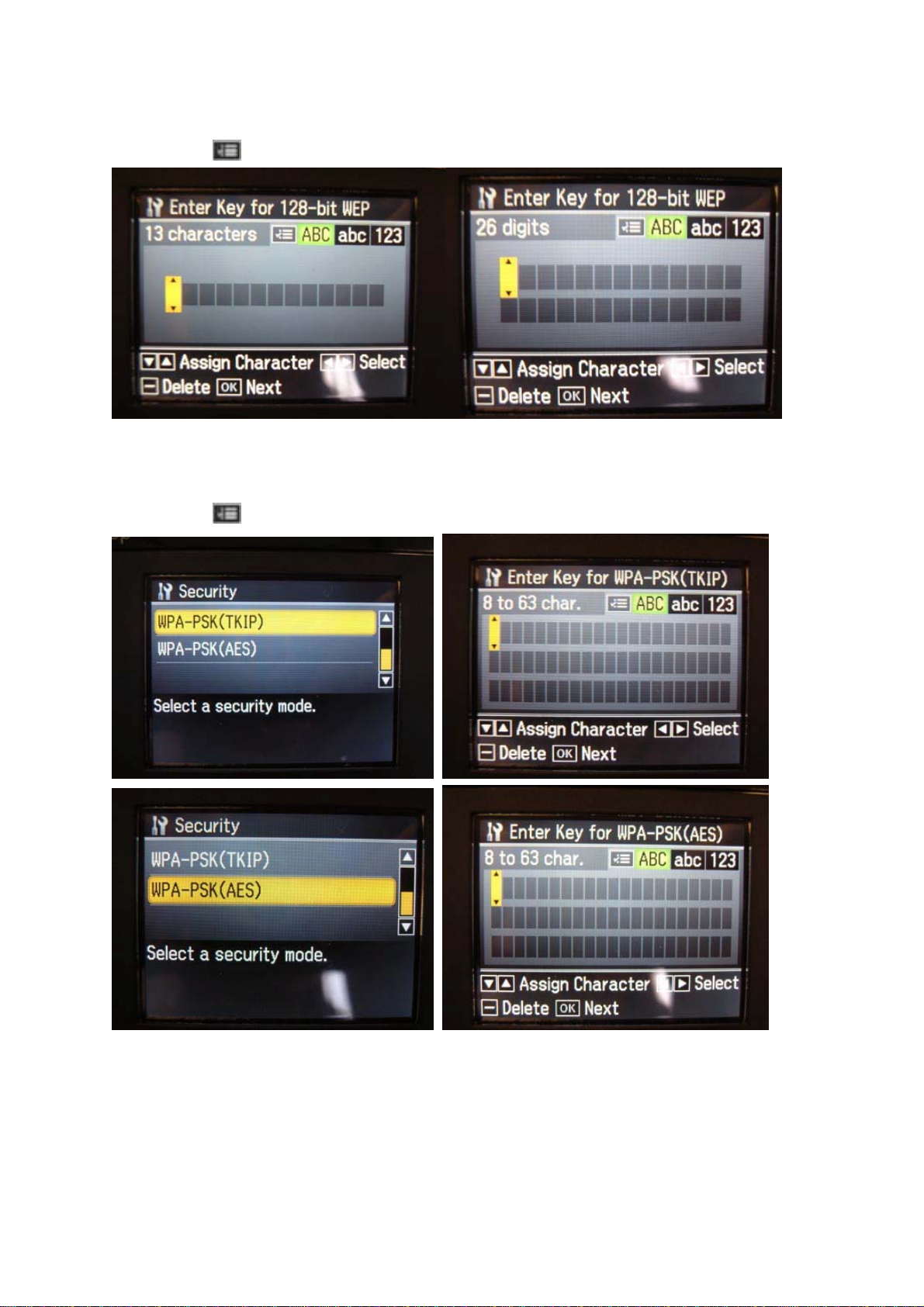

10.5 Security Setting of WEP-128bit: Enter 128-bit WEP key, then press 「OK」button.

(Press〝〞button to change character mode)

10.6 For select WPA-PSK (TKIP) or WPA-PSK (AES)

Enter WPA passphrase (8-63 characters), then press「OK」button.

(Press〝〞button to change character mode)

Hints: Please mind the “Capital Letter” and “Small Letter”, otherwise, it will affect the

connection.

Step 3: Confirm the connection status.

(1) Select “Confirm Network Settings” under “Network Settings” Menu, then press「OK」

button.

If you want to print status sheet, please press 「Start」button。

(2) If the printer is completed the network connections, the right top corner of LCD display

will show the following icon.

Already Connected to Wireless LAN network (Signal Strength: Excellent)

Already Connected to Wireless LAN network (Signal Strength: Medium)

Already Connected to Wireless LAN network (Signal Strength: Low)

If no icon is displayed, no connection and connection failure

Step 4: Install the printer driver by Infrastructure mode

(1) Insert CD disk into CD drive.

(2) Select language

(3) Select “Agree” and “Next”

(4) Recommend Choosing “Easy Install” and press “ Install”

Note: Although the software and driver have been installed successfully, the connection does

not configured well, so there is no icon displayed on “Printer and Fax”
