Epson SC-T5400 SERIES Manuel

Operator’s Guide

This guide contains selected information on how to use the

printer and frequently used features of the printer.

See the User’s Guide (online manual) for detailed instructions

on using the printer.

Home Screen Operations ....................................... 2

Getting Ready to Print............................................. 4

Printing CAD Drawings ........................................... 6

Printing Banners ........................................................ 8

Printing at Non-Standard Sizes ............................ 10

Printing by Installing a USB Flash Memory...... 12

Other Printing (Wi-Fi Direct Printing/

Print from an Upload) .............................................. 13

Loading an Original for Copying/Scanning

(SC-T5400M Series) ................................................... 14

Procedure for Copying (SC-T5400M Series) ..... 15

Procedure for Scanning (SC-T5400M Series) ... 16

If appears, some items may not be displayed.

Example: SC-T5400M Series

Home Screen Operations

Approx. remaining levels of

consumables

As the ink is consumed or the maintenance box

becomes full, the corresponding bar becomes

shorter.

Touch this icon…

You can see the consumable product numbers.

The current printer status

Touch to load or remove paper.

U “Getting Ready to Print” on page 4

The network connection status

The icon changes according to the connection method.

While the printer is connected, is blue and indicates

the signal strength.

Wi-Fi (Wireless)

Wired (Ethernet)

Wi-Fi Direct

You can change the connection method.

For information on Wi-Fi Direct, see below.

U“Other Printing (Wi-Fi Direct Printing/Print from an

Upload)” on page 13

Touch this icon…

Touch to check the

printer status or change

the printer settings.

When !is displayed on bars, prepare a new ink

cartridge or a maintenance box. You can continue

printing until replacement is required.

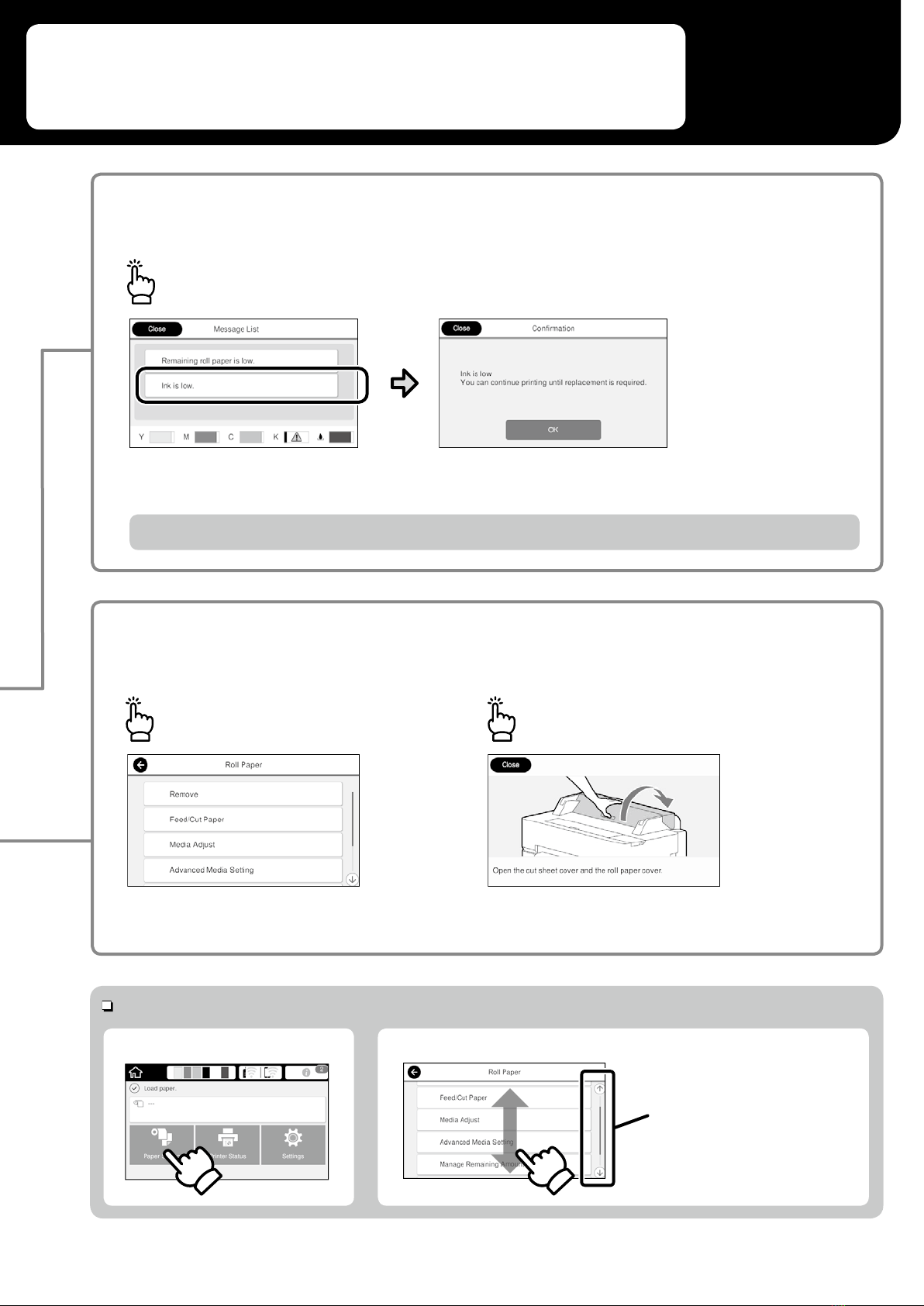

The home screen is displayed when the printer is turned on.

These pages show the available operations on the home screen.

Slide

Touch (tap)

Touch Panel Operations

Roll paper information

The paper type and roll paper width that have been set are displayed.

You can perform actions such as replacing

roll paper.

Instructions on how to load roll paper are displayed.

Touch after loading roll

paper...

The number of notices

The number of notices, such as ink low warnings, is displayed on the icon.

Touch this icon…

When you complete the actions for all the notices, the number disappears from the icon.

The scroll bar is displayed

when you can scroll up and

down.

A list of the notices that require your action is displayed. You can see instructions on what to do when you

touch each notice.

Touch before loading roll

paper...

ATouch Paper Setting.

BSelect one of the paper sources.

CTouch See Guide to see the detailed on-screen

instructions.

When Load paper is displayed on the home screen, you can open

the cut sheet cover and load a cut sheet into the printer.

Getting Ready to Print

Roll Paper

Load the Paper Following the

On-Screen Instructions

Check the Paper Loading

Positions

Cut Sheet (1 sheet)

A4 to the maximum print width

One sheet at a time

These pages explain how to get the printer ready for printing.

Carefully follow these steps to get optimum print quality.

The setting items vary according to the paper.

If you select a paper type or size that does not match the loaded paper,

the printout will have creases, ink smudges, or banding.

Press OK after you complete

the settings

When Ready is displayed, you can

start printing.

Paper Type Paper

Remaining

Amount or

Paper Size

Epson Special Paper

Select the paper name printed on the paper package.

Non-Epson Paper

Select one of the following.

- Plain Paper

- Coated Paper <Generic>

- Photo Paper <Generic>

- Tracing Paper

- Tracing Paper <LowDuty>

- Matte Film

Promptly select the settings because the paper will start being fed if

the screen is not used for 90 seconds.

Set the Paper Type and Paper Size Print

Printing CAD Drawings

Using the Printer Driver

This method is best suited to printing CAD drawings, such as

appearance view of buildings, at high quality.

c Important

If lines or parts on your drawing are not printed properly,

use the HP-GL/2 or HP RTL mode.

The procedure below is for AutoCAD 2018.

AClick Plot.

BSelect the printer in Printer/plotter, and then

click Properties....

CClick Custom Properties.

The printer driver screen is displayed.

DSelect CAD/Line Drawing at Printer Settings

tab.

Windows

Mac

Print CAD and GIS drawings using either of the following two

methods depending on the intended use of the drawing.

Using HP-GL/2 or HP RTL Mode

This method is best suited to printing CAD and GIS drawings,

such as maps and blueprints.

You can print from an application that supports HP-GL/2

(compatible with HP DesignJet 750C) and HP RTL.

The default paper source is Roll Paper and the default

print quality is Standard. If you want to change the

settings, change them from the printer setting menu before

performing the procedure below.

The procedure below is for AutoCAD 2018.

AClick Plot.

BSelect plotter in Printer/plotter.

Select the plotter name as shown below according to

your model.

SC-T5400 Series: HP DesignJet 750C C3196A

SC-T5400M Series: HP DesignJet 750C C3196A

SC-T3400 Series: HP DesignJet 750C C3195A

SC-T3400N Series: HP DesignJet 750C C3195A

When nothing is printed or text is garbled

Change the printer setting as follows.

Settings - General Settings - Printer Settings - Printing

Language - USB (or Network) - HP-GL/2

When you print using the printer driver, change the setting back

to Auto from HP-GL/2.

When you want to print on a cut sheet or change the

print quality setting

Select your target setting item from the printer setting menu

shown below.

Settings - General Settings - Printer Settings - Universal Print

Settings

When you want to change the pen width or pen color

Select your target setting item from the printer setting menu

shown below.

Settings - General Settings - Printer Settings - HP-GL/2

Unique Settings

When you want to print on oversized paper

Load the printer with paper larger than the original size, and

then change the printer setting as follows.

Settings - General Settings - Printer Settings - Universal Print

Settings - Page Margins option - Oversize

Fitting the Original to the Roll

Paper Width

Fitting the short side of

the original to the roll

paper width.

Fitting the long side of

the original to the roll

paper width.

Original

Select Output Size - Fit to Roll Paper Width, and then select

whether to t the short side or long side of the original to the

roll paper width.

Windows

Mac

Printing Banners

Steps to print a banner

Create the original in the application*

Select the enlargement method

in the printer driver

*For creating a non-standard size original, see below.

U “Printing at Non-Standard Sizes” on page 10

These pages explain how to enlarge and print an original created at

a standard size for a banner.

Fitting the Original to the Output

Size

Select Output Size - Fit to Output Size, and then select the

output size.

Windows

Mac

Original

Output size

Select Output Size - Specify Size, and then select the output

size or enter magnication.

Windows

Mac

Specifying the Size

Original

Output size

Printing at Non-Standard Sizes

Steps to print a non-standard size

in the application

Create the original

Enlarge and print the original

These pages explain how to create an original that is about

one-third of the output size and then enlarge and print that

original to create a banner that ts the width of 24-inch (610

mm) roll paper.

Paper size (original)*

Output size

*You can congure the paper size as shown below.

Paper Width: 89 mm to maximum printing width

Paper Height: 127 mm to 18,000 mm (Windows)

Height: 127 mm to 15,240 mm (Mac)

Windows

AStart the application, click the File menu, and

then click Print.

BOn the Printer Settings tab, click Custom

Paper Size...

CEnter the following information on the User-

Dened Paper Size window.

Click Save, and then click OK to nish registering the

paper size.

DSelect the registered paper size.

Example: Microsoft Word 2016

Orientation: Landscape

Size: Banner

If the registered paper size is not displayed, check the paper

sizes supported in the application.
