Epson SC-B7070 Manuel utilisateur

Setup Guide

安裝說明

EN Assembly 5

TC 組裝

EN Loading Media 21

TC 裝入材料

EN Installing the Software 27

TC 安裝軟體

EN Seeing the Online Guide 30

TC 請參考線上手冊

EN Introductions

Illustrations

The printer shown in the illustrations in this guide diﬀers in some respects from the actual product,

but these diﬀerences have no eﬀect on the assembly process.

Some show the printer with the optional auto take-up reel unit attached.

Safety Instructions

Read all of these instructions before using your printer. Also be sure to follow all warnings and

instructions marked on the printer.

Warning

Use only the power cord that comes with the printer. Use of another cord may result in ﬁre or

❏

electric shock.

Wear protective eyewear and gloves when reﬁlling ink tanks or replacing the Waste Ink Bottle.

❏

Should ink contact your skin or enter your eyes or mouth, immediately take the following actions:

- If ﬂuid adheres to your skin, immediately wash it oﬀ using large volumes of soapy water. Consult

a physician if the skin appears irritated or is discolored.

- If ﬂuid enters your eyes, rinse immediately with water. Failure to observe this precaution could

result in bloodshot eyes or mild inﬂammation.

- If swallowed, induce vomiting and consult a physician immediately.

Caution

The printer unit is heavy and unwieldy. Have 6 or more people unpack and assemble the printer

❏

and stand.

Be careful not to trap your hands or ﬁngers when opening or closing the front cover.

❏

Failure to observe this precaution could result in injury.

Meaning of Symbols

!Caution Cautions must be followed to avoid bodily injury.

cImportant : Important must be followed to avoid damage to this product.

Note : Notes contain useful or additional information on the operation of this

product.

TC 簡介

插圖

在此手冊圖示中的印表機的某些方面可能與實機不同，但這些差異性並不會影響到組裝步驟。

有些圖示中的印表機加裝了選購自動收紙單元。

安全說明

使用印表機之前，請閱讀下列這些指示說明。同時，請務必遵守印表機上所標示的警告訊息和指示。

警告

只使用此印表機內附的電源線。使用其他的電源線可能會引起火災或造成觸電。❏

❏

當填充大容量墨水槽或更換廢墨桶時，請戴上護目鏡和手套。❏

❏

如果墨水接觸到皮膚或是濺入眼睛或嘴巴，請立即採取下列動作：

-❏若液體沾黏在皮膚上，請立即使用大量的肥皂水沖洗。如果皮膚出現過敏和變色的現象，

請找醫師治療。

-❏若液體濺入眼睛，請立刻用水沖洗。不遵守此預防措施可能會導致眼睛充血或輕度發炎。

-❏若有吞入，請催吐並且立刻看醫生。

注意

此印表機裝置沉重且龐大，需要至少❏

❏6人一起拆開包裝和組裝印表機及支架。

當打開或闔上前蓋時請小心，不要弄傷您的手或手指。❏

❏

不遵守此注意事項可能會造成身體受傷。

圖示說明

!注意請務必遵守注意事項，以免身體受傷。

c附註：請務必遵守附註事項，以免損壞設備。

秘訣：提供使用印表機的實用技巧及其他資訊。

EN Choosing a Place for the Printer TC 選擇放置印表機的位置

Instructions for Placing the Printer

Leave adequate room as shown in the table for setting up the printer.

❏

Choose a level and stable location that can support the weight of the printer (about 204 kg).

❏

Use only an outlet that meets the power requirements of this printer.

❏

Operate the printer under the following conditions:

❏

Temperature: 15 to 35°C (59 to 95°F)

Humidity: 20 to 80% without condensation

Even the conditions above are met, you may not print properly if the environmental conditions

❏

are not proper for the paper. See the instructions of the paper for more detailed information.

Keep the printer away from drying, direct sunlight, or heat sources to maintain the appropriate

❏

humidity.

放置印表機的說明

請依照圖示，在桌面上預留足夠的空間以設置印表機。❏

❏

請選擇可支撐印表機重量❏( 約❏

❏204 公斤 )❏並且又平坦又穩固的位置。

僅使用符合此印表機電源規格的電源插座。❏

❏

請在下列條件下操作印表機：❏

❏

-❏溫度：15 至35°C (59 至95°F)

-❏濕度：20 至80% 無凝結

即使符合了上述條件，但如果環境條件不適合紙張，還是可能無法正確列印。詳細資料，請❏

❏

查看紙張的操作說明。

避免將印表機放在過於乾燥、陽光直射、或高溫之處以維持適當的濕度。❏

❏

EN Unpacking TC 清點配件

The items in the ﬁgure at left may be found in the “Ink Supply System Cover 1” box.

左側圖示中的項目可以在“Ink Supply System Cover 1”盒中找到。

EN Assembly TC 組裝

Stand

腳架

!Caution: Before assembling the printer, clear the work area by putting away the removed

packing materials and bundled items.

!注意：組裝印表機之前，請先收好拆下的包裝材料及內附的配件，清理工作區域。

[ 1 ]

It is recommended to assemble the stand by a group of three.

建議三人一起組裝腳架。

[ 2 ] [ 3 ]

[ 5 ][ 4 ]

EN Assembly TC  組裝

[ 6 ]

cTemporarily fasten the screw as shown in the ﬁgure.

暫時鎖緊圖示中的螺絲。

[ 7 ]

Give the screws shown in the ﬁgure a couple of turns to fasten the parts temporarily. The items in the following steps can not be

attached if the screws are too tight.

將圖示中的螺絲轉幾圈，暫時固定部件。若螺絲鎖太緊，可能會無法安裝下列步驟中的項目。

EN Assembly TC  組裝

[ 8 ] [ 9 ]

[ 10 ]

[ 11 ]

(1) Unscrew, (2) align, and (3) fasten.

(1) 鬆開、(2) 對準、並且 (3) 鎖緊。

Printer Installation

安裝印表機

EN Assembly TC  組裝

[ 12 ] [ 13 ]

[ 2 ][ 1 ]

[ 4 ]

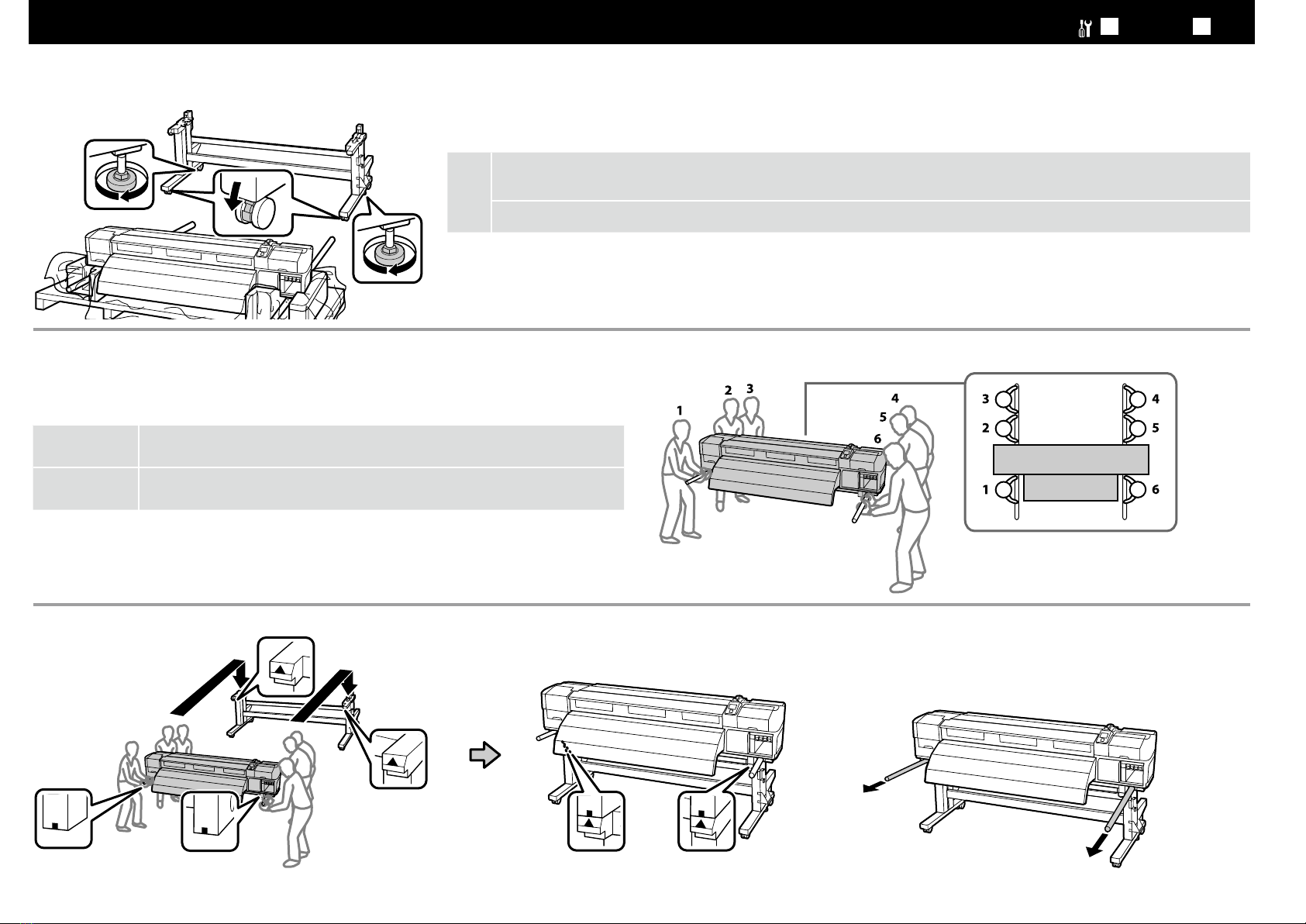

!Caution: When carrying the printer, use at least six persons.

!注意：搬運印表機至少需要 6 人。

[ 3 ]

Before using the printer, be sure the stand is fixed in place. When moving the printer, rotate the adjusters in the opposite

direction to raise them and then unlock the casters.

使用印表機之前，請確認腳架已固定到位。當要搬動印表機時，請以反方向旋轉固定旋鈕，將其升高，然後解開腳輪的鎖定。

EN Assembly TC  組裝

[ 5 ]

[ 6 ]

[ 8 ]

EN Assembly TC  組裝

!Caution: Be careful not to trap your hands or fingers when opening or closing the front

cover.

!注意：當打開或闔上前蓋時請小心，不要弄傷您的手或手指。

[ 7 ]

The removed media holding plate is used when printing on media with a thickness of less than 0.4 mm.

當列印在厚度小於 0.4 mm 的材料時，請使用可移除的材料支撐板。
