Epson SC-P9500 Series Manuel utilisateur

Quick Guide

This manual provides an overview of important operating

procedures for this printer. See the User’s Guide (online

manual) for detailed instructions on using the printer.

Getting Ready to Print.......................................................... 2

Media Setting not Available in Printer Driver or

Control Panel............................................................................ 4

Replacing Consumables ...................................................... 6

Cleaning the Print Head and Around the Cap ............. 7

Ejecting Paper to the Basket............................................... 8

Optional Items......................................................................... 9

Introducing the Software..................................................10

Menu List.................................................................................12

Accessing the Online Manuals ........................................16

ATouch Paper Setting.

BSelect one of the paper sources.

CTouch See Description to see detailed on-screen

instructions.

Getting Ready to

These pages explain how to get the printer ready for printing.

Carefully follow these steps to get optimum print quality.

Roll Paper

Load the Paper Following the

On-Screen Instructions

Check the Paper

Loading Positions

Cut Sheet / Poster Board (1 sheet)

The setting items vary according to the paper.

If you select a paper type or size that does not match the loaded paper,

the printout will have creases, ink smudges, or banding.

You can also make advanced paper settings if necessary.

Press OK after you complete the

settings

When Ready. is displayed, you

can start printing.

Paper Type Amount of

remaining paper

or paper size

Paper will start being fed if the screen is not used for 90 seconds.

Set the Paper Type and Paper Size Print

For Epson Special Paper, set the Paper Type according to the

description on the packaging for the paper.

If the media setting you want to use for printing is not available in

the printer driver or on the control panel, see the following page to

make the media settings. If you print without making media settings,

problems such as creases, scu marks, or banding may occur.

U“Media Setting not Available in Printer Driver or Control Panel”

on page 4

You can use one of the following methods to make media

settings.

• Using the Add Media Setting tool

• Making custom paper settings

Using the Add Media Setting Tool

You can add Media Setting over the Internet. Media

Setting is loaded in the printer driver or the printer itself.

Printer driver (Windows)

Download the latest printer driver from the Epson

Website.

Printer driver (Mac)

See the User’s Guide for information on how to display

the Add screen.

Displays a list of paper information that you can add.

If the Media Setting you want is not available, you can make

custom paper settings using this tool. For information on

making custom paper settings, see the User’s Guide (online

manuals).

BAdd the Media Setting.

Select the paper you want, and then click Download

and Register.

Media Setting not Available in Printer Driver

or Control Panel

AUse one of the following methods to open the Add

Media Setting screen.

Epson Edge Dashboard

Media Setting

ICC prole or print

mode

Print control

parameters

• Printer Driver

• Epson Print Layout

CSelect the paper you want to print on in the Paper

Type for the printer driver or in Epson Print Layout.

Printer driver (Windows)

Printer driver (Mac)

Epson Print Layout

Making Custom Paper Settings

ASelect General Settings - Printer Settings -

Custom Paper Setting on the control panel.

BSelect the paper number (1 to 30) to which you

want to save the settings.

CSet the paper information.

Make sure you set the following items.

• Change Reference Paper

• Paper Thickness

• Roll Core Diameter (Roll paper only)

• Paper Feed Oset

For information on other settings, see the User’s Guide

(online manuals).

A message is displayed on the control panel when it is time to replace consumables. Follow the on-screen instructions to

replace the items. Touch See Description on the control panel to check the procedure.

Location of Replacement Parts

Ink cartridges and cutter

Maintenance box

Replacing Consumables

*SC-P9500 Series only

Cleaning the Print Head and Around the

Cap

If the print head is clogged and it cannot be cleared using

auto cleaning, try cleaning the print head and area around

the cap.

Wiping the print head

Wiping around the cap

See the following videos to check the cleaning methods.

http://www.epson-biz.com/?prd=sc-p9500_sc-

p7500&inf=playlist

Accessing the Print Head

ATouch Maintenance - Cleaning the Maintenance

Parts - Wiping the Print Head on the control panel.

The print head moves to the cleaning position.

BRemove the maintenance cover (Rear).

Follow the on-screen instructions to perform cleaning.

Accessing the Area Around the Cap

ATouch Maintenance - Cleaning the Maintenance

Parts - Wiping around the Cap on the control

panel.

The print head moves to the cleaning position.

BOpen the ink cover (right), and then remove the

maintenance cover (Front).

Follow the on-screen instructions to perform cleaning.

Ejecting Paper to the Basket

You can use the basket to eject paper smoothly and

prevent printouts from getting dirty or wrinkled.

Eject sheets to the basket one at a time. If you allow multiple

sheets to pile up in the basket, they may not be ejected

correctly.

Ejecting from the front of the printer

It is hard to damage the printed surface since the paper is

ejected with the printed surface facing up.

Ejecting from the rear of the printer

Allows you to eject paper into a small space. See the User’s

Guide (online manuals) for information on installing the

basket.

Installing at the Front

You may not be able to eject correctly if printing is performed

when the cloth is too tense or placed on the oor.

Optional Items

The following outlines the optional items for this printer.

See the manual supplied with each optional item for information on installing them.

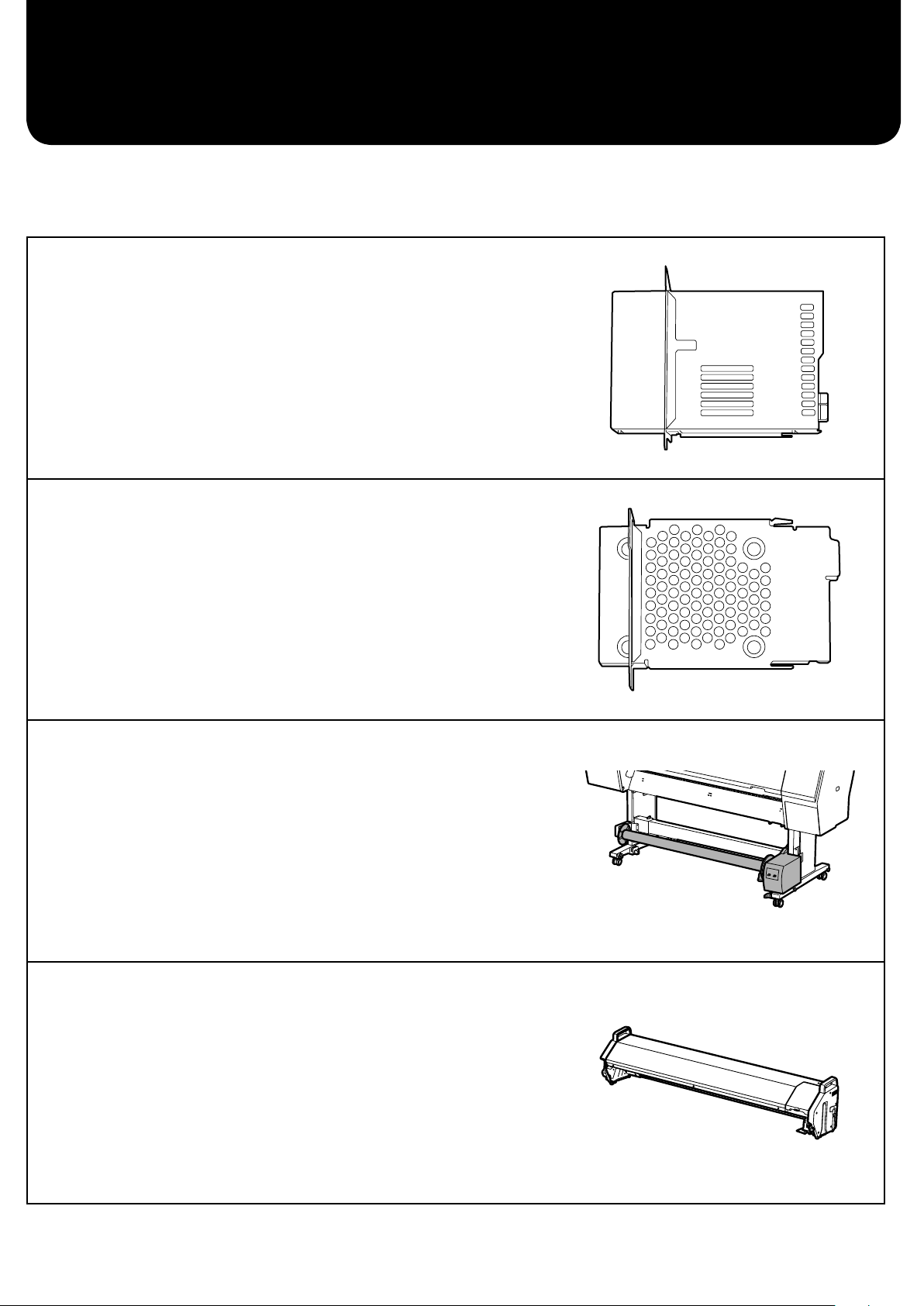

Hard RIP

Adobe® PostScript® 3™ Expansion Unit

Turns the printer into a Post Script enabled printer.

Install it in the options slot.

You cannot install the Adobe PostScript 3 Expansion Unit and the Hard

Disk Unit at the same time.

Reprinting easily without a PC

Hard Disk Unit

You can save print jobs and reprint them later without using a PC.

Install it in the options slot.

You cannot install the Adobe PostScript 3 Expansion Unit and the Hard

Disk Unit at the same time.

Ideal for banner printing on roll paper

Auto Take-up Reel Unit

Only available for SC-P9500 Series.

Media is taken up automatically during continuous roll paper printing

or banner printing.

Remove the basket to install this item.

Handle color proong more eciently

SpectroProofer Mounter

You can perform color measurement automatically by attaching the

color measurement device ILS30EP.

The SpectroProofer Mounters are available for SC-P9500 series and

SC-P7500 series.

Introducing the Software

Printing Software

Print from any application

Printer driver

Use this software to print data sent from a computer to a printer.

Print high-level re-touched data as images

Epson Print Layout

This is plug-in software that is compatible with software such as

Adobe® Photoshop® or Adobe® Lightroom®. You can make high-quality

prints without having to use unfamiliar software.

Easy large format printing from Microsoft® Oce

Epson Print Plug-in for Oce

This is plug-in software that is compatible with Microsoft® Word,

Excel®, and PowerPoint®. You can create posters and banners with a

few simple operations from Microsoft® Oce applications.

Genuine Epson software RIP

Epson Edge Print (optional)

This is genuine Epson software that allows you to maximize the print

head and ink performance. It has been optimized for mass production

usage.
