SC-F3030 User Self Repair Quick Guide

Things to take note before performing User Self Repair: -

•Perform Maintenance (Refer to User’s Guide)

•Adjustment film sheet to be loaded on machine for calibration.

•Make sure there is “Internet Connection”.

•**Only Print Head can be replaced in this mode**.

•For more details, please refer to “How to Replace Print Head” for further instructions.

WORKFLOW for USER SELF-REPAIR

How to activate User Self Repair function

In “OFF “mode, Place right thumb or

an approximately 25 mm (0.98 in.)

diameter coin on the area shown in

the illustration of the printer screen

below, so it is not exposed to light.

While maintaining the conditions

from step 1, press and hold the

power button until the screen

in the illustration appears. (about 20

sec). If the screen in the illustration

does not appear, and the power just

comes on as normal, turn off the

power and redo the procedure from

step 1.

Input the "32998" passcode.

❏Press the right side of the screen to

change the numbers from 0 to 9.

❏Press the left side of the screen to

confirm the selected number and

advance to the next digit for input.

Scan this QR code to watch video on “How to activate User Self Repair mode”.

-------------------------------------------------------------------------------------------------------------------------------------------------------------------

Check the on-screen messages, and

then press

OK.

You have entered successfully if User

Self Repair Mode appears in the

upper left of the screen, as in the

illustration.

If it does not appear, turn off the

power and redo the procedure from

step 1.

Press the center of the screen 2

times to confirm the passcode.

The printer starts in User Self Repair

Mode.

SC-F3030 Print Head replacement

Things to take note before performing Print Head replacements: -

•Only Print Head can be replaced in this mode

•Replace Print Head only if Print Head reached end of life or Print results are not right!

•Use User Self Repair Diagnosis to determine Print Head replacement

•Nozzle compensation "Turn On".

•Adjustment Film Sheet - For Print Head Nozzle Check and Adjustments

•M size platen - Remove grip pad.

•Make sure printer connected to “Internet”.

WORKFLOW for REPLACING PRINT HEAD

When a Print Head Needs to Be Replaced?

A Print Head needs to be replaced in the following situations. (The work is different for both/two situations. )

**If a number other than those above is displayed, contact your dealer or

Epson Support and tell them the 16-digit code.

When print results are not correct:

If the print results are not improved after doing the following measures, start the printer in User Self Repair Mode and

do a Diagnosis.

❏Execute Head Cleaning - Cleaning (Heavy)

If the clogs are not cleared after doing this once, then execute Cleaning (Heavy) again one more time.

❏Clean around the Print Heads and the edges of the metal

❏Clean the Suction Cap

❏Replace the Anti-Drying Caps

For the procedures to clean and replace the various parts, refer to User's Guide - Maintenance.

Only replace a Print Head with a replacement one if the Diagnosis determines that a Print Head needs to be replaced.

-----------------------------------------------------------------------------------------------------------------------------------------

A Print Head has reached the end of its

service life if any of the following 16-digit

numbers appears in the enclosure shown

on screen.

0000020000000000/0000040000000000

/0000060000000000

Take note of the number, then press

Replace Parts to turn off the printer. Next,

start the printer in User Self Repair

Mode, and then replace the Print Head

with the replacement one.

Understand how to hold Printhead

--------------------------------------------------------------------------------------------------------------------------------------

Correctly Holding the Print Head

Use both hands at the positions

outlined in the illustration to hold the

Print Head, such as to replace it

or take it out of the protective case.

Do not touch the areas outlined in

the following illustration when

handling the replacement Print Head.

Otherwise, a malfunction may occur.

Connectors (left/right) and ink supply

ports

Nozzle surfaces (bottom side of Print

Head)

Pack the used Print Head according to the following procedure, and then contact your

dealer or Epson Support.

1. Apply commercially available adhesive tape to the contacts of the connectors on the used Print

Head. Be sure to apply the tape so that any ink left in the nozzles cannot leak out during transport

and get into the contacts of the connectors.

2. Put the Print Head into the protective case and close the lid.

3. Put the protective case in the plastic bag that came with the replacement Print Head, and then put

it all in the outer carton and seal it with adhesive tape. Pack it securely so that the Print Head does

not come out of the box during transport.

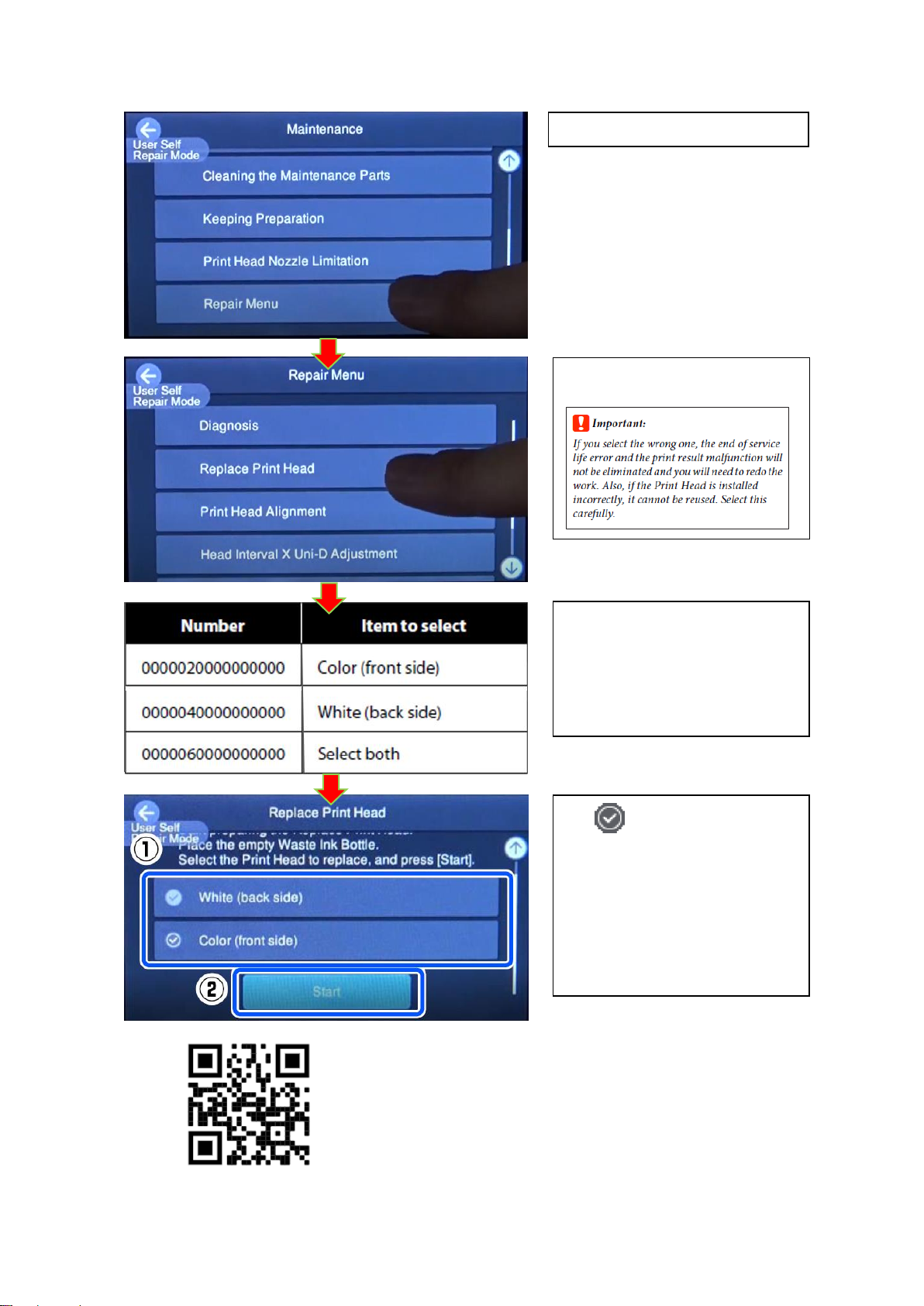

How to start replace Print Head function in User Self Repair mode

•Start the printer in User Self

Repair Mode.

•Press in the order of (menu) -

Maintenance > Repair Menu >

Replace Print Head.

Please Scan for video on “how to replace Print Head”.

•Press Repair Menu

•Press Replace Print Head.

The table shows the relationship

between the number that is

displayed for the end of service life

error and the item you should

select.

Number Item

The icon indicates the Print

Head that is selected to be

replaced.

(In the illustration, the Color (front

side) is to be replaced.)

Check the on-screen messages, and

then press Start.

-------------------------------------------------------------------------------------------------------------------------------------------------------------------

How to use diagnosis

Start in User Self Repair mode,

Press Menu button.

Select Maintenance button

Select Repair Menu button

Select Diagnosis button

Select Start button

Follow the instruction on screen, if

there is a need to do cleaning.

Please follow instruction in How to

Replace Print Head guide on “How

to do Diagnosis (page 11)”.

Screen will show if no error is

detected.

Press Check Details, for further

information.

Screen will show which printhead

needs or do not need replacement.

Press arrow down key to see

amount of fail nozzle.

This Screen will show number of fail

nozzle.

You can also check on “white head

diagnostics results by pressing this

button.

--------------------------------------------------------------------------------------------------------------------------------------

Process After replacement

--------------------------------------------------------------------------------------------------------------------------

Adjustment Work

Adjustment work comprises 3 types of adjustments that are done in order.

Number of fail nozzle will also be

shown when you press arrow down

button. Press close X2 on upper

left-hand corner of screen to exit

this mode.

•M size platen without a grip pad

•Start the printer in User Self Repair Mode. The ink starts filling.

•Position film sheet on centre of platen as show in the illustration on the left.

•When the screen changes to Print Head Nozzle Check, press Start. The

nozzle check pattern is printed.

•Check the nozzle check pattern. If there are no clogged nozzles, select

. If there are clogged nozzles, select , and then do Head

Cleaning until the clogged nozzles are cleared.

•When the screen changes to Print Head Alignment, all the head

replacement work is complete.

•Take note on the direction to place the (cut corner) film sheet

•M size platen without a grip pad

•Position film sheet on centre of platen as show in the illustration on

the left for Print head alignment,Head Interval X Uni-D

Adjustment and Head Interval Y Adjustment. (Do adjustment in

this order)

•Take note on the direction to place the (cut corner) film sheet
