Epson D-Jet 700 Manuel utilisateur

D-Jet 300 / 500 / 700

Epson Service Manual

Digital Information

Technoparkstrasse 1

CH-8005 Zürich

This manual is proprietary in nature and the sole property of

Digital Information. It may not be reproduced, in whole or in part,

without the express written permission of Digital Information.

Digital Information reserves the right to modify and/or delete any

material and/or capabilities described herein.

All the documentation in this manual is instructional and for the

operation of DJet machine. Digital Information shall not be

responsible for any damage or claims resulting from any errors or

omissions in this manual.

Owning to our policy of continuous product development,

specifications, terms and description of DJet are subject to

change without prior notice.

Identifier Epson Service Manual

Target group Installation

Product DJet

Version V1.1

Date January 2014

Article code DJet DI74398-026 EN

Table of contents

Service Manual –Service Epson Printer I

DJet DI746718-22 EN

Table of contents

1Epson Printer Service on Site.......................................................................................................1-2

1.1 Support Plates for Epson Models SC T3000-T5000-T7000 ............................................................1-2

1.2 Take Off the Bottom Printer for Service ...........................................................................................1-3

1.3 Mount the Bottom Printer after Service............................................................................................1-7

1.4 Take Off the Top Printer for Service .................................................................................................1-9

1.5 Mount the Top Printer after Service..................................................................................................1-9

2Printer is Replaced with a New Printer ........................................................................................2-1

2.1 Bottom Printer is Replaced ..............................................................................................................2-1

2.2 Top Printer is Replaced....................................................................................................................2-4

Epson Printer Service on Site

Support Plates for Epson Models SC T3000-T5000-T7000

Service Manual –Service Epson Printer 1-1

DJet DI746718-22 EN

Epson Printer Service on Site

Support Plates for Epson Models SC T3000-T5000-T7000

1-2 Service Manual –Service Epson Printer

DJet DI746718-22 EN

1 Epson Printer Service on Site

1.1 Support Plates for Epson Models SC T3000-T5000-T7000

The printer is mounted on moveable support plates.

The plates have centre bolts to assure an accurate

positioning in X direction (print head movement

direction).

The plates can be pushed forwards and backwards

after releasing the locking screws on both sides..

On each side the printer is secured with a locking

screw.

Epson Printer Service on Site

Take Off the Bottom Printer for Service

Service Manual –Service Epson Printer 1-3

DJet DI746718-22 EN

1.2 Take Off the Bottom Printer for Service

First, unplug the USB, Ethernet and power cable.

Partially loose the two screws on each side.

Don’t take the bolts off completely.

Epson Printer Service on Site

Take Off the Bottom Printer for Service

1-4 Service Manual –Service Epson Printer

DJet DI746718-22 EN

Take off the bolt which secures the printer to the

plate completely.

Move the printer on both sides slightly backwards

Use the handle to pull on the left side.

Epson Printer Service on Site

Take Off the Bottom Printer for Service

Service Manual –Service Epson Printer 1-5

DJet DI746718-22 EN

Use the handle to pull on the right side.

Unplug USB cable from camera and the power

cable from the LED.

Epson Printer Service on Site

Take Off the Bottom Printer for Service

1-6 Service Manual –Service Epson Printer

DJet DI746718-22 EN

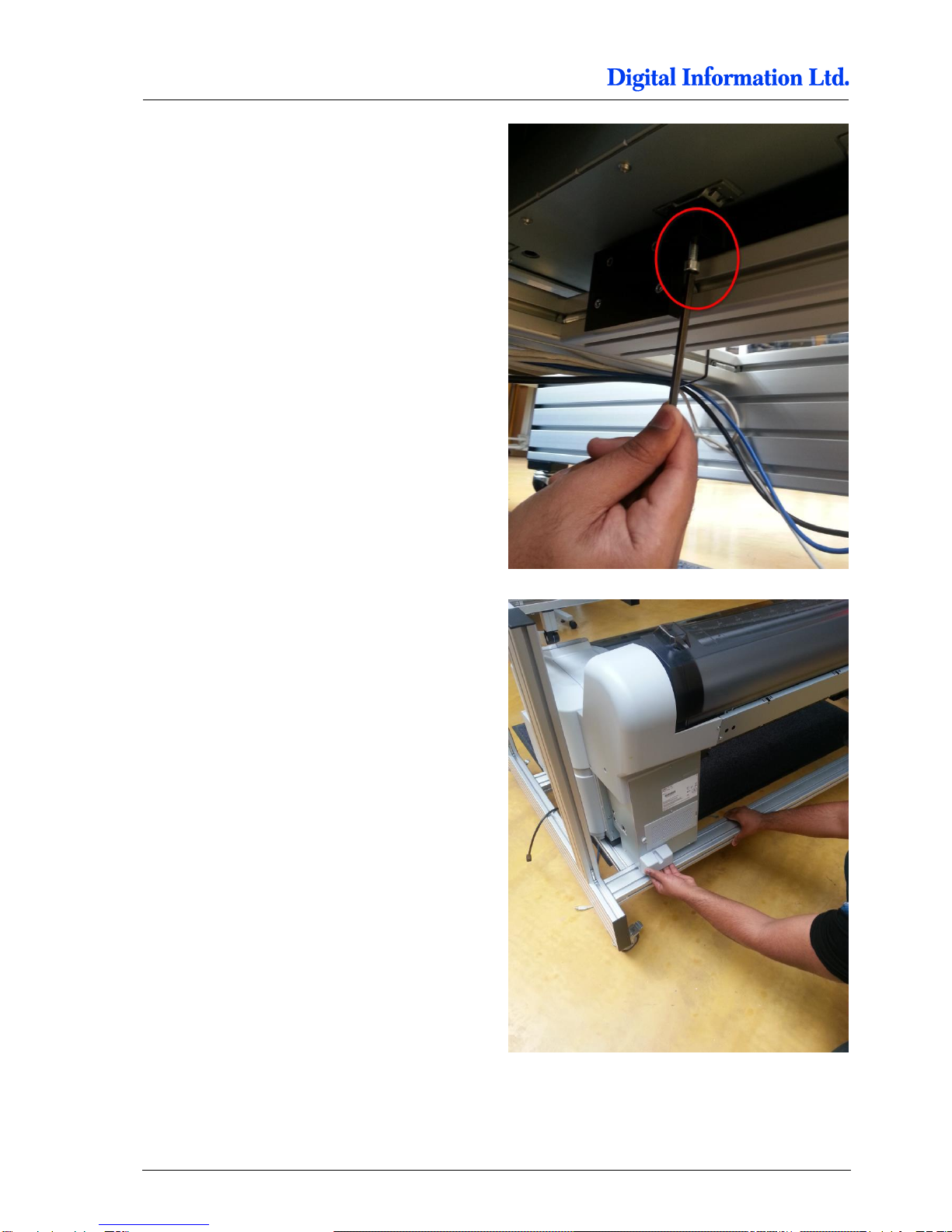

Disconnected USB and power cable.

Now lift off the printer from the frame.
