ESR-1221N Wireless b/g/n Router/AP
• 2.4 GHz
• 150Mbps
• 11N Router/AP
Learn more about EnGenius Solutions at www.engeniustech.com.sg
HOME & HOME OFFICE
ESR1221N
ESR1221N Datasheet Version 240111
*Theoretical wireless signal rate based on IEEE standard of 802.11 b, g, n chipset used. Actual throughput may vary. Network conditions and environmental
factors lower actual throughput rate.
** All specifications are subject to change without notice
PRODUCT OVERVIEW
ESR1221N is a 150Mbps AP Router offers user unprecedented network
performance with economic circuit design. WMM support boosts streaming
and multimedia intensive services. Multiple SSID provides advance users
to manage multiple users of various needs. TX power control enables
flexible transmission tuning for different installation needs and prevents
malicious eaves-dropping. Isolation, filter, firewall and full coverage of
security standards promise a securer network environment.
Learn more about EnGenius Solutions at www.engeniustech.com.sg
Datasheet
ESR1221N
HOME & HOME OFFICE
ESR1221N
ESR1221N Datsa sheet
V
ersion 240111
*Theoretical wireless signal rate based on IEEE standard of 802.11 b, g, n chipset used. Actual throughput may vary. Network conditions and environmental
factors lower actual throughput rate.
** All specifications are subject to change without notice

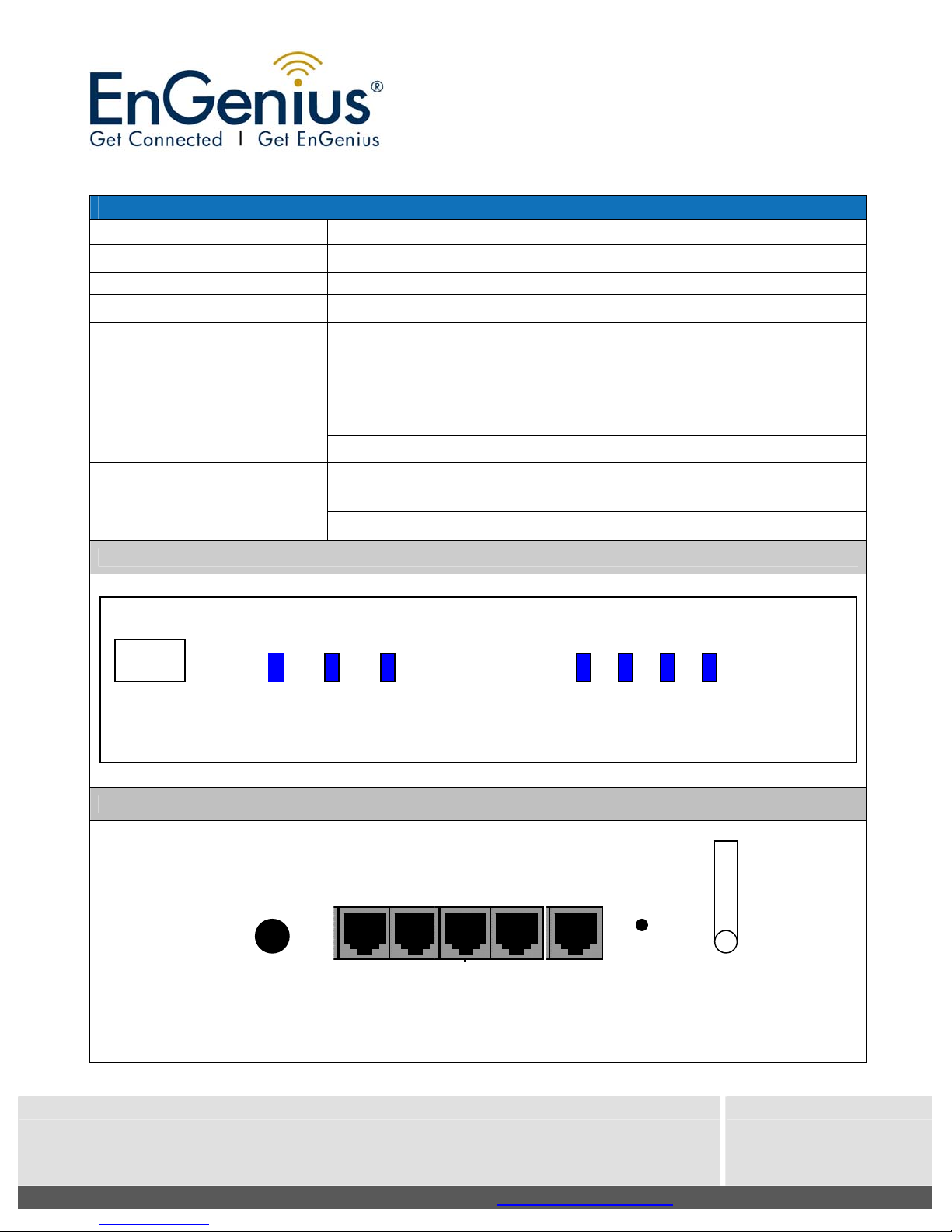

HARDWARE SPECIFICATIONS
MCU RTL8196C+8188RE
Memory 16MB SDRAM
Flash 2MB
PCB dimension 100mm * 90mm
WAN: 1 x 10/100 Fast Ethernet RJ-45
LAN: 4 x 10/100 Fast Ethernet RJ-45
Rest button
Power Jack
Physical Interface
WPS (WiFi Protected Setup)
Power Supply:
200 to 240 VDC ± 10％(ETSI)
100 to 120 VDC ± 10％(FCC)
Power Requirements
Device: 5V/1A
Front Panel (LED status)
Rear Panel (Interface)
Power 4
WLAN 3 2
2
1
WPS
WAN
LAN
10/100 WA
N
DC
Jack Reset Ant
Learn more about EnGenius Solutions at www.engeniustech.com.sg
Datasheet
ESR1221N
HOME & HOME OFFICE
ESR1221N
ESR1221N Datsa sheet
V
ersion 240111
*Theoretical wireless signal rate based on IEEE standard of 802.11 b, g, n chipset used. Actual throughput may vary. Network conditions and environmental
factors lower actual throughput rate.
** All specifications are subject to change without notice
WIRELESS SPECIFICATION
Frequency Band 2.400～2.484 GHz(11b, 11g, 11n)
Modulation Technology OFDM: BPSK, QPSK, 16-QAM, 64-QAM
DBPSK, DQPSK, CCK
Operating Channels 11 for North America, 14 for Japan, 13 for Europe
Wireless Setting
Operation Mode – AP / Router
Wireless Mode – 11b/ 11g /11n
Channel Selection (Setting varies by Country)
Channel Bandwidth (Auto, 20Mhz, 40Mhz)
Transmission Rate - 11n only ,11b/g/n mix ,11b only ,11b/g
Receive Sensitivity (Typical)
2.412 ~ 2.472 GHz (11b) best ≦-90 dBm
2.412 ~ 2.472 GHz (11g) best ≦-88 dBm
2.412 ~ 2.472 GHz (11n) best ≦-85 dBm
Available transmit power
11b 1Mbps - 11Mbps 19
6Mbps - 9Mbps 19
12Mbps - 18Mbps 18
24Mbps - 36Mbps 17
11g
48Mbps - 54Mbps 16
MCS 0-1 / 8-9 19
MCS 2-3 / 10-11 18
MCS 4-5 / 12-13 17
11n
MCS 6-7 / 14-15 16
Antenna Fixed 2dBi Antenna (white)
SOFTWARE FEATURES
Router User Interface
Access method Web Based (HTTP 1.0 / 1.1)
Browser Compatibility Microsoft IE 6.0 or above
Management
System Information Y
System Up Time, Device Name, Wireless MAC, LAN MAC,
Country, Current Time, Firmware Version
System Status
Current IP Setting Y IP Address, Subnet Mack, Default Gateway, DHCP
Learn more about EnGenius Solutions at www.engeniustech.com.sg
Datasheet
ESR1221N
HOME & HOME OFFICE
ESR1221N
ESR1221N Datsa sheet
V
ersion 240111
*Theoretical wireless signal rate based on IEEE standard of 802.11 b, g, n chipset used. Actual throughput may vary. Network conditions and environmental
factors lower actual throughput rate.
** All specifications are subject to change without notice
Current Wireless
Setting Y
Operation mode, Wireless Mode, Channel/ Frequency, L2
Isolation, MSSID Setting
Client List List current associated clients. Show only authorized and associated clients
System Log Displays a list of events triggered
Wireless Functional List
Y Router
Operation mode
Y WDS
802.11 mode options Y b/g/n
Y Manual
Channel setting
Y Auto / Best Channel Selection
Transfer rate setting Y Auto and Manual
Output Power Control Y High / Medium / Low
Power Saving Y Wireless LAN power saving
Y 4 BSSID for 2.4Ghz
Multiple BSSID (Multi AP)
Y Each BSSID should has its own WiFi & security settings
WPS Y
WEP Y WEP(64/128bit)
WPA/ WPA2 Y TKIP / AES
Hidden ESSID Y
MAC address
filtering Y MAC address filtering (Both in WLAN and LAN)
L2 Isolation Y
Security
802.1x Authenticator Y MD5/ TLS/ TTLS, PEAP (Nice to Have)
Functional List
LAN Settings Y IP (check validity and DHCP server IP range)
MAC
DHCP server Y DHCP Range, Lease Time, Client list
NAT/ NAPT Y
Port Forwarding Y
Port Mapping Y Virtual Server: every single IP should support more than one
service port (UI forbids that)
Port Tagging Y
ALG Y
VPN VPN pass-thru Y
Router
Filtering URL Y URL-Keyword blocking
Learn more about EnGenius Solutions at www.engeniustech.com.sg
Datasheet
ESR1221N
HOME & HOME OFFICE
ESR1221N
ESR1221N Datsa sheet
V
ersion 240111
*Theoretical wireless signal rate based on IEEE standard of 802.11 b, g, n chipset used. Actual throughput may vary. Network conditions and environmental
factors lower actual throughput rate.
** All specifications are subject to change without notice
IP Y IP Filtering with scheduling function
Port Y TCP / UDP
ICMP Y
Block Ping From WAN Y Enable / Disable option box
DMZ Y Multiple DMZ records
Dynamic DNS Y
MAC Clone Y Clone WAN port MAC supported / Change in WAN side MAC
address
Y PAP/CHAP
Y Always (keep trying if fail)
Y On demand / Manual
PPPoE
Y Idle Time Out(disconnect if idled for a certain time)
DHCP Client Y
Y PAP/CHAP
Y Always (keep trying if fail)
Y On demand / Manual
PPTP
Y Idle Time Out(disconnect if idled for a certain time)
Fixed IP Y
WAN side form
L2TP Y
N User Name
Y Password
Administration
Y Confirmed Password
Remote Login Y Customizable Port
Default 8080
Backup/ Restore Setting Y
Save Current Setting
Restore Saved Setting
Reset to Factory Default
Firmware Upgrade Y Firmware Upgrade
Allow User to decide to Keep current setting or reset to default.
UPnP Y
Diagnosis Y Address to Ping :
Learn more about EnGenius Solutions at www.engeniustech.com.sg
Datasheet
ESR1221N
HOME & HOME OFFICE
ESR1221N
ESR1221N Datsa sheet
V
ersion 240111
*Theoretical wireless signal rate based on IEEE standard of 802.11 b, g, n chipset used. Actual throughput may vary. Network conditions and environmental
factors lower actual throughput rate.
** All specifications are subject to change without notice
ENVIRONMENT AND PHYSICAL
Temperature Range 0 to 45° C - Operating, -10 to 70 ° C - Storage
Humidity (non-condensing) 15%～95% typical
Dimensions 125mm (L) x 98mm (W) x 25mm (H)
PACKAGE CONTENT
►ESR1221N
►5V/1A Power Adapter
►CD with User’s Manual
►QIG
