EAP-9550

11NWallMount

AccessPoint/WDSAP/UniversalRepeater

2.4GH/ 2Tx2R 11N 300Mbps AP/ WDS/Universal Repeater

* Theoretical wireless signal rate based on IEEE standard of 802.11b, g, n chipset used. Actual throughput may vary.

Network conditions and environmental factors lower actual throughput rate.

** All specifications are subject to change without notice. 9/1/2009

EAP9550 is a powerful and multi-functioned 11n Access Point

and it can act three modes AP/WDS/Universal Repeater. Smoke

detector appearance will minimize visibility. So this model can work

properly at Hotel or public area.

EAP9550 is a Wireless Network device that delivers up to 6x faster

speeds and 7x extended coverage than 802.11g devices. Product’s

RF performance is finely tuned so it will bring best wireless signal for

each client. EAP9550 supports home network with superior

throughput, performance and unparalleled wireless range. To protect

data during wireless transmissions, EAP9550 encrypts all wireless

transmissions through WEP data encryption and supports

WPA/WPA2. Its MAC address filter allows users to select stations

with access to connect network. EAP9550 thus is the best product to ensure network quality for hotspots.

Package Content

1* 11N multi-function Access Point (EAP9550)

1* 12V/1A Power Adapter

1* Wall mount screw set

1* QIG

1* CD (User’s Manual inside)

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

EAP-9550

11NWallMount

AccessPoint/WDSAP/UniversalRepeater

2.4GH/ 2Tx2R 11N 300Mbps AP/ WDS/Universal Repeater

* Theoretical wireless signal rate based on IEEE standard of 802.11b, g, n chipset used. Actual throughput may vary.

Network conditions and environmental factors lower actual throughput rate.

** All specifications are subject to change without notice. 9/1/2009

Features Benefits

High Speed Data Rate Up to

300Mbps Capable of handling heavy data payloads such as MPEG

video streaming

IEEE 802.11n draft Compliant and

backward compatible with 802.11b/g Fully compatible with IEEE 802.11b/g/n devices

Multi-modes selectable Allowing users to select AP/WDS/Universal Repeater mode

in various application

Point-to-point, Point-to-multipoint

Wireless Connectivity Allowing to transfer data from buildings to buildings

WDS (Wireless Distributed System) Making wireless AP and Bridge mode simultaneously as a

wireless repeater

Universal Repeater The easiest way to your wireless network's coverage

Support Multi-SSID function (4

SSID) in AP mode Allowing clients to access different networks through a single

access point and to assign different policies and functions for

each SSID by manager

WPA2/WPA Powerful data security

MAC address filtering in AP mode Ensuring secure network connection

User isolation support (AP mode) Protecting the private network between client users.

Power-over-Ethernet (IEEE802.3af) Flexible Access Point locations and saving cost

Keep personal setting Keeping the latest setting when firmware upgrade

SNMP Remote Configuration

Management Helping administrators to remotely configure or manage the

Access Point easily

QoS (WMM) support Enhancing user performance and density

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

EAP-9550

11NWallMount

AccessPoint/WDSAP/UniversalRepeater

2.4GH/ 2Tx2R 11N 300Mbps AP/ WDS/Universal Repeater

* Theoretical wireless signal rate based on IEEE standard of 802.11b, g, n chipset used. Actual throughput may vary.

Network conditions and environmental factors lower actual throughput rate.

** All specifications are subject to change without notice. 9/1/2009

Technical Specifications

Hardware Specifictions

Expansion Slots N/A

Physical Interface LAN: One 10/100Mbps

Reset Button

Power Jack

LEDs Status Power/ Status

LAN (10/100Mbps)

WLAN (Wireless Connection)

Power Requirements Power Supply: 90 to 240 VDC ± 10％, 50/60 Hz (depends on

different countries)

Active Ethernet (Power over Ethernet, IEEE802.3af)- 48

VDC/0.375A

Device: 12V/1A

Regulation Certifications FCC Part 15/UL, CE

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

EAP-9550

11NWallMount

AccessPoint/WDSAP/UniversalRepeater

2.4GH/ 2Tx2R 11N 300Mbps AP/ WDS/Universal Repeater

* Theoretical wireless signal rate based on IEEE standard of 802.11b, g, n chipset used. Actual throughput may vary.

Network conditions and environmental factors lower actual throughput rate.

** All specifications are subject to change without notice. 9/1/2009

RF Specification

Frequency Band 2.400～2.484 GHz

Media Access Protocol Carrier sense multiple access with collision avoidance (CSMA/CA)

Modulation Technology - OFDM: BPSK, QPSK, 16-QAM, 64-QAM

- DBPSK, DQPSK, CCK

Operating Channels 11 for North America, 14 for Japan, 13 for Europe

Receive Sensitivity

(Typical)

- IEEE802.11n

MCS8 @ -90dBm

MCS15 @ -70dBm

- IEEE802.11g

6Mbps@ -92dBm

54Mbps@ -72dBm

- IEEE802.11b

1Mbps@ -93dBm

11Mbps@ -89dBm

Available transmit power - IEEE802.11n/g

18dBm@6~9 Mbps / MCS9

16dBm@12~18 Mbps / MCS11

14dBm@24~36 Mbps / MCS13

13dBm@48~54 Mbps / MCS15

- IEEE802.11b

17.5dBm@1, 11Mbps

Antenna *2 Directional internal antenna

TNC type; Peak Gain = 4dBi

Antenna Specification

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

EAP-9550

11NWallMount

AccessPoint/WDSAP/UniversalRepeater

2.4GH/ 2Tx2R 11N 300Mbps AP/ WDS/Universal Repeater

* Theoretical wireless signal rate based on IEEE standard of 802.11b, g, n chipset used. Actual throughput may vary.

Network conditions and environmental factors lower actual throughput rate.

** All specifications are subject to change without notice. 9/1/2009

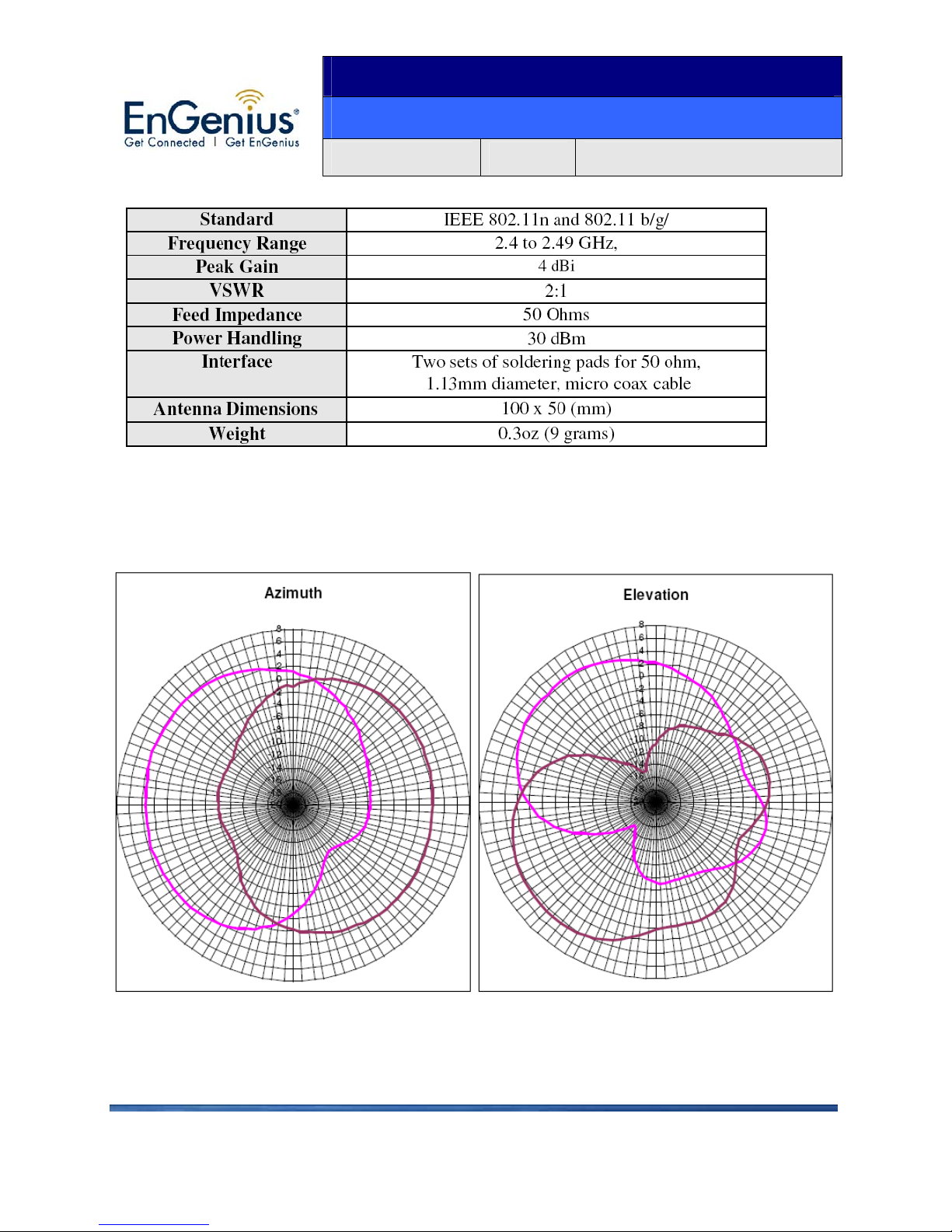

Antenna Radiation Patterns

Software Features

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

EAP-9550

11NWallMount

AccessPoint/WDSAP/UniversalRepeater

2.4GH/ 2Tx2R 11N 300Mbps AP/ WDS/Universal Repeater

* Theoretical wireless signal rate based on IEEE standard of 802.11b, g, n chipset used. Actual throughput may vary.

Network conditions and environmental factors lower actual throughput rate.

** All specifications are subject to change without notice. 9/1/2009

Topology Infrastructure

Operation Mode Access Point / WDS / Universal Repeater

LAN DHCP Server

DHCP Client

Wireless Wireless Mode – 11b / 11g / 11n / Disable

Transmission Rate

11 b/g: 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 in Mbps

11n:

Guard Interval 800ns Guard Interval 400ns

MCS

Index 20MHz

(Mbps) 40MHz

(Mbps) 20MHz

(Mbps) 40MHz

(Mbps)

0 6.5 13.5 7.2 15

1 13 27 14.4 30

2 19.5 40.5 21.7 45

3 26 54 28.9 60

4 39 81 43.3 90

5 52 108 57.8 120

6 58.5 121.5 65 135

7 65 135 72.2 157.5

8 13 27 14.4 30

9 26 54 28.9 60

10 39 81 43.3 90

11 52 108 57.8 120

12 78 162 86.7 180

13 104 216 115.6 240

14 117 243 130 270

15 130 270 144.4 300

Signal Strength

Bandwidth Selection- 40/20 MHz for 11n

Security WEP Encryption-64/128 bit

WPA Personal (WPA-PSK using TKIP or AES)

WPA Enterprise (WPA-EAP using TKIP)

802.1x Authenticator

Hide SSID in beacons

Multiple SSID with 802.1q VLAN tagging (up to 4 SSIDs) in AP mode

MAC Filter(AP mode)

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

EAP-9550

11NWallMount

AccessPoint/WDSAP/UniversalRepeater

2.4GH/ 2Tx2R 11N 300Mbps AP/ WDS/Universal Repeater

* Theoretical wireless signal rate based on IEEE standard of 802.11b, g, n chipset used. Actual throughput may vary.

Network conditions and environmental factors lower actual throughput rate.

** All specifications are subject to change without notice. 9/1/2009

WLAN L2 isolation(AP mode)

Wireless STA (Client) connected list (Idle/Connection Time, Pkt

statistics)

QoS WMM

Management

Configuration Web-based configuration HTTP / Telnet

Firmware Upgrade Upgrade firmware via web-browser

Keep latest setting when f/w update

Administrator Setting Administrator password change

Reset Setting Reboot (press 1 second)

Reset to Factory Default (press 10 second)

System monitoring Status, Statistics and Event Log

SNMP v1, v2c

MIB MIB I, MIB II (RFC1213) and Private MIB

Traffic Measurement Per interface

Bandwidth Measurement IP range and bandwidth management

Backup & Restore Settings through Web

Environment & Physical

Temperature Range Operating: 0°C to 45°C (32°F to 113°F)

Storage: -20°C to 70°C (-4°F to 158°F)

Humidity (non-condensing) 5%～95% typical

Dimensions Diameter:120mm

Height: 50mm

Weight 280g

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

EAP-9550

11NWallMount

AccessPoint/WDSAP/UniversalRepeater

2.4GH/ 2Tx2R 11N 300Mbps AP/ WDS/Universal Repeater

* Theoretical wireless signal rate based on IEEE standard of 802.11b, g, n chipset used. Actual throughput may vary.

Network conditions and environmental factors lower actual throughput rate.

** All specifications are subject to change without notice. 9/1/2009

V1.0
