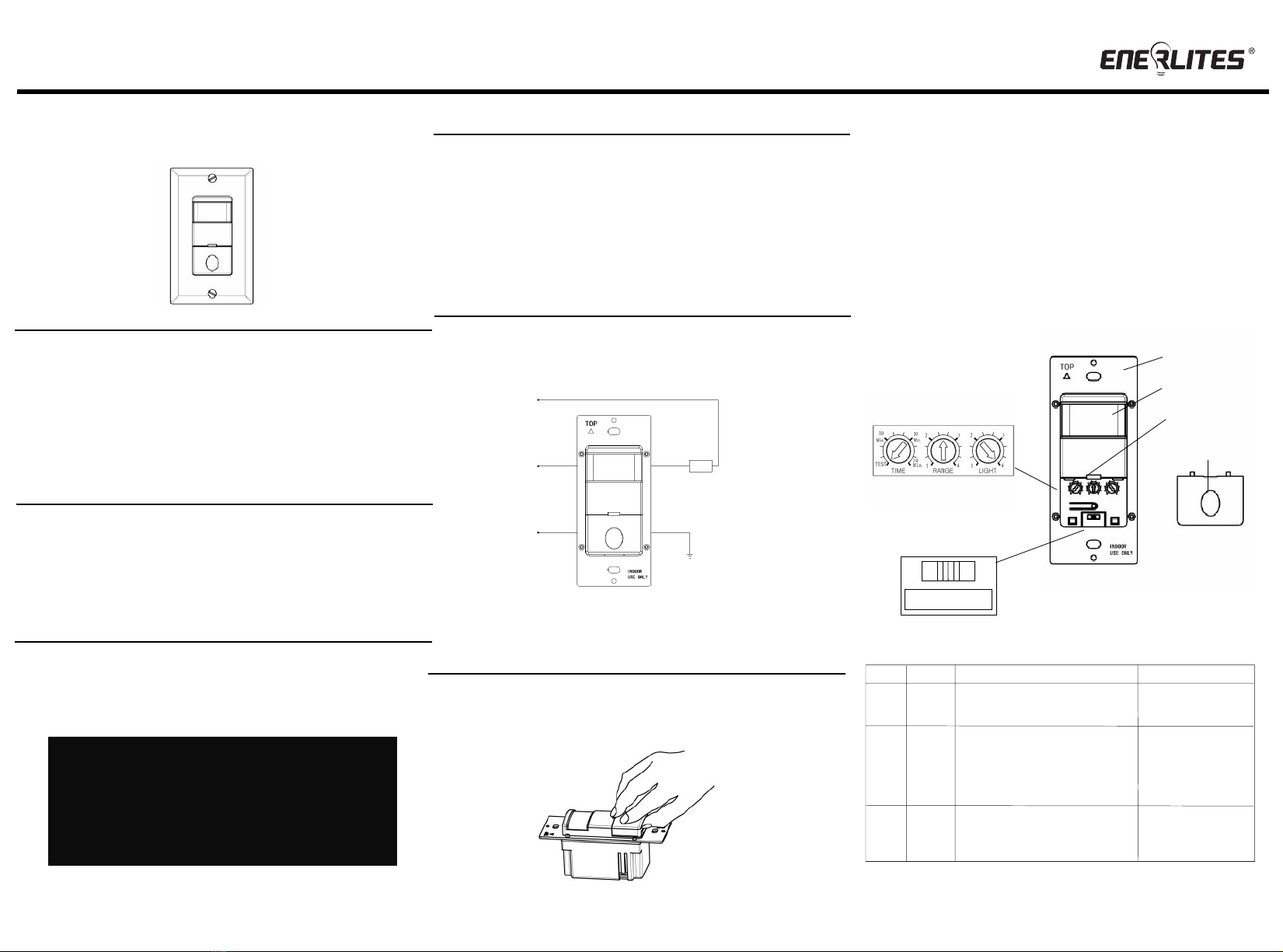

WARRANTY INFORMATION
TROUBLESHOOTING
OPERATION
This device is warranted to be free of material and workmanship defects for 2 years from the
date of purchase. Original receipt or proof of purchase from an authorized retailer must be
presented upon warranty claim. ALL claims must be verified and approved by Enerlites, Inc.
Warranties from other Enerlites products may vary. This warranty is nontransferable and
does not cover normal wear and tear or any malfunction, failure, or defect resulting from
misuse, abuse, neglect, alteration, modification, or improper installation. To the fullest extent
permitted by the applicable state law, Enerlites shall not be liable to the purchaser or end
user customer of Enerlites products for direct, indirect, incidental, or consequential damages
even if Enerlites has been advised of the possibility of such damages. Enerlites’ total liability
under this or any other warranty, express or implied, is limited to repair, replacement or
refund. Repair, replacement or refund are the sole and exclusive remedies for breach of
warranty or any other legal theory.
© 2016 Enerlites Inc.
CA, U.S.A.
WWW.ENERLITES.COM
0206160005
Off/ Occupancy/ Vacancy Mode Switch
The OFF position: Switch is turned off and will not detect motion. The
push button will not function.
OCCupancy position: The load will automatically turn on when motion is
detected and automatically turn off when the selected time delay has expired.
The push button may be used to manually turn ON/OFF the load and time
delay will also take effect.
VACancy position: The load will turn on ONLY when the push button is
used and automatically turn off when the selected time delay has expired.
The push button may be used to manually turn ON/OFF the load and time
delay will also take effect. If the time delay has expired and the load turns off,
the load will turn on again automatically if motion is detected within 30
seconds.
NOTE: For DWOS-1277-NL, there is night light behind the Fresnel Lens
and it functions as follow:
OFF ---- The Night Light stays on constantly.
OCC ---- The Night Light will not function.
VAC ---- The Night Light will turn on when motion is detected
and the load is off. The Night Light will turn off when
load is on.
1.
Push Manual On/Off Button, if the load turns On; verify that the Range dial
is on high.
2.
Check the wiring connections. Be sure the NEUTRAL wire is present.
3.
Switch may be in VACancy mode. Select the OCC position on the Mode
Switch if "Auto ON" is what's desired.
NOTE: There is a 1 minute warm-up time at initial power-up. The load
may turn on/off several times.
The Load does not turn On. LED does not flash regardless of motion:
The Load does not turn On when LED indicator flashes and motion is
detected:
1.
Push Manual On/Off Button, if the load turns On; verify that the Range dial
is on high.
2.
Check the wiring connections. Be sure the LOAD wire is connected.
3.
Switch may be in VACancy mode. Select the OCC position on the Mode
Switch if "Auto ON" is what's desired.
4.
Check the Light dial. The pointer indicates the light level the ambient light
needs to drop to before the load is automatically turned on.
The Load does not turn Off:
1.
Motion may be detected. The time delay constantly restarts its countdown
after the last motion detected. To verify proper operation, turn the Time
Delay Knob to 15s (Test Mode) and make sure there is no motion (no LED
flashing). Tape may be used to cover the fresnel lens while testing.
2.
Check for significant heat source emitting within six feet (two meters) such
as high wattage light bulb, portable heaters or HAVC vents.
3.
If Manual operation of push-button is desired, select VAC mode on the
Mode Switch.
4.
If the sensor is installed in a small room, turn the Range dial lower to avoid
false or unwanted detection from open window or door.
1.
Motion may be detected. The time delay constantly restarts its countdown
after the last motion detected. To verify proper operation, turn the Time Delay
Knob to 15s (Test Mode) and make sure there is no motion (no LED flashing).
Tape may be used to cover the fresnel lens while testing.
2.
Check for significant heat source emitting within six feet (two meters)
such as high wattage light bulb, portable heaters or HAVC vents.
3.
Check the wiring. Make sure the HOT and LOAD wires aren't reversed.
The Load turns on when its not desired:
