ENERGY SISTEM Phone Colors Manuel utilisateur
1/21 energysistem.com
ENGLISH
Introduction 3 .....................................................................................................................................................................
Care and maintenance 3 ...................................................................................................................................................
Key features 4 ....................................................................................................................................................................
Product content 4 ...............................................................................................................................................................
General overview 4 ............................................................................................................................................................
Power/First use 6 ...............................................................................................................................................................
Switching On and Off 6 ......................................................................................................................................................
Main gestures 6 ..................................................................................................................................................................
Basic gestures 6 .............................................................................................................................................................
Main screen 7 ......................................................................................................................................................................
Widgets 8 .......................................................................................................................................................................
SIM Card Setup 9 ............................................................................................................................................................
Bluetooth setup 10 .........................................................................................................................................................
Wi-Fi setup 11 .................................................................................................................................................................
Internet browser 12 ........................................................................................................................................................
E-Mail Client 12 ...............................................................................................................................................................
Music player 13 ..............................................................................................................................................................
Video player 14 ..............................................................................................................................................................
Camera 15 ............................................................................................................................................................................
Gallery 16 .............................................................................................................................................................................
MicroSD & USB 17 ..............................................................................................................................................................
Updating 18 .........................................................................................................................................................................
Troubleshooting 19 ............................................................................................................................................................
Safety precautions and SAR 19 ........................................................................................................................................
Safety precautions 19 .....................................................................................................................................................
Exposure information (SAR) 20 .......................................................................................................................................
Warranty 20 .........................................................................................................................................................................
Warranty Procedure 20 .....................................................................................................................................................
Trademarks 20 ....................................................................................................................................................................
Declaration of Conformity 20 ...........................................................................................................................................
2/21 energysistem.com
3/21 energysistem.com
Introduction
Energy Sistem™ thanks you for buying your new Phone Colors. We hope you enjoy it.
This device belongs to the Smartphone family: a new generation of communication devices based on the
Android™ operating system, with which you can access the Internet and communicate anytime, anywhere,
check your e-mails and play any multimedia content (video, music, photos, eBooks, etc.). In addition, there are
thousands of applications and games available so you can get the most out of your device. The device has a 4"
(800x480 pixels) capacitive multi-touch display, Dual Core ARM Cortex A7 1GHz processor, Bluetooth 4.0, WiFi,
GPS, 3G connectivity and rear and front cameras.
We recommend you to read this manual to enjoy your device in a safe way and with maximum performance.
Care and maintenance
Do not expose your Smartphone to impacts, dust, direct sunlight, humidity or high temperatures.
Do not use abrasive or corrosive cleaners.
Keep the device clean and dust free using a soft, dry cloth.
Charge the battery when the display shows the low battery icon. Only charge with the adapter included in your
smartphone.
Do not disassemble the device. Any repairs must be carried out by Energy Sistem Soyntec S.A. qualified
personnel only.
4/21 energysistem.com
Key features
Unlocked smartphone with ANDROID™ 4.4 Kit Kat O.S.
3 interchangeable color back casings.
Capacitive 4.0" TFT-LCD touch screen (WVGA - 800x480p).
Dual Core processor ARM Cortex A7, 1GHz and GPU Mali-400.
3G connection to surf the web 24 hours a day.
Wi-Fi (802.11 b/g/n): ultrahigh-speed connection to the Internet via access point.
GPS satellite-based function for a precise and reliable navigation.
Bluetooth 4.0 wireless connection for headphones, speakers and other Bluetooth devices.
Dual SIM slot.
512MB RAM.
4GB built-in memory to store up to 16 hours of video or 2.000 songs.
Expandable memory via microSD-HC/XC cards (up to 64GB).
Integrated front camera (VGA 640x480).
Integrated rear camera with Auto-Focus, BSI and LED flash (5.0 Mpx).
USB function for an easy access to the smartphone memory from your computer (cable included).
Integrated speaker.
Integrated omni-directional microphone.
Audio connector compatible with CTIA standard.
Motion sensor (accelerometer).
Display with auto brightness ajustment.
Proximity sensor.
Installed apps: web browser, email manager, music- video- and photo player, FM radio, alarm and calculator.
Allows you to install thousands of app and games available for the Android™ operating system.
Operating frequency bands: GSM 850/900/1800/1900 MHz + WCDMA 900/2100 MHz
Battery life: up to 150 hours in stand-by and 10 hours of talk time.
Battery capacity: 1.450mAh.
SAR rating: 0.205 (W/Kg) in the head and 0.382 (W/Kg) in the body (distance:10mm).
Product content
Phone Colors
2 extra back cases
Quick guide
USB cable
AC/DC (Europlug) 100-240V AC 50-60Hz power adapter
Screen protector

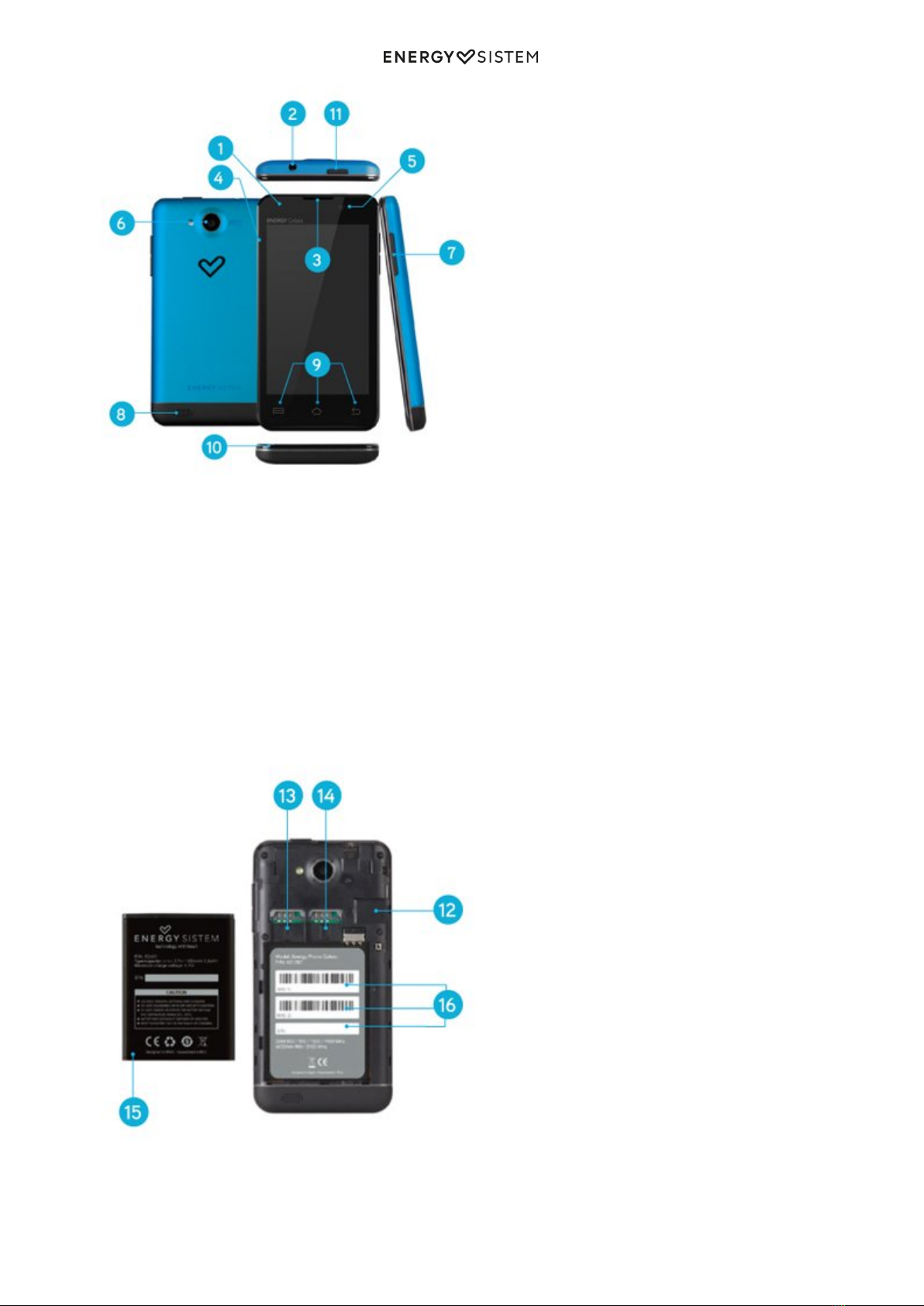

General overview
5/21 energysistem.com
Proximity and luminosity sensors.1.
Headphones output.2.
Front speaker.3.
USB port.4.
Front camera.5.
Rear camera.6.
Volume button.7.
Rear speaker.8.
Menu, Home, Back touch buttons.9.
Microphone.10.
Power button.11.
12. MicroSD card slot.
13. SIM 1 card slot.
6/21 energysistem.com
14. SIM 2 card slot.
15. Battery.
16. Serial and IMEI number.
Power/First use
Your Smartphone has a rechargeable lithium ion battery that you must insert into the device. Open the battery cover,
insert the SIM cards, the microSD card (not included) and the battery. Place the battery cover onto the back of the
phone. Initially the battery is charged at the factory, but it is highly recommended that you perform a full charge before
the first use.
Recharge the battery by connecting the device to the power point only using the AC/DC 5V included with the product.
The charging time ranges from 2-4 hours, depending on whether the device is off or running. In order to keep the
battery in good condition, we recommend that you turn it off while charging and not leave it charging more than 8
hours.
You have several ways to improve the performance and optimize the battery use of your Phone:
Set your Smartphone to automatically turn off the display after a few seconds of inactivity in Settings > Display > Sleep
after.
Select an ideal display brightness in Settings > Display > Brightness.
Turn on the Wi-Fi connnection whenever you can since it needs less battery than 3G connection and you will save in
your data connection.
Switching On and Off
Before turning on your Phone, make sure that the SIM cards are inserted in their slots. After that, press the power
button (11) located on the upper right side of your device for a few seconds. When the operating system has loaded,
unlock the device to start using it. Enter the PIN number of your SIM cards and then drag the padlock outside the circle
using your finger.
In order to turn off the device, hold the power button (11) until you see the power off menu, then select "Power Off".
Briefly pressing the power button (11) locks/unlocks the device, turning the screen on/off and activating the power
saving mode.
Main gestures
Basic gestures
Tap
Touch the screen briefly
Double tap
Touch the screen twice quickly
Drag
Move your finger over the screen without losing contact
7/21 energysistem.com
Slide
Slide your finger quickly over the screen
Press
Touch the screen for an extended period of time
Zoom
Zoom in and out the screen image
Main screen
8/21 energysistem.com
Status Bar: Displays information about the signal status, battery and clock. If you slide your finger down from1.
this area, you will access a new basic settings menu version that manages the notifications and the settings
menu.
Search: Direct access to Google's™ search engine.2.
Voice Search: Access to Google's™ voice search and much more.3.
Music: Music player.4.
Play Store™: Download the best and most popular apps for your Android™ system.5.
Gallery: Image gallery.6.
Cam: Access to the built-in camera.7.
Internet: Web browser.8.
Email: E-mail client.9.
Access to the application and widget menu.10.
Contacts: Contact management.11.
Call.12.
Widgets
9/21 energysistem.com

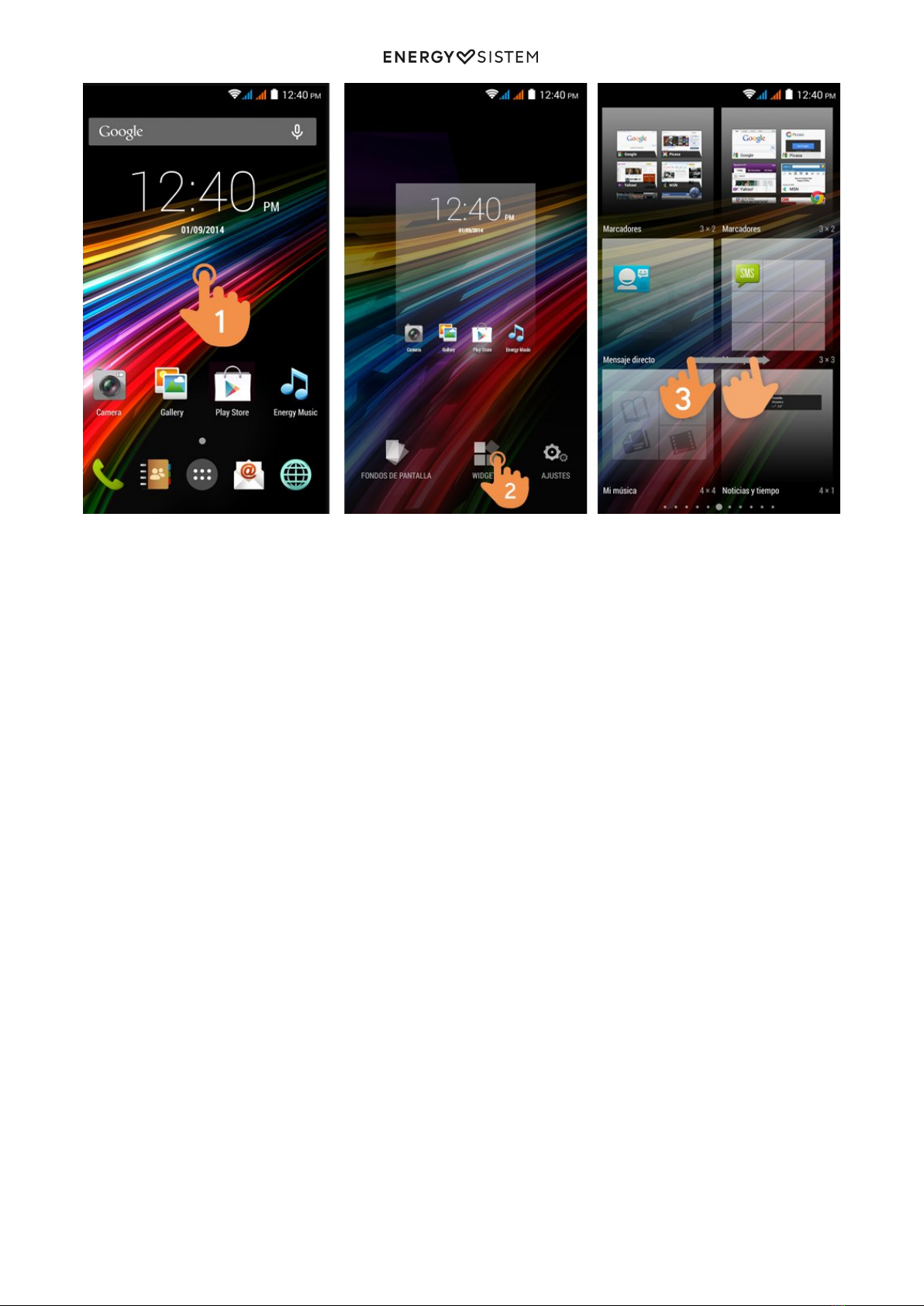

In order to add a Widget to one of your desktops, tap on the center of the desktop (1), then select "WIDGETS" at the top
of the screen (2). You can slide your finger to the left or right (3) to see all your installed Widgets. Select the one you
want to add to your desktop by pressing and then releasing it on the desktop.
A Widget can be relocated or removed easily. To relocate a widget, tap and hold it for a few seconds. Once the widget is
highlighted, you can move it to another position within the desktop.
To remove the widget, tap and hold it for a few seconds and the X icon will appear on the top side of the screen, drag
the widget to the X icon and release it.

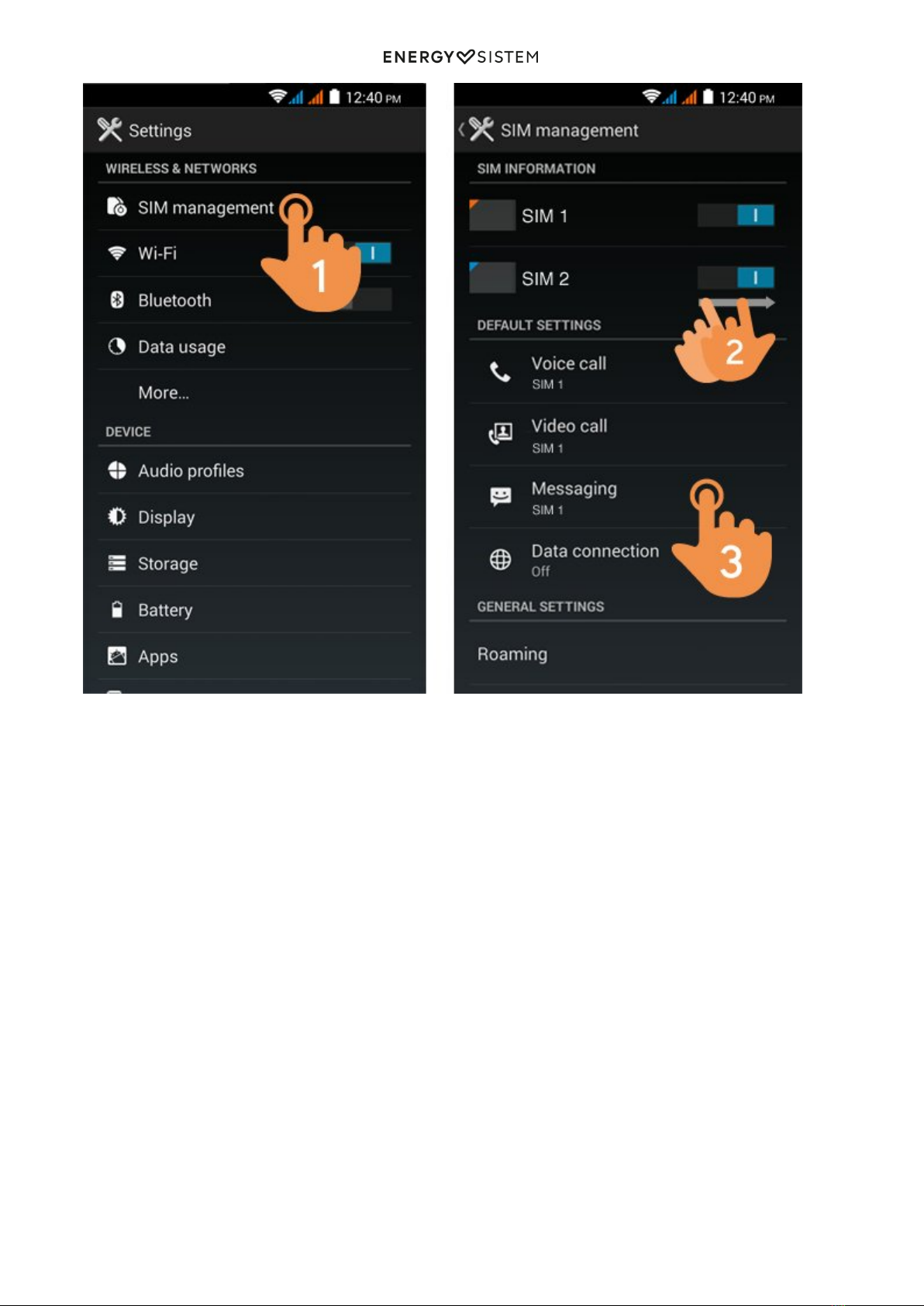

SIM Card Setup
10/21 energysistem.com
Your Phone allows you to use two SIM cards. In Settings > SIM Management, you can manage your SIM cards.
In this section you can set the default card to make or receive calls, send and receive text messages and data
connection. It also allows you to set your roaming network operator.
Bluetooth setup
Your Phone has Bluetooth 4.0. to connect your device to any bluetooth device like headphones, PC, speakers, etc. You
only have to go to Settings > Bluetooth and turn the switch to the ON position. Once the search is finished, select the
device to start
the connection.
