Eneo IPD-52M2712M5A Manuel utilisateur

User Manual

1/2,8" Network Dome, Fix,

1920x1080, Day&Night, DOL-WDR,

2,7-12mm, Infrared, IP66

IPD-52M2712M5A

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

To prevent electric shocks and risk of fire hazards, do NOT use other than

specific power source.

Warning :

This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

his own expense.

Caution :

Any changes or modifications in construction of this device which are not expressly

approved by the party responsible for compliance could void the user's authority

to opera te the equipment.

Mains power quality should be that of a typical commercial environment. If the user

of the model requires continued operation during power mains interruptions, it is

recommended that the model be powered from an uninterruptible power supply

(UPS) or a battery.

The symbol is intended to alert the user to the presence of important

operating and maintenance(servicing) instructions in the literature

accompanying the unit.

The symbol is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

Safety Precaution

MEGA-PIXEL NETWORK CAMERA

Safety Precaution

NOTICE

• The image used in this instruction manual are processed to help comprehension

and may differ from actual video of the camera.

• Avoid installing areas where has shock or vibration which results in the problems.

•Pay attention to safety when laying the connection cable and observe that the cable

is not subjected to heavy loads, kinks or damage and no moisture can get in.

• Never open the device such as boards or lens.

The warranty becomes void if repairs are undertaken by unauthorized persons.

• Maintenance and repair have to be carried out only by authorized service centers.

• Use only a mild detergent to clean the housing body.

• The camera should never be operated beyond the technical specifications.

This can lead to destruction.

• The camera should never be operated in water.

MEGA-PIXEL NETWORK CAMERA

Contents

MEGA-PIXEL NETWORK CAMERA

Safety Precaution . . . . . . . . . . . . . . . . . . . . 03~04p

Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 05p

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 06p

Composition . . . . . . . . . . . . . . . . . . . . . . . . . . . 07p

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 07p

Part Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . 08p

Installation Instructions . . . . . . . . . . . . . . . . 09~10p

Operating Instructions . . . . . . . . . . . . . . . . . 13~16p

. . . . . . . . . . . . . . . . . . . . . . . . . 11~12p

Specifications

2-1. Information

2-2. Video & Image

2-3. Event

2-4. System

1. LIVE VIEW

2. SETUP

Full Menu Setup . . . . . . . . . . . . . . . . . . . . . 17~57p

........................................................ 17p

............................................... 19p

......................................... 19p

Troubleshooting . . . . . . . . . . . . . . . . . . . . . 58~59p

.............................................................. 19p

........................................................ 35p

...................................................... 47p

Features

MEGA-PIXEL NETWORK CAMERA

• Full-HD 2.16Mega Pixel, NETWORK CAMERA, 1920x1080(30/25p)

• The best low light performance with SONY’s STARVIS sensor

• ONVIF Conformance

• ONVIF Event Mapping

• Zero configuration

• Cross Web Browsing (IE, Edge, Safari, Firefox, Chrome)

• Adaptive web resizing depending on layout & resolution of

display device by RESPONSIVE WEB

• Increased usability for all PC, tablet and mobile

• Simultaneously H.265(+), H.264(+) & MJPEG (Multi streaming)

• f=2.7~12mm, Motorized vari-focal lens

• Motorized Zoom & Focus Adjustment

• DOL WDR (Digital Overlap Wide Dynamic Range)

• D-WDR (Digital Wide Dynamic Range)

• Improved noise figure with the enhanced 3DNR

• LDC(Lens Distortion Compensation)

• Smart Stream, ROI(Region of Interest)

- Enables to process video data smartly according

to users demand.

- Available to deliver high quality video on interested

region while less quality video on non interested region.

- Lowering overall bandwidth and reduce the storage burden

• Privacy Mask, Motion Detection, Defog, HLC/ BLC,

Digital Zoom(~x10), Mirror/Flip, Contrast, Brightness, Hue,

Saturation, Sharpness, DIS (Digital Image Stabilization)

• Circuit protection against faulty connection in power polarity

• 3-Axis Gimbal

• Built-in 30pcs IR-LEDs

• PoE(IEEE Std. 802.3af) & DC12V

• Optimized Heat sink System

• Anti-Scratch hard coated clear bubble

• IP66 / IK10

Composition

Dimensions

MEGA-PIXEL NETWORK CAMERA

(unit : mm)

Network Camera

Mounting Template

Operating Instruction

Mounting Screw:

4 x 25mm (4pcs)

Plastic Anchor:

6.5 x 26.6mm (4pcs)

L-Wrench (1pc)

Ø144

Ø100

108

3-Axis Gimbal back

IP RESET

Part Names

MEGA-PIXEL NETWORK CAMERA

3-Axis Gimbal

Dome Cover

Dome Base

Power Cable

Hook

Safety wire ring

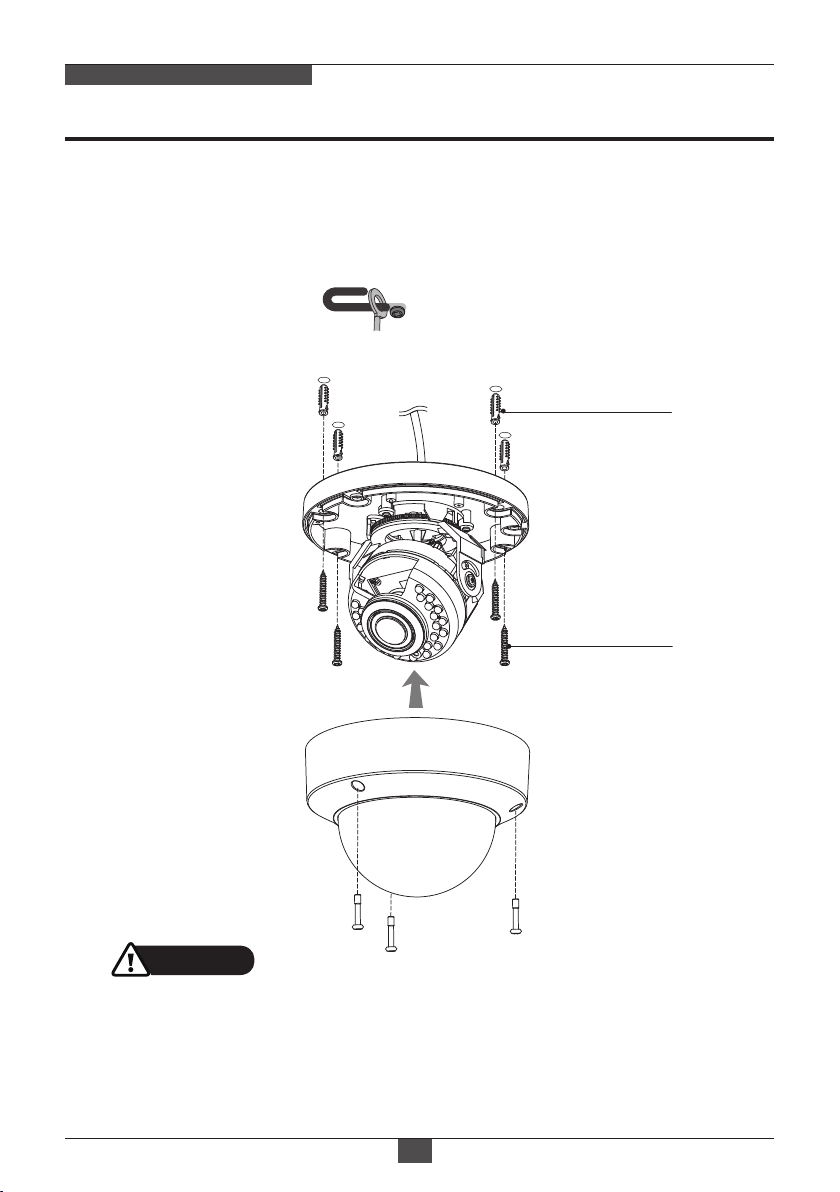

Installation Instructions

MEGA-PIXEL NETWORK CAMERA

Mounting Screw

(4x25mm)

Plastic Anchor

(6.5x26.6mm)

• Extreme care should be taken NOT to scratch the lens and the bubble dome

surface while the camera installing or adjusting.

• Care should be taken the cable is NOT to be damaged, kinked or exposed in

the hazardous area.

• Do not expose the camera directly to a strong light source such as the sun or

spot light.

CAUTION

(Insert the safety wire ring on a hook.

-> Fold the hook not to slip off.)

1. Drill four holes for mounting on the ceiling or wall.

2. Place the dome base at the pre-drilled installation position and fix it by using

mounting screws.

3. Route the power & ethernet cable to the connecting place.

4. Adjust the camera’s viewing angle (Pan, Tilt, Rotation)

5. Hanging a Dome Cover.

6. Assemble the dome cover to the dome base unit.

Installation Instructions

MEGA-PIXEL NETWORK CAMERA

Limit of Pan & Tilt

Installation and commissioning Instructions

• Make sure the power is removed before the installation.

• After all connections are finished properly, follow the order for applying power.

a) Plug the network cable into RJ-45 Ethernet Port.

If PoE is the unique power, there will be no need to connect Power jack.

b) When DC12V Local power is necessary, connect the low voltage

(DC12V) first, then plug the DC adapter to DC outlets to avoid an

improper reset from power jitter and a damage from the surge voltage when

no load.

Power Supply Connections

Camera can work with either DC12V or PoE(IEEE Std. 802.3af).

Primary and secondary grounds are completely isolated to avoid the possible

ground loop problems.

► When PoE and Local DC power are connected at the same time,

Local power has priority.

1) Pan limit:

Adjusts the first pan angle by turning

the gimbal 360˚.

2) Tilt limit:

Tilt is limited to 25°min ~ 90°max. with

reference to the ceiling when the

inclination of camera module is 0°, that

is, the image is aligned horizontally.

3) Rotation limit

(Horizontal image alignment):

Adjust the rotation angle by turning

the upper gimbal 360°.

Pan

Tilt

Rotation

• Be careful with the cable twisting

during pan or tilt adjustments.

CAUTION

25º

90º
