Brief Operating Instructions

RID16

8-channel field indicator

with PROFIBUS® PA protocol

These Brief Operating Instructions are not a substitute for the

Operating Instructions pertaining to the device.

Detailed information is provided in the Operating Instructions

and other documentation.

Available for all device versions via:

• Internet: www.endress.com/deviceviewer

• Smartphone/tablet: Endress+Hauser Operations app

KA01157K/09/EN/02.23-00

71616053

2023-05-17

RID16

2 Endress+Hauser

Order code:

Ext. ord. cd.:

Ser. no.:

www.endress.com/deviceviewer Endress+Hauser

Operations App

XXXXXXXXXXXX

XXXXX-XXXXXX

XXX.XXXX.XX

Serial number

A0023555

RID16 Table of contents

Endress+Hauser 3

Table of contents

1 About this document .............................................................. 4

1.1 Symbols ............................................................................. 4

2 Safety instructions ................................................................ 5

2.1 Requirements for the personnel ............................................................ 5

2.2 Intended use .......................................................................... 5

2.3 Workplace safety ...................................................................... 5

2.4 Operational safety ......................................................................6

2.5 Product safety ......................................................................... 6

3 Incoming acceptance and product identification ................................... 6

3.1 Incoming acceptance .................................................................... 6

3.2 Product identification ................................................................... 7

3.3 Storage and transport ................................................................... 7

3.4 Certificates and approvals ................................................................ 8

4 Mounting ......................................................................... 8

4.1 Mounting requirements ................................................................. 8

4.2 Mounting the measuring device ............................................................9

4.3 Post-mounting check .................................................................. 11

5 Electrical connection ............................................................ 11

5.1 Connecting requirements ............................................................... 11

5.2 Connecting the measuring device ......................................................... 12

5.3 Ensuring the degree of protection ......................................................... 17

5.4 Post-connection check ..................................................................17

6 Operation options ............................................................... 18

6.1 Overview of operation options ............................................................ 18

6.2 Access to the operating menu via the operating tool ............................................ 20

6.3 Hardware settings ..................................................................... 20

6.4 Device configuration ................................................................... 22

About this document RID16

4 Endress+Hauser

1 About this document

1.1 Symbols

1.1.1 Safety symbols

DANGER

This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in

serious or fatal injury.

WARNING

This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in

serious or fatal injury.

CAUTION

This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in

minor or medium injury.

NOTICE

This symbol contains information on procedures and other facts which do not result in

personal injury.

1.1.2 Electrical symbols

Symbol Meaning Symbol Meaning

Direct current Alternating current

Direct current and alternating current Ground connection

A grounded terminal which, as far as

the operator is concerned, is grounded

via a grounding system.

Symbol Meaning

Potential equalization connection (PE: protective earth)

Ground terminals that must be connected to ground prior to establishing any other connections.

The ground terminals are located on the interior and exterior of the device:

• Interior ground terminal: potential equalization is connected to the supply network.

• Exterior ground terminal: device is connected to the plant grounding system.

1.1.3 Symbols for certain types of information

Symbol Meaning Symbol Meaning

Permitted

Procedures, processes or actions that

are permitted.

Preferred

Procedures, processes or actions that

are preferred.

Forbidden

Procedures, processes or actions that

are forbidden.

Tip

Indicates additional information.

RID16 Safety instructions

Endress+Hauser 5

Symbol Meaning Symbol Meaning

Reference to documentation

Reference to page

Reference to graphic

… Series of steps

Result of a step Visual inspection

1.1.4 Symbols in graphics

Symbol Meaning Symbol Meaning

1, 2, 3,... Item numbers

… Series of steps

A, B, C, ... Views A-A, B-B, C-C, ... Sections

Hazardous area

Safe area (non-hazardous area)

2 Safety instructions

2.1 Requirements for the personnel

The personnel must fulfill the following requirements for its tasks:

‣Trained, qualified specialists must have a relevant qualification for this specific function

and task.

‣Are authorized by the plant owner/operator.

‣Are familiar with federal/national regulations.

‣Before starting work, read and understand the instructions in the manual and

supplementary documentation as well as the certificates (depending on the application).

‣Follow instructions and comply with basic conditions.

2.2 Intended use

• The device is a field indicator for connection to a fieldbus.

• It is designed for mounting in the field.

• The manufacturer accepts no liability for damages resulting from improper or non-intended

use.

• Safe operation is only guaranteed if the Operating Instructions are observed.

• Only operate the device in the permitted temperature range.

2.3 Workplace safety

When working on and with the device:

‣Wear the required personal protective equipment as per national regulations.

Incoming acceptance and product identification RID16

6 Endress+Hauser

2.4 Operational safety

Damage to the device!

‣Operate the device in proper technical condition and fail-safe condition only.

‣The operator is responsible for the interference-free operation of the device.

2.5 Product safety

This measuring device is designed in accordance with good engineering practice to meet state-

of-the-art safety requirements, has been tested, and left the factory in a condition in which it

is safe to operate.

It meets general safety standards and legal requirements. It also complies with the EU

directives listed in the device-specific EU Declaration of Conformity. The manufacturer

confirms this by affixing the CE mark to the device.

3 Incoming acceptance and product identification

3.1 Incoming acceptance

Proceed as follows on receipt of the device:

1. Check whether the packaging is intact.

2. If damage is discovered:

Report all damage immediately to the manufacturer.

3. Do not install damaged components, as the manufacturer cannot otherwise guarantee

the material resistance or compliance with the original safety requirements, and can

also not be held responsible for the consequences that may result.

4. Compare the scope of delivery against the contents of your order.

5. Remove all the packaging material used for transportation.

6. Do the data on the nameplate match the ordering information on the delivery note?

7. Are the technical documentation and all other necessary documents provided, e.g.

certificates?

If one of the conditions is not satisfied, contact your Sales Center.

RID16 Incoming acceptance and product identification

Endress+Hauser 7

3.2 Product identification

The following options are available for identification of the device:

• Nameplate specifications

• Enter the serial number from the nameplate in the Device Viewer

(www.endress.com/deviceviewer): all the information about the device and an overview of

the Technical Documentation supplied with the device are displayed.

• Enter the serial number on the nameplate into the Endress+Hauser Operations App or scan

the 2-D matrix code (QR code) on the nameplate with the Endress+Hauser Operations App:

all the information about the device and the technical documentation pertaining to the

device is displayed.

3.2.1 Nameplate

The right device?

The nameplate provides you with the following information on the device:

• Manufacturer identification, device designation

• Order code

• Extended order code

• Serial number

• Tag name (TAG)

• Technical values: supply voltage, current consumption, ambient temperature,

communication-specific data (optional)

• Degree of protection

• Approvals with symbols

‣Compare the information on the nameplate with the order.

3.2.2 Name and address of manufacturer

Name of manufacturer: Endress+Hauser Wetzer GmbH + Co. KG

Address of manufacturer: Obere Wank 1, D-87484 Nesselwang or www.endress.com

3.3 Storage and transport

Storage temperature: –40 to +80 °C (–40 to +176 °F)

Maximum relative humidity: < 95 % as per IEC 60068-2-30

Pack the device for storage and transportation in such a way that it is reliably protected

against impact and external influences. The original packaging offers the best protection.

Avoid the following environmental influences during storage:

• Direct sunlight

• Proximity to hot objects

• Mechanical vibration

• Aggressive media

Mounting RID16

8 Endress+Hauser

3.4 Certificates and approvals

For certificates and approvals valid for the device: see the data on the nameplate

Approval-related data and documents: www.endress.com/deviceviewer → (enter the

serial number)

3.4.1 PROFIBUS

The field indicator has successfully passed the PROFIBUS PA physical layer test. As a "non-

active" bus user, it doesn't interfere with the Profibus data traffic.

4 Mounting

4.1 Mounting requirements

The indicator is designed for use in the field.

Its orientation is determined by the readability of the display. The cable entries are located on

the bottom of the device.

Operating temperature range: –40 to +80 °C (–40 to +176 °F)

NOTICE

Reduced operating life of the display at high temperatures

‣If possible, do not operate the device in the upper temperature limit range.

The display may react slowly at temperatures < –20 °C (–4 °F).

Readability of the display can no longer be guaranteed at temperatures < –30 °C (–22 °F).

Altitude Up to 2 000 m (6 561.7 ft) above sea level

Overvoltage category Overvoltage category II

Pollution degree Pollution degree 2

RID16 Mounting

Endress+Hauser 9

4.1.1 Dimensions

133 (5.24)

199 (7.83)

96 (3.78)

158 (6.22)

115 (4.53)

163 (6.42)

A-A

A0011162

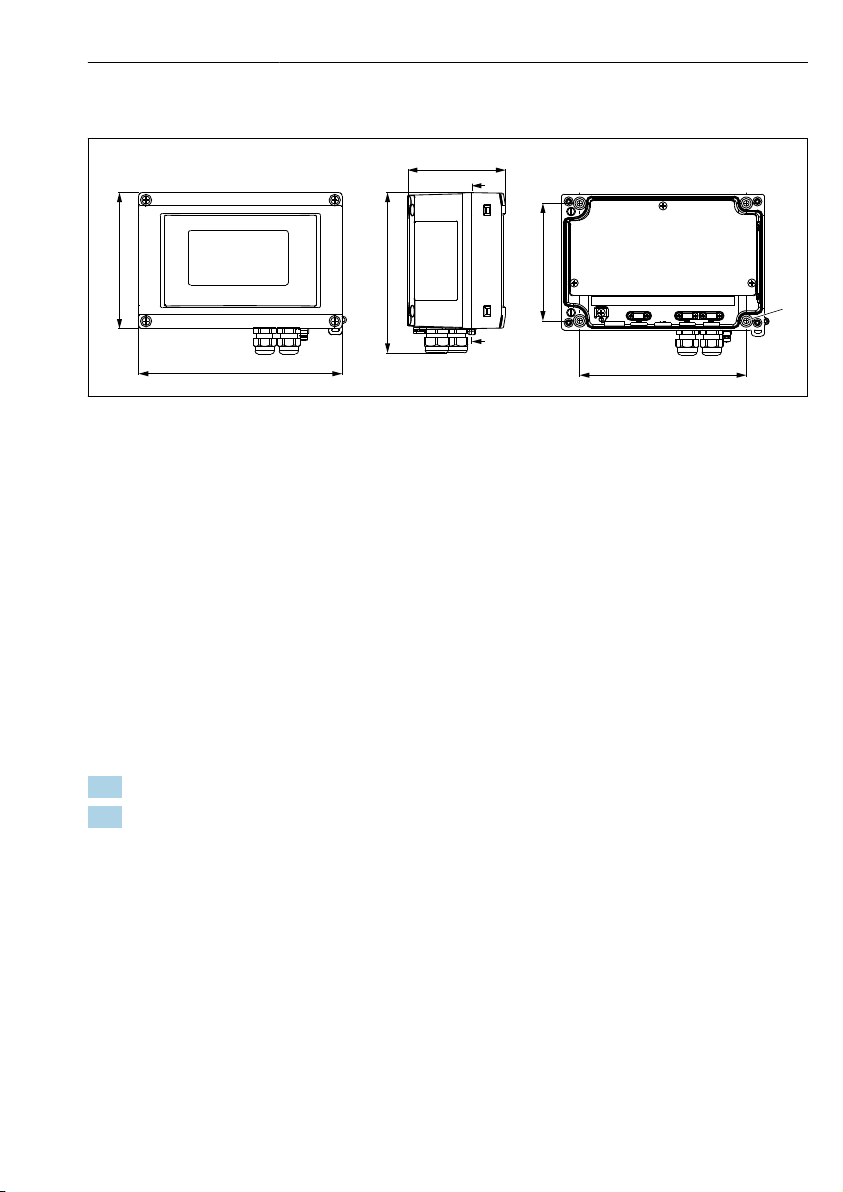

 1 Dimensions of the field indicator; dimensions in mm (in)

1 Bore for direct wall mounting or on mounting plate with 4 screws ⌀ 5 mm (0.2 in)

4.1.2 Mounting location

Information about the conditions (such as the ambient temperature, degree of protection,

climate class etc.) that must be present at the installation location so that the device can be

mounted correctly is provided in the "Technical data" section of the Operating Instructions.

4.2 Mounting the measuring device

The device can be mounted directly on the wall →  9 or the optional mounting bracket

can be used for wall and pipe mounting →  9.

4.2.1 Direct wall mounting

Proceed as follows to mount the device directly on the wall:

1. Drill 4 holes

2. Fit the device on the wall with 4 screws (⌀ 5 mm (0.2 in)).

4.2.2 Pipe mounting

The mounting bracket is suitable for pipes with a diameter between 1" and 5". The mounting

kit comprises a mounting plate (item 1), 2 terminals (item 2) and 4 screws (item 3).

Proceed as follows to mount the device on a pipe:

Mounting RID16

10 Endress+Hauser

1. 2.

A0011269

 2 Mounting the field indicator on a pipe with a mounting kit, steps 1 to 2.

3mm

3. 4.

A0011270

 3 Mounting the field indicator on a pipe with a mounting kit, steps 3 to 4.

1 Mounting plate

2 Mounting bracket

3 4 screws

Autres manuels pour RID16

Table des matières

Autres manuels Endress+Hauser Instrument de mesure

Endress+Hauser

Endress+Hauser LT1100 Manuel utilisateur

Endress+Hauser

Endress+Hauser Liquiline System CA80AL Caractéristiques techniques

Endress+Hauser

Endress+Hauser Micropilot FMR20 Manuel

Endress+Hauser

Endress+Hauser Modbus Liquistation CSF22 Mode d’emploi

Endress+Hauser

Endress+Hauser Micropilot FMR53 Manuel

Endress+Hauser

Endress+Hauser Liquiline System CA80AM Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promass 83 Caractéristiques techniques

Endress+Hauser

Endress+Hauser Oxymax COS61D Manuel utilisateur

Endress+Hauser

Endress+Hauser Memobase Plus CYZ71D Manuel utilisateur

Endress+Hauser

Endress+Hauser ORIA15 Caractéristiques techniques

Endress+Hauser

Endress+Hauser Proline Promass O 100HART Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag H 200 Caractéristiques techniques

Endress+Hauser

Endress+Hauser Liquiline System CA80AM Caractéristiques techniques

Endress+Hauser

Endress+Hauser SpectraSensors SS2100 Manuel utilisateur

Endress+Hauser

Endress+Hauser cerabar S Manuel utilisateur

Endress+Hauser

Endress+Hauser Analytik Jena multi EA 5000 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Cubemass C 300 Manuel utilisateur

Endress+Hauser

Endress+Hauser Levelflex FMP56 Manuel

Endress+Hauser

Endress+Hauser Proline Promag 55 PROFIBUS PA Manuel utilisateur

Endress+Hauser

Endress+Hauser Gammapilot M FMG60 Manuel utilisateur

Endress+Hauser

Endress+Hauser analytikjena SPECORD PLUS Manuel utilisateur

Endress+Hauser

Endress+Hauser Smartec S CLD132 Manuel utilisateur

Endress+Hauser

Endress+Hauser SS2100i-2 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proservo NMS5 Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur

Acterna

Acterna MS1400 Manuel utilisateur

R&S

R&S ZPH Manuel utilisateur
