Enchanted Garden 343-2002 Manuel utilisateur
FOR LANDSCAPE LIGHTING SYSTEMS ONLY. OUTDOOR USE ONLY.
THE DEVICE IS ACCEPTED AS A COMPONENT OF A LANDSCAPE LIGHTING SYSTEM WHERE THE SUITABILITY OF THE COMBINATION SHALL
BE DETERMINED BY CSA OR LOCAL INSPECTION AUTHORITIES HAVING JURISDICTION.
READ AND SAVE THESE INSTRUCTIONS
343-2002
Low Voltage
GARDEN
LIGHT FIXTURE
BULB TYPE:
11W INCANDESCENT T5 WEDGE BASE
DEAR CUSTOMER,
Congratulations on your purchase of a ENCHANTED GARDEN® lighting product. Our products will help to enhance the beauty of your
home and provide many years of enjoyment. ENCHANTED GARDEN® offers a wide selection of lighting products of the highest
professional quality. Ask your dealer about the many other ENCHANTED GARDEN® products that will help to create your own paradise.
To ensure the maximum performance of your garden light, please read and save these instructions.
Replacement parts may be ordered by using the xture model number and the part’s name.
1-888-867-6095 • cust[email protected]
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS
IMPORTANT SAFETY INSTRUCTIONS
• To reduce the risk of FIRE OR INJURY TO PERSONS turn off, unplug transformer and allow lamp to cool before replacing it. Lamp gets HOT quickly.
• Keep the lamp away from materials that may burn.
• WARNING - Risk of Electric Shock. Install all luminaires 10 feet (3.05 m) or more from a pool, spa or fountain.
• Install in accordance with all local codes and ordinances.
Only for use with low voltage power units with a maximum output rating of 15V, 300W per secondary.
CUSTOMER SERVICE
INST-343_2002-0621-01-EN
Base
Holes
Thumbscrews
Cover
Diffuser
Middle tier
Spike
Post
Pins
Pins
Wire
Connector box
11W Incandescent
T5 wedge bulb
Bulb socket

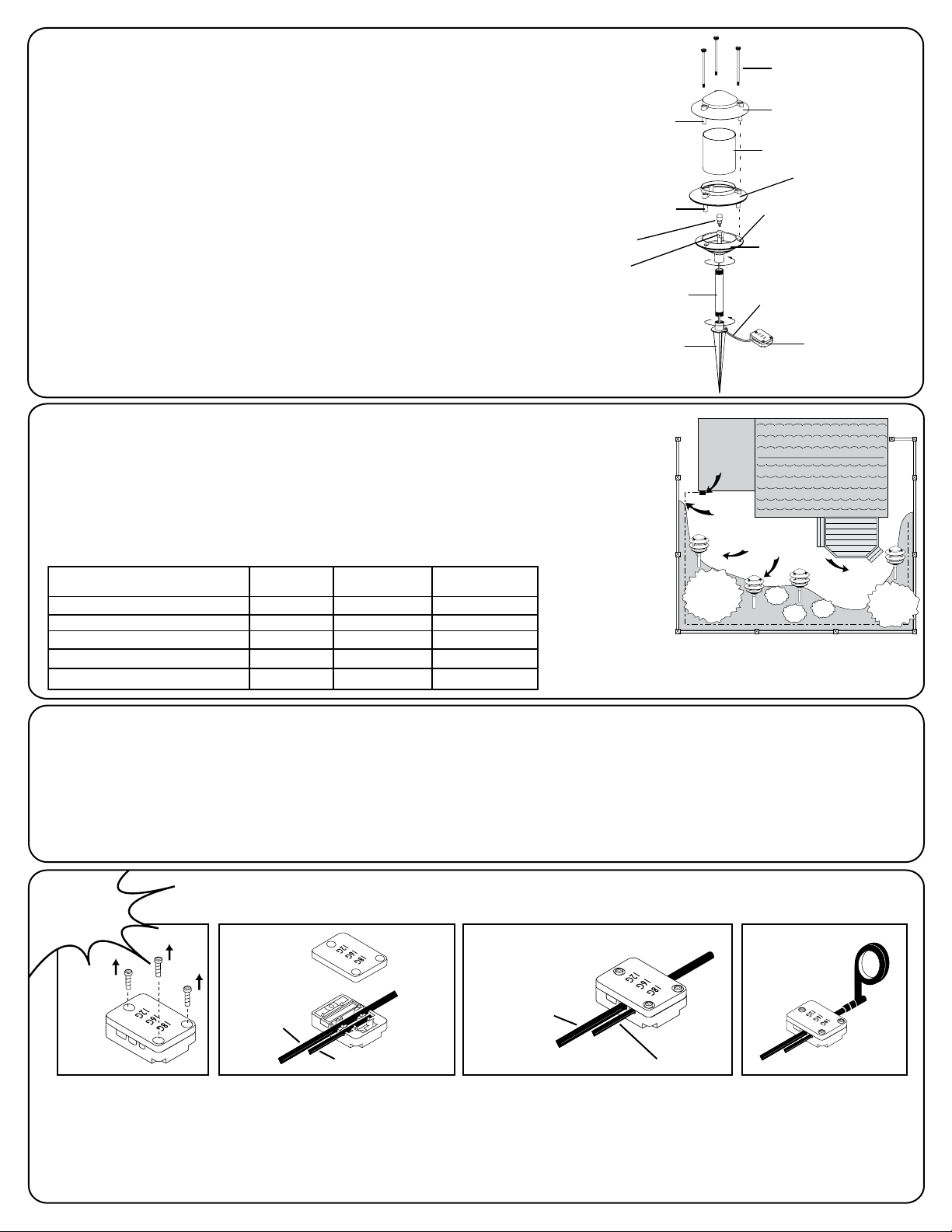

1. Assembly of the Light Fixture
2. Run the Landscape Wire (Not Included)
3. Choosing Lighting Fixture Location
The landscape wire should run from the transformer to each light without being cut. Do not run the landscape
wire within 10 feet (3m) of a pool, spa or fountain. If the landscape wire is too long, cut it with a cable cutter.
The landscape wire should be protected by routing it close to proximity of the light xture or next to a
building, deck or fence. Use cable suitable for low voltage landscape lighting.
See chart below for recommended cable gauges.
*Suitable cable should be sized in accordance to the table, should be Type SPT-2W. If you cannot nd this cable at your local hardware or home improvement store then
please call customer service at 1-888-867-6095 or e-mail at [email protected] to order the cable needed.
For uniform brightness and longer bulb life, attach rst xture at least 10 feet from transformer.
Once you have decided where you will install your xtures, verify the type of soil.
•If the soil is of a loose, sandy or organic type, grasp the xture post, close to the spike, with both hands and rmly push into the ground.
• If the soil is heavy or stony, dig a small hole, insert the xture spike, replace the soil and tap down.
Never push the xture into the ground by the xture head.
Combined wattage of all fixtures on line (in
Watts) Wire Gage (0-75')Wire Gage (75'-150')Wire Gage (150'-250')
0-60 16 16 12
60-120 16 12 12
120-180 12 12 12
180-240 12 12 Not recommended
240-300 12 Not recommended Not recommended
Calibre del cable
(75'-150')
Calibre del cable
(0-75')
Calibre del cable
(150'-250')
0-60 16 16 12
60-120 16 12 12
120-180 12 12 12
180-240 12 12
240-300 12
Voltaje combinado de todas las lámparas
(en vatios)
No recomendado No recomendado
No recomendado
* llustration of xture is for example only.
1.1 Carefully remove the xture from its protective
packaging.
1.2 Attach spike, post and base together by turning them
clockwise.
1.3 Remove the three (3) thumbscrews, lift off cover, diffuser
and middle tier to give access to the bulb socket.
1.4 Insert the bulb into the bulb socket.
1.5 Assemble the cover, the diffuser and the middle tier as per
the picture by aligning the pins with the holes on
the base.
1.6 Attach the head assembly to the base by using the three (3)
provided thumbscrews.
4. Connect the xture wire to the landscape wire
4.1 Unscrew and
remove the lid of
the connector box.
4.2 Remove the rubber plug from
the channel marked 16G or 12G and
press the landscape wire into the
proper slot.
4.3 Replace the lid on the connector box and
close it tightly using the 3 screws making sure
the top and bottom of the box are tight to
each other. Turn on the power unit. If the light
xture does not turn on, repeat operations
4.2 and 4.3.
4.4 For the last xture only:
cut the landscape wire with a
cable cutter and wrap the end
with electrical tape.
To transformer
To light xture
Landscape
wire
Fixture wire
CAUTION
BE CAREFUL!
THE WIRE STABS
ARE VERY
SHARP!
Fixtures
Cable
Transformer
6 ’ ’ (15,24cm) max.
LIFETIME LIMITED WARRANTY
This product, excluding electronic and/or electrical parts (if applicable), is guaranteed to be free from defects in material and workmanship for life. The xture’s nish is guaranteed against peeling for two
(2) years. The electronic and electrical parts are guaranteed against defects for one (1) year. Should a defect occur, please contact our customer service line at 1-888-867-6095 or at the following email
address : [email protected]. A proof of purchase (sales receipt) is required. If we cannot replace the defective part you require, you can return your product to the original point of purchase
for a full refund or a replacement product. The consumer is responsible for the removal and reinstallation of the product. Damage to any parts as such by accident, misuse, or improper installation is NOT
covered by this warranty. Our policy does not include liability for incidental or consequential damages. Some states or provinces do not allow the exclusion or limitation of consequential damages; therefore,
the above exclusion may not apply to you. This warranty gives you specic legal rights and you may also have other rights that vary from place to place.
CUSTOMER SERVICE
1-888-867-6095 • cust[email protected]
All of the lights fail to
work
Only some lights work
• To clean, wash with a damp
soft cloth.
• To replace the bulb, reverse
the procedure in the
“Assembly of the light
xture”.
• Replacement parts may be
ordered by using the xture
model number and the part’s
name.
• Check that the power is on.
• Check if there is a loose connection at the transfomer screw terminal.
• Check that the power switch is not in the OFF setting.
• The problem here is with the xture's connector box or light bulb.
• Check the connector box to make sure the wire stabs have pierced the
landscape wire and the xture wire.
• To check a light bulb, exchange it with one from a xture that is working
(remember to be careful, as the bulbs can get very hot – also touch bulbs
with a soft cloth only).

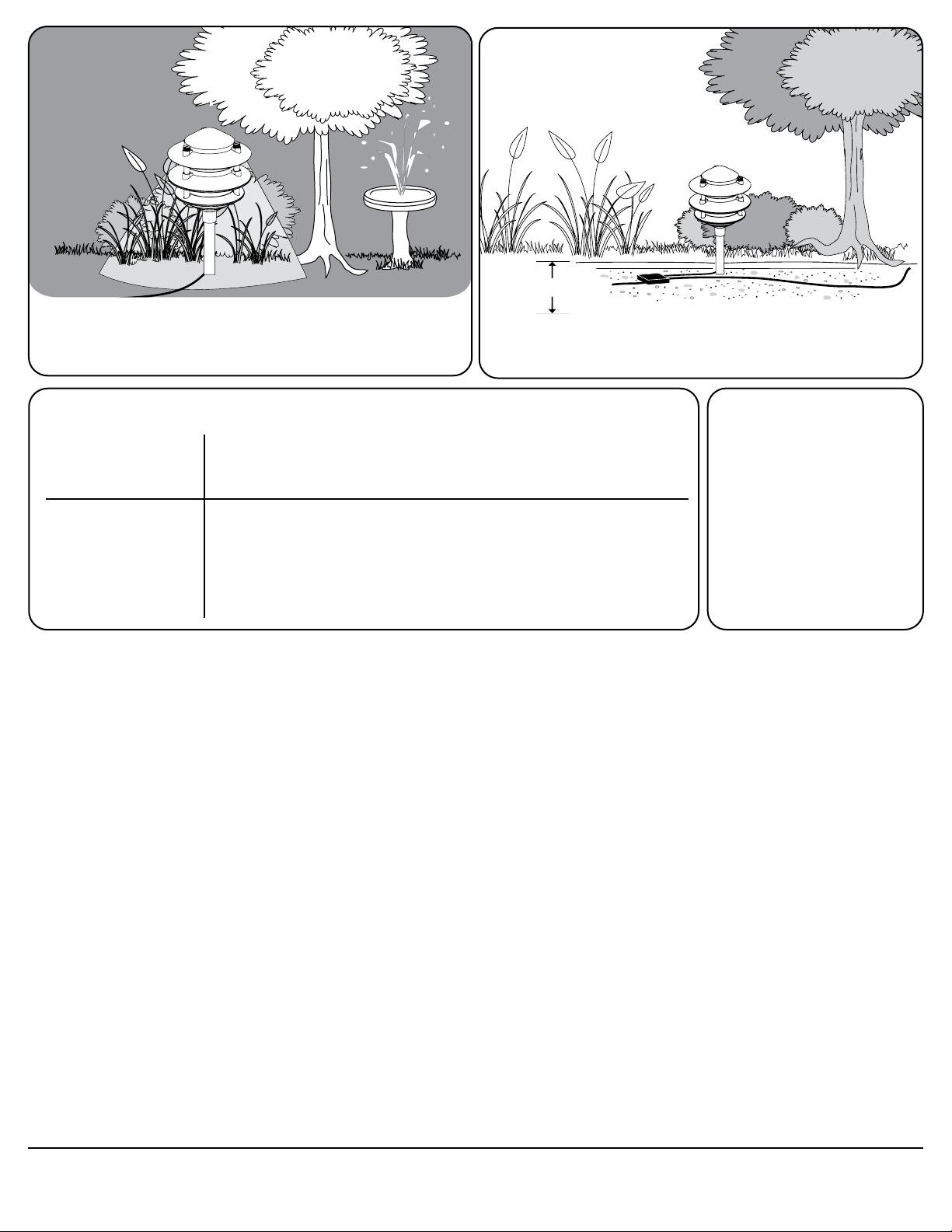

5. Light
adjustment
7. Troubleshooting
6. Bury the landscape wire
* llustration of xture is for example only. * llustration of xture is for example only.
It is recommended to adjust your lighting effect at night before
burying the cable. The landscape wire and connector box can also be hidden under
mulch, stone or buried under grass at a maximum depth of 6”
(15.24cm).
8. Maintenance
