Emos H1018 Manuel utilisateur

Video door phone system

H1018 / H1019

*H1018 / *H1019

www.emos.eu

Video door phone system

•Provides audio and video connection between the residents and visitors.

•Enables electric door release and gate control

•Important feature of this s stem is higher safet and comfort for residents.

Basic function and possibility of the system:

-Communication between residents and visitors

-Higher safet

-Missed calls recording on SD card function

-Electric Door release and gate control

-Visual check of visitors behind the door

-Illumination of the outdoor area in front of the camera unit. Clear picture when 0 Lux.

-7“TFTLCD displa

-Hands-free communication

-Wall-mount installation of the monitor

ontent of delivery

After deliver , please check the

content of this box according to the

following list:

- monitor 1 pc

- wall-mount frame for video monitor 1 pc

- pack of screws 1 pc

- outdoor camera unit 1 pc

- wall-mount frame for outdoor camera unit 1 pc

- power supplier 1 pc

Technical description of the monitor

Description of the video monitor:

1 talk

2 lock

3 melod volume

4 gate

5 monitor (preview)

6 SD card slot

Installation of the video monitor:

Where to install the video monitor

Choose the place for installation with regard to cabling of the s stem. It is recommended to fix the monitor

at the user-e es height.

Installation of video monitor wall-mount frame

1. Mark the holes of the frame on the wall and drill the holes.

2. Drill the hole into the wall in the middle of the frame for all cables coming to monitor (camera unit cable

and cable from power supplier, etc.).

3. Fix the frame with wall plugs and screws.

System connection

Wire the outdoor camera unit to the monitor b plugging the cable into descripted connections.

Video monitor fitting

1. Press the monitor to the frame.

2. Push the monitor down.

onnection to the mains power

1. Plug the power supplier to the mains 230V/ 50Hz.

2. Plug the power supplier connector into the descripted connection onto the monitor.

3. When power is present on the video monitor the LED will be lit on the monitor.

Wiring diagram of video phone system

Requirements on cabling of the system

Video door phone s stem uses 8 core cables. Maximal distances between camera unit and monitor with

regards to the cross sectional area (CRA) of the wires is show in the following table.

In the areas with high possibilit of interference it is recommended to use a 75 Ohm coaxial cable for

connection of video signal.

CRA of the wire [mm] 0,5 0,65 0,8 1

Distance [m] 30 50 70 115

Operation of the video door phone

To call the residents b visitor press the button on the outdoor camera unit.

To accept the call, press Talk button on the video monitor. Calling time period is limited to 120s.

•

••

•For instant 30s preview of the picture from the camera unit, please press

Monitor

•

••

•For communication between the monitor and camera unit, please press button

Talk

•

••

•To control an electric door release or gate, please press

Electric door release / Gate

amera unit installation

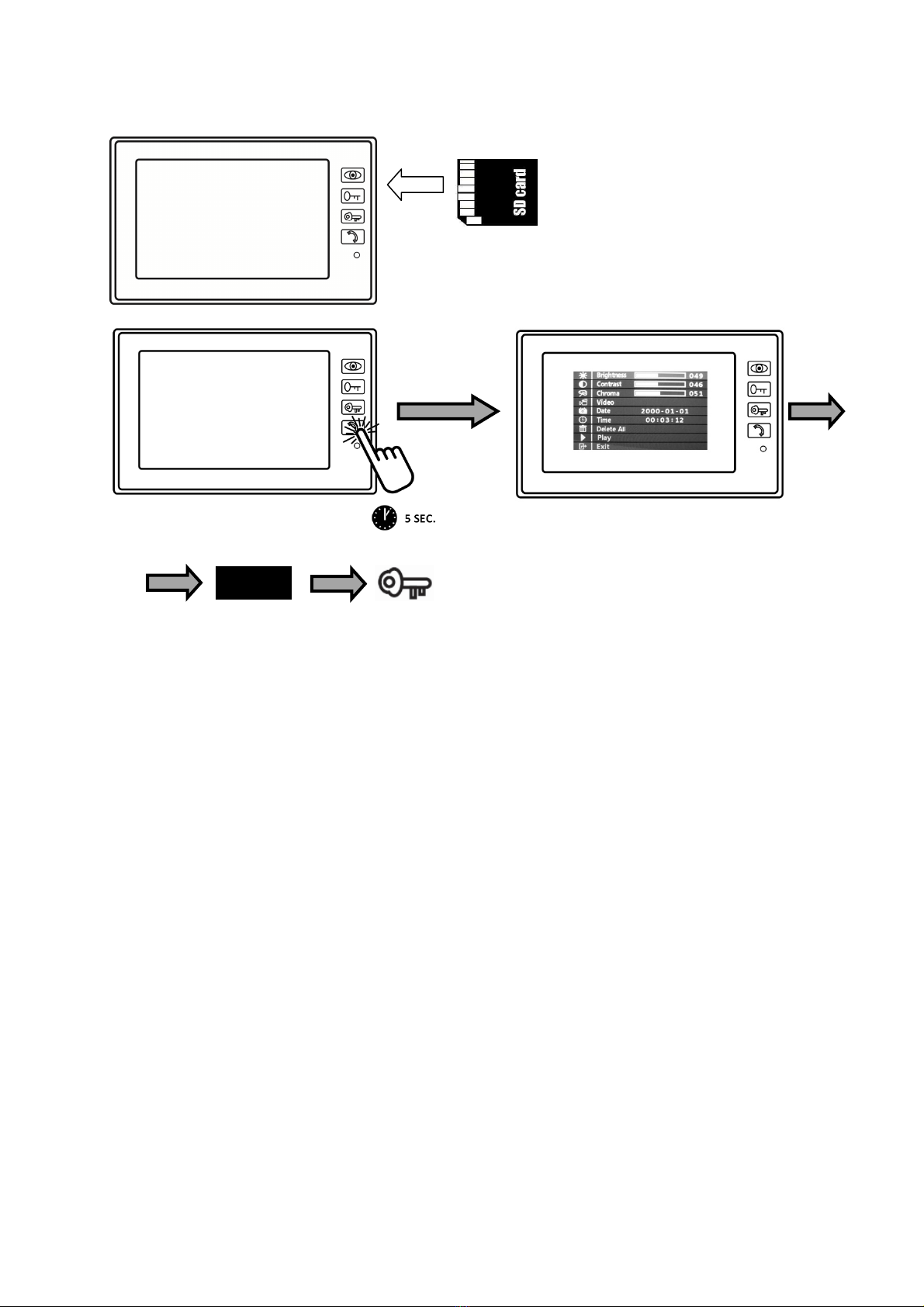

Operation of the video monitor

1. Menu

5 SE .

EXIT

2. Photo browsing function

SE .

EXIT

3. Video record function

After accepted call or preview of the picture the video monitor stores an AVI video file on SD card.

Stored files are possible to browse: a) at the video monitor or

b) on the PC with SD card slot

Maintenance of the video monitor

Video monitor is eas to maintain. It is recommended to clean the video monitor b wet cloth sometimes

to achieve best qualit of the displa ed picture.

Attention please!

It is strictly recommended that electric device is powered off and unplugged from the mains power

during the maintenance!

VIDEO

(OK)

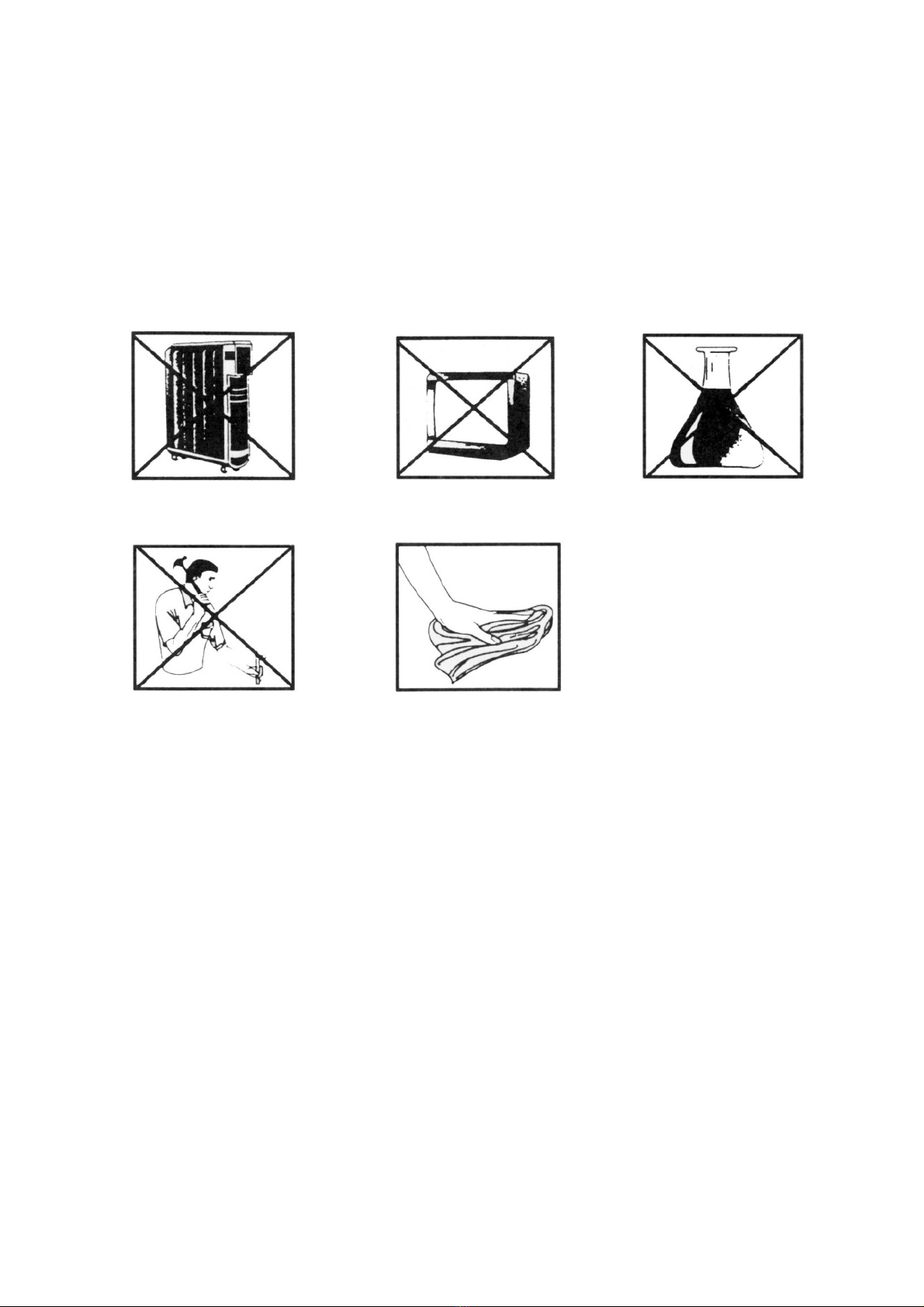

Safety warning

-Do not place the monitor near to the TV-set or into environment with high temperature, or

where damp.

-Do not touch the TFT LCD displa of the monitor and do not take apart outdoor unit or an parts of the

video s stem.

-Protect the lens of outdoor camera unit from direct sun light to avoid having picture on the monitor

pale.

-Do not use the equipment where environment with vibrations. Protect the equipment from falls.

Systém domácího videovrátného

H1018 / H1019

*H1018 / *H1019

www.emos.eu
