GB | IP-700A GoSmart 7" Video Door Phone Set
Contents
Safety Instructions and Warnings.....................................................................................2
Package Contents .............................................................................................................3
Technical Specications....................................................................................................3
Device Description.............................................................................................................4
Installing the Device ..........................................................................................................6
Installing the Application ................................................................................................10
Controls and Functions ...................................................................................................15
Advanced Connection Options.........................................................................................21
Troubleshooting FAQ........................................................................................................30
GB | 2
Safety Instructions and Warnings
Read the user manual before using the device.
Follow the safety instructions stated in the manual.
Do not place heavy objects onto the device.
Do not clean the exterior of the device using water or chemicals. Always use a dry cloth to avoid mechanical
damage or injury by electric current.
Do not plug the power cable into the socket with wet or moist hands; risk of injury by electric current.
Do not disassemble, repair or modify the device yourself. Doing so may cause a re, injury by electric current
or permanent damage.
EMOS spol. s r.o. hereby declares that radio device type H4010 complies with directive 2014/53/EU. The full
wording of the EU declaration of conformity is available at http://www.emos.eu/download.
The device can be operated on the basis of general authorization no. VO-R/10/07.2021-8, as amended.
GB | 3
Package Contents
Indoor monitor
Monitor mount
Camera unit
Power supply
Fasteners – screws
Manual
Technical Specications
Screen: 7" IPS
Resolution: 1080p/960p/720p/480p
Video formats: AHD/CVI/TVI/CVBS
Lens angle: 160°
Storage: SD card (max. 128 Gb, min. Class 10,
FAT32), option to expand with cloud storage
directly in the EMOS GoSmart app
Enclosure rating: IP55
APP: EMOS GoSmart for Android and iOS
Connection: 2.4 GHz WIFI (IEEE802.11b/g/n)
GB | 4
1
3
2
Device Description
Description of the Indoor Unit
1 – Microphone
2 – IPS screen
3 – slot for SD card
4 – Speaker
5 – Anchor points
6 – Gate controls
7 – Power supply
8 – Door unit – Entrance 1
9 – External CCTV camera 1
10 – Input from the previous monitor
11 – Door unit – Entrance 2
12 – External CCTV camera 2
13 – Output for the next monitor
4
5
8
6
11 13
12
7
9
10
16
2
7
3
8
4
5
Description of the Outdoor Unit
1 – Microphone
2 – Lens
3 – IR illumination
4 – Speaker
5 – Ring button
6 – Video mode selector
Hold the button for 5 s to switch video
modes*. (1080P/720P/CVBS)
7 – Button for setting the duration (1–10 s)
for opening the door lock
8 – Volume setting for the camera unit
*If you would like to use an older type of monitor
with max. resolution of 720p, you need to use this
button to change the quality of the output from the
outdoor unit. Otherwise, your monitor will either
not display video at all or the image will be cropped.
GB | 5
EXIT
×
12 V DC
ALARM
1
1
5
6
7
8
2
2
3
3
4
4
Description of Wiring
Door Camera Unit
1 – Red – 12 V
2 – White – audio
3 – Black – GND
4 – Yellow – video
5 – Green – normally closed (NC) relay contact
6 – Blue – common (COM) relay contact
7 – Brown – normally open (NO) relay contact
8 – Orange – push to exit button (triggered via the GND terminal)
The cables plug into slot DOOR1 or DOOR2.
External CCTV Camera
1 – Red – 12 V
2 – White – alarm
3 – Black – GND
4 – Yellow – video
The cables must be plugged into slot CAM1 or CAM2.
GB | 6
plastic stent cables
150–160 cm
Installing the Device

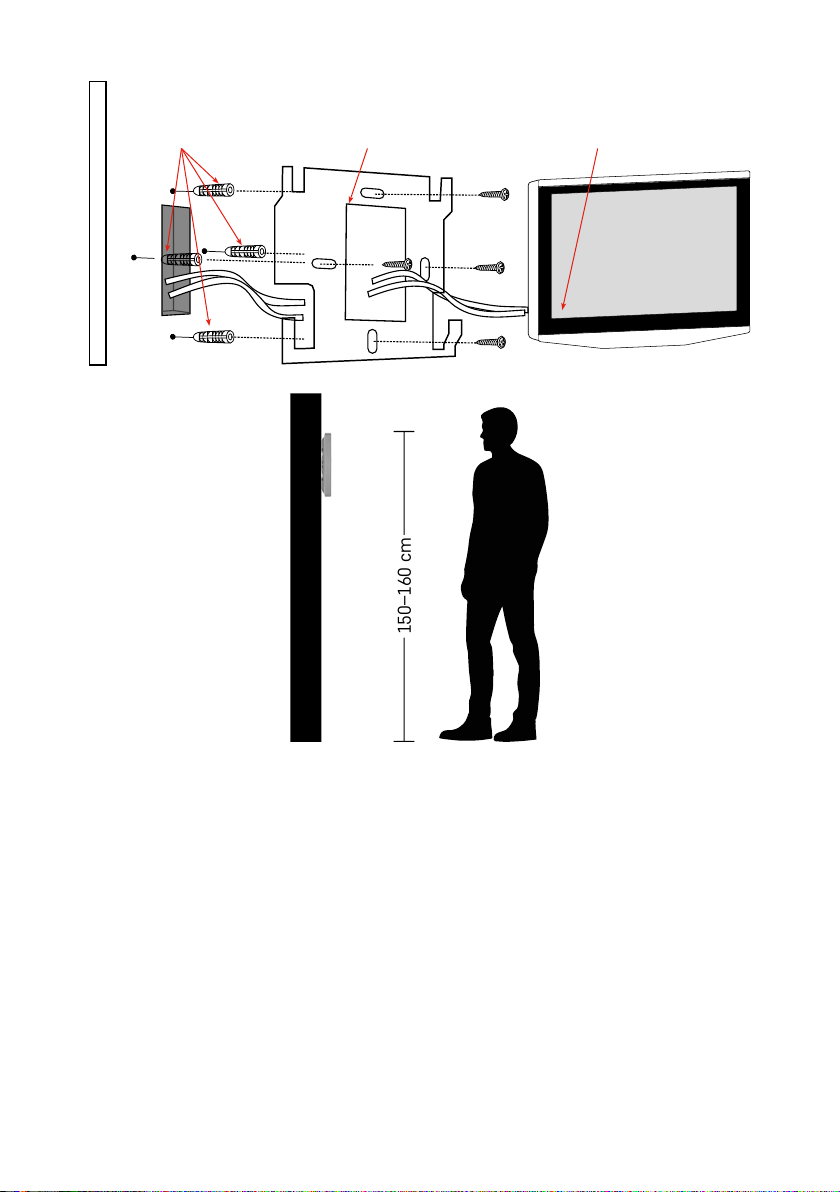

Installing the Monitor
1. Place the mount onto the chosen installation spot.
2. Drill holes to fasten the mount to the wall. Gently press the monitor to the frame so that the protrusions
lock into the opening on the back of the monitor. Pushing the monitor slightly downwards will x it in place.
Recommendation: Cable management will be easier if you install junction box A9457 (common number of
the product on the EMOS website).
Attention:
• Please install at a distance from devices emitting intense radiation: TV, DVR…
• Do not disassemble the device yourself; risk of injury by electric current.
• Be careful not to drop the device, shake it or knock it; you might damage the interior components.
• Choose the best position for installation; optimal mounting height is 150–160 cm.
• Turn o power before installing.
• Mount the device at a minimum distance of 30 cm from 230 V cabling, otherwise, there might be audio
and video distortion caused by the 50 Hz power line frequency.
• Mount away from water, magnetic elds and chemicals.
GB | 7
150–160 cm
Installing the Indoor Unit
1. Choose a suitable mounting spot and attach the mounting frame.
2. Pull the power supply cable through the mounting opening and connect it to the terminal on the back of
the door camera unit.
3. Mount the connected door camera unit onto the mounting frame using the enclosed screws.
4. Apply a layer of silicone between the wall and the door camera unit to prevent ingress of humidity under
the door camera unit. The silicone should be applied on the top and the sides. The bottom side must be
left open to allow humid air to exit the space under the door camera unit.
GB | 8
1
2
Setting Volume and Unlock Duration
1 – Button for setting the duration (1–10 s)
for opening the door lock
2 – Setting Volume for the Camera Unit
• If you nd the door unlock time unsuitable and
would like to extend or shorten it, you can do
so using the potentiometer hidden on the back
of the outdoor unit under a rubber insert. Use
a very thin screwdriver to CAREFULLY turn the
potentiometer right or left.
• Right = increase unlock time
• Left = reduce unlock time
• You can use the same method to adjust the
volume of the outdoor unit using the potenti-
ometer at the bottom.
GB | 9
DC12V DC12V
AUDIO AUDIO
GND GND
VIDEO VIDEO
power
audio
GND
video
EXIT
Connecting Cabling
When using a CAT5 or CAT6 network cable, the eective distance from the outdoor camera to the farthest
outdoor monitor will be limited. If using an unshielded network cable, the maximum distance is 20 m. For a
shielded network cable, the maximum distance is 40 m.
A CAT5 or CAT6 network cable consists of 4 twisted pairs (8 wires); here, one pair of twisted wires will be
used as one cable. Green/White+Green, Brown/White+Brown, Orange/White+Orange, Blue/White+Blue. If you
want to extend the distance to more than 60 m, it is best to use a shielded cable with a thick copper core.
Connect the shielding on both ends to the GND terminal (Black conductor).
For longer distances, we recommend using a SYKFY cable.
It is recommended to always place the cable used for communication between the outdoor camera unit and
the indoor monitor in a PVC cable duct. The connecting cable must never lead alongside power lines or pass
through the power section of the electrical cabinet.
GB | 10
Installing the Application
Starting the System – EZ mode
Step 1:
Device ID is an important part of conguring the device in the system. Without the correct ID conguration
the device will not work properly. If the current MASTER device is connected to outdoor unit 1, its ID must
be set as 1 and the other SLAVE monitors must be set to 2/3/4/5/6 in order for everything to work correctly.
