3-way globe valve for feedwater heater outlet bypass

Installation and Maintenance Instructions

Emerson reserves the right to change the contents without notice RAIIC-0052-EN-1310

Introduction

This manual provides guidelines to be observed for the following operations:

• storage

• installation into the pipeline

• maintenance

• preservation

The manual is intended for the following personnel/staff:

• plant warehouse staff

• installers

• maintenance engineers

1. Verification upon receipt and storage before installation

When the materials arrive, it is recommended to:

• Check the integrity of the case.

• Open the case and verify that there is no damage due to transportation.

• Do not open the barrier bag (if present).

• Verify that the contents are those stated on the packing list.

• Store the valves (unless damaged) in their original packaging.

Please observe the following:

1. Store the valves in a closed, clean and dry storage room.

2. Do not place packages directly on the ground.

3. Check the packages every two months.

4. Substitute the silica gel every six months. This is not applicable in the case of barrier bag

packages.

2. Handling

During handling operations, valves must be lifted and handled as indicated in fig. 1 by using lifting

equipment (fasteners, hooks, etc.) that must be sized and selected on the basis of valve weight

(indicated in the drawings).

If there are any eyebolts in the valve body, these can be used to lift the valve.

Do not use any lifting points located on the actuator to lift the valve. These lifting points are to lift

the actuator only.

Lifting and handling must be done only by qualified personnel.

Warning

This symbol means “Warning” and indicates all matters relating to safety. Please read the

warning notices carefully and follow the instructions. These serve to guarantee your safety

and to prevent damage to people and property.

Warning

Do not use any lifting straps that are either damaged or of inadequate/unknown size.

In addition to the instructions in this manual, specific plant safety regulations must always be

followed.

It is recommended that this manual is read carefully and entirely, before starting any

maintenance, in order to optimize intervention timing, and to ensure that suggested spare

parts and gaskets are available in the event of valve assembly.

For installation and maintenance operations no specific equipment or tools are required, other

than those usually available in the plant.

Emerson is always at the Customer’s disposal for any further technical information.

Index

Introduction 1

1. Verification upon receipt and

storagebefore installation 1

2. Handling 1

3. Installation 2

4. Scheduled maintenance 2

5. Possible damage and relevant

solutions 3

6. Disassembly instructions 4

7. Assembly instructions 4

8. Spare parts list 5

9. Enclosures 6

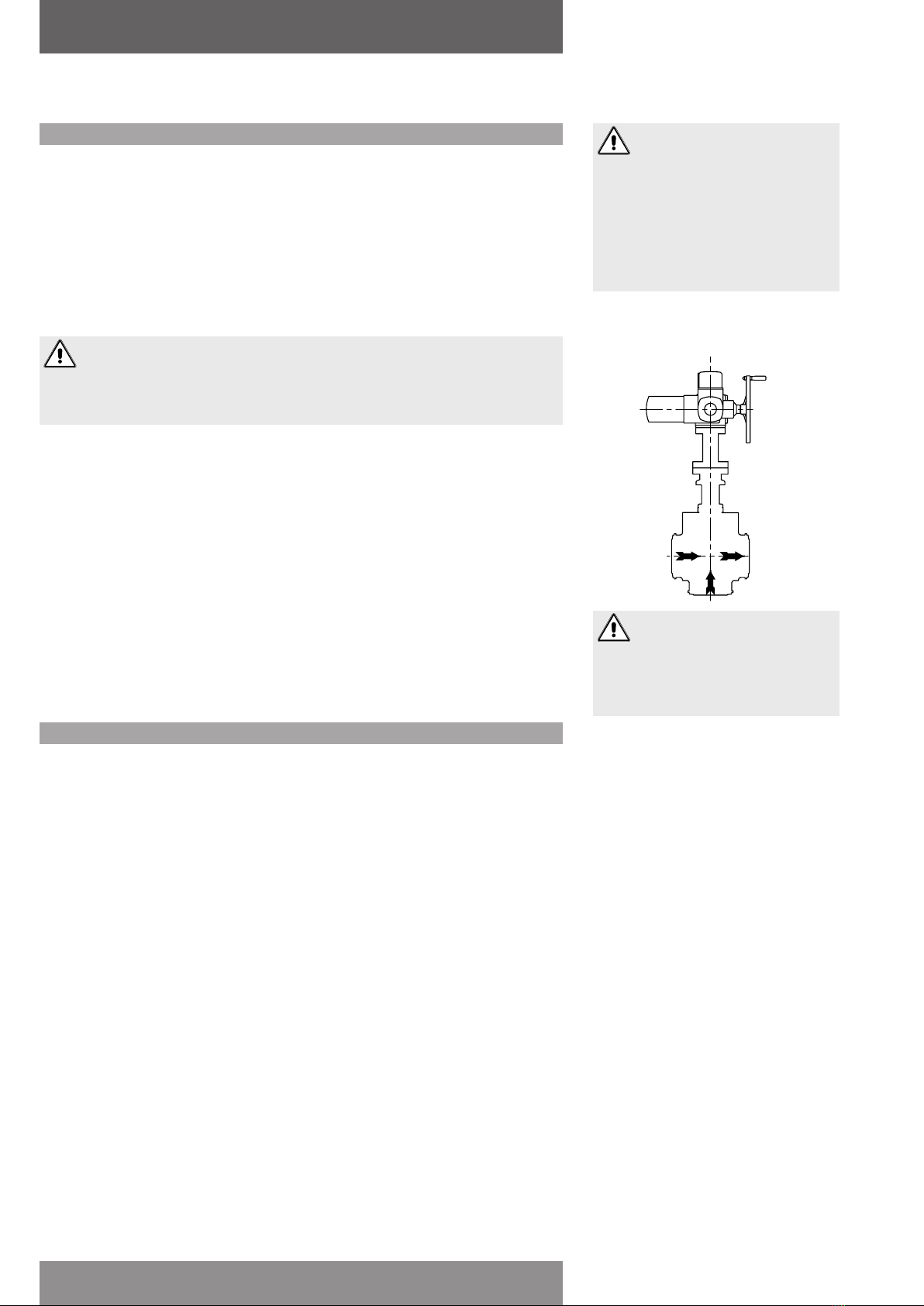

Fig. 1 - Valve lifting and handling

RAIMONDI

www.valves.emerson.com

3-way globe valve for feedwater heater outlet bypass

Installation and Maintenance Instructions

Emerson reserves the right to change the contents without notice page 2

3. Installation

For correct operation, the valves must be installed in horizontal pipes with the stem in vertical

position. If installed in vertical lines or in horizontal lines with the stem not vertical, maintenance is

much more difficult.

Any installation position other than those indicated may cause incorrect operation and/or rapid

deterioration.

The following operations must be performed only immediately before the installation:

1. Remove the protection caps of the end faces.

2. Check the upstream and downstream pipeline sections. Make sure that there are no solid

particles or any other kind of dirt or debris inside. If necessary, clean carefully by using an air

line.

3. Pay attention to the flow direction.

Warning

Before starting the installation of the

valve, please verify that:

• the valve class is suitable for the

required operating pressure, and

• the materials of construction are

suitable for the intended service (type

of process fluid).

Warning

Protect eyes with appropriate welding

masks or goggles during all welding

operations.

Warning

Verify that the flow direction of the line corresponds to the flow direction indicated by the

arrow on the valve body.

General notes

• In order to avoid damage during welding and post welding heat treatment, we suggest to

disassemble the internal part following the instructions given in section 6 of this manual.

• In case that one end of the valve is not connected to the line for a period of time longer than

half a day, the open end must be properly closed and sealed in order to prevent entry of dirt or

debris.

• Check that there is sufficient space to easily disassemble the valve.

Position the valve and verify its alignment with the pipe. Proceed with welding in accordance with

the procedure indicated by the engineering company that designed the plant.

During site welding of the valve to the pipe, the valve and adjacent piping must be supported so

that the pipeline stresses are not transmitted to the valve body.

Usually, the first weld layer will be made with TIG, while following weld layers will be made with

the

appropriate electrode for the valve body material.

Welding and stress relieving procedures should conform to the applicable code or standard.

Position the valve and verify its alignment with the pipe. Proceed with the welding operation in

4. Scheduled maintenance

4.1 Routine inspection

Normal check

• Verify once a month that there is no leakage from packing or in the body/bonnet area.

a. In case of leakage from the packing, tighten the appropriate gland nuts and bolts according

to the procedures described in the assembly section.

b. In case of leakage from the body/bonnet gasket, tighten the bonnet support bolts as stated in

the re-assembly procedure. Otherwise de-pressurize the line as soon as possible in order to

prevent erosion.

• Verify bearings greasing and stem thread every two or three months, depending on operating

frequency.

• For actuated valves, refer also to the actuator manual in addition to the above.

Preventive

• Verify the tightness of gland bolts every three months.

• Grease the stem and bearings every six months for motorized valves and every eight months for

hand-operated valves.

• Check the travel of the gland follower every twelve months. Install a new packing when the end

of the travel is approaching.

• Disassemble critical and/or actuated valves every four years. Verify the sealing surfaces and lap

them if necessary. Substitute the bonnet gasket and the packing. Grease the stem.

• For the actuator, proceed as indicated in its maintenance manual.

Fig. 2 - Possible installation positions

3-way globe valve for feedwater heater outlet bypass

Installation and Maintenance Instructions

Emerson reserves the right to change the contents without notice page 3

5. Troubleshooting guide

Below is a list with the most common problems.

5.1 Leakage from the packing

When there is humidity or droplets near the packing area, the stem or the gland, and these cannot

be corrected by tightening the gland bolts, you may want continuing the work of the line until

the first stop of the plant. In this case, the stem can be set in backseat position, verifying the

following:

• Packing may have hardened. In this case, it must be replaced.

• The gland is at the end of its travel. This means that the packing cannot be compressed.

Packing must be replaced.

• Scratches, scorings or other marks may be found in the stem. It may also have got bound. In

these cases, the stem must be replaced.

• The gland may be jammed on the stem because of a non-uniform tightness of the gland bolts.

Release the gland bolts. Move the gland and set it again; then tighten the bolts progressively.

5.2 Leakage from body/bonnet joint

Leakage under operation from the pressure seal joint requires immediate action, since it may

cause major damage to the valve rapidly.

Typical causes for leakage are:

• Previous incorrect reassembly of the valve.

• Re-using pressure seal gasket.

• A defect inside the valve body.

5.4 Jamming of valve along the stroke

If a higher torque is required at some points along the stroke when opening/closing the valve,

proceed as follows:

• Examine the stem and make sure that there is no picking-up in either the smooth or the

threaded parts.

• Disassemble the valve, as a seizure may be starting to form between body guides and disc.

5.5 Problems relevant to motor operators

For these problems, refer to the actuator instruction manual.

5.3 Leakage between seat and disc

In case of leakage between seat and disc, we recommend to perform closing and opening

operations with a pressure differential. If leakage persists, check that:

• No foreign material is locked between seat and disc, scoring the sealing surfaces.

• No foreign material is deposited between the seats, thus preventing the disc from closing.

• Incomplete previous closing allowed the fluid to impact onto the seal surfaces, eroding these.

• The valve has been used for line flushing, and therefore seats have been damaged by foreign

material.

For all the above cases it is absolutely necessary to disassemble the valve as soon as

possible and proceed with an inspection of the internal parts in order to reduce further

damage.

3-way globe valve for feedwater heater outlet bypass

Installation and Maintenance Instructions

Emerson reserves the right to change the contents without notice page 4

6. Disassembly Instructions

Below are the procedures to follow to disassemble valves. Before starting any operation, it is

important to:

• identify the problem

• clean the area around the valve that is to be disassembled

• arrange for a box and/or a pallet for all components

• arrange for a polyethylene sheet to protect all components and to avoid that any particles

inadvertently enter the body.

1. Fully close valve.

2. Loosen and remove the nuts (26.1), remove the position indicator

3. Loosen and remove the nuts (9).

4. Using suitable lifting equipment, lift the handwheel/yoke assembly.

5. Loosen and remove the gland nuts (17), gland flange (16) and gland (15).

6. Remove safety ring (4).

7. Knock down the bonnet (2) with a soft-faced hammer to relieve the load on the segment ring

(5), by pushing them outside through the four radial holes in the body.

8. Reassemble the safety ring and nuts (4).

9. Tighten the nuts (11) of the bonnet bolts (10) evenly, until the bonnet is lifted. Remove the ring

(6) and the pressure seal gasket (7).

10. After the gasket has been removed, proceed by removing the bonnet (2) assembly with stem

(20) and disc(28).

Refer to figs. 3 and 4

7. Assembly Instructions

Before starting assembly it is recommended to verify the following points:

• Remove any dirt or particles with a wire brush or abrasive cloth; remove any oil or grease with a

suitable solvent, to avoid damage cause by foreign particles – in particular on the sealing area.

• Never re-use the old gaskets, even though they seem to be in good shape.

• Verify that there are no scratches on the body sealing area.

1. Place the disc (28) on a clean flat surface, then fit the stem (20) into the disc.

2. Fit the disc nut (30) over the stem (20), screw into the disc (28) and then tighten. Ensure that

the stem is free to move. Then tack weld the disc nut to the disc.

3. Fit the bonnet assembly with stem (20) and disc (28) into body (1).

4. Place a new pressure seal gasket on the bonnet.

5. Assemble the ring (6) and the segment rings (5).

6. Insert the safety ring (4) and tighten the nuts (10) to the torque values stated in table 2.

7. Fit the ground ring (13), a new gland packing (14), gland (15), gland flange (16) and gland nuts

(17), and tighten these evenly. DO NOT over-tighten as this will cause high friction loads on

the stem.

8. Using suitable lifting equipment, carefully lower the handwheel/yoke assembly onto the valve,

taking care not to damage the yoke studs (8). Secure the assembly by cross-tightening the

yoke nuts (9).

10. Fit the position indicator (25)

11. After the valve has been pressurized, verify that the nuts (9) are tightened by following the

tightening torque values indicated in table 2.

Warning

Before starting disassembly it is very

important to verify – for your safety –

that:

• the line is not pressurized

• the line is at ambient temperature

• the line is drained

• all electrical supplies have been

switched off and disconnected prior to

dismantling the valve.

Emerson reserves the right to change the contents without notice page 5

3-way globe valve for feedwater heater outlet bypass

Installation and Maintenance Instructions

8. Spare parts list

Emerson guarantees the supply of any spare part for a period of at least ten years from the

manufacturing date (month/year) indicated on the tag plate.

The main objective in formulating a service parts inventory policy is the capability to provide

prompt valve service, thus preventing extension of maintenance down time. To accomplish this,

it is necessary to have the proper service parts immediately available for the optimum number of

valves. This can be achieved at a minimum cost by defining the inventory on a frequency of need

basis.

To assist in reaching this objective, the field service and repair organization of Raimondi

recommends following these guidelines in order to establish inventory levels:

1. Identify the total number of valves in service by size, type number, pressure/temperature class,

tag number.

2. Identify the frequency of replacement tendency of specific parts:

Class I Parts most frequently replaced.

Class II Parts less frequently replaced, but critical in the event of an emergency requirement.

Class III Parts seldom replaced

Class IV Hardware (e.g. nuts, bolts, pins, cap components etc.)

Class V Parts practically never requiring replacement

3. Operational reliability is defined as a probable percentage (%) of total, uninterrupted operational

time that can be expected by stocking predetermined valve component classifications.

Determine the operational reliability which is compatible with a specific company’s operational

objectives and service parts inventory investment policy. Then relate operational reliability to

part classifications, which will satisfy that need.

Guidelines are as follows:

Parts classification Operational reliability

Class I 70%

Class I and II 85%

Class I, II and III 95%

Class I, II, III and IV 99%

4. Consult recommended spare parts list by valve type to determine quantity of parts valves to be

covered by the inventory plan.

5. Select parts and specify quantities.

Classification of spare parts

Classification Item No. Description

CLASS I 7 Pressure seal

Parts most frequently replaced 14 Gasket

CLASS II 20 Stem

Parts less frequently replaced but 15 Gland

critical in case of an emergency 28 Disc

30 Disc nut

33 Socket head screw

CLASS III 25 Position indicator

Parts seldom replaced 16 Gland flange

CLASS IV 8 Body/yoke stud

Hardware (e.g. nuts, studs, pins, etc.) 9 Body/yoke nut

10 Body/bonnet stud

11 Body/bonnet stud

18 Gland stud

17 Gland nut

CLASS V Balance

Parts practically never requiring

replacement

59A

51B

51A

26.1

28.1

6 2

1.3

Emerson reserves the right to change the contents without notice page 6

3-way globe valve for feedwater heater outlet bypass

Installation and Maintenance Instructions

9. Appendices

The reference drawings are those relating to the supply only. The drawings published in this

manual are typical drawings only and may not represent the valves supplied.

Fig. 3 - Typical valve

Table 1 - Parts list

Pos. Part name Material Pos. Part name Material Pos. Part name Material

1 Body A 105

1.3 Body seat surface A 182 F6A

2 Bonnet A 105

3 Yoke A 105 + St 35

4 Safety ring A 105

5 Segment ring A 105

6 Ring A 105

7 Body/bonnet gasket Pure graphite

8 Body/bonnet bolts A 193 B7

9 Body/bonnet nuts A 194 2H

10 Nuts A 194 2H

11 Bolts A 193 B7

13 Ground ring A 182 F6A

14 Packing Pure graphite

15 Gland A 182 F6A

16 Gland flange A 105

17 Gland nuts A 194 2H

18 Gland bolts A 193 B7

19 Gland gasket Graphite

20 Stem X35CrMo17

21 Yoke nut B 148 Gr. B

22 Bearings C. steel

23 Flange A 105

24 Socket head screw Class 12.9

25 Position indicator A 105

26 Security pin Class 12.9

26.1 Nut Class 65

27 Lubricator C. steel

28 Disc A 105

28.1 Disc surface A 182 F6A

30 Disc nut A 182 F6A

31 Cylinder A 182 F6A

32 O-ring Viton A-75° Sh.A

33 Socket head screw Stainless steel

35 Key AISI 4140

36 Stem key AISI 4140

39 Actuator

51 Stub PFE

Nuts

Extension

Extension key AISI 4140

Inlet

By-pass Outlet

3-way globe valve for feedwater heater outlet bypass

Installation and Maintenance Instructions

Emerson reserves the right to change the contents without notice page 7

Table 2 - Tightening torque values for bolts/screws

Body/yoke - Bolts/screws: A 193 B7 Bonnet - Bolts/screws: A 193 B7

Ø Bolts/screws Torque values Ø Bolts/screws Torque values

Kgm (Nm) Kgm (Nm)

M12 5 (50) M12 1 (9)

M16 10 (100) M16 2 (18)

M20 17 (170) M20 3 (30)

M22 29 (280) M22 5 (48)

M24 43 (420) M24 7,5 (73)

M30 61 (600) M30 11 (105)

M33 86 (850) M33 15 (150)

M36 112 (1100) M36 21 (205)

Stem Gland bolts: A 193 B7

Diam. M16 M18 M20 M22 M24 M27 M30 M33

25,4 1,90 2,10 2,40 2,60 2,80 3,20 3,60 3,90

31,8 3,00 3,30 3,70 4,00 4,40 5,00 5,60 6,10

34,9 3,30 3,60 4,00 4,40 4,80 5,40 6,00 6,60

44,5 4,90 5,50 6,10 6,60 7,30 8,20 9,10 10,00

50,8 6,60 7,40 8,20 8,80 9,70 11,00 12,20 13,40

57,2 8,60 9,60 10,60 11,40 12,60 14,20 15,80 17,30

63,5 9,40 10,40 11,50 12,50 13,70 15,50 17,30 18,80

69,8 10,10 11,30 12,50 13,50 14,90 16,80 18,70 20,40

76,2 12,70 14,10 15,60 16,80 18,50 21,00 23,30 25,40

82,5 13,90 15,50 17,10 18,50 20,40 23,00 25,60 28,00

95,3 15,30 17,00 18,80 20,30 22,40 25,30 28,10 30,70

Table 3 – Suggested greases

Manufacturers Suggested Greases for bearings

Agip GRMUEP2

API PGX2

BP Grease LTX 2

Esso Beacon 2

Fina Finagrease HP Finagrease EPL2

Mobil Mobilux EP2

Q8 Q8 Rembrandt EP2

Shell Alvania R2 Supergrease A

Texaco Multifak EP2 Grease L2

Total Multis EP2 Multis 2

Viscol Signal Rolsfer 2

Apply Molykote to the stem threads.

All other bolts and nuts are assembled with usual lubricant or Molykote.

• Select the constant in relation to stem diameter and packing bolt size

• In order to obtain the packing bolt torque in Nm multiply the selected constant for pressure in

MPa

Example

Valve under pressure of 24 MPa with steam diameter equal to 44,5 mm and packing bolt size

equal to M16

a. Constant is equal to 4,9

b. Packing bolts torque is equal to

4,9 x 24 = 117,6 Nm

Autres manuels Emerson Unité de contrôle

Emerson

Emerson Fisher 92B Manuel utilisateur

Emerson

Emerson Keystone 990 Document technique

Emerson

Emerson Fisher OS2 Manuel utilisateur

Emerson

Emerson Anderson Greenwood 95 Series Manuel utilisateur

Emerson

Emerson Keystone PED Guide rapide

Emerson

Emerson PENBERTHY N7 Series Manuel

Emerson

Emerson Bettis Q series Manuel utilisateur

Emerson

Emerson Fisher V500 Manuel utilisateur

Emerson

Emerson Crosby J Series Manuel utilisateur

Emerson

Emerson Anderson Greenwood Guide de démarrage rapide

Emerson

Emerson White Rodgers 36C53 Series Manuel utilisateur

Emerson

Emerson Fisher Multiport Flow Selector Manuel utilisateur

Emerson

Emerson Fisher A11 Manuel utilisateur

Emerson

Emerson Fisher 63EG-98HM Manuel utilisateur

Emerson

Emerson Baumann 51000 Series Manuel utilisateur

Emerson

Emerson Alco Controls TIH FLR Series Manuel utilisateur

Emerson

Emerson Fisher FLOBOSS 407 Manuel utilisateur

Emerson

Emerson Neotecha NTB Manuel utilisateur

Emerson

Emerson Penberthy 500 Series Manuel

Emerson

Emerson ANDERSON GREENWOOD 9300H Manuel utilisateur

Emerson

Emerson Fisher V250 Manuel utilisateur

Emerson

Emerson Fisher G101 Series Manuel utilisateur

Emerson

Emerson Kunkle Valve Series Manuel utilisateur

Emerson

Emerson NEOTECHA SNB Series Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
