2 Introduction
This document describes how you can safely mount and unmount a COM board from a carrier board.
2.1 Conventions
A number of conventions have been used throughout to help the reader better understand the content
of the document.
Constant width text –is used for file system paths and command, utility and tool names.
$ This field illustrates user input in a terminal running on the
development workstation, i.e., on the workstation where you edit,
configure and build Linux
# This field illustrates user input on the target hardware, i.e.,
input given to the terminal attached to the COM Board
This field is used to illustrate example code or excerpt from a
document.
This field is used to highlight important information
How to mount and unmount COM board
Page 6
Copyright 2021 © Embedded Artists AB
Rev A
3 Unmount COM board
3.1 Preparations
First make sure you work in an ESD safe environment placing the COM board on an anti-static mat.
You should also have a wrist strap attached to your wrist and the anti-static mat.
Figure 1 - Anti-static wrist strap
How to mount and unmount COM board
Page 7
Copyright 2021 © Embedded Artists AB
Rev A
3.2 Unfasten screws

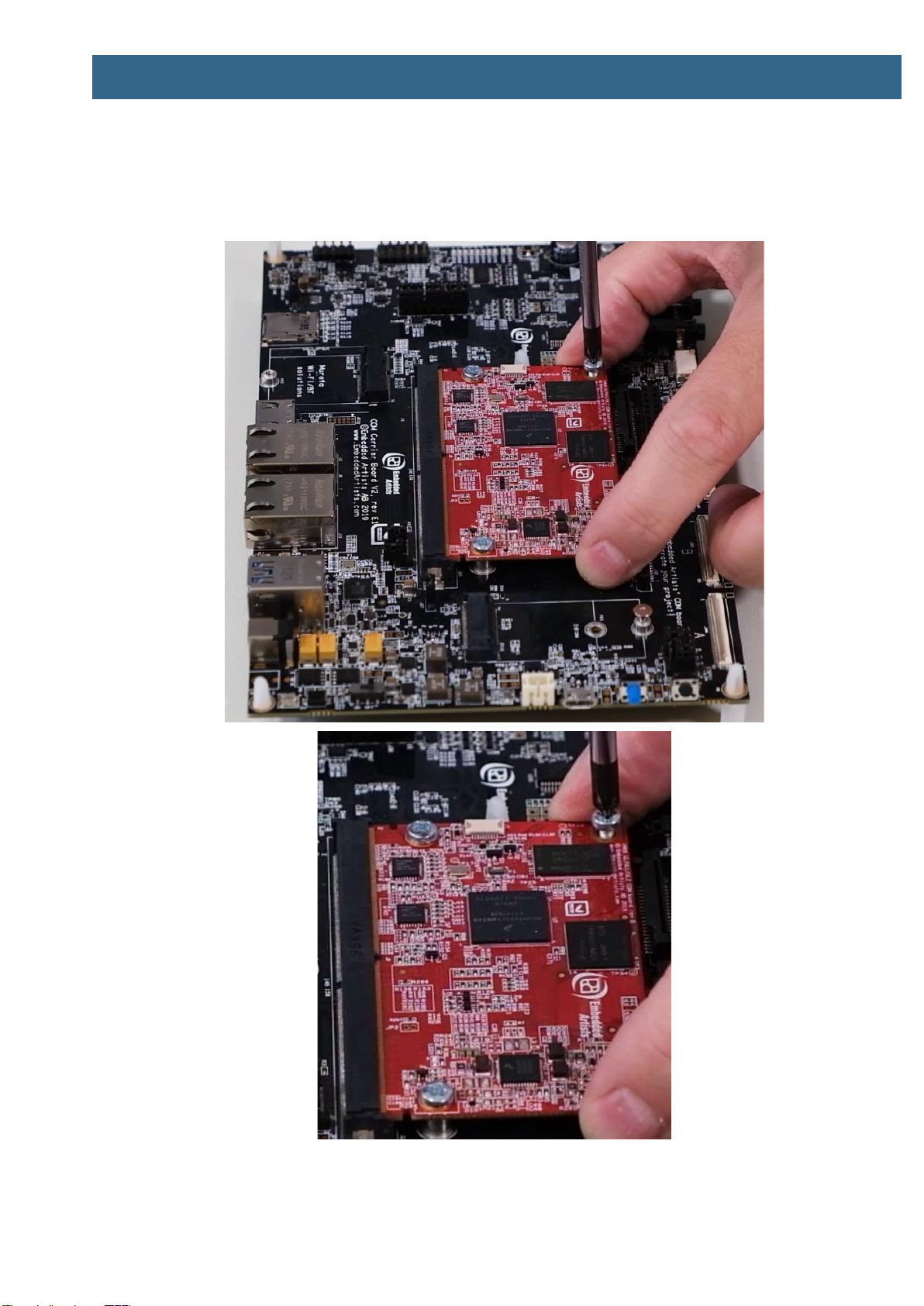

Push down the board in the corners as shown in Figure 2 while unscrewing. Keep pushing down
until all screws have been removed. Begin with the two screws in the corners farthest away from the
MXM3 connector. Then move on to the two inner screws.
Figure 2 - Unfasten screws
How to mount and unmount COM board
Page 8
Copyright 2021 © Embedded Artists AB
Rev A
3.3 Remove board

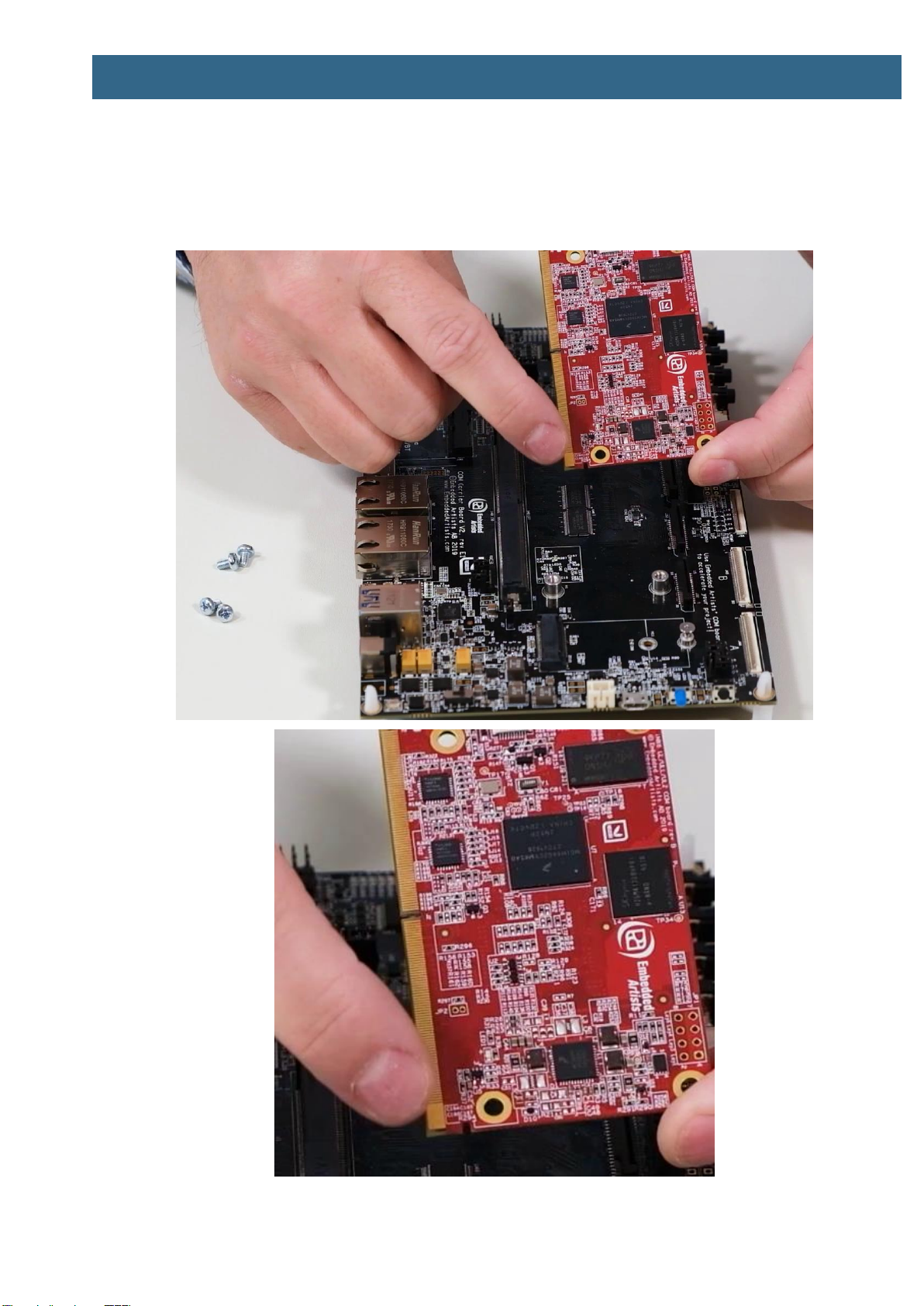

Release the COM board from the MXM3 connector with small movements and pull evenly in both
corners as illustrated in the pictures below. When removed, you should put the COM board in an ESD
bag or ESD safe environment immediately.
Figure 3 - Release and remove board
How to mount and unmount COM board
Page 9
Copyright 2021 © Embedded Artists AB
Rev A
4 Mount COM board
4.1 Inspect gold fingers
Before you mount the COM board make sure there is no dust on the gold fingers.
Figure 4 - Inspect gold fingers
How to mount and unmount COM board
Page 10
Copyright 2021 © Embedded Artists AB
Rev A
4.2 Insert COM board
Insert the board in about 45 degrees angle. You will notice the angle that is suitable. Push in the board
(with even force in both corners) and make sure it is evenly inserted by looking at the row of gold
fingers. When evenly inserted the same area of the gold finger row can be seen in both ends of the
MXM3 connector.
Figure 5 - COM board at an angle (Note: not fully inserted)
