Elsys ECO Series Manuel utilisateur

Operating manual

Publish Date: 2023-01-30

v1.0

Wireless sensor

ElektronikSystem i Umeå AB Tivstevägen 48, 90736 Umeå, Sweden

E-mail: [email protected] ǀWeb: www.elsys.se

Specifications in this document are subject to change without notice.

©ElektronikSystem i Umeå AB 2022

Operating manual

ECO series

Operating manual ECO series

ElektronikSystem i Umeå AB Tvistevägen 48, 90736 Umeå, Sweden

E-mail: [email protected] ǀWeb: www.elsys.se

Important safety information

Read this manual before attempting to install the device!

Failure to observe recommendations included in this manual may be

dangerous or cause a violation of the law. The manufacturer, ElektronikSystem i

Umeå AB will not be held responsible for any loss or damage resulting from not

following the instructions of this operating manual.

•The device must not be dismantled or modified in any way.

•The device is only intended for indoor use. Do not expose it to moisture.

•The device is not intended to be used as a reference sensor, and

ElektronikSystem i Umeå AB will not be held liable for any damage

which may result from inaccurate readings.

•The device must never be subjected to shocks or impacts.

•To clean the device, wipe with a soft moistened cloth. Use another soft,

dry cloth to wipe dry. Do not use any detergent or alcohol to clean the

device.

Disposal note in accordance with Waste from Electrical and

Electronic Equipment (WEEE) Directive 2012/19/EU

The device, as well as all the individual parts, must not be disposed of with

household waste or industrial waste. You are obliged to dispose of the device at

the end of its service life in accordance with the requirements of Directive

2012/19/EU to protect the environment and to reduce waste through recycling.

For additional information and how to carry out disposal, please contact the

certified disposal service providers.

Operating manual ECO series

ElektronikSystem i Umeå AB Tvistevägen 48, 90736 Umeå, Sweden
E-mail: [email protected] ǀWeb: www.elsys.se
Contents

Description ................................................................................................................1
1 Dimensions (mm) ..........................................................................................1
2 Label..................................................................................................................2
3 Main features of the ECO series ..................................................................3
Mounting guidelines ................................................................................................4
Installation .................................................................................................................5
Service and maintenance........................................................................................5
Sensor configuration................................................................................................6
1 NFC configuration...........................................................................................6
2 Over the air configuration..............................................................................7
3 Application parameters ..................................................................................7
Sensor behavior........................................................................................................8
1 Sensor startup .................................................................................................8
2 Energy storage ................................................................................................8
3 Sampling mode / Periodic measurement....................................................8
4 Scheduled transmission.................................................................................8
5 LED indication .................................................................................................9
Internal sensors.....................................................................................................10
1 Temperature..................................................................................................11
2 Humidity.........................................................................................................11
3 Light ...............................................................................................................12
4 CO2................................................................................................................12
Device specifications ............................................................................................13

Operating manual ECO series

ElektronikSystem i Umeå AB Tvistevägen 48, 90736 Umeå, Sweden

E-mail: [email protected] ǀWeb: www.elsys.se

9. Sensor payload format.........................................................................................14

10. Regulations........................................................................................................14

10.1 Legal notices.................................................................................................14

10.2 Declaration of conformity ...........................................................................14

11. Revision History ................................................................................................15

Operating manual ECO series

ElektronikSystem i Umeå AB Tvistevägen 48, 90736 Umeå, Sweden

E-mail: [email protected] ǀWeb: www.elsys.se

1. Description

The ECO series of sensors are batteryless LoRaWAN®indoor climate sensors

temperature, humidity, light intensity, and CO2 level. It is equipped with NFC

(Near Field Communication) for easy configuration with an NFC-enabled

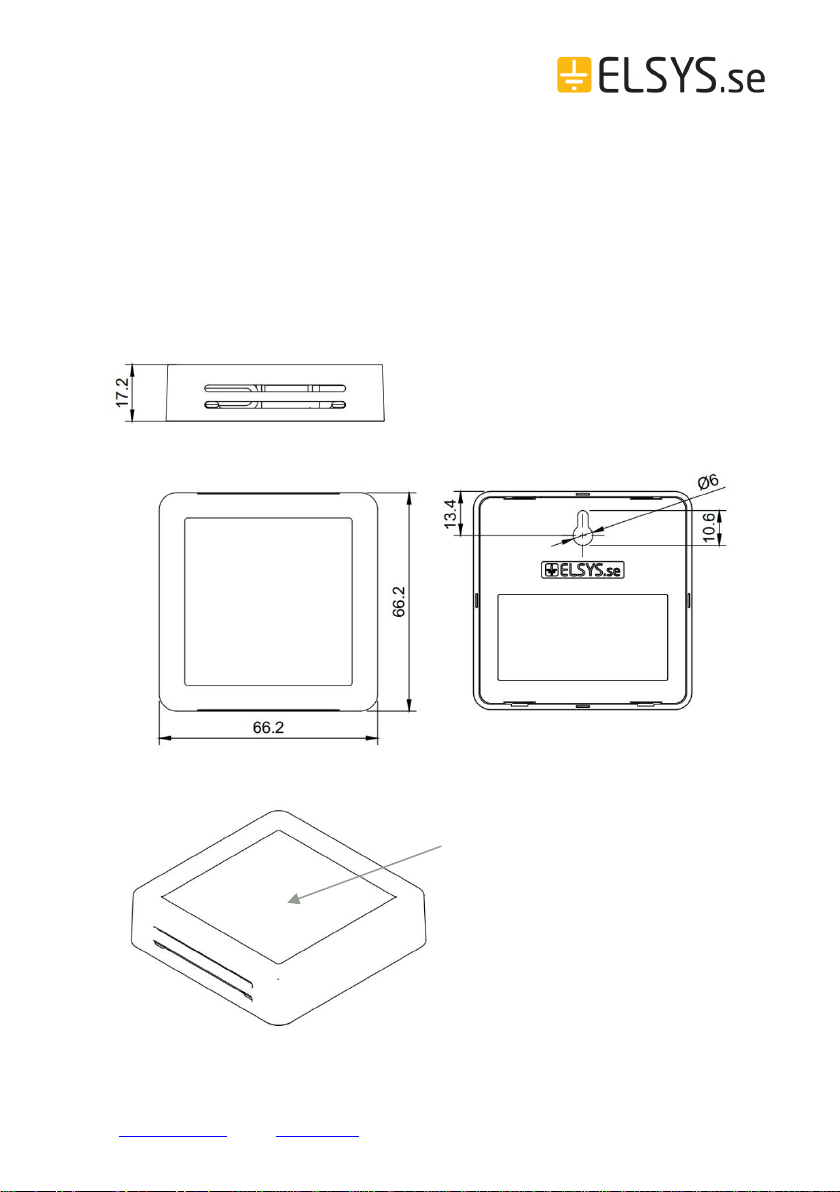

1.1 Dimensions (mm)

Solar cell surface

Operating manual ECO series

ElektronikSystem i Umeå AB Tvistevägen 48, 90736 Umeå, Sweden

E-mail: [email protected] ǀWeb: www.elsys.se

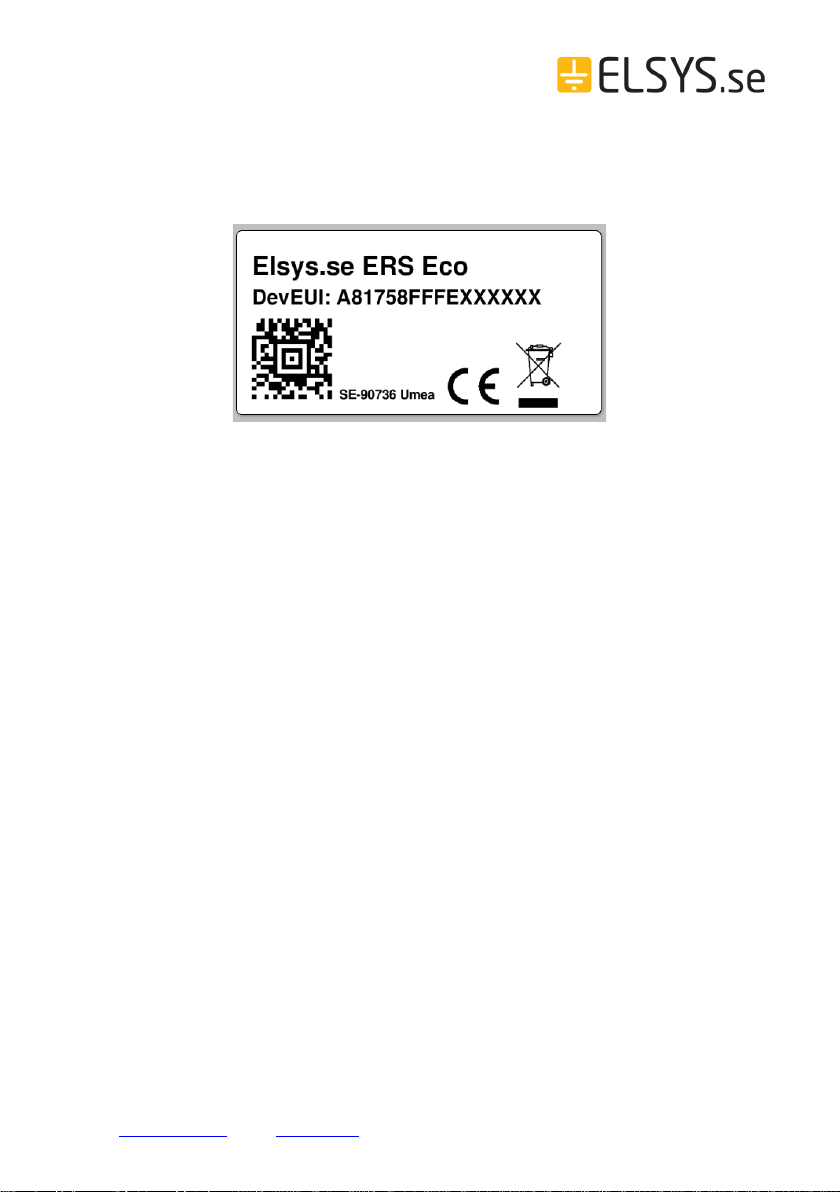

1.2 Label

At the back of your device there is a label with an Aztec barcode containing

DevEUI and sensor type.

Operating manual ECO series

ElektronikSystem i Umeå AB Tvistevägen 48, 90736 Umeå, Sweden

E-mail: [email protected] ǀWeb: www.elsys.se

1.3 Main features of the ECO series

•Batteryless

•Powered by a printed, organic solar cell optimized for indoor light

•Energy storage that lasts up to 50 days in the dark*

•Maintenance free and low total cost of ownership

•Enclosure made from biodegradable material

•Compatible with LoRaWAN®specification 1.0.4

•Measures ambient temperature

•Measures ambient humidity

•Measures light intensity

•Measures CO2 level**

•Easy installation

•Easy configuration

•May be installed on a wall or any (non-metallic) surface

•Long-range communication

•Configurable over NFC

•Configurable over the air

•Supported channel plans: EU868, IN865, US915, AU915, AS923,

HK923, KR923**

•CE Approved and RoHS compliant

* Depending on settings and environmental factors

** Depending on model

Operating manual ECO series

ElektronikSystem i Umeå AB Tvistevägen 48, 90736 Umeå, Sweden

E-mail: [email protected] ǀWeb: www.elsys.se

2. Mounting guidelines

Before installation, the light conditions in the intended installation location should

be known. As a guideline, with default settings and at Spreading Factor 7 an

average illuminance of at least 60 lux is needed for the solar cell to be able to

harvest enough energy and keep the sensor running. During a whole week this

corresponds to 250 lux for eight hours followed by 16 hours of darkness and

darkness during the weekend.

When the sensor is exposed to light it will wake up and start running the

LoRaWAN®join procedure. It is therefore recommended to commission the

sensor to the server before removing it from its packaging.

Avoid placing the sensor where it is constantly exposed to direct sunlight as this

may degrade the performance of the solar cell over time. Occasional exposure to

high light intensities such as a few hours of sunlight each day is of no issue.

Operating manual ECO series

ElektronikSystem i Umeå AB Tvistevägen 48, 90736 Umeå, Sweden

E-mail: [email protected] ǀWeb: www.elsys.se

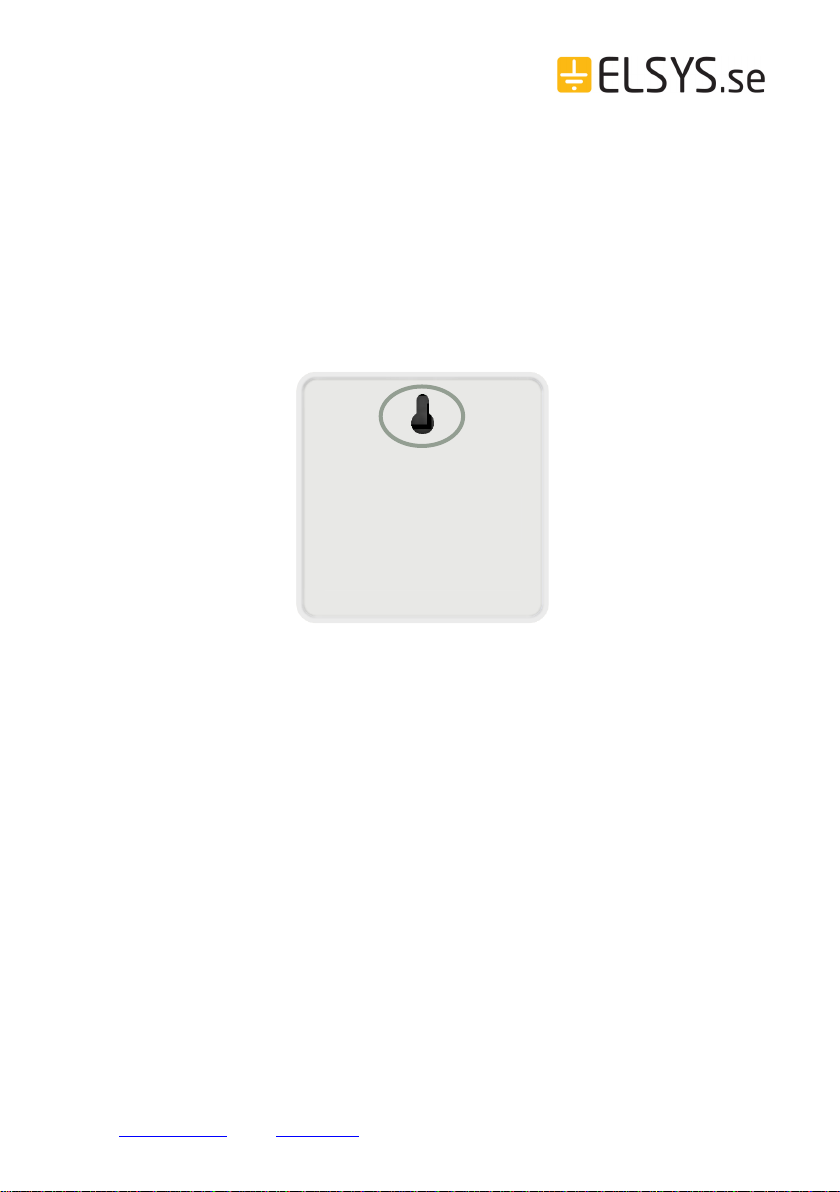

3. Installation

1. Place double sided adhesive tape on the back side of the sensor or

mount a screw in the intended sensor location.

2. Place the sensor in its intended location by gently applying pressure to it

for the tape to adhere to the surface. Or, in the case of using a screw,

hang the sensor onto the screw using the back side mounting hole.

Caution: When using a screw for mounting, please make sure that the total length protruding from

the wall does NOT exceed 6 mm. Not adhering to this advice might result in physical contact

between the screw and internal parts of the sensor causing a loss in range or malfunctioning of

the sensor.

4. Service and maintenance

No serviceable parts inside. If service is needed, please contact your distributor.

Operating manual ECO series

ElektronikSystem i Umeå AB Tvistevägen 48, 90736 Umeå, Sweden

E-mail: [email protected] ǀWeb: www.elsys.se

5. Sensor configuration

All sensor settings can be configured via a smartphone application with NFC

(Near Field Communication) or over the air via the network server and downlink

data to the sensor. The sampling rate, spreading factor, encryption keys, port,

and modes can be changed. All sensor settings can be locked from the server or

NFC to make end-users unable to read or change settings on the sensor.

5.1 NFC configuration

1. Download ELSYS “Sensor Settings”application from Google Play or App

Store and install it on a smartphone or tablet. The device must support NFC.

2. Enable NFC on the device and start the application.

3. Place your device on top of the NFC antenna on the sensor. Keep the two

devices close to each other and don’t move them to get as good

connectivity as possible.

4. Remove the device. Current settings will be displayed in the application.

5. Use the application to change any settings if needed.

6. Quickly tap the device on top of the NFC antenna to transfer the new

settings to the sensor. Make sure that the application confirms your new

settings.

7. Wait for the sensor to reboot (1 sec), indicated by the LED flashing. Sensor

settings have been updated. Always validate your settings by reading the

NFC data after the sensor has restarted.

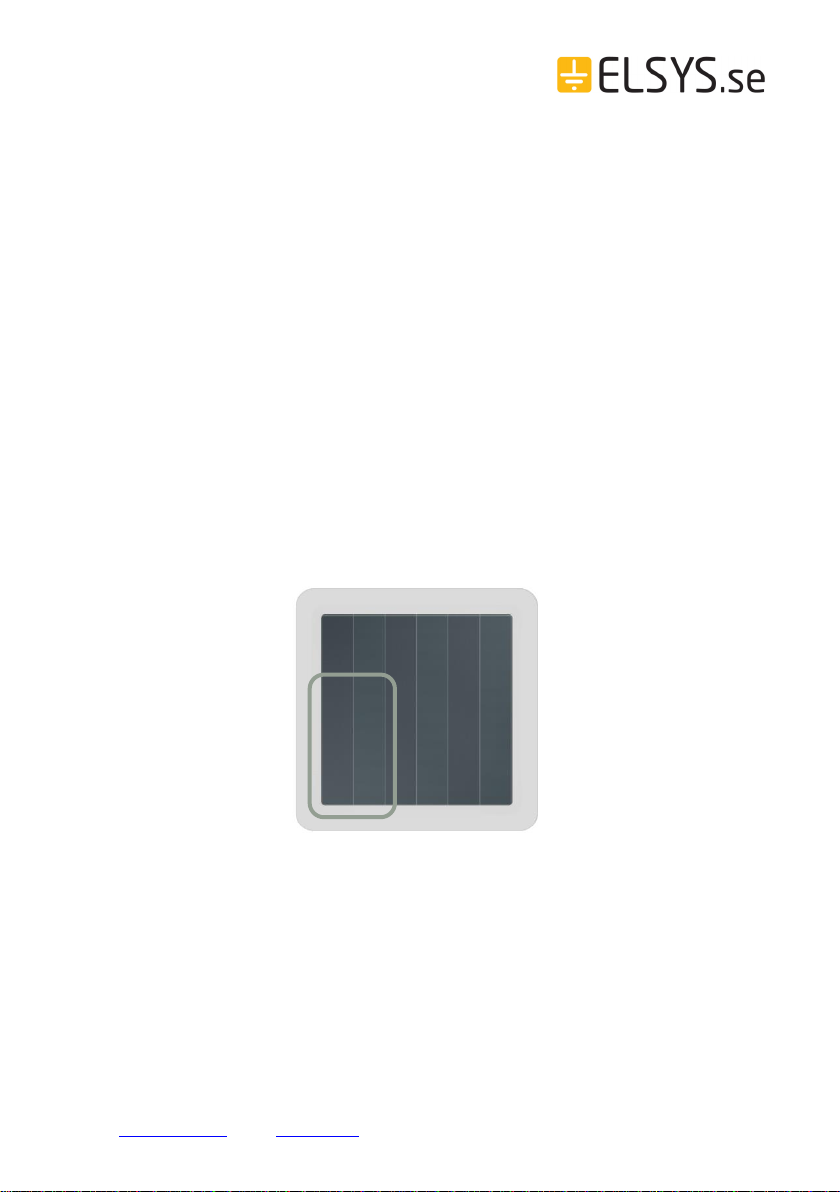

NFC

Antenna
