Technical Data
Input Thermocouple: Built-in internal compensation point and protection against sensor breakage
and incorrect polarity.
Re-calibration not required for a line resistance of up to 50 Ohms.
Calibration accuracy: < 0,25% Error of compensation point:
< 0,5K
Input RTD: Built-in protection against sensor breakage and short circuit.
Max. permissible line resistance by 3-wire connection: 80 Ohms
Sensor current: < 0,5 mA
Calibration accuracy: < 0,2 %
Input 0/4-20mA: Load max. 10 Ohm
Input 0-10VDC: Load >10KOhm/V (Option)
Linear error: < 0,2 %
Influence of the ambient temperature: < 0,01 % / K
Setpoint selection (k1): Ext. potential-free contact, switching voltage appr. 24 V dc, max. 1 mA.
Selection between SP1 (main setpoint) and SP2.
Outputs: Version 10: - Relay (UR appr.), max. 250 VAC, max. 3 A (resistive load)
- Logic / bist. voltage signal, 0/18 V dc, max. 10 mA, short-circuit proof
Version 60: - Relay (UR appr.), max. 250 VAC, max. 3 A (resistive load)
- Logic / bist. voltage signal, 0/18 V dc, max. 10 mA, short-circuit proof
- Continuous output: 0/4...20 mA, Load max. 500 Ohm
Linearity: < 1,5 %, Delay time: app. 2 secs.
Version 61: - Relay (UR appr.), max. 250 VAC, max. 3 A (resistive load)
- Logic / bist. voltage signal, 0/18 V dc, max. 10 mA, short-circuit proof
- Continuous output: 0...10V, input resistance of receiver > 50kOhm
Linearity: < 1,5 %, Delay time: app. 2 secs.
Alarm output OUT 2: - Relay (UR appr.), max. 250 VAC, max. 3 A (resistive load).
Only for 2-point-controller and continuous-controller configuration.
Alarm output OUT 3: - Relay (UR appr.), max. 250 VAC, max. 3 A (resistive load).
Process output OUT 4: Only version R11x0-60/61. Output range according to the choosen measurement range.
0/4…20mA (-60) or 0…10V (-61)
7-Segment-Display: Process: 10 mm red, Set: 10 mm red
Data protection: EAROM
CE-Mark Tested according to 2004/108/EC; EN 61326-1
Electr. safety: EN 61010-1
Power supply: Standard: 230 V AC. ± 10 %, 48...62 Hz. Others possible. See Type Code.
Connections: Screw terminals (UR appr.).
Protection mode IP 20 (DIN 40050), Insulation class C.
Permissible operating conditions: Operating temperature: 0...50 °C / 32...122 °F
Storage temperature: -30...70 °C / -22...158 °F
Climate class: KWF DIN 40040;
Equivalent to annual average max. 75 % rel. humidity.
No condensation.

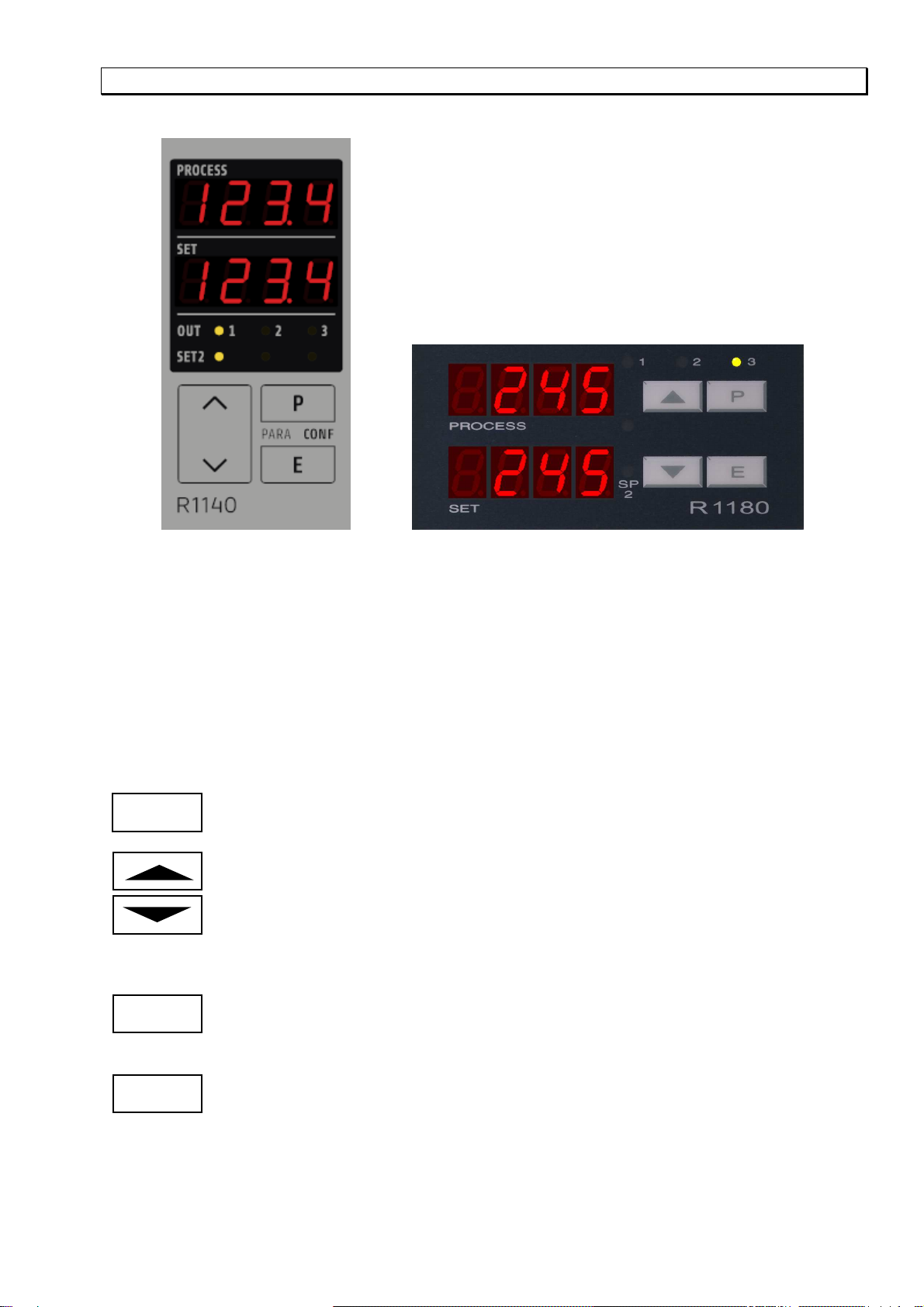

Casing: R1140-Format: 48 x 96 mm (DIN 43700). Installation depth 122 mm
Panel cutout: 45 +0,6 mm x 92 +0,8 mm
R1180-Format: 96 x 48 mm (DIN 43700). Installation depth 122 mm
Panel cutout: 92 +0,8 mm x 45 +0,6 mm
Material:Noryl, self-extinguishing, non-drip, UL 94-V1
Protection mode: IP 20 (DIN 40050), IP 50 front side
Front side IP 54: Option
Weight: app. 380g
Subject to technical improvments!
