Elo TouchSystems TouchSystems 0700L Manuel utilisateur

User Manual

Elo TouchSystems 0700L Touchmonitor

User Manual – 0700L

SW601504 Rev B - Page 1 of 20

User Manual – 0700L

SW601504 Rev B - Page 2 of 20

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or

translated into any language or computer language, in any form or by any means, including, but not

limited to, electronic, magnetic, optical, chemical, manual, or otherwise without prior written permission

of Tyco Electronics.

Disclaimer

The information in this document is subject to change without notice. Tyco Electronics Corporation and

its Afffiliates in the TE Touch Solutions business unit in the TE Connectivity Ltd. family of companies

(collectively "TE") makes no representations or warranties with respect to the contents herein, and

specifically disclaims any implied warranties of merchantability or fitness for a particular purpose. TE

reserves the right to revise this publication and to make changes from time to time in the content

hereof without obligation of TE to notify any person of such revisions or changes.

Trademark Acknowledgments

Elo TouchSystems, TE Connectivity, TE connectivity (logo) and TE (logo) are trademarks of the TE

Connectivity Ltd. family of companies. Windows is a trademark of the Microsoft group of companies.

DisplayLink is a registered trademark of DisplayLink (UK) Limited. Other product names mentioned

herein may be trademarks or registered trademarks of their respective companies. Tyco Electronics

claims no interest in trademarks other than its own.

User Manual – 0700L

SW601504 Rev B - Page 3 of 20

Table of Contents

Chapter 1 - Introduction ........................................................................... 4

Chapter 2 – Installation............................................................................. 5

Chapter 3 – Mounting................................................................................ 12

Chapter 4 – Operation............................................................................... 13

Chapter 5 – Technical Support............................................................... 17

Chapter 6 – Safety & Maintenance........................................................ 18

Chapter 7 – Regulatory Information..................................................... 19

Chapter 8 – Warranty Information......................................................... 22

User Manual – 0700L

SW601504 Rev B - Page 4 of 20

Chapter 1 - Introduction

Product Description

Your new touchmonitor combines the reliable performance of Elo TouchSystems touch products

with the latest developments in touch technology and display design. This combination of

features creates a natural flow of information between a user and the touchmonitor.

This touchmonitor incorporates a 24-bit color, active matrix thin-film-transistor LCD panel to

provide high quality display performance. Its LED backlight significantly reduces power

consumption and eliminates mercury (compared to CCFL-backlit panels). Other features that

enhance this LCD monitor’s performance are power/video/touch over one USB cable, an

optional magnetic strip reader (MSR), and an optional webcam.

Because of the special USB driver required, the touchmonitor cannot function as primary

display during boot-up. An additional display must be used to install the USB driver.

Precautions

Follow all warnings, precautions and maintenance as recommended in this user manual to

maximize the life of your unit and prevent risks to user safety. See the Safety & Maintenance

chapter for more information.

This manual contains information that is important for the proper setup and maintenance of the

unit. Before setting up and powering on your new touchmonitor, read through this manual,

especially the Installation, Mounting, and Operation chapters.

Chapter 2 –Installation

Unpacking the Touchmonitor

Open the carton and verify that the following items are present:

Touchmonitor with protective sheet for its face

Elo TouchTools CD & User Manuals CD

Quick Install Guide

USB Y-cable (“Data Cable”: Power and USB signal, “Aux Power Cable”: additional Power)

4 M4x8mm screws

Minimum Computer Hardware Requirements

2.0GHz Dual Core CPU

512MB of RAM. More if other applications are to run at the same time.

Windows 7, XP 32-bit (SP2, SP3), Vista 32-bit (SP1), or Vista 64-bit (SP1) operating

systems

2 USB 2.0 port

30MB of free disk space

CD-ROM drive or network access for software downloads

Primary display

Connector Panel & Interfaces

Mini-USB

User Manual – 0700L

SW601504 Rev B - Page 5 of 20

User Manual – 0700L

SW601504 Rev B - Page 6 of 20

Touchmonitor Connections

1. Connect the mini-B plug of the provided USB Y cable to the mini-USB port on the monitor,

and connect the “Data Cable” connector of the provided USB Y cable into one of your

computer’s USB ports.

NOTE: Some computers may not provide enough power to the monitor

from one USB port. If so, connect the “Aux Power Cable” USB connector

on the Y end of the cable into another USB port on your computer.

2. The touchmonitor ships in an ON state: video should be displayed on your monitor once the

DisplayLink™ driver is installed on your computer.

Installing the DisplayLink Software Drivers

The DisplayLink technology enables video-over-USB. It allows your monitor to use one USB

cable for power, video and touch.

NOTE: This monitor can not function as Primary display during boot-up.An

additional display must be used to install the DisplayLink driver.

The drivers for the Windows 7, XP 32-bit (SP2, SP3), Vista 32-bit (SP1), and Vista 64-bit (SP1)

operating systems are provided with your touchmonitor on a CD.

Look in the USB Monitor folder in the Elo TouchTools CD for detailed driver manual.

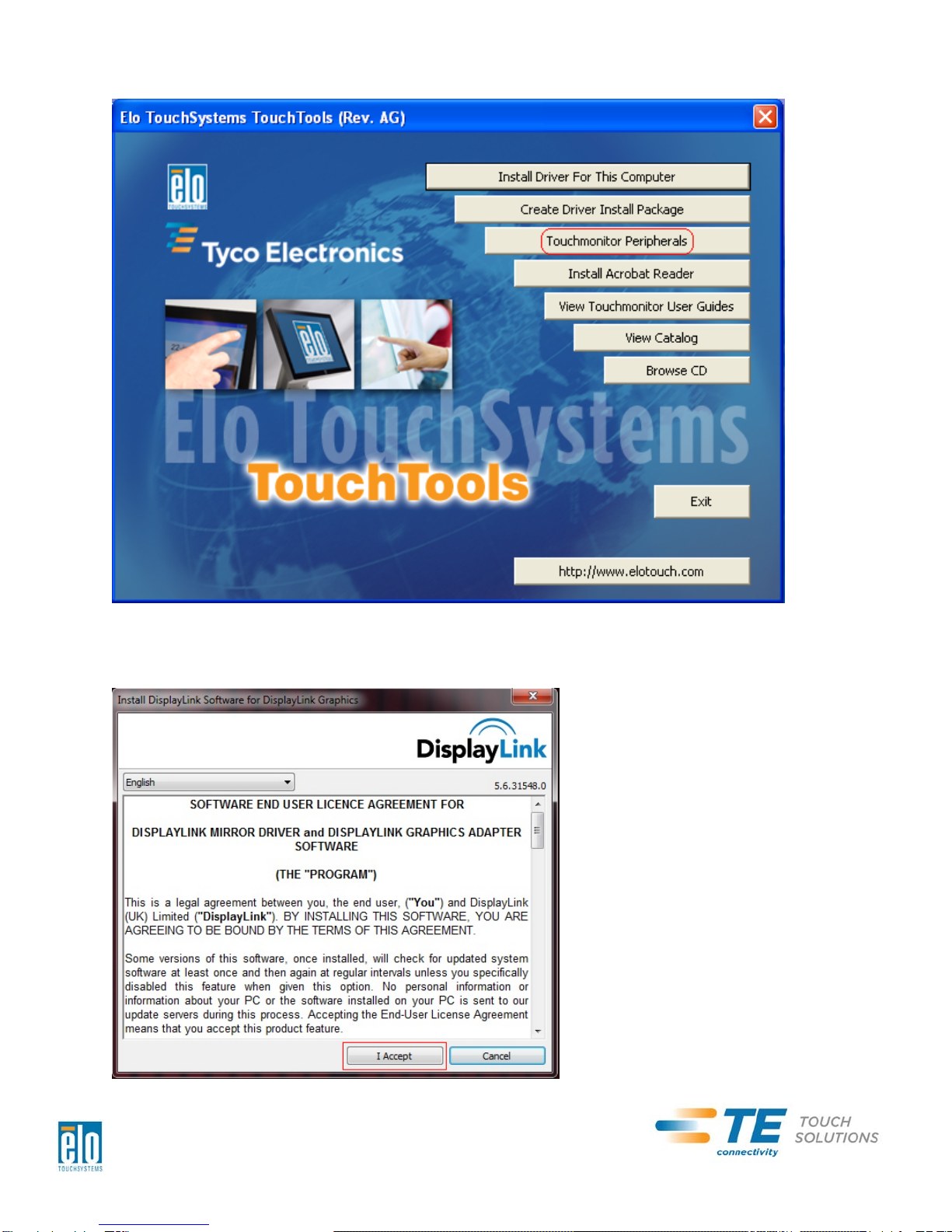

Insert the Elo TouchTools CD into your computer’s CD-ROM drive. The CD should

automatically run the Elo TouchTools application. Select “Touchmonitor Peripherals”:

Select the “USB Display” folder, and then select the “Drivers” folder. Double click on the .exe

file. Select your language and click “I Accept” when the end user license agreement window

appears:

User Manual – 0700L

SW601504 Rev B - Page 7 of 20

The following screen appears during install:

No message will be shown at the end of the install. Reboot your computer after the install is

complete.

After the monitor is plugged in via USB cable, the monitor shape icon will appear in the system

tray and the following message will be displayed:

User Manual – 0700L

SW601504 Rev B - Page 8 of 20

Installing the Touch Technology Software Drivers

Some software installation is required for your touchmonitor to work with your computer.

The drivers for the Windows 7, XP, Vista, WePOS, and 32-bit Server 2003 and 2008 operating

systems are provided with your touchmonitor on a CD.

Visit www.elotouch.com for:

The most up-to-date touch driver versions

Additional touch driver information

Detailed touch driver installation guides

Touch drivers for other operating systems

Insert the Elo TouchTools CD into your computer’s CD-ROM drive. The CD should

automatically run the Elo TouchTools application. Select “Install Driver for This computer”:

User Manual – 0700L

SW601504 Rev B - Page 9 of 20

For Windows XP, Vista, Server 2003, Server 2008, and WEPOS installations, install the “USB

Touchscreen Drivers” when prompted:

For Windows 7 installations, check the “Install driver” box under “Elo USB Interfaces – Other

Touchscreens”

After accepting the end-user license agreement, the drivers will finish installing.

Reboot your computer after the install is complete.

User Manual – 0700L

SW601504 Rev B - Page 10 of 20
