Elko RFTC-50/G/ice Manuel utilisateur

RFTC-50/G

°C

Wireless temperature

controller

- 2 -

Contents

Warning .........................................................................................................

Characteristics ..............................................................................................

Technical parameters ...................................................................................

Battery replacement .....................................................................................

Description of device ....................................................................................

Description of display ..................................................................................

Description of control...................................................................................

Selecting the heating mode.........................................................................

Setting the temperature for manual mode ................................................

Entering the programming menu................................................................

Entering the settings menu..........................................................................

Example of programming the RFTC-50/G ...................................................

- 3 -

Warning

Instruction manual is designated for mounting and also

for user of the device. It is always a part of its packing.

Installation and connection can be carried out only by

a person with adequate professional qualication upon

understanding this instruction manual and functions

of the device, and while observing all valid regulations.

Trouble-free function of the device also depends on

transportation, storing and handling. In case you notice

any sign of damage, deformation, malfunction or

missing part, do not install this device and return it to

its seller. It is necessary to treat this product and its parts

as electronic waste after its lifetime is terminated. Before

starting installation, make sure that all wires, connected

parts or terminals are de-energized.While mounting and

servicing observe safety regulations, norms, directives

and professional, and export regulations for working

with electrical devices. Do not touch parts of the device

that are energized - life threat. Due to transmissivity of

RF signal, observe correct location of RF components

in a building where the installation is taking place. RF

Control is designated only for mounting in interiors.

Devices are not designated for installation into exteriors

and humid spaces. The must not be installed into metal

switchboards and into plastic switchboards with metal

door - transmissivity of RF signal is then impossible,

do not use in areas aected by high-frequency

interference. RF Control is not recommended for pulleys

etc. - radiofrequency signal can be shielded by an

obstruction, interfered, battery of the transceiver can

get at etc. and thus disable remote control.

- 4-

Characteristics

- the temperature controller RFTC-50/G is used as a simple solution for controlling temperature in a room or the home

- the RFTC-50/G is a programmable temperature controller with the option of setting a weekly program, which oers two

regulation options:

a) the internal sensor scans the temperature, and based on the set command, it gives the command to switch on the

switching actuator RFSA-6x, RFUS-61 or RFSC-61. This can be used mainly to control temperature of heaters, hall

panels, convection heaters, etc.

b) the internal sensor scans the temperature, and based on the set command (weekly program), it switches on the

actuator RFSTI-11B, which also scans the critical oor temperature (this occurs to prevent damage when opening a

window). This solution is especially suitable for underoor heating.

- control is performed using buttons, individual symbols (temperature, battery, mode, etc.) are displayed on a backlit LCD display

- the controller is powered by: batteries - 2 x AAA 1.5 V

- the at rear side of the device enables its placement anywhere in the room where you wish to measure temperature

- the LOGUS90 frame design oers a luxurious design (glass, wood, stone, metal) with the option of placing it in multiple frames

- 5 -

Technical parameters

Supply voltage:

Battery life:

Temperature oset:

Temperature oset range:

Display:

Backlight:

Transmission / function indicator:

Temperature measurement input:

Temp. meas. range and accuracy:

Frequency:

Signal transmission method:

Minimum control distance:

Range in open area:

Other data

Max. number of controlled actuators RFSA-6x:

Operating temperature:

Operating position:

Mounting:

Protection:

Electromagnetic radiation degree:

Dimensions

Frame - plastic:

Frame - metal, glass, wood, granite:

Weight:

Related standards:

2 x 1.5V bat. AAA

up to 1 year (depending on number of controlled actuators)

2 buttons v / ^

± 5 °C

LCD, characters

Yes, active - blue

symbols

1x internal sensor

0 .. + 55 °C; 0.3 °C of scale

866 MHz, 868 MHz, 916 MHz

bidirectionally addressed message

20 mm

up to 100 m

0 .. + 55 °C

wall

gluing / screwing

IP30

85 x 85 x 20 mm

94 x 94 x 20 mm

66 g (without batteries)

EN 60669, EN 300 220, EN 301 489 directive R&TTE Directive,

Order. No 426/2000 Coll. (Directive 1999/EC)

- 6 -

°C

Battery replacement

Placement

Do not expose it to sharp temperature changes, direct sunlight or excessive moisture. Place the temperature units so that

they are not near windows or heating equipment, etc., which could inuence the internal temperature sensor.

Attention:

When you instal iNELS RF Control system, you have to keep minimal distance 1 cm between each units.

Between the individual commands must be an interval of at least 1s.

Prior to rst assembly, remove the moldings in the frame and peel

o the protective lm from the display.

After inserting the batteries, all features for controlling the display

function illuminate for 2 seconds, then the FW version is displayed

in the upper row.

- 7 -

°C

Day of the week

Heating mode

Current temperature

Control button

Current time

Circuit status

Control button ^

Hidden button

Description of device

- 8 -

0 6 12 18 24

Prog AM

°C

°F

Auto PM

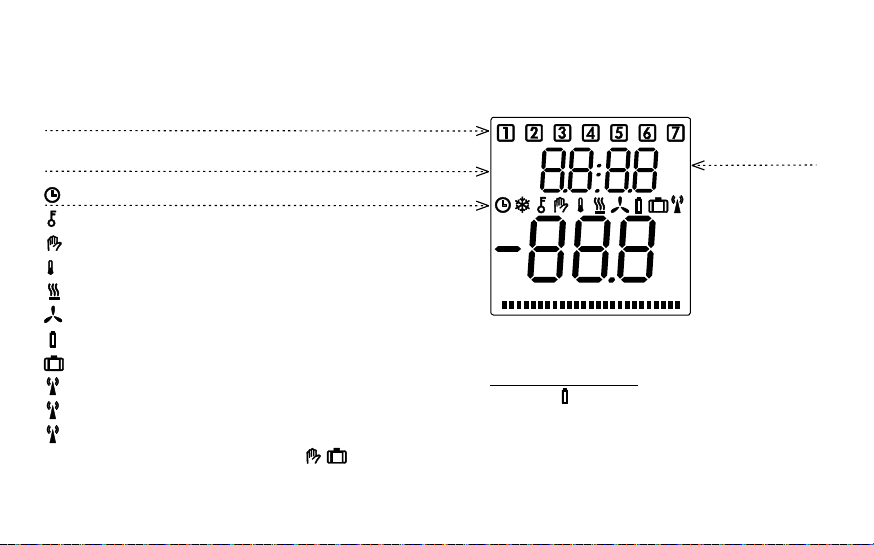

Description of display

Display of the day of the week

Current time

in selected

format 12/24

Automatic mode

Battery status indicator:

A symbol is displayed when the batteries are

running low. The dead battery indicator shows that

the voltage is insucient for reliable communication

with a paired actuator(s).

- setting the time

- locking the menu item or program

- manual mode

- setting the temperature

- output switched on when selecting heating function

- output switched on when selecting cooling function

- displays in the case of low battery voltage

- vacation mode

- constantly illuminated - connection with all actuators successful

- ashing - connection successful only with certain actuators

- not illuminated - connection unsuccessful with all actuators

Mode switched o

- not illuminated

Auto

- 9 -

°C

Description of control

Button functions for controlling:

Short press of buttons

(< 2 s)

- switching menu items, changing value

Long button press ^(> 2 s)

- unlocking the menu item or time program for changing

- conrmation of changed value after setting and locking of the menu item

or program

Long button press

(> 2 s)

- refusal of changed value, return to original value and locking of the menu

item or program

Short press of hidden button (< 2 s)

- closing menu - after closing the menu communication with actuators is performed

- the default display indicates the update of the actuator status (e.g. upon actuator

power failure)

Long press of hidden button (> 2 s)

- upon default display entry to the menu

- 10 -

Auto

°C

^ ^ ^

Selecting the heating mode

- manual mode

- the thermostat

regulates to the

temperature set for

the manual mode

without a time program

- vacation mode -

the thermostat regulates

to a temperature set

for the vacation mode,

after the vacation mode

period expires, the

heating mode is reset

that had been selected

prior to switching on the

vacation mode

Auto - automatic mode -

the thermostat regulates

to a temperature based

on the set time program,

outside of time segments

in the program it

regulates to the reduced

temperature set in the

menu ProG, item ECO

OFF - thermostat switched

o - when selecting the

function„heating “, the

thermostat regulates to a

non-freezing temperature

set in the menu in the item

OFF, when selecting the

function„cooling “ the

thermostat is switched o

and is not performing any

regulation

At the default display, press and hold the button ^. In the upper row of the display, the indicator rEG appears and the symbol

of the currently chosen heating mode ashes, or the indicator OFF appears. Now by shortly pressing the buttons

you

can select the heating mode. Conrm the heating mode selection by pressing and holding the button ^.

You can return to the original mode by pressing and holding

This also brings you to the initial display.
