Electrolux E24WC75HSS0 Manuel utilisateur

Product No. E24WC75HSS0

Color stainless

Volts 115

Wiring Diagram 241899001

Owner's Guide 241957000

Market North America

Service Data Sheet 241957100

U05L00004.eps U05DIBAAA0.eps U05BIABBA0.eps U05SWIAAA0.eps

U05CWADAD1.eps W241899001B.eps S241899001B.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

THIS CATALOG SUPERCEDES

PUBLICATON #5995522694.

Publication No.

5995531851

09/01/21

(EN/SERVICE/KHB)

390

WINE COOLER

Model No.

E24WC75H

Publication No: 5995531851 E24WC75HSS0

01/09 2

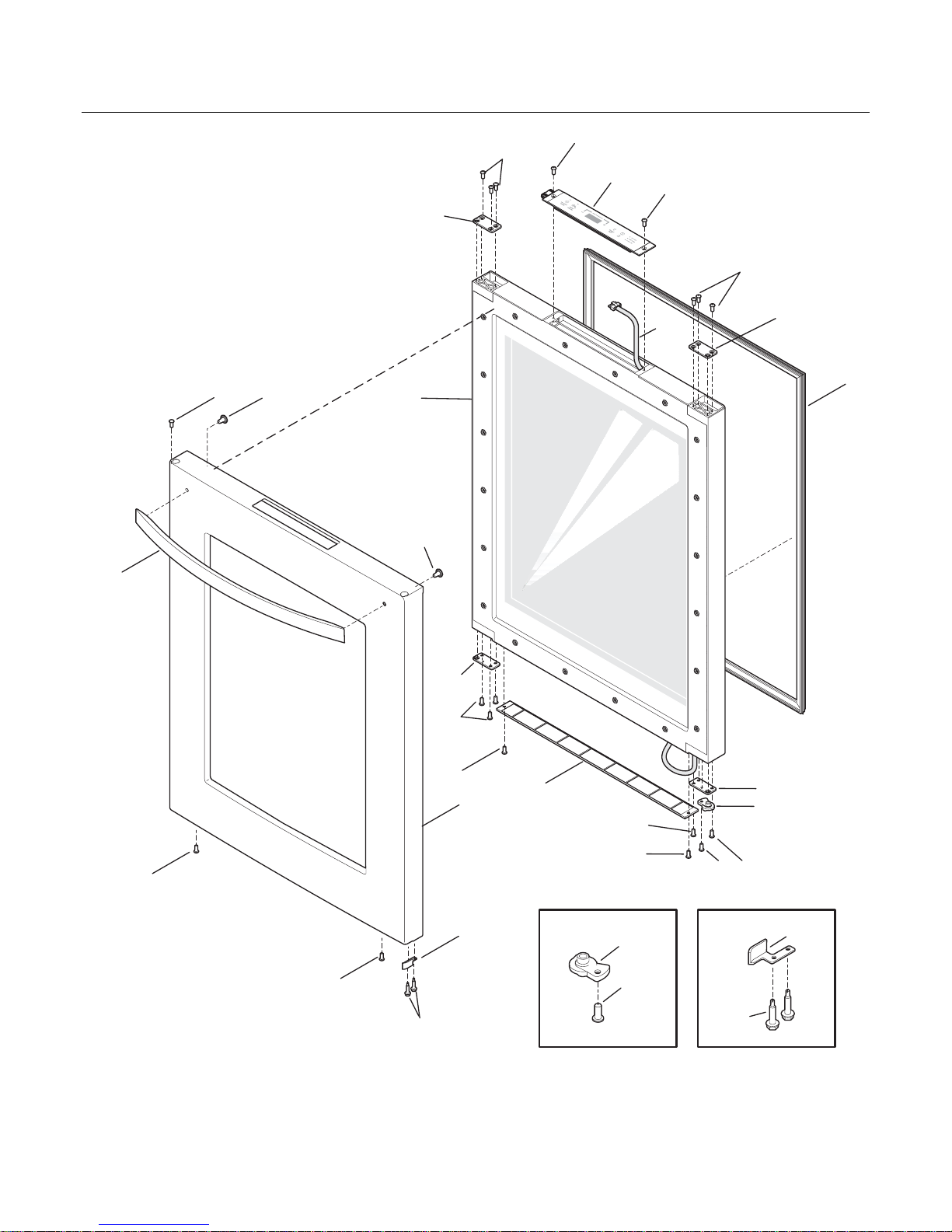

DOOR

23 21C

21C

26 40

22A

22C

22D

20A

21D

21A21A 21A

13A

U05DIBAAA0

E24WC75HSS0 Publication No: 5995531851

# Functional Parts 3 01/09

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 7241867201 Gasket-door, black

3 7241879203 Door Assembly, glass, w/framing

6 # 7241958501 Harness-wiring, door

10 7241953401 Plug button, black

13 7241866601 Door Stop, black, RH

13A 7241866602 Door Stop, black, LH

15 7241954601 Cover-door, stainless

18 7241962801 Handle-door, stainless steel

20 7241866801 Door Closer, cam, black RH, upper

20A 7241866802 Door Closer, cam, black LH, upper

21 7241548004 Screw, handle mtg, 10-32 x 1/4, (2)

21A 7241906101 Screw-#10 x 3/4 TEK

21C 7241918201 Screw, #8-32 x 3/8, flat head

21D 7241904601 Screw, #10-32 x 1/4

21D* 7241947201 Washer-flat, .250 x 1.50 OD, zinc

22 7241866401 Plate-door, upper left

22A 7241866402 Plate-door, upper right

22C 7241866501 Plate-door, lower left

22D 7241866502 Plate-door, lower right

23 7241897403 Board-control, temp control

26 7215503203 Screw, cr pan hd, 10-16 x 0.500

40 7241866101 Cover-access

Publication No: 5995531851 E24WC75HSS0

01/09 4

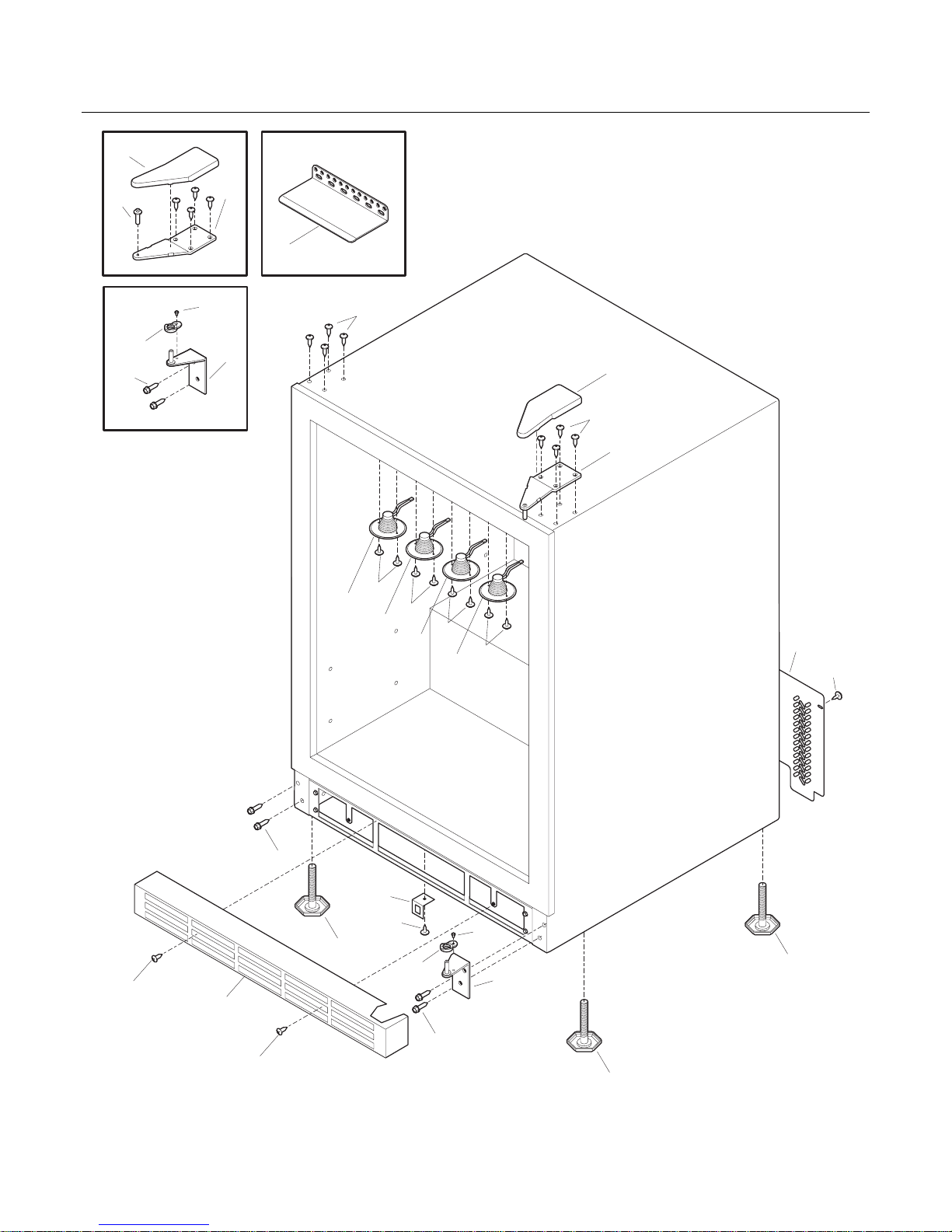

CABINET

30A

21D

21A

209

21C

22A

15 26

37A

210

40A

U05BIABBA0

E24WC75HSS0 Publication No: 5995531851

# Functional Parts 5 01/09

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

15 # 7241904201 Light Assembly, LED, (4)

21A 7241906101 Screw-#10 x 3/4 TEK

21C 7241947301 Screw

21D 7241500304 Screw, hex washer head, 8-18AB x 0.625

22 7241882201 Door Closer, cam, black

22A 7241882202 Door Closer, cam, black LH, lower

23 7241904601 Screw, #10-32 x 1/4

26 7241904301 Screw, LED lighting

30 7241882401 Bracket-lower hinge, RH, w/hinge pin

30A 7241882402 Bracket-lower hinge, LH, w/hinge pin

37 7241882301 Hinge-upper, black

37A 7241882302 Hinge-upper, black LH

40 7241881801 Cover-upper hinge, black, RH

40A 7241881802 Cover-upper hinge, black, LH

42 7241710601 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

43 7241911501 Leveling Leg, screw

72 7241908401 Grille/Kickplate, stainless

72* 7241908402 Grille/Kickplate, stainless

89 7241898002 Cover-access

92 7241904501 Screw, upper hinge

209 7241909201 Bracket, harness

210 7241903801 Bracket-anti tip

* # 7241900701 Harness-intermediate, UC, LED lighting

Publication No: 5995531851 E24WC75HSS0

01/09 6

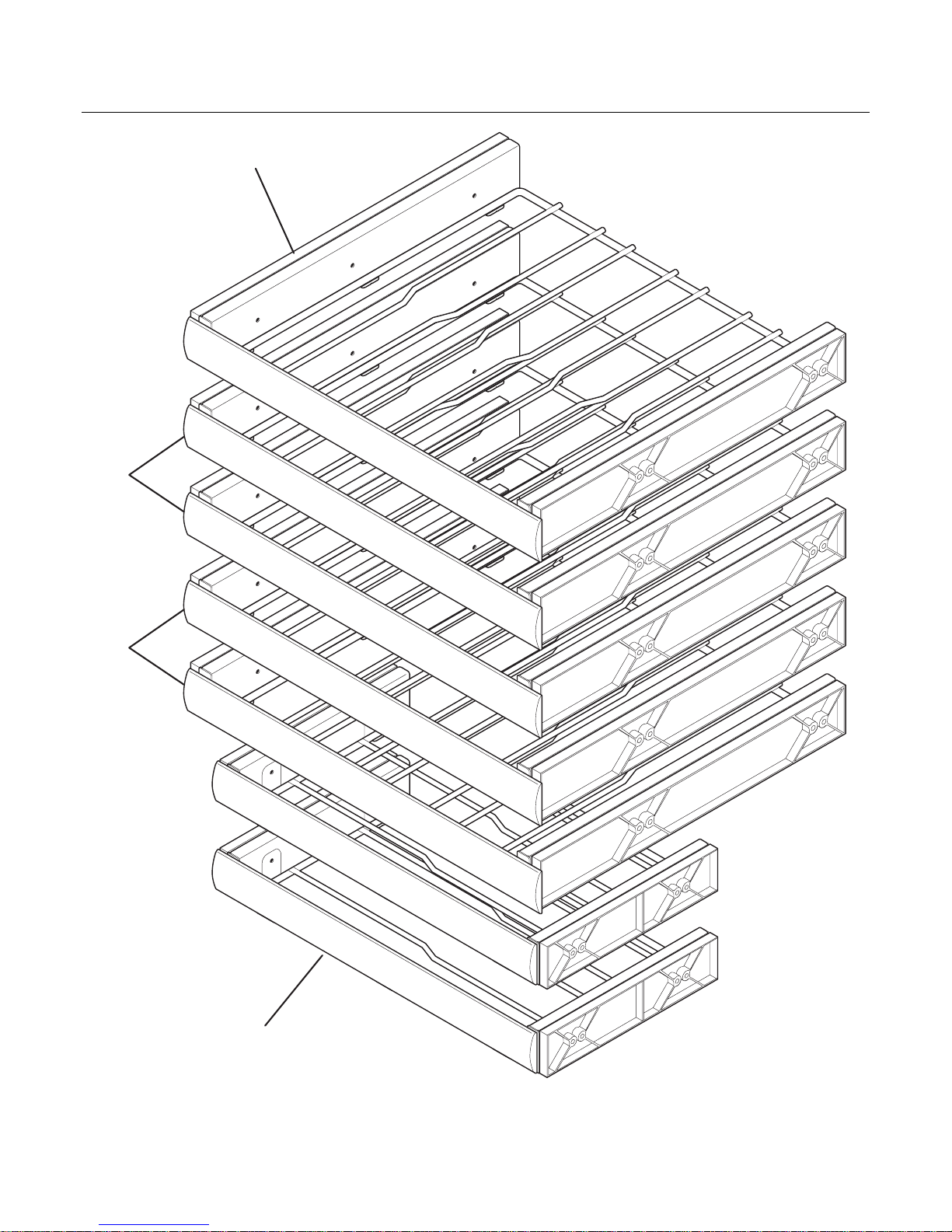

SHELVES

24A

U05SWIAAA0

E24WC75HSS0 Publication No: 5995531851

# Functional Parts 7 01/09

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

24 7241902602 Shelf-Wine Rack, lower

24* 7241904701 Screw, 8-18 X 1-1/4

24A 7241905202 Shelf-Wine Rack, lower

Publication No: 5995531851 E24WC75HSS0

01/09 8

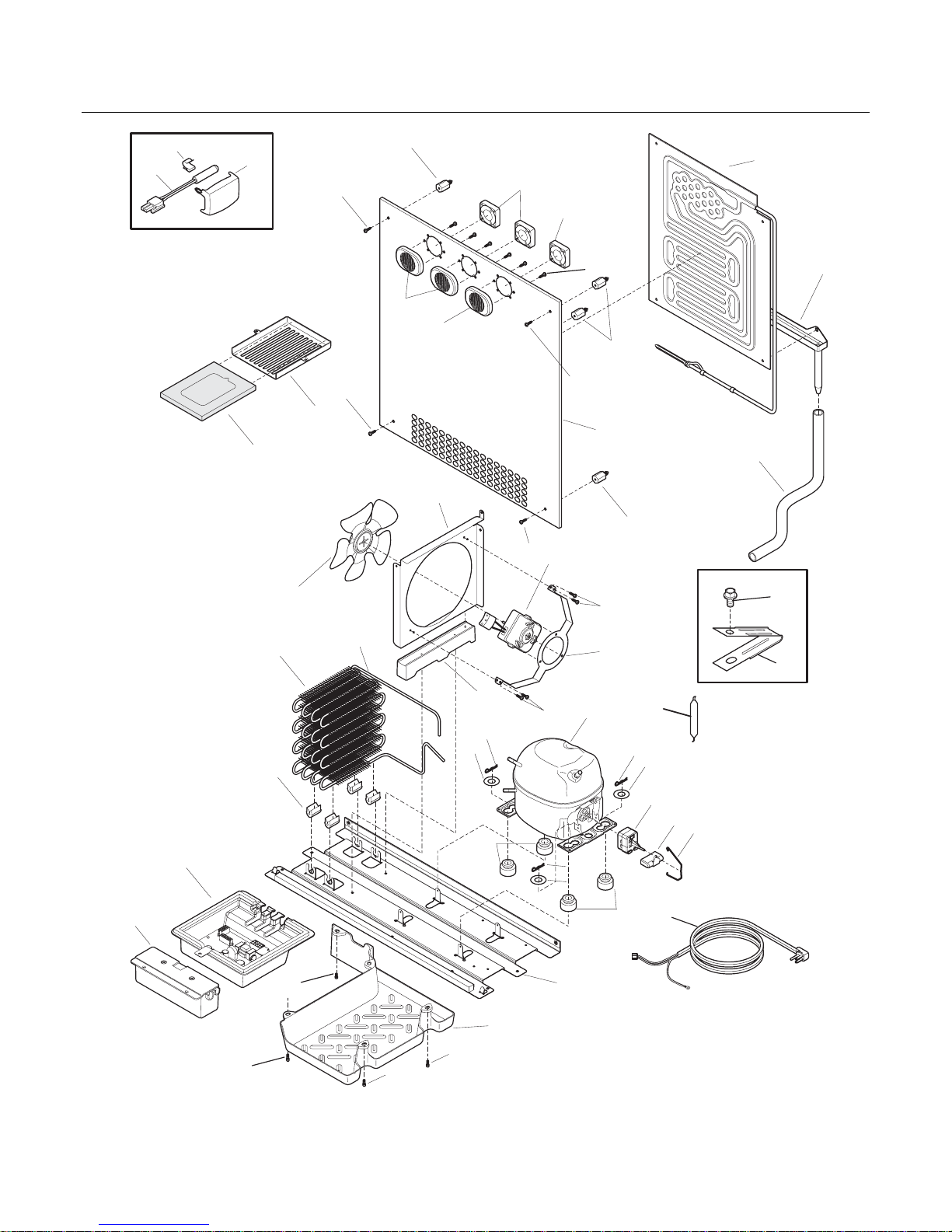

SYSTEM

U05CWADAD1

59A

59B

55 32

E24WC75HSS0 Publication No: 5995531851

# Functional Parts 9 01/09

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 7241931201 Condenser

1* 75304406721 Spacer-cond tube, round, 5/8 OD x .81"lg

3 7241890001 Spacer-evap

3* 7241890002 Spacer-evap

3* 7241931901 Washer, nylon

4 7218944002 Drier-filter, R134a System

6 # 7241516901 Cord-service

6* 7241932501 Harness-wiring, evap fans

6* 7241932601 Bushing-service cord

6* 7241932701 Retainer, wire

6* # 7241900201 Harness-evaporator

6* # 7241900501 Harness-wiring, machine compt

6* # 7241900701 Harness-intermediate, UC, LED lighting

7 7241890201 Cover-fan

10 7241890503 Cover-evap coil

10* 7241933201 Seal-coil cover

13 # 7241781901 Motor-evap fan

13* 7215503203 Screw, cr pan hd, 10-16 x 0.500

15 # 7241891801 Evaporator, w/heat exchangr

17 7241889801 Trough-drain

22 7241888101 Base-compressor

22* 7218252201 Screw, #8 truss hd, 10-32CA x 0.500

23 7218513300 Grommet-compr mtg, (4)

24 7241812301 Washer-compr mtg

25 7216056401 Clip-compressor mtg

26 7241889901 Pan-defrost drain

29 # 75303918368 Compressor Kit

30 # 7241707717 Starter-PTC

32 7216649200 Clip, controller

34 7240405201 Grommet, rubber, black, cond tube/wire

41 7240433204 Screw, hex washer head, 8-18 x 5/16

44 75304456288 Clamp-wiring harness, strain relief, galv steel

45 7241906101 Screw-#10 x 3/4 TEK

50 7241511116 Board-main power

50* 7241532401 Channel

55 7218909913 Capacitor, run, 220 VAC, 15 microfarad

58 7240433203 Screw, hex washer head, 8-18 x 3/8

59 7241889701 Shroud, cond fan motor

59* 7240359403 Screw-fan shroud, (2)

59* 7240396801 Clamp, tube/wiring, nylon, black/natural

59A 7241889601 Bracket-cond motor

59B 7241896401 Support, cond shroud

60 7241584301 Motor-condenser fan

61 7241639501 Blade-condenser fan

81 7240555004 Screw-#8-32 X 3/8 BLACK

84 7241931401 Tube-drain, lower

85 7241898101 Tube-hot loop

92 7241512902 Cover-sensor, black

93 7240597203 Sensor

94 7241904001 Housing-filter, air

95 7241754001 Filter-air

96 # 7241900001 Board-LED power

96*# 7241900401 Harness-LED driver

97 7241519401 Clip, sensor

* 7218515401 Clip

* 7241919901 Clamp, cable

Publication No: 5995531851 E24WC75HSS0

01/09 10

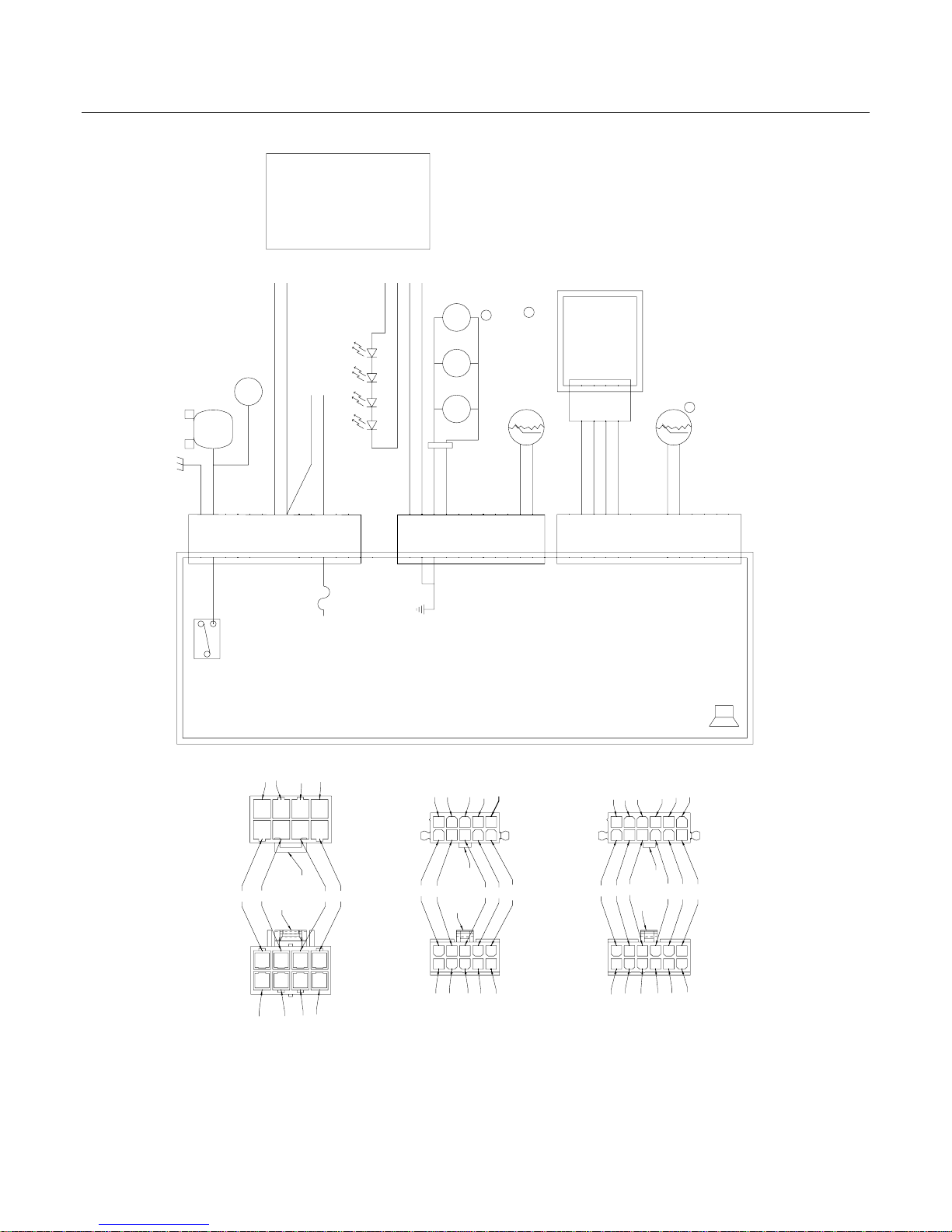

WIRING SCHEMATIC

USER

INTERFACE

DISPLAY

(U.I.)

TDO

RDI

COM

J1-2

J1-1

J1-3

J1-4

GRN

RED

BLK

NATURAL

J1-7

J1-8

J1-9

J1-10

J1-11

J1-12

RDI

TDO

COM

ALARM

J1-1

J1-2

J1-3

J1-4

J1-5

J1-6

NTC-THERMISTOR

COOLER COMPARTMENT

EVAPORATOR FAN

WINE COOLER (3 USED)

BEVERAGE COOLER (1 USED)

GRY

J2-9

J2-8

YEL/WHT

BRN/WHT

J2-7

J2-6

J2-10

J2-5

J2-4

J2-3

J2-2

J2-1

J3-1

J3-8

J3-7

J3-3

J3-5

J3-6

J3-4

J3-2

CONDENSER FAN

STANDARD COMPRESSOR

RED

GRN/YEL

STANDARD

COMPRESSOR

ONLY

L.E.D. POWER

SUPPLY

COMMON

PWM SIGNAL IN (+5V)

LED -

LED +

J2-4

J2-3

J2-2

J2-1

J1-1

J1-2

NEUTRAL

LINE

BLK/WHT

PINK/YEL

BLK

PINK LED 1-4

LINE IN

NEUTRAL

BLK

LT BLUE

NEUTRAL LT BLUE

LINE BLK

CATCH

LATCH

CATCH

LATCH

CATCH

LATCH

PWM SIGNAL OUT (+5V)

GRY

NTC-THERMISTOR

EVAPORATOR COIL

BLK

RED

COM
