Electrolux RH30WC55GS Manuel utilisateur

Stainless Chimney Wall-Mount Hood

RH30WC55GS

30" STAINLESS CHIMNEY WALL-MOUNT HOOD

Features

Nominal Width

Installation Type

Air Discharge

Air Delivery (CFM)

Blower Type

Electronic Controls with LCD Display

Fan Speeds

Sound Level (dBA)

Dual Halogen Lights

Washable Stainless Steel Filters

Exhaust Duct

Duct Required

Accessories

Charcoal Filter – EICFW60GS

Duct-Free Kit – EIDFW60GS

52" Flue Extension – EIXWC55GS

Colour / UPC (0-12505-)

Stainless Steel (S)

Specifications

Overall Exterior Dimensions –

Width

Height (With One Cover)

(With Flue Extension)

Depth

Voltage Rating

Connected Load (kW Rating) @120 Volts

‡

Product Weight

Shipping Weight

Sones Rating

* Ventilation is convertible to be either ducted outside, or recirculated inside requiring no ducting.

(Recirculated option requires use of optional Duct-Free Kit.)

‡For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate

ground wire. Appliance must be grounded for safe operation.

NOTE: Always consult local and/or national electric codes. Check local building codes for

installation requirements, as they may very per locale. Refer to Product Installation Guide

for detailed installation instructions on the web at www.electroluxappliances.ca.

Specifications subject to change.

30"

Wall Mount

Vertical

600

Dual Centrifugal

Yes

72.4

Yes

Convertible*

8" Round

Optional

55877-1

29-7/8"

24" min.

24-5/8" min.

42-9/16" max.

19-11/16"

120V/60Hz / 15A

0.475

36 Lbs.

39 Lbs.

9.0

High-Quality Premium

Stainless Steel

Classic ventilation hood is constructed

of high-quality stainless steel, making it

durable yet attractive and easy to clean.

600 CFMs / 4-Speed Fan

Supplies a maximum of 600 CFM of air

movement using a variable 4-speed dual

centrifugal fan. Removes smoke, vapours

and smells effectively and more quietly

than typical exhaust fans.

Dual Halogen Lights

Dual halogen lights provide ample

illumination of the cooking surface below

with lights located at two different levels.

Electronic Controls

with LCD Display

Easy-to-operate electronic controls

provide convenient access to all fan,

clock and timer settings.

electroluxappliances.ca

Wall OvensWarmer DrawersCooktopsBuilt-In Ranges

Freestanding

Ranges

Microwaves

Vent Hoods

DishwashersRefrigerators

FreezersUnder Counter

Stainless Chimney Wall-Mount Hood

RH30WC55GS

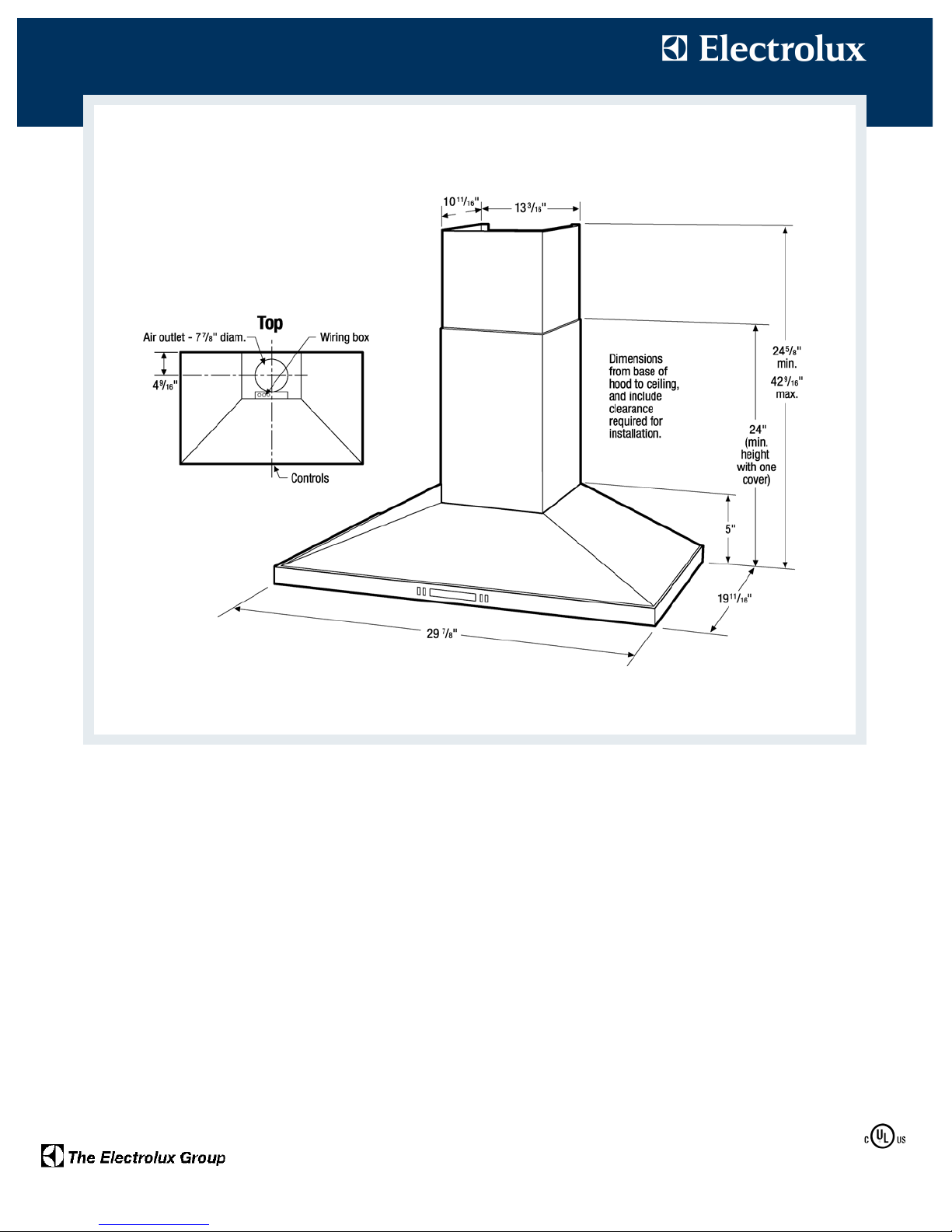

30" Stainless Chimney Wall-Mount Hood Specifications

•

Product Weight – 36 Lbs.

•

Wall-Mount Installation

•

Ventilation is convertible to be either ducted outside, or recirculated

inside requiring no ducting.

•

Sones Rating – 9.0

•

Voltage Rating – 120V/60 Hz / 15 Amps

•

Connected Load (kW Rating) @120 Volts = 0.475kW (For use on

adequately wired 120V, dedicated circuit having 2-wire service with a

separate ground wire. Appliance must be grounded for safe operation.)

•

Amps @120 Volts = 3.84 Amps

•

Always consult local and/or national electric codes. Check local

building codes for installation requirements, as they may vary per locale.

•

Minimum installation height allowed from bottom of hood to cooking

surface is 24"- 30" for electric and 30" for gas. (NOT more than 36"

recommended.)

•

To prepare mounting surface, adequate structure and support must be

provided, capable of supporting 100 lbs.

Ducted Option Specifications

•

For outside ventilation only.

•

Exhaust Duct Required – 8" round

•

For most efficient airflow exhaust, use a straight run or as few elbows

as possible.

•

Use metallic flex ducting only to connect rigid duct directly to transitions

(if allowed by code).

•

Thermal breaks such as short section of nonmetallic duct, should

be used in areas of extreme cold.

•

Cold weather installations should have additional backdraft damper

installed.

•

Refer to web for detailed duct preparation installation instructions.

Ductless (Recirculated) Option Specifications

•

If ducting to outside is not an option, vent hood can be converted to

ductless with use of optional Duct-Free Kit (EIDFW60GS).

•

Refer to web for detailed convertible ventilation installation instructions.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at electroluxappliances.ca or supplied with product

for detailed instructions.

Optional Accessories

•

Charcoal Filter – (EICFW60GS).

•

Duct-Free Kit – (EIDFW60GS).

•

52" Flue Extension – (EIXWC55GS).

CANADA •5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •electroluxappliances.ca
