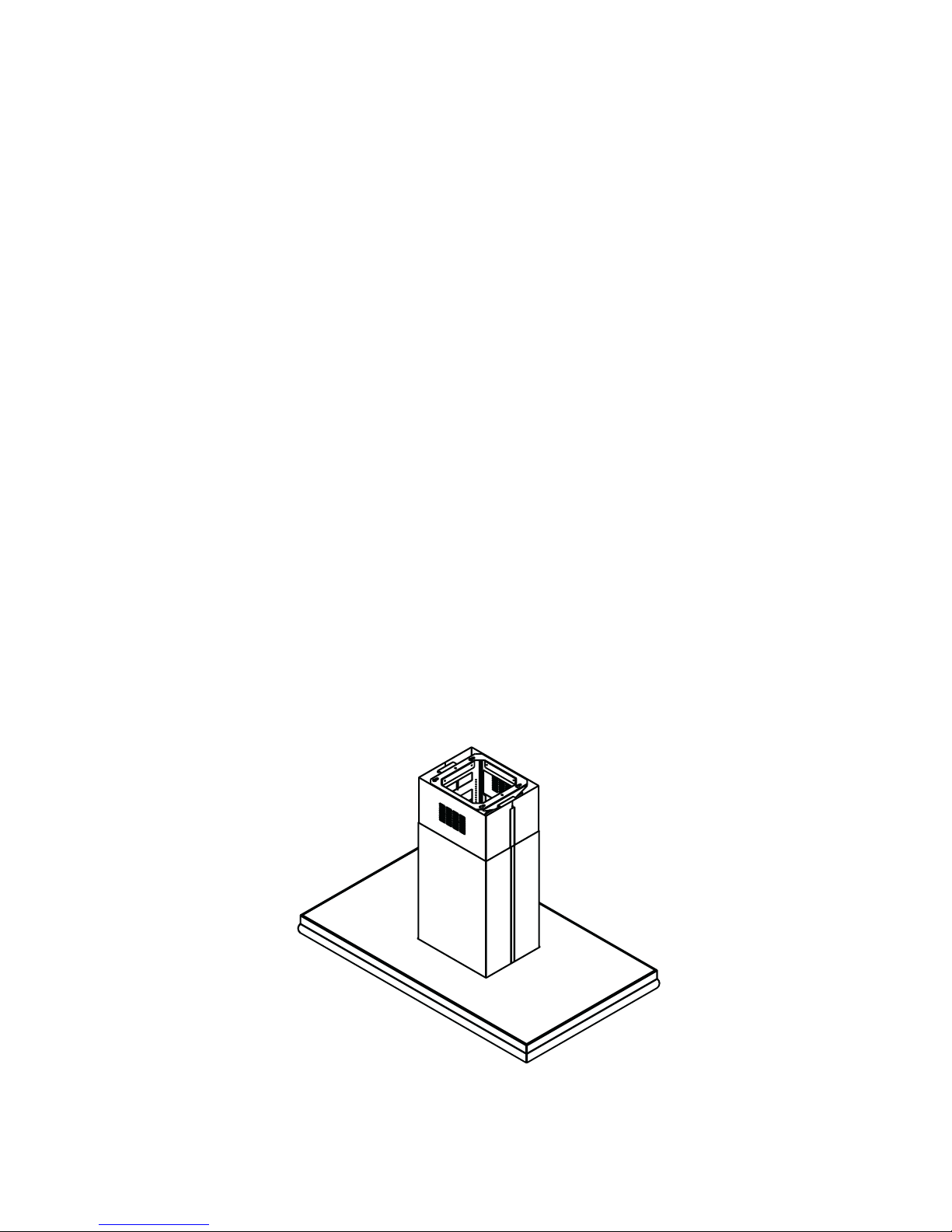

DI 8821

Cooker Hood

Operating and Installation Instructions

Contents

Safety warnings ................................................................................ 3

For the user ........................................................................................ 3

For the installer ................................................................................... 4

Description of the Appliance ........................................................... 6

Extraction version ............................................................................... 6

Recirculation Version .......................................................................... 6

Control Panel .................................................................................... 7

Grease and charcoal filter maintenance indicator ............................... 8

Maintenance and Care ..................................................................... 9

Cleaning the hood .............................................................................. 9

Metal grease filter ............................................................................... 9

Removing the metal grease filter ........................................................ 9

Charcoal filter ................................................................................... 10

Changing the light bulb ..................................................................... 11

Something Not Working ................................................................. 12

Special accessories........................................................................ 12

Technical Specifications ................................................................ 13

Mounting accessories included .................................................... 13

Electrical connection ..................................................................... 13

Installation ........................................................................................ 14

Safety warnings

For the user

• The cooker hood is designed to extract unpleasant odours from

the kitchen, it will not extract steam.

• Always cover lighted elements, to prevent excess heat from

damaging the appliance. In the case of oil, gas and coal fired

cookers it is essential to avoid open flames.

• Also, when frying, keep the deep frying pan on the cooker top/

cooker under careful control.

• The hot oil in the frying pan might ignite due to overheating.

• The risk of self-ignition increases when the oil being used is dirty.

• It is extremely important to note that overheating can cause a fire.

•Never carry out any flambé cooking under the hood.

•Always disconnect the unit from the power supply before

carrying out any work on the hood, including replacing the

light bulb.

•It is very important to clean the hood and to perform

maintenance and care of filters at the recommended intervals.

Failure to do so could cause grease deposits to build up,

resulting in a fire hazard.

• The appliance is not intended for use by young children or infirm

persons without supervision.

• Young children should be supervised to ensure that they do not play

with the appliance.

• WARNING - Ensure that the appliance is switched off before

replacing the lamp to avoid the possibility of electric shock.

This appliance is marked according to the European directive 2002/96/

EC on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent

potential negative consequences for the environment and human

health, which could otherwise be caused by inappropriate waste

handling of this product.

The symbol on the product, or on the documents accompanying

the product, indicates that this appliance may not be treated as

household waste. Instead it shall be handed over to the applicable

collection point for the recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental

regulations for waste disposal.

For more detailed information about treatment, recovery and recycling

of this product, please contact your local city office, your household

waste disposal service or the shop where you purchased the product.

For the installer

• When used as an extractor unit, the hood must be fitted with a

150mm diameter duct.

•When installing the hood, make sure you respect the following

minimum distance from the top edge of the cooking hob/ring

surfaces:

electric cookers 500 mm

gas cookers 650 mm

The hood can be installed above these heights but for optimum

performance it should be installed at the distance quoted for the

appropriate heat source.

• The national Standard on fuel-burning systems specifies a maximum

depression of 0.04 mbar in such rooms.

• The air outlet must not be connected to chimney flues or combustion

gas ducts. The air outlet must under no circumstances be

connected to ventilation ducts for rooms in which fuel-burning

appliances are installed.

• The air outlet installation must comply with the regulations laid down

by the relevant authorities.

• When the unit is used in its extractor version, a sufficiently large

ventilation hole must be provided, with dimensions that are approxi-

mately the same as the outlet hole.

• National and regional building regulations impose a number of

restrictions on using hoods and fuel-burning appliances connected

to a chimney, such as coal or oil room-heaters and gas fires, in the

same room.

• Hoods can only be used safely with appliances connected to a

chimney if the room and/or flat (air/environment combination) is

ventilated from outside using a suitable ventilation hole approxi-

mately 500-600 cm2 large to avoid the possibility of a depression

being created during operation of the hood.

• If you have any doubts, contact the relevant controlling authority or

building inspector’s office.

• Since the rule for rooms with fuel burning appliances is “outlet hole

of the same size as the ventilation hole”, a hole of 500-600 cm2,

which is to say a larger hole, could reduce the performance of the

extractor hood.

• If the hood is used in its filtering function, it will operate simply and

safely in the above conditions without the need for any of the

aforementioned measures.

• When the hood is used in its extractor function, the following rules

must be followed to obtain optimal operation:

- short and straight outlet ducting

- keep bends in outlet ducting to a minimum

- never install the ducts with an acute angle, they must always follow

a gentle curve.

- keep the duct as large as possible (preferably the same diameter

as the outlet hole).

• Failure to observe these basic instructions will drastically reduce the

performance and increase the noise levels of the extractor hood.

Description of the Appliance

•The cooker hood is designed to extract unpleasant odours from

the kitchen, it will not extract steam.

• The hood is supplied as an extractor unit and can also be used with

a recirculation version by fitting a charcoal filter.

Extraction version

• In this version fumes are extracted to the

outside via a duct connected to the

coupling ring A. Fig. 1.

• In order to obtain the best performance

the ducting should have a diameter equal

to the outlet hole.

Recirculation Version

• The air is filtered through charcoal filters and returned to the kitchen.

• You will need original charcoal filters for the recirculation function.

(Available from your local Service Centre).

• Fix the deflector using 4 screws Ø 3.5x6.5 mm. Fig. 2.

Fig. 2

Fig. 1

Control Panel

• Best results are obtained by using a low speed for normal conditions

and a high speed when odours are more concentrated.

Turn the hood on a few minutes before you start cooking, you will then

get an under pressure in the kitchen. The hood should be left on after

cooking for about 15 minutes or until all the odours have disappeared.

The control switches are located on the hood’s front panel:

1- Mains switch, ON/OFF

Press for less than 1 1/2 seconds and the cooker hood goes into

the "stand by" position (point "b" is illuminated).

Press for more than 1 1/2 seconds and the cooker hood turns off,

ALL the controls (except the light push button) are disabled (the

display is off).

Press again for more than 1 1/2 seconds to reset the cooker

hood to "stand by".

2- Light ON/OFF

3- Display

4- Start and choice of motor speed 1-2-3-1-2.........

5- Intensive speed on/off. The Intensive speed runs for 5 minutes:

If the hood is on when the Intensive speed is activated, the hood

will revert to previous speed after 5 minutes.

If the hood is off when the Intensive speed is activated, the hood

will automatically turn off after 5 minutes.

To interrupt the Intensive speed, press button 1or 5.

The letter P appears on the display and the remaining time (the

point “a” is flashing), if interrupted an acoustic signal is heard.

6- Self-Timer: times all the speed levels (the point “b” is flashing),

and then the cooker hood switches off:

The self-timer is set as follows: 1st speed level 20 minutes

2nd speed level 15 minutes

3rd speed level 10 minutes

The display shows the remaining operation time, at the end of the

time an acoustic signal is heard. Depressing the push-button

again exits the function.

Should the hood or the controls fail to operate: disconnect the power

supply for at least 5 seconds. After reconnecting the power supply wait

15 seconds and then check that the cooker hood is now operating

correctly.

123 456

Fig. 3

Grease and charcoal filter maintenance

indicator

This hood is fitted with a device that indicates when it is necessary to

clean the grease filter or the charcoal filter (if the hood is used in the

recirculation version with a charcoal filter).

On delivery, the hood is not supplied with a charcoal filter, so the

saturation indicator will be disabled.

If the hood is to be used with a charcoal filter, the saturation

indicator light must be enabled as follows:

Press buttons 4and 5 simultaneously and hold them for 3 seconds. At

first only the grease filter LED Fwill light up, but when the charcoal

filter LED Clights up the saturation indicator will be enabled.

To disable it: Press buttons 4and 5again simultaneously and hold

them for 3 seconds, until the charcoal filter LED C goes out.

Grease filter LED (F)

LEDFwill start to flash when it is time to clean the grease filter.

Cleaning will be necessary after 40 working hours. Always comply

with the maintenance instructions for the grease filter.

Charcoal filter LED (C)

The charcoal filter LED Cwill start to flash when the charcoal filter needs to

be replaced.

This operation is necessary after approximately 160 working hours.

Resetting the saturation indicator

After cleaning or replacing the filters, press button 1for 3 seconds until

the grease filter LED For the charcoal filter LED C stops flashing.

Maintenance and Care

•The hood must always be disconnected from the electricity

supply before beginning any maintenance work.

Cleaning the hood

• Clean the outside of the hood using a damp cloth and a mild deter-

gent.

• Never use corrosive, abrasive or flammable cleaning products.

• Never insert pointed objects in the motor’s protective grid.

• Wash the outside surfaces using a delicate detergent solution.

Never use caustic detergents or abrasive brushes or powders.

• Only ever clean the control panel and filter grille using a damp cloth

and delicate detergents.

• It is very important to clean the hood and to perform maintenance

and care of filters at the recommended intervals. Failure to do so

could cause grease deposits to build up, resulting in a fire hazard.

• Clean the inner housing using a hot detergent solution only (never

use caustic detergents, abrasive powders or brushes).

Metal grease filter

• The purpose of the grease filters is to absorb grease particles which

form during cooking and it must always be used, either in the

external extraction or internal re-circulation function.

Attention: the metal grease filters must be removed and washed,

either by hand or in the dishwasher, every four weeks.

Removing the metal grease filter

• First, push the metal grease filter stop

backwards, then extract the filter, pulling

downwards. Fig. 4.

Hand washing

Soak grease filters for about one hour in

hot water with a grease-loosening cleaner,

then rinse off thoroughly with hot water.

Repeat the process if necessary. Refit the

grease filters when they are dry.

Dishwasher

Place grease filters in the dishwasher. Select most powerful washing

programme and highest temperature, at least 65°C. Repeat the

process. Refit the grease filters when they are dry.

When washing the metal grease filter in the dishwasher a slight

discolouration of the filter can occur, this does not have any impact

on its performance.

• Clean the inner housing using a hand hot solution only(never use

caustic detergents, abrasive powders or brushes).

Fig. 4

Charcoal filter

• The charcoal filter should only be used if you want to use the hood in

the recirculation function.

• To do this you will need an original charcoal filter (available from

your local Service Centre).

•Cleaning/replacing the charcoal filter

Unlike other charcoal filters, the LONGLIFE charcoal filter can be

cleaned and reactivated. With normal use the filter should be

cleaned every second month (when using the hood 2,5 hours per

day,on avarage). The best way to clean the filter is in the

dishwasher. Use normal detergent and choose the highest tempera-

ture (65º C). Wash the filter separately so that no food parts gets

stuck on the filter and later causes bad odours. To reactivate the

charcoal, the filter should be dried in an oven for 10 minutes with a

maximum temperature of 100º C.

After approximately three years of use, the charcoal filter should be

replaced with a new, as the odour reduction capacity will be

reduced.

•Fitting

Remove the frame iwhich supports the filter hby turning 90° the

two knobs g.

Insert the charcoal filter inside the frame and put all parts back in

their place. Fig. 5.

•To remove proceed in the reverse order.

• Always specify the hood model code number and serial number

when ordering replacement filters. This information is shown on the

registration plate located on the inside of the unit.

• The charcoal filter can be ordered from your local Service Centre.

Fig. 5

Table des matières

Autres manuels Electrolux hotte de ventilation

Electrolux

Electrolux EFP 9406 Manuel utilisateur

Electrolux

Electrolux EFT719X Manuel utilisateur

Electrolux

Electrolux EFT 604 Manuel utilisateur

Electrolux

Electrolux EFP 6411 Manuel utilisateur

Electrolux

Electrolux EFI711X Manuel utilisateur

Electrolux

Electrolux EFP 662 Fiche technique

Electrolux

Electrolux EFDP 90690 Manuel utilisateur

Electrolux

Electrolux EFA 9673 - 90673 Manuel utilisateur

Electrolux

Electrolux EFI 60011 Manuel utilisateur

Electrolux

Electrolux EFC 90244 Manuel utilisateur

Electrolux

Electrolux EFGP12680X Manuel utilisateur

Electrolux

Electrolux EFD18000U Manuel utilisateur

Electrolux

Electrolux ICON E30WV60EPS Manuel utilisateur

Electrolux

Electrolux E:Line ERCE9020AS Manuel utilisateur

Electrolux

Electrolux WOGL9060CN Manuel utilisateur

Electrolux

Electrolux EFA 90540 Manuel utilisateur

Electrolux

Electrolux EFP 6400 Fiche technique

Electrolux

Electrolux Icon E48DD75ESS Guide de l'utilisateur

Electrolux

Electrolux EFC922GAK Manuel utilisateur

Electrolux

Electrolux EFP 936 G Manuel utilisateur

Electrolux

Electrolux PLHV42P8CC Manuel utilisateur

Electrolux

Electrolux LFC316X Manuel utilisateur

Electrolux

Electrolux EFI739X Manuel utilisateur

Electrolux

Electrolux REX CA 962 ALU Manuel utilisateur

Manuels hotte de ventilation populaires d'autres marques

emmeti

emmeti RECUPA MED A-140 Mode d’emploi

Nibe

Nibe F135 Manuel utilisateur

Kuppersberg

Kuppersberg INTRO 60 Instructions d'installation et d'entretien

Zephyr

Zephyr Spruce AK9834BS Guide d'installation

Hisense

Hisense MH6INBG Manuel utilisateur

Miele

Miele DA 1255 Manuel utilisateur

Broan

Broan 46000 Manuel utilisateur

GE Profile PV977 Instructions originales

FALMEC

FALMEC FFRIA24W5FS Manuel utilisateur

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuel utilisateur

Küppersbusch

Küppersbusch DX ISLA Manuel utilisateur

ETNA

ETNA AV360RVS Manuel utilisateur

JUNO

JUNO JDF603E6 Manuel utilisateur

Miele

Miele DA 6708 D Manuel utilisateur

Tricity Bendix

Tricity Bendix LE 150 Manuel

AEG

AEG X68163BV1 Manuel utilisateur

AEG

AEG 125 D Manuel utilisateur

Smeg

Smeg KSEV97X Manuel utilisateur
