B43019-5

User manual Built-under oven

Thank you for choosing one of our high-quality products.

To ensure optimal and regular performance of your appliance please read this

instruction manual carefully. It will enable you to navigate all processes perfectly

and most efficiently. To refer to this manual any time you need to, we recommend

you to keep it in a safe place. And please pass it to any future owner of the appliance.

We wish you much joy with your new appliance.

Contents

Safety information 2

Safety for children and incompetent

persons 2

Installation safety measures 2

Electrical safety 3

Operation safety measures 3

Product description 4

General overview 4

Oven accessories 4

Before first use 5

Initial Cleaning 5

Setting the time 5

Daily use 5

Switching the Oven On and Off 5

Cooling fan 6

Oven Functions 6

Inserting the Oven Accessories 6

Inserting/Removing the Fat Filter 7

Display 7

Setting the clock functions 8

Cancelling the clock functions 8

Helpful hints and tips 8

Inner side of door 8

Baking 9

Roasting 13

Grilling 15

Preserving 16

Drying 17

Defrosting 17

Care and cleaning 18

Oven Ceiling 19

Shelf Support Rails 19

Telescopic shelf runners 20

Oven lamp 20

Oven door and glass panels 21

What to do if… 22

Disposal 23

Service and spare parts 23

Subject to change without notice

Safety information

Safety for children and incompetent persons

• People (including children) who, because of their physical, sensory or mental capabilities

or their inexperience of ignorance are not able to use the appliance safely, should not

use this appliance without supervision or instruction by a responsible person.

• Switch on the child lock when there are children. The child lock makes sure that children

do not accidentally switch on the appliance.

Installation safety measures

• Let a registered electrician do the installation of the appliance. If you do not contact a

registered electrician, the guarantee becomes invalid if there is damage.

2Contents

• For safety on installation, refer to "Installation"

Electrical safety

• Let a registered electrician do the electrical connection of the appliance.

• For safety on installation, refer to "installation".

Risk of fire

• Open the door carefully. The use of ingredients with alcohol can cause a mixture of

alcohol and air. There is risk of fire.

• Do not let sparks or open flames come near the appliance when you open the door. There

is risk of fire.

• Do not keep flammable materials in the appliance. There is risk of fire.

Operation safety measures

Discoloration of the oven enamel does not effect the performance of the appliance. The

guarantee does not become invalid.

• Only use the appliance to cook, roast and bake food

• When you connect electrical appliances to mains sockets, do not let cables touch or come

near the hot oven door.

• The inner side of the appliance becomes hot during use. There is risk of burns.

• Do not cover the appliance with aluminium foil to prevent damage to the oven enamel.

• Do not put baking trays, pots, etc. on the oven floor to prevent damage to the oven

enamel.

• Never put hot water directly into the appliance to prevent damage to or discoloration

of the oven enamel.

• User a deep baking tray for very moist cakes. If not, fruit juices can cause stains that can

be permanent.

• Do not apply pressure on an open appliance door.

• Be careful when you remove or install the glass panels.

• Do not keep moist food in the appliance to prevent damage to the oven enamel.

• After you switch off the cooling fan, do not keep uncovered food in the appliance.

Moisture can condense in the appliance or on the glass doors.

Care and cleaning

• Before maintenance, switch off the appliance and make sure that the appliance is cool.

• Do not clean the appliance with a steam cleaner or a high-pressure cleaner.

• Do not clean the glass oven door with abrasive fluids or metal scrapers, which could

cause scratches on the surface. The glass could break and shatter

Safety information 3

Product description

General overview

2 63 4

1Control panel

2Power indicator

3Control knob for oven functions

4Display

5Control knob for temperature

6Temperature indicator

7Heating element

8Oven lamp

9Fan and fat filter

10 Bottom heat

11 Oven shelf runners, removable

12 Shelf positions

Oven accessories

•Oven shelf

For cookware, cake tins, roasts.

•Flat baking tray

For cakes and biscuits.

•Deep roasting pan

To bake and roast or as pan to collect fat.

4Product description

•Nonstick flat baking tray

For cakes and biscuits.

•Triple oven shelf runners

2 shelf supports with 3 telescopic runners

Before first use

Initial Cleaning

• Remove all parts from the appliance.

• Clean the appliance before first use.

CAUTION!

Do not use abrasive cleaning agents! This can damage the surface. Refer to chapter "Care

and Cleaning".

Setting the time

The oven only operates after time set.

When you connect the appliance to the electrical

supply or in case of a power cut, the Time function

indicator flashes automatically.

To set the current time use " +" or " - " button.

After approximately 5 seconds, the flashing stops

and the display shows the time of day set.

For time change you must not set an automatic

function (Duration or End ) at the same

time.

Daily use

To use the oven, push the retractable knob. The knob then comes out.

Switching the Oven On and Off

1. Turn the oven functions control knob to an oven function.

2. Turn the temperature control knob to a temperature.

The power indicator comes on while the oven is in operation.

The temperature indicator comes on while the oven temperature increases.

3. To switch off the oven, turn the oven functions control knob and the temperature

control knob to the Off position.

Before first use 5

Cooling fan

When the appliance operates, the cooling fan switches on automatically to keep the sur-

faces of the appliance cool. If you switch off the appliance, the cooling fan continues to

operate until the appliance cools down.

Oven Functions

Oven function Application

Light Use this function to light up the oven interior.

TRUE FAN To bake maximum on three oven levels at the same time.

Decrease the oven temperatures (20-40 °C) compared with

Conventional. And to dry food.

FAN BAKING To bake on one oven level food with a more intensive

browning and a crispy base. Decrease the oven tempera-

tures (20-40 °C) compared with Conventional

CONVENTIONAL To bake and roast on one oven level.

BASE HEAT To bake cakes with crispy or crusty bases and to preserve

food

DEFROST To defrost frozen food.

SINGLE GRILL To grill flat food in the middle of the grill and to toast.

DUAL GRILL To grill flat food in large quantities and to toast.

ROTITHERM To roast larger joints of meat or poultry on one level. Also

to gratinate and brown.

Inserting the Oven Accessories

Put in the slide-in accessories so that the double side edges are at the back of the oven and

point down to the bottom. Push the slide-in accessories between the guide-bars of one of

the oven levels.

The deep roasting pan and the oven shelf have

double side edges. These edges and the shape of

the guide-bars causes the anti-tilt safety for the

oven accessories.

6Daily use

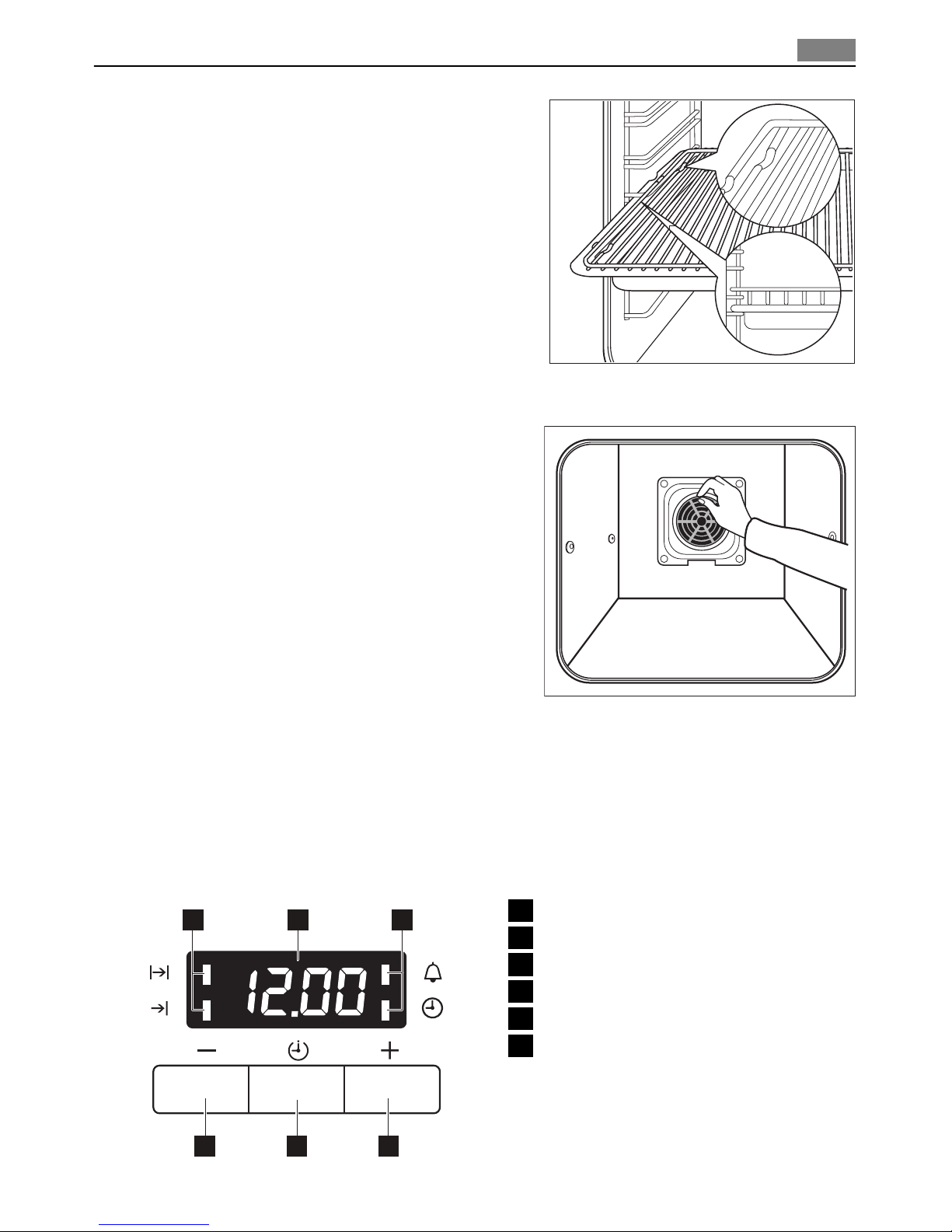

Inserting the oven shelf and deep roasting

pan together

Put the oven shelf on the deep roasting pan. Push

the deep roasting pan between the guide-bars of

one of the oven levels.

Inserting/Removing the Fat Filter

Only use the fat filter when roasting to protect

the rear heating elements from fat splashes.

Inserting the fat filter

Hold the fat filter by the tab and insert the two mounts downwards into the opening on

the rear wall of the oven (fan opening).

Removing the fat filter

Hold the fat filter by the tab, unhook it and lift out.

Display

1 2 3

456

1Function Indicators

2Time display

3Function Indicators

4Button " +"

5Selector Button

6Button " -"

Daily use 7

Setting the clock functions

1. Push the Selection button again and again

until necessary function indicator flashes.

2. To set the time for Minute minder , Du-

ration or End , use " +" or " -"

button.

The related function indicator comes on.

When the time period is completed, the

function indicator flashes and an acoustic

signal sounds for 2 minutes.

With the functions Duration and End

the oven switches off automatically.

3. Push any button to stop the signal.

Clock function Application

Time of day Shows the time. To set, change or check the time.

Minute minder To set a countdown time.

A signal sounds, after the time period is completed.

This function has no effect on the operation of the oven.

Duration To set how long the oven has to be in operation.

End To set the switch-off time for an oven function.

Duration and End can be used at the same time, if the oven is to be switched on and

off automatically later. In this case first set Duration , then End .

Cancelling the clock functions

1. Push the Selection button again and again until necessary function indicator flashes.

2. Push and hold button " -".

After some seconds the clock function goes out.

Helpful hints and tips

Inner side of door

On the inner side of the oven door you can find:

• the numbers of the shelf levels

• information about the oven functions, recommended shelf levels and temperatures for

typical dishes.

The temperature and baking times in the tables are guidelines only. They depend on the

recipes, quality and quantity of the ingredients used.

8Helpful hints and tips

Baking

General instructions

• Your new oven may bake or roast differently to the appliance you had before. Adapt

your usual settings (temperature, cooking times) and shelf levels to the values in the

tables.

• With longer baking times, the oven can be switched off about 10 minutes before the

end of baking time, to use the residual heat.

When you use frozen food, the trays in the oven can twist during baking. When the

trays get cold again, the distortion will be gone.

How to use the Baking Tables

• We recommend to use the lower temperature the first time.

• If you cannot find the settings for a special recipe, look for the one that is almost the

same.

• Baking time can be extended by 10-15 minutes, if you bake cakes on more than one

level.

• Cakes and pastries at different heights do not always brown equally at first. If this occurs,

do not change the temperature setting. The differences equalize during the baking pro-

cedure.

Baking on one oven level - Baking in tins

Type of baking Oven function Level Temperature

(°C)

Time (h:min)

Ring cake or brioche TRUE FAN 1150 - 160 0:50 - 1:10

Madeira cake/Fruit

cakes

TRUE FAN 1140 - 160 1:10 - 1:30

Sponge cake TRUE FAN 1140 0:25 - 0:40

Sponge cake CONVENTIONAL 1160 0:25 - 0:40

Flan base - short pas-

try

TRUE FAN 3170-180 0:10 - 0:25

Flan base - sponge

mixture

TRUE FAN 3150 - 170 0:20 - 0:25

Apple pie CONVENTIONAL 1170 - 190 0:50 - 1:00

Apple pie (2 tins, Ø 20

cm, diagonally off set)

TRUE FAN 1160 1:10 - 1:30

Apple pie (2 tins, Ø 20

cm, diagonally off set)

CONVENTIONAL 1180 1:10 - 1:30

1) Pre-heat oven

Baking on one oven level - Cakes/pastries/breads on baking trays

Type of baking Oven function Level Temperature

(°C)

Time (h:min)

Plaited bread/bread

crown

CONVENTIONAL 3170 - 190 0:30 - 0:40

Helpful hints and tips 9

Type of baking Oven function Level Temperature

(°C)

Time (h:min)

Christmas stollen

CONVENTIONAL 3160 - 180 0:40 - 1:00

Bread ( rye bread) CONVENTIONAL 1

- first of all

230 0:25

- then 160 - 180 0:30 - 1:00

Cream puffs/eclairs

CONVENTIONAL 3160 - 170 0:15 - 0:30

Swiss roll

CONVENTIONAL 3180 - 200 0:10 - 0:20

Cake with crumble

topping (dry)

TRUE FAN 3150 - 160 0:20 - 0:40

Buttered almond

cake/sugar cakes

CONVENTIONAL 3190 - 210 0:15 - 0:30

Fruit flans (made with

yeast dough / sponge

mixture)

TRUE FAN 3150 0:35 - 0:50

Fruit flans (made with

yeast dough / sponge

mixture)

CONVENTIONAL 3170 0:35 - 0:50

Fruit flans made with

short pastry

TRUE FAN 3160 - 170 0:40 - 1:20

Yeast cakes with deli-

cate toppings (e.g.

quark, cream, cus-

tard)

CONVENTIONAL 3160 - 180 0:40 - 1:20

Unleavened bread TRUE FAN 1200 - 200 0:08 - 0:15

1) Pre-heat oven

2) Use the deep roasting pan

Baking on one oven level - Biscuits

Type of baking Oven function Level Temperature

(°C)

Time (h:min)

Short pastry biscuits TRUE FAN 3150 - 160 0:06 - 0:20

Viennese whirls TRUE FAN 3140 0:20 - 0:30

Viennese whirls

CONVENTIONAL 3160 0:20 - 0:30

Biscuits made with

sponge mixture

TRUE FAN 3150 - 160 0:15 - 0:20

Pastries made with

egg white, meringues

TRUE FAN 380 - 100 2:00 - 2:30

Macaroons TRUE FAN 3100 - 120 0:30 - 0:60

10 Helpful hints and tips

Table des matières

Autres manuels Electrolux Four

Electrolux

Electrolux DDO60CE Manuel utilisateur

Electrolux

Electrolux EOD3460AOK Manuel utilisateur

Electrolux

Electrolux EOK86030 Manuel utilisateur

Electrolux

Electrolux EOB 6640 Manuel utilisateur

Electrolux

Electrolux EBC GL6 Manuel utilisateur

Electrolux

Electrolux E30EW85GPS6 Manuel utilisateur

Electrolux

Electrolux EOU5720AOX Manuel utilisateur

Electrolux

Electrolux OKD5C51V Manuel utilisateur

Electrolux

Electrolux KB969L Manuel utilisateur

Electrolux

Electrolux B8871-5 Manuel utilisateur

Electrolux

Electrolux E30EW85GSS Manuel utilisateur

Electrolux

Electrolux EDB 874 Manuel utilisateur

Electrolux

Electrolux EOG9330 Manuel utilisateur

Electrolux

Electrolux EOK76030 Manuel utilisateur

Electrolux

Electrolux EOB3410 Manuel utilisateur

Electrolux

Electrolux EOB63000 Manuel utilisateur

Electrolux

Electrolux EH7L2CN Manuel utilisateur

Electrolux

Electrolux EOD5700AA Manuel utilisateur

Electrolux

Electrolux EOA5444AAX Manuel utilisateur

Electrolux

Electrolux Icon E30EW75DSS Manuel utilisateur

Electrolux

Electrolux OKD5C51V Manuel utilisateur

Electrolux

Electrolux e:line EOEM61AS Manuel utilisateur

Electrolux

Electrolux E30EW85EPS - Icon 30" Professional Series Electric Double... Manuel utilisateur

Electrolux

Electrolux EOB 21001 Manuel utilisateur

Manuels Four populaires d'autres marques

Bosch

Bosch HVA531NS0 Manuel utilisateur

NEFF

NEFF B44S32 5GB Series Manuel utilisateur

Combi

Combi BLODGETT BC142GDS Manuel utilisateur

AEG

AEG COMPETENCE 311704300 Manuel utilisateur

Falcon

Falcon DOMINATOR PLUS G3106 Series Guide de l'utilisateur

Rational

Rational SCC WE 61G Manuel utilisateur

Smeg

Smeg DOSPA38X Manuel d'installation et d'exploitation

Miele

Miele HR 1954-2 Manuel utilisateur

KHIND

KHIND OT50 Manuel utilisateur

Henny Penny

Henny Penny Smoker Box Manuel utilisateur

Lang

Lang ECOD-AP Manuel utilisateur

AEG

AEG BEK455310M Manuel utilisateur

Frigidaire

Frigidaire FNGE90JGR Manuel utilisateur

Hotpoint

Hotpoint FE9 S831 JSH IX Manuel utilisateur

GE Advantium SCB2000 Manuel utilisateur

AEG

AEG DE401301DM Manuel utilisateur

DeLonghi

DeLonghi XA660 Manuel

AEG

AEG BEB331010M Manuel utilisateur
