Electrolux ESI5205LOX Manuel utilisateur

ESI5205LOX

EN Dishwasher User Manual 2

FR Lave-vaisselle Notice d'utilisation 20

LT Indaplovė Naudojimo instrukcija 41

CONTENTS

1. SAFETY INFORMATION....................................................................................2

2. SAFETY INSTRUCTIONS..................................................................................4

3. PRODUCT DESCRIPTION................................................................................ 5

4. CONTROL PANEL............................................................................................. 6

5. PROGRAMMES................................................................................................. 7

6. SETTINGS..........................................................................................................7

7. BEFORE FIRST USE......................................................................................... 9

8. DAILY USE.......................................................................................................11

9. HINTS AND TIPS............................................................................................. 12

10. CARE AND CLEANING..................................................................................14

11. TROUBLESHOOTING....................................................................................15

12. TECHNICAL INFORMATION......................................................................... 19

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that

brings with it decades of professional experience and innovation. Ingenious and

stylish, it has been designed with you in mind. So whenever you use it, you can

be safe in the knowledge that you’ll get great results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com/webselfservice

www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the

following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully

read the supplied instructions. The manufacturer is not

www.electrolux.com2

responsible for any injuries or damages that are the

result of incorrect installation or usage. Always keep the

instructions in a safe and accessible location for future

reference.

1.1 Children and vulnerable people safety

•This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning the use of the appliance in a

safe way and understand the hazards involved.

•Do not let children play with the appliance.

•Keep detergents away from children.

•Keep children and pets away from the appliance when

the door is open.

•Children shall not carry out cleaning and user

maintenance of the appliance without supervision.

1.2 General Safety

•This appliance is intended to be used in household

and similar applications such as:

–farm houses; staff kitchen areas in shops, offices

and other working environments;

–by clients in hotels, motels, bed & breakfast and

other residential type environments.

•Do not change the specification of this appliance.

•The operating water pressure (minimum and

maximum) must be between 0.5 (0.05) / 8 (0.8) bar

(MPa)

•Obey the maximum number of 13 place settings.

•If the supply cord is damaged, it must be replaced by

the manufacturer, its Authorised Service Centre or

similarly qualified persons in order to avoid a hazard.

•Put the cutlery in the cutlery basket with the sharp

ends pointing down or put them in the cutlery drawer

in a horizontal position with the sharp edges down.

ENGLISH 3

•Do not leave the appliance with the open door

unattended to avoid stepping accidentally onto it.

•Before any maintenance operation, deactivate the

appliance and disconnect the mains plug from the

socket.

•Do not use high pressure water sprays and/or steam

to clean the appliance.

•If the appliance has ventilation openings in the base,

they must not be covered e.g. by a carpet.

•The appliance is to be connected to the water mains

using the new supplied hose-sets. Old hose sets must

not be reused.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must

install this appliance.

• Remove all the packaging.

• Do not install or use a damaged

appliance.

• Do not install or use the appliance

where the temperature is less than 0

°C.

• Follow the installation instruction

supplied with the appliance.

• Always take care when moving the

appliance as it is heavy. Always use

safety gloves and enclosed footwear.

• Make sure that the appliance is

installed below and adjacent to safe

structures.

2.2 Electrical connection

WARNING!

Risk of fire and electrical

shock.

• The appliance must be earthed.

• Make sure that the parameters on the

rating plate are compatible with the

electrical ratings of the mains power

supply.

• Always use a correctly installed

shockproof socket.

• Do not use multi-plug adapters and

extension cables.

• Make sure not to cause damage to

the mains plug and to the mains

cable. Should the mains cable need to

be replaced, this must be carried out

by our Authorised Service Centre.

• Connect the mains plug to the mains

socket only at the end of the

installation. Make sure that there is

access to the mains plug after the

installation.

• Do not pull the mains cable to

disconnect the appliance. Always pull

the mains plug.

• This appliance complies with the

E.E.C. Directives.

• UK and Ireland only. This appliance is

fitted with a 13 A mains plug. If it is

necessary to change the mains plug

fuse, use only a 13 A ASTA (BS

1362) fuse.

2.3 Water connection

• Do not cause damage to the water

hoses.

• Before connection to new pipes, pipes

not used for a long time, where repair

work has been carried out or new

devices fitted (water meters, etc.), let

the water flow until it is clean and

clear.

www.electrolux.com4

• Ensure that there are no visible water

leaks during and after the first use of

the appliance.

• The water inlet hose has a safety

valve and a sheath with an inner

mains cable.

WARNING!

Dangerous voltage.

• If the water inlet hose is damaged,

immediately close the water tap and

disconnect the mains plug from the

mains socket. Contact the Authorised

Service Centre to replace the water

inlet hose.

2.4 Use

• Do not sit or stand on the open door.

• Dishwasher detergents are

dangerous. Obey the safety

instructions on the detergent

packaging.

• Do not drink and play with the water in

the appliance.

• Do not remove the dishes from the

appliance until the programme is

complete. Some detergent may

remain on the dishes.

• The appliance can release hot steam

if you open the door while a

programme operates.

• Do not put flammable products or

items that are wet with flammable

products in, near or on the appliance.

2.5 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the

mains supply.

• Cut off the mains cable and discard it.

• Remove the door catch to prevent

children and pets to get closed in the

appliance.

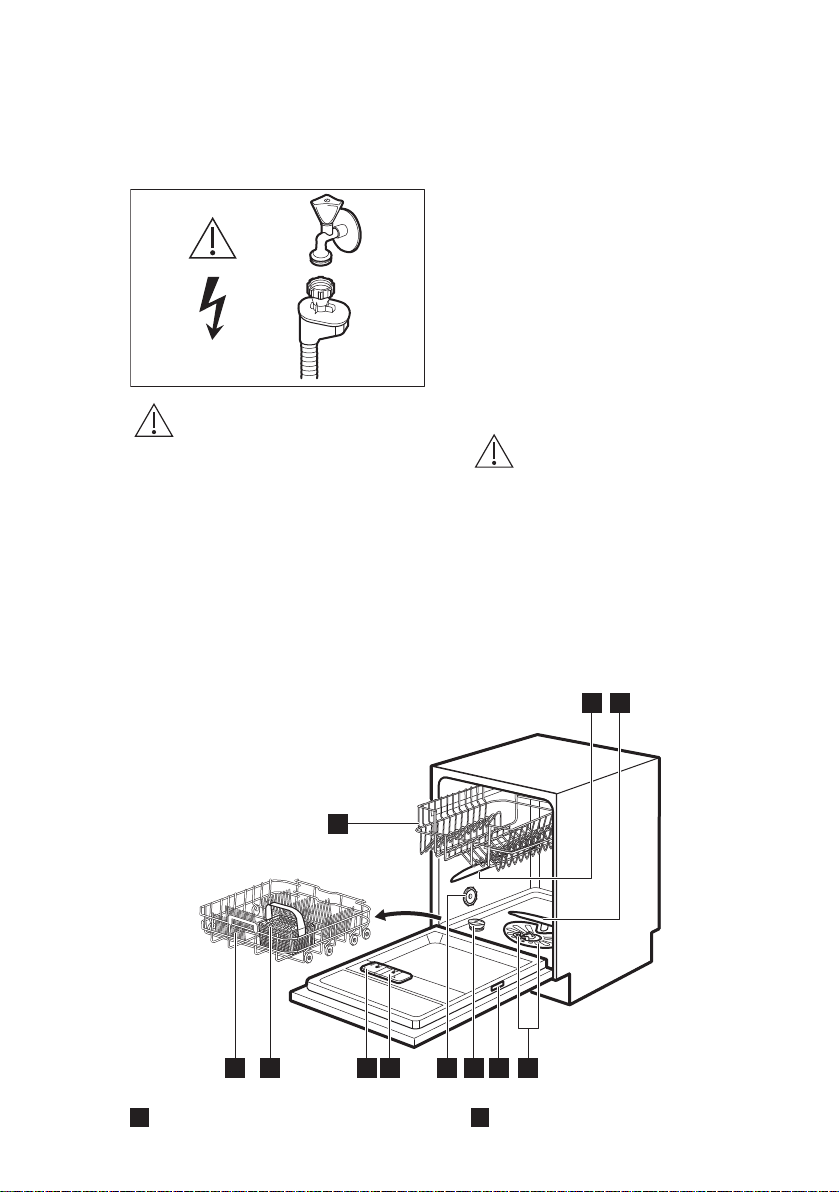

3. PRODUCT DESCRIPTION

9 8

10 56

1Upper spray arm 2Lower spray arm

ENGLISH 5

3Filters

4Rating plate

5Salt container

6Air vent

7Rinse aid dispenser

8Detergent dispenser

9Cutlery basket

10 Lower basket

11 Upper basket

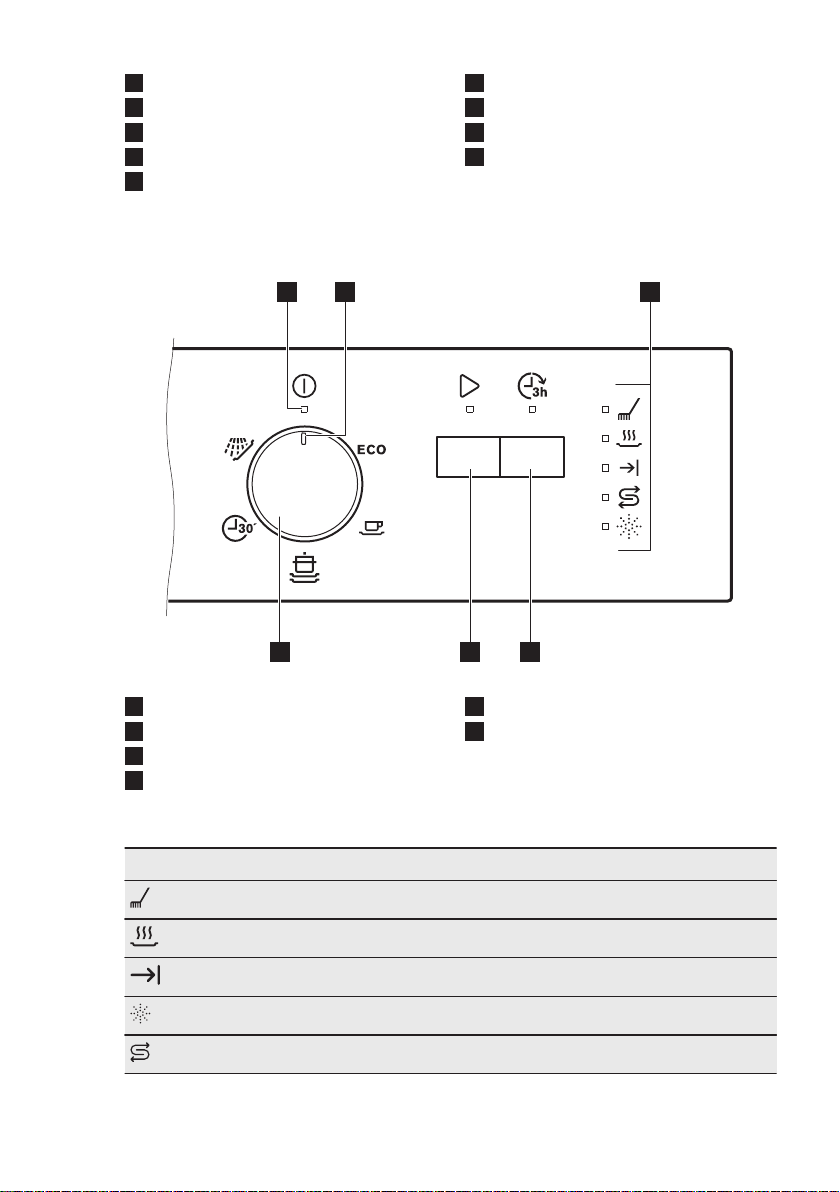

4. CONTROL PANEL

1 2 3

456

1On/off indicator

2Programme marker

3Indicators

4Delay button

5Start button

6Programme knob

4.1 Indicators

Indicator Description

Washing phase. It comes on when the washing phase operates.

Drying phase. It comes on when the drying phase operates.

End indicator.

Rinse aid indicator. It is always off while the programme operates.

Salt indicator. It is always off while the programme operates.

www.electrolux.com6

5. PROGRAMMES

Programme Degree of soil

Type of load Programme

phases Consumption values

Duration

(min) Energy

(kWh) Water

(l)

2) Normal soil

Crockery and

cutlery

• Prewash

• Wash 50 °C

• Rinses

• Dry

227 1.039 11

Heavy soil

Crockery, cut‐

lery, pots and

pans

• Prewash

• Wash 70 °C

• Rinses

• Dry

155 - 170 1.5 - 1.7 14-15

Normal soil

Crockery and

cutlery

• Prewash

• Wash 65 °C

• Rinses

• Dry

130 - 140 1.4 - 1.6 15-17

3) Fresh soil

Crockery and

cutlery

• Wash 60 °C

or 65 °C

• Rinses

30 0.8 10

4) All • Prewash 14 0.1 5

1) The pressure and the temperature of the water, the variations of the mains supply, the

options and the quantity of dishes can change the values.

2) With this programme you have the most efficient use of water and energy consumption

for crockery and cutlery with normal soil. (This is the standard programme for test institutes).

3) With this programme you can wash a load with fresh soil. It gives good washing results in

a short time.

4) Use this programme to quickly rinse the dishes. this prevents the remaining food to bond

on the dishes and bad odours to come out from the appliance. Do not use detergent with

this programme.

5.1 Information for test

institutes

For all the necessary information for test

performance, send an email to:

[email protected]

Write down the product number (PNC)

that is on the rating plate.

6. SETTINGS

6.1 Programme selection mode

and user mode

When the appliance is in programme

selection mode it is possible to set a

programme and to enter the user mode.

Settings available in the user mode:

• The level of water softener according

to the water hardness.

• Activation or deactivation of AirDry.

As the appliance stores the saved

settings, there is no need to configure

it before every cycle.

ENGLISH 7

How to set the programme

selection mode

The appliance is in programme selection

mode when the on/off indicator is on and

Start indicator flashes.

After activation, the appliance is in

programme selection mode by default. If

not, set the programme selection mode

the following way:

Press and hold simultaneously Start and

Delay until the appliance is in

programme selection mode.

6.2 The water softener

The water softener removes minerals

from the water supply, which would have

a detrimental effect on the washing

results and on the appliance.

The higher the content of these minerals,

the harder your water is. Water hardness

is measured in equivalent scales.

The water softener should be adjusted

according to the hardness of the water in

your area. Your local water authority can

advise you on the hardness of the water

in your area. It is important to set the

right level of the water softener to assure

good washing results.

Water hardness

German de‐

grees (°dH) French de‐

grees (°fH) mmol/l Clarke de‐

grees Water softener

level

47 - 50 84 - 90 8.4 - 9.0 58 - 63 10

43 - 46 76 - 83 7.6 - 8.3 53 - 57 9

37 - 42 65 - 75 6.5 - 7.5 46 - 52 8

29 - 36 51 - 64 5.1 - 6.4 36 - 45 7

23 - 28 40 - 50 4.0 - 5.0 28 - 35 6

19 - 22 33 - 39 3.3 - 3.9 23 - 27 5 1)

15 - 18 26 - 32 2.6 - 3.2 18 - 22 4

11 - 14 19 - 25 1.9 - 2.5 13 - 17 3

4 - 10 7 - 18 0.7 - 1.8 5 - 12 2

<4 <7 <0.7 < 5 1 2)

1) Factory setting.

2) Do not use salt at this level.

Whether you use a standard detergent

or multi-tabs (with or without salt), set

the proper water hardness level to

keep the salt refill indicator active.

Multi-tabs containing salt are

not effective enough to

soften hard water.

How to set the water softener

level

The appliance must be in programme

selection mode.

1. Make sure that the programme

marker on the knob is in on/off

position.

www.electrolux.com8

2. To enter the user mode, press and

hold Delay. At the same time turn the

knob counterclockwise until the

programme marker indicates the first

programme. Release the Delay when

the indicators Start and on/off start

flashing.

• The intermittent flashing of

shows the current setting, e.g. 5

flashes + pause + 5 flashes =

level 5.

3. Press Delay repeatedly to change

the setting. Each pressing of Delay

increases the level number. After

reaching level 10, the count starts

again from level 1.

4. To confirm the setting, turn the

programme knob until the

programme marker is again in on/off

position

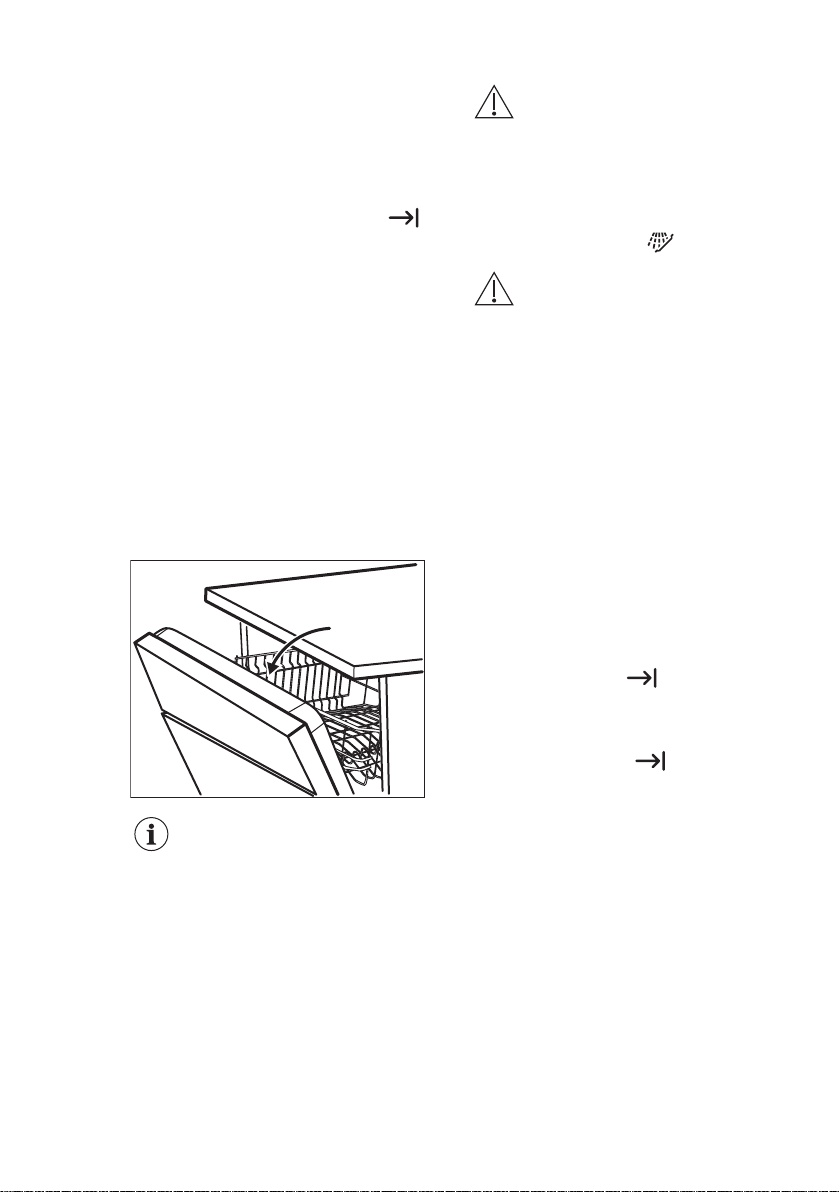

6.3 AirDry

AirDry improves the drying results with

less energy consumption.

During the drying phase, the

door opens automatically

and remains ajar.

CAUTION!

Do not try to close the

appliance door within 2

minutes after automatic

opening. This can cause

damage to the appliance.

AirDry is automatically activated with all

programmes excluding .

CAUTION!

If children have access to

the appliance, it is advised to

deactivate AirDry as opening

the door may pose a danger.

How to deactivate AirDry

The appliance must be in programme

selection mode.

1. To enter the user mode, press and

hold Delay. At the same time turn the

knob counterclockwise until the

programme marker indicates the first

programme. Release Delay when the

indicators Start and on/off start

flashing.

2. Turn the knob counterclockwise until

the programme marker indicates the

second programme.

• The indicator shows the

current setting: on = AirDry is

activated.

3. Press Delay to change the setting.

• If the indicator is off = AirDry

is deactivated.

4. To confirm the setting, turn the

programme knob until the

programme marker is again in on/off

position.

7. BEFORE FIRST USE

1. Make sure that the current level of

the water softener agrees with the

hardness of the water supply. If

not, adjust the level of the water

softener.

2. Fill the salt container.

3. Fill the rinse aid dispenser.

4. Open the water tap.

5. Start a programme to remove any

processing residuals that can still be

inside the appliance. Do not use

detergent and do not load the

baskets.

After starting a programme, it may take

up to 5 minutes for the appliance to

recharge the resin in the water softener.

It seems that the appliance is not

ENGLISH 9

working. The washing phase starts only

after this procedure is completed. The

procedure is repeated periodically.

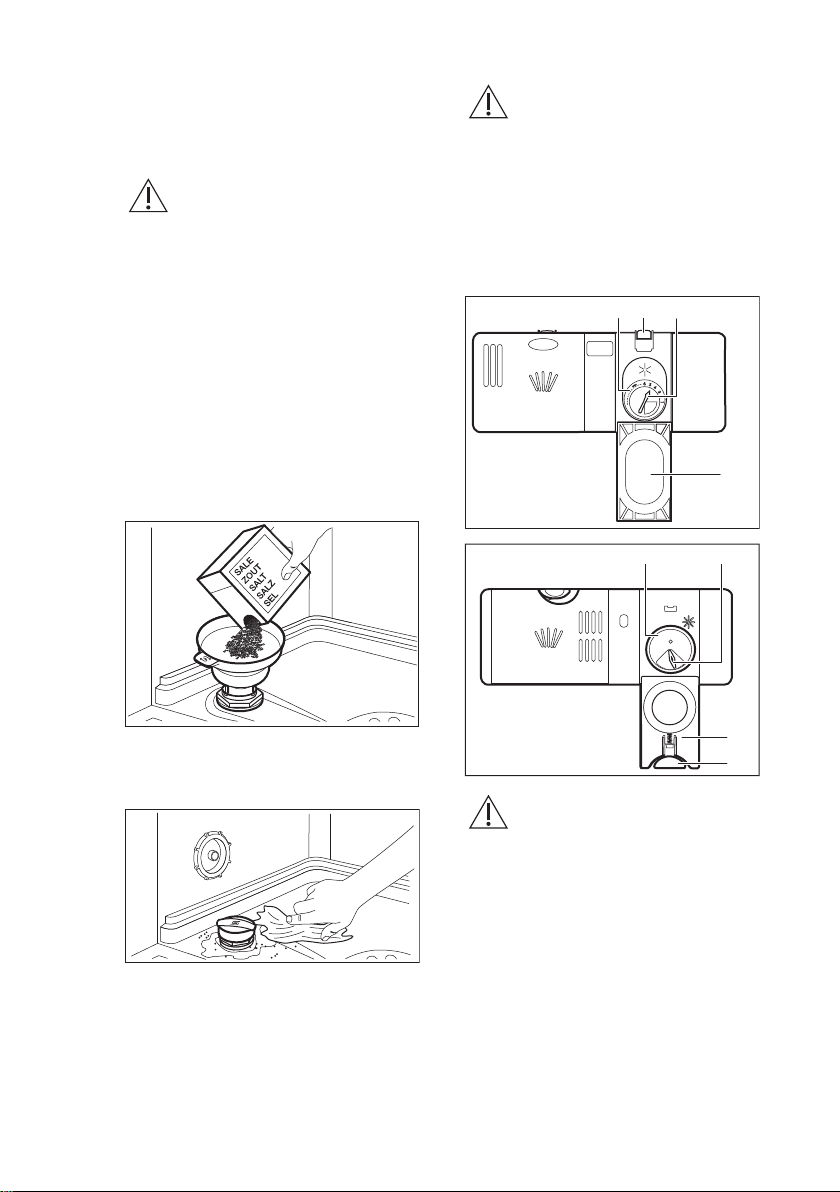

7.1 The salt container

CAUTION!

Use rough salt designed for

dishwashers only. Fine salt

increases the risk of

corrosion.

The salt is used to recharge the resin in

the water softener and to assure good

washing results in daily use.

How to fill the salt container

1. Turn the cap of the salt container

counterclockwise and remove it.

2. Put 1 litre of water in the salt

container (only for the first time).

3. Fill the salt container with 1 kg of salt

(until it is full).

4. Carefully shake the funnel by its

handle to get the last granules inside.

5. Remove the salt around the opening

of the salt container.

6. Turn the cap of the salt container

clockwise to close the salt container.

CAUTION!

Water and salt can come out

of the salt container when

you fill it. After you fill the

salt container, immediately

start a programme to

prevent corrosion.

7.2 How to fill the rinse aid

dispenser

CAUTION!

Only use rinse aid

specifically designed for

dishwashers.

1. Press the release button (D) to open

the lid (C).

2. Pour the rinse aid in the dispenser

(A) until the liquid reaches the fill

level 'max'.

3. Remove the spilled rinse aid with an

absorbent cloth to prevent too much

foam.

4. Close the lid. Make sure that the

release button locks into position.

www.electrolux.com10

Table des matières

Langues :

Autres manuels Electrolux Lave-vaisselle

Electrolux

Electrolux DIVA Manuel utilisateur

Electrolux

Electrolux WT730 TCW Manuel utilisateur

Electrolux

Electrolux ESL 4125 Manuel utilisateur

Electrolux

Electrolux ESI5201LOX Manuel utilisateur

Electrolux

Electrolux KEAF7100L Manuel utilisateur

Electrolux

Electrolux GA60LVCN Manuel utilisateur

Electrolux

Electrolux EWDW6505GS - Dishwasher With 9 Wash Cycles Manuel utilisateur

Electrolux

Electrolux EIDW5705PB Manuel de la liste des pièces

Electrolux

Electrolux ESL 43020 Manuel utilisateur

Electrolux

Electrolux ESF 4510ROW Manuel utilisateur

Electrolux

Electrolux ESF2450 Manuel utilisateur

Electrolux

Electrolux ESF65053 Manuel utilisateur

Electrolux

Electrolux ESF5201LOW Manuel utilisateur

Electrolux

Electrolux ESL 624 Manuel utilisateur

Electrolux

Electrolux GA55GLV Manuel utilisateur

Electrolux

Electrolux ESF6720ROW Manuel utilisateur

Electrolux

Electrolux F50674 Manuel utilisateur

Electrolux

Electrolux ESF5542LOW Manuel utilisateur

Electrolux

Electrolux GA55SLV Manuel utilisateur

Electrolux

Electrolux ESS42200SX Manuel utilisateur

Electrolux

Electrolux A15931301 Manuel utilisateur

Electrolux

Electrolux GA60GLVS Manuel utilisateur

Electrolux

Electrolux GA55SLV Manuel utilisateur

Electrolux

Electrolux ESI5550LOX Manuel utilisateur

Manuels Lave-vaisselle populaires d'autres marques

KitchenAid

KitchenAid KUDB230B Manuel utilisateur

Brandt

Brandt BDJ424DB Manuel utilisateur

Asko

Asko DSD767UXXL.AU Manuel utilisateur

Beko

Beko DFN26210W Manuel utilisateur

NEFF

NEFF S153ITX00E Fiche technique

Midea

Midea SV 4.45 wi Manuel utilisateur

LG LDF7932 Manuel utilisateur

Gorenje

Gorenje GV63214 Manuel utilisateur

Hotpoint

Hotpoint HDA1100ZWH Manuel de service

Blomberg

Blomberg LDFN2240W Manuel utilisateur

AEG

AEG FFB83836PM Manuel utilisateur

Cylinda

Cylinda DM3220RFD Manuel utilisateur

Atag

Atag DW8214MB Manuel utilisateur

GE GLD8000 Series Manuel utilisateur

Siemens

Siemens SN23HI02KE Fiche technique

Omega

Omega ODW717X Manuel utilisateur

BORETTI

BORETTI BVW-683 Manuel utilisateur

Siemens

Siemens SN 56N591 Manuel utilisateur
