1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully

read the supplied instructions. The manufacturer is not

responsible if an incorrect installation and use causes

injuries and damages. Always keep the instructions with

the appliance for future reference.

1.1 Children and vulnerable people safety

•This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience and

knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe

way and understand the hazards involved.

•Do not let children play with the appliance.

•Keep all detergents away from children.

•Keep children and pets away from the appliance door

when it is open.

•Cleaning and user maintenance shall not be made by

children without supervision.

1.2 General Safety

•This appliance is intended to be used in household and

similar applications such as:

–farm houses; staff kitchen areas in shops, offices and

other working environments;

–by clients in hotels, motels, bed & breakfast and

other residential type environments.

•Do not change the specification of this appliance.

•The operating water pressure (minimum and maximum)

must be between 0.5 (0.05) / 8 (0.8) bar (Mpa)

•Obey the maximum number of 12 place settings.

•If the supply cord is damaged, it must be replaced by

the manufacturer, its Authorised Service Centre or

similarly qualified persons in order to avoid a hazard.

•Put knives and cutlery with sharp points in the cutlery

basket with the points down or in a horizontal position.

ENGLISH 3

•Do not keep the appliance door open without

supervision to prevent to fall on it.

•Before maintenance, deactivate the appliance and

disconnect the mains plug from the mains socket.

•Do not use water spray and steam to clean the

appliance.

•The ventilation openings in the base (if applicable) must

not be obstructed by a carpet.

•The appliance is to be connected to the water mains

using the new supplied hose-sets. Old hose sets must

not be reused.

2. SAFETY INSTRUCTIONS

2.1 Installation

• Remove all the packaging.

• Do not install or use a damaged

appliance.

• Do not install or use the appliance

where the temperature is less than 0

°C.

• Obey the installation instruction

supplied with the appliance.

• Make sure that the appliance is

installed below and adjacent to safe

structures.

2.2 Electrical connection

WARNING!

Risk of fire and electrical

shock.

• The appliance must be earthed.

• Make sure that the electrical

information on the rating plate agrees

with the power supply. If not, contact

an electrician.

• Always use a correctly installed

shockproof socket.

• Do not use multi-plug adapters and

extension cables.

• Make sure not to cause damage to the

mains plug and to the mains cable.

Should the mains cable need to be

replaced, this must be carried out by

our Authorised Service Centre.

• Connect the mains plug to the mains

socket only at the end of the

installation. Make sure that there is

access to the mains plug after the

installation.

• Do not pull the mains cable to

disconnect the appliance. Always pull

the mains plug.

• This appliance complies with the E.E.C.

Directives.

• Only for UK and Ireland. The appliance

has a 13 amp mains plug. If it is

necessary to change the fuse in the

mains plug, use fuse: 13 amp ASTA

(BS 1362).

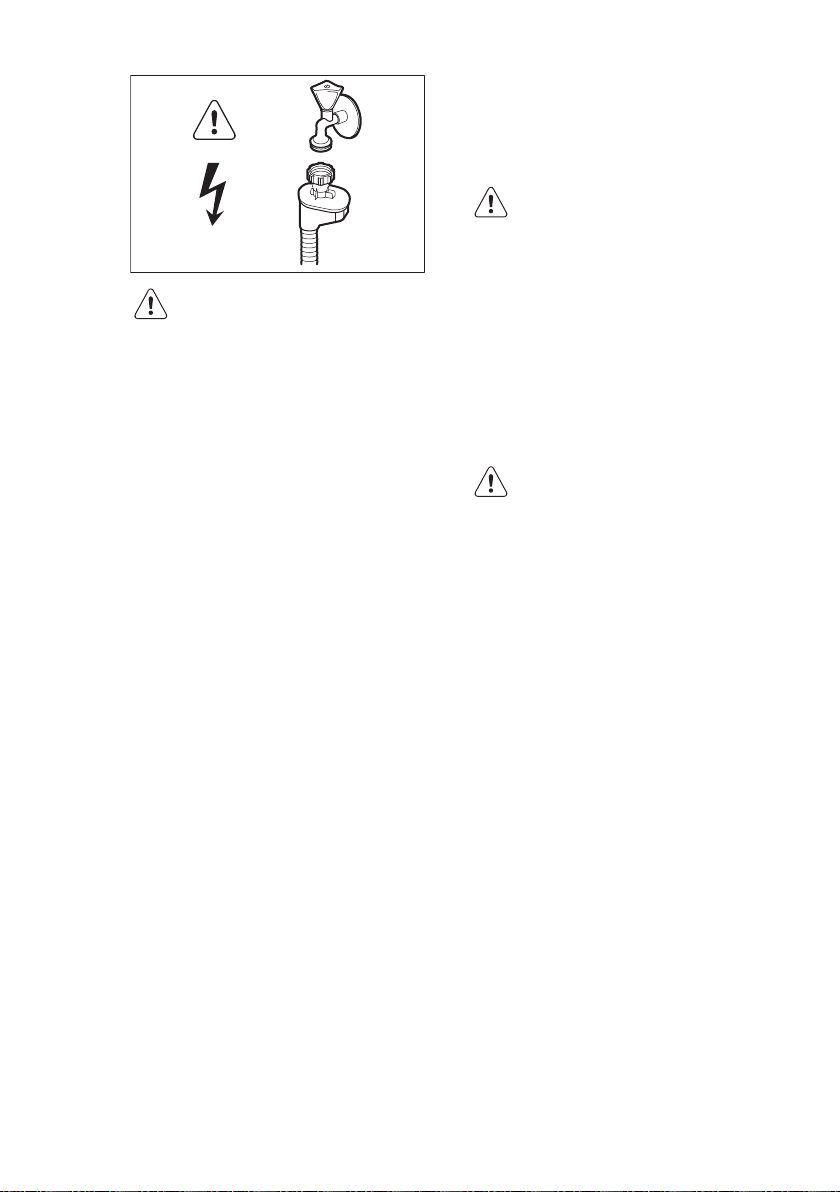

2.3 Water connection

• Make sure not to cause damage to the

water hoses.

• Before you connect the appliance to

new pipes or pipes not used for a long

time, let the water flow until it is clean.

• The first time you use the appliance,

make sure that there is no leakage.

• The water inlet hose has a safety valve

and a sheath with an inner mains

cable.

www.electrolux.com4

WARNING!

Dangerous voltage.

• If the water inlet hose is damaged,

immediately disconnect the mains plug

from the mains socket. Contact the

Authorised Service Centre to replace

the water inlet hose.

2.4 Use

• Do not sit or stand on the open door.

• Dishwasher detergents are dangerous.

Obey the safety instructions on the

detergent packaging.

• Do not drink and play with the water in

the appliance.

• Do not remove the dishes from the

appliance until the programme is

completed. There can be detergent on

the dishes.

• The appliance can release hot steam if

you open the door while a programme

operates.

• Do not put flammable products or

items that are wet with flammable

products in, near or on the appliance.

2.5 Internal light

WARNING!

Risk of injury.

• This appliance has an internal lamp

that comes on when you open the

door and goes off when the door is

closed.

• The lamp in this appliance is not

suitable for household room

illumination.

• To replace the lamp, contact the

Service.

2.6 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the

mains supply.

• Cut off the mains cable and discard it.

• Remove the door catch to prevent

children and pets to get closed in the

appliance.

ENGLISH 5

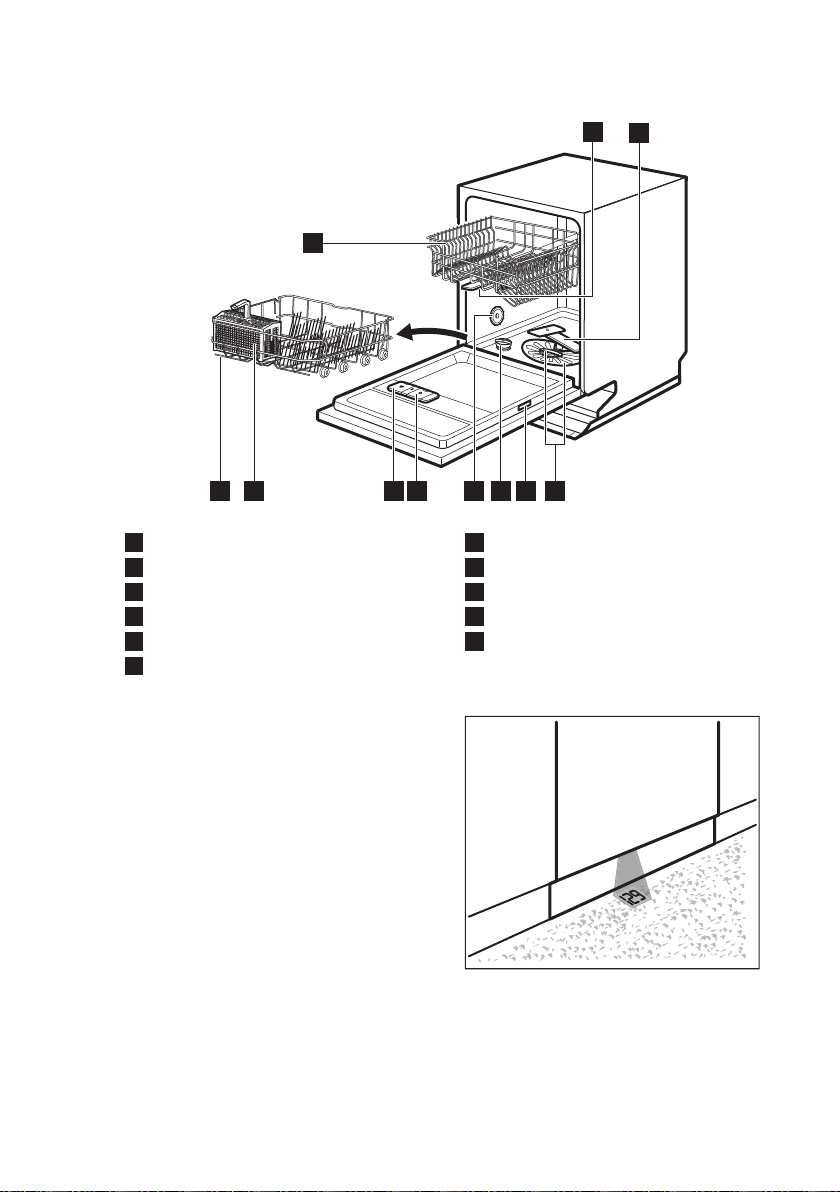

3. PRODUCT DESCRIPTION

10 56

1Upper spray arm

2Lower spray arm

3Filters

4Rating plate

5Salt container

6Air vent

7Rinse aid dispenser

8Detergent dispenser

9Cutlery basket

10 Lower basket

11 Upper basket

3.1 TimeBeam

The TimeBeam is a display that shows on

the floor below the appliance door.

• When the programme starts, the

programme duration comes on.

• When the programme is completed,

0:00 and CLEAN come on.

• When the delay start starts, the

countdown duration and DELAY come

on.

• When the appliance has a malfunction,

an alarm code appears.

www.electrolux.com6

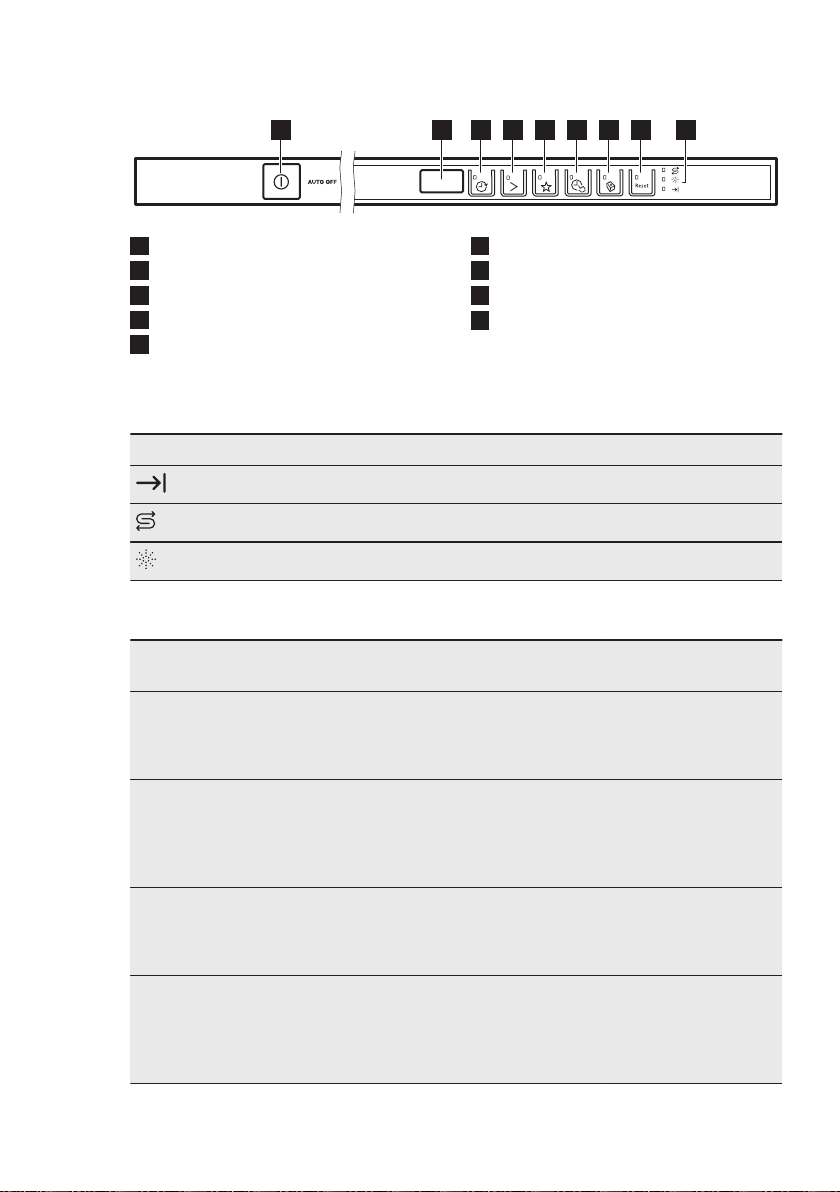

4. CONTROL PANEL

12345678 9

1On/off button

2Display

3Delay button

4Program button

5MyFavourite button

6TimeSaver button

7Multitab button

8Reset button

9Indicators

4.1 Indicators

Indicator Description

End indicator.

Salt indicator. It is always off while the programme operates.

Rinse aid indicator. It is always off while the programme operates.

5. PROGRAMMES

Programme Degree of soil

Type of load

Programme phases Options

ECO 1)

• Normal soil

• Crockery and

cutlery

• Prewash

• Wash 50 °C

• Rinses

• Dry

• TimeSaver

AUTO 2)

• All

• Crockery, cut-

lery, pots and

pans

• Prewash

• Wash from 45 °C to

70 °C

• Rinses

• Dry

70° Pro 3)

• Heavy soil

• Crockery, cut-

lery, pots and

pans

• Prewash

• Wash 70 °C

• Rinses

• Dry

• TimeSaver

45° Gläser

• Normal or light

soil

• Delicate crock-

ery and glass-

ware

• Wash 45 °C

• Rinses

• Dry

ENGLISH 7

Programme Degree of soil

Type of load

Programme phases Options

30 Minuten 4)

• Fresh soil

• Crockery and

cutlery

• Wash 60 °C

• Rinses

Vorspülen 5)

• All • Prewash

1) With this programme you have the most efficient use of water and energy consumption for

crockery and cutlery with normal soil. (This is the standard programme for test institutes).

2) The appliance senses the degree of soil and the quantity of items in the baskets . It auto-

matically adjusts the temperature and the quantity of water, the energy consumption and the

programme duration.

3) This programme has a high temperature rinsing phase for better hygiene results. During the

rinsing phase, the temperature stays at 70 °C for at least 10 minutes.

4) With this programme you can wash a load with fresh soil. It gives good washing results in a

short time.

5) With this programme you can quickly rinse dishes to prevent remains of food to bond on

dishes and odours to form in the appliance. Do not use detergent with this programme.

5.1 Consumption values

Programme 1) Water

(l)

Energy

(kWh)

Duration

(min)

ECO

9.5 0.920 195

AUTO

7 - 14 0.6 - 1.4 40 - 150

70° Pro

13 - 14 1.4 - 1.6 150 - 160

45° Gläser

11 - 12 0.7 - 0.9 70 - 80

30 Minuten

9 0.9 30

Vorspülen

4 0.1 14

1) The pressure and the temperature of the water, the variations of the mains supply, the op-

tions and the quantity of dishes can change the values.

5.2 Information for test institutes

For all the necessary information for test

performance, send an email to:

[email protected]

Write down the product number (PNC)

that is on the rating plate.

www.electrolux.com8

6. SETTINGS

6.1 Programme selection mode

and user mode

When the appliance is in programme

selection mode it is possible to set a

programme and to enter the user mode.

In user mode, the following settings

can be changed:

• The level of the water softener

according to the water hardness.

• The activation or the deactivation of the

acoustic signal for end of programme.

• The selection of the colour for

TimeBeam.

• The activation of the rinse aid

dispenser when you want to use the

Multitab option and the rinse aid

together.

These settings will be saved until you

change them again.

How to set the programme

selection mode

The appliance is in programme selection

mode when the display shows 2 horizontal

status bars.

When you activate the appliance, usually it

is in programme selection mode.

However, if this does not happen, you can

set the programme selection mode in the

following way:

Press and hold Reset until the appliance

is in programme selection mode.

6.2 The water softener

The water softener removes minerals from

the water supply, which would have a

detrimental effect on the washing results

and on the appliance.

The higher the content of these minerals,

the harder your water is. Water hardness

is measured in equivalent scales.

The water softener should be adjusted

according to the hardness of the water in

your area. Your local water authority can

advise you on the hardness of the water in

your area. It is important to set the right

level of the water softener to assure good

washing results.

Water hardness

German de-

grees (°dH)

French de-

grees (°fH)

mmol/l Clarke de-

grees

Water softener

level

47 - 50 84 - 90 8.4 - 9.0 58 - 63 10

43 - 46 76 - 83 7.6 - 8.3 53 - 57 9

37 - 42 65 - 75 6.5 - 7.5 46 - 52 8

29 - 36 51 - 64 5.1 - 6.4 36 - 45 7

23 - 28 40 - 50 4.0 - 5.0 28 - 35 6

19 - 22 33 - 39 3.3 - 3.9 23 - 27 5 1)

15 - 18 26 - 32 2.6 - 3.2 18 - 22 4

11 - 14 19 - 25 1.9 - 2.5 13 - 17 3

4 - 10 7 - 18 0.7 - 1.8 5 - 12 2

<4 <7 <0.7 < 5 1 2)

1) Factory setting.

2) Do not use salt at this level.

ENGLISH 9

How to set the water softener

level

The appliance must be in programme

selection mode.

1. To enter the user mode, press and

hold simultaneously and until

the indicators , , and start

to flash and the display is blank.

2. Press .

• The indicators , and go

off.

• The indicator continues to

flash.

• The display shows the current

setting: e.g. = level 5.

• The acoustic signals sound: e.g. 5

intermittent signals = level 5.

3. Press again and again to change

the setting.

4. Press the on/off button to confirm the

setting.

6.3 The rinse aid dispenser

The rinse aid helps to dry the dishes

without streaks and stains.

The rinse aid is automatically released

during the hot rinse phase.

Use of rinse aid and multi-tablets

together

When you activate the option Multitab, the

rinse aid dispenser no longer releases

rinse aid. However if you are using multi-

tablets and the drying results are not

satisfactory, we suggest to use multi-

tablets and rinse aid together. In this case

you have to activate the rinse aid

dispenser.

The rinse aid dispenser will remain

activated until you modify the setting again

How to activate the rinse aid

dispenser

The appliance must be in programme

selection mode.

1. To enter the user mode, press and

hold simultaneously and until

the indicators , , and start

to flash and the display is blank.

2. Press .

• The indicators , and go

off.

• The indicator continues to flash.

• The display shows the current

setting: = rinse aid dispenser

deactivated.

3. Press to change the setting.

= rinse aid dispenser activated.

4. Press the on/off button to confirm the

setting.

5. Adjust the dosage of rinse aid.

6. Fill the rinse aid dispenser.

6.4 Acoustic signals

Acoustic signals sound when a

malfunction of the appliance occurs and

when you set the level of the water

softener. It is not possible to deactivate

these acoustic signals.

There is also an acoustic signal that

sounds when the programme is

completed. By default this acoustic signal

is deactivated but it is possible to activate

it.

How to activate the acoustic

signal for the end of programme

The appliance must be in programme

selection mode.

1. To enter the user mode, press and

hold simultaneously and until

the indicators , , and start

to flash and the display is blank.

2. Press .

• The indicators , and go

off.

• The indicator continues to

flash.

• The display shows the current

setting: = Acoustic signal off.

3. Press to change the setting.

www.electrolux.com10

Table des matières

Langues :

Autres manuels Electrolux Lave-vaisselle

Electrolux

Electrolux ESF 641 Manuel utilisateur

Electrolux

Electrolux ESL 6225 Manuel utilisateur

Electrolux

Electrolux GA60KV Manuel utilisateur

Electrolux

Electrolux EEM48330L Manuel utilisateur

Electrolux

Electrolux EI24ID30QW0A Manuel utilisateur

Electrolux

Electrolux ESL7845RA Manuel utilisateur

Electrolux

Electrolux FAVORIT 60850 Vi Manuel d'utilisation

Electrolux

Electrolux ESF4513LOX Manuel utilisateur

Electrolux

Electrolux FRIGIDAIRE LFID2459VF1A Manuel du propriétaire

Electrolux

Electrolux ESL 66910 Manuel utilisateur

Electrolux

Electrolux WSF67251S Manuel utilisateur

Electrolux

Electrolux EWDW6505G S Mode d’emploi

Electrolux

Electrolux EES47311L Manuel utilisateur

Electrolux

Electrolux AEG FAVORIT 64080 VIL Manuel utilisateur

Electrolux

Electrolux FAVORIT 8081 Manuel utilisateur

Electrolux

Electrolux FAVORIT FAVORIT 60870 Manuel utilisateur

Electrolux

Electrolux EEG69300L Manuel utilisateur

Electrolux

Electrolux U27128 ESL 4115 Manuel utilisateur

Electrolux

Electrolux EDW7505HPS - Semi-Integrated Dishwasher With 5 Wash... Manuel utilisateur

Electrolux

Electrolux ESF 640 Mode d’emploi

Electrolux

Electrolux EDW 1001 Manuel utilisateur

Electrolux

Electrolux ESL 6380RO Manuel utilisateur

Electrolux

Electrolux ESL5310LO Manuel utilisateur

Electrolux

Electrolux BW 200 Manuel utilisateur

Manuels Lave-vaisselle populaires d'autres marques

KitchenAid

KitchenAid KUDB230B Manuel utilisateur

Brandt

Brandt BDJ424DB Manuel utilisateur

Asko

Asko DSD767UXXL.AU Manuel utilisateur

Beko

Beko DFN26210W Manuel utilisateur

NEFF

NEFF S153ITX00E Fiche technique

Midea

Midea SV 4.45 wi Manuel utilisateur

LG LDF7932 Manuel utilisateur

Gorenje

Gorenje GV63214 Manuel utilisateur

Hotpoint

Hotpoint HDA1100ZWH Manuel de service

Blomberg

Blomberg LDFN2240W Manuel utilisateur

AEG

AEG FFB83836PM Manuel utilisateur

Cylinda

Cylinda DM3220RFD Manuel utilisateur

Atag

Atag DW8214MB Manuel utilisateur

GE GLD8000 Series Manuel utilisateur

Siemens

Siemens SN23HI02KE Fiche technique

Omega

Omega ODW717X Manuel utilisateur

BORETTI

BORETTI BVW-683 Manuel utilisateur

Siemens

Siemens SN 56N591 Manuel utilisateur
