Electrolux Dishlex DX303 Manuel utilisateur

user manual

DX303

Dishwasher

117994350.qxp 12/20/2006 5:45 PM Page 1

We were thinking of you

when we made this product

117994350.qxp 12/20/2006 5:45 PM Page 2

electrolux 3

The Thoughtful Design Innovator.

Do you remember the last time you opened a gift that made you say

“Oh! How did you know? That’s exactly what I wanted!” That’s the kind of

feeling that the designers at Electrolux seek to evoke in everyone who

chooses or uses one of our products. We devote time, knowledge, and a

great deal of thought to anticipating and creating the kind of appliances that

our customers really need and want.

This kind of thoughtful care means innovating with insight. Not design for

design’s sake, but design for the user’s sake. For us, thoughtful design means

making appliances easier to use and tasks more enjoyable to perform, freeing

our customers to experience that ultimate 21st century luxury, ease of mind.

Our aim is to make this ease of mind more available to more people in more

parts of their everyday lives, all over the world. So when we say we’re thinking

of you, you know we mean just that.

Electrolux. Thinking of you.

Share more of our thinking at www.electrolux.com

117994350.qxp 12/20/2006 5:45 PM Page 3

Safety information 5

Product description 7

Control panel 8

First use 10

Daily use 11

Washing programmes 22

Care and cleaning 23

Something not working 25

Technical data 28

Hints for test institutes 30

Installation 31

Building-in 34

Environment concerns 36

Warranty 37

Contents

The following symbols are used in this manual:

Important information concerning your personal safety and information on

how to avoid damaging the appliance.

General information and tips

Environmental information

4electrolux contents

117994350.qxp 12/20/2006 5:45 PM Page 4

safety information electrolux 5

Safety information

In the interest of your safety and to

ensure correct use, before

installing and first using the

appliance, read this user manual

carefully, including its hints and

warnings. To avoid unnecessary

mistakes and accidents, it is

important to ensure that all people

using the appliance are thoroughly

familiar with its operation and

safety features. Save these

instructions and make sure that

they remain with the appliance if it

is moved or sold, so that everyone

using it through its life will be

properly informed on appliance use

and safety.

Correct use

●This dishwasher is only intended

for washing household utensils

suitable for machine washing.

●Do not put any solvents in the

dishwasher. This could cause an

explosion.

●Knives and other items with sharp

points must be loaded in the

cutlery basket with their points

down or placed in a horizontal

position in the upper basket.

●Only use products (detergents,

cleaners, rinse aid etc) suitable for

dishwashers.

●Avoid opening the door whilst the

appliance is in operation, hot

steam may escape.

●Do not take any dishes out of the

dishwasher before the end of the

dishwashing cycle.

●If the supply cord is damaged, it

must be replaced by the

manufacturer or its service agent

or a similarly qualified person in

order to avoid a hazard.

●This product should be serviced

only by an authorised service

engineer, and only genuine spare

parts should be used.

General safety

●Dishwasher detergents are very

alkaline and extremely dangerous

if swallowed. Be careful to: keep

them away from your eyes and

skin, keep children from the

dishwasher when the door is

opened, and only put detergent in

the dispenser when you are ready

to wash. Otherwise, check that the

detergent receptacle in the

dispenser is empty after the

completion of the wash cycle.

●The water in your dishwasher is

not for drinking. Detergent residues

may still be present in your

machine.

●Ensure that the door of the

dishwasher is always closed when

it is not being loaded or unloaded.

In this way you will avoid anybody

tripping over the open door and

hurting themselves.

●Do not sit or stand on the open

door.

117994350.qxp 12/20/2006 5:45 PM Page 5

6electrolux safety information

Installation

●Check your dishwasher for any

transport damage. Never connect

a damaged machine. If your

dishwasher is damaged contact

your supplier.

●All packaging must be removed

before use.

●Any electrical and plumbing work

required to install this appliance

must be carried out by a qualified

and competent person.

●For safety reasons it is dangerous

to alter the specifications or

attempt to modify this product in

any way.

●Never use the dishwasher if the

electrical supply cable and water

hoses are damaged; or if the

control panel, work top or plinth

area are damaged such that the

inside of the appliance is freely

accessible. Contact your local

Customer Care centre, in order to

avoid hazard.

●All sides of the dishwasher must

never be drilled to prevent damage

to hydraulic and electric

components.

For electrical and water connection

carefully follow the instructions

given in specific paragraphs.

Child safety

●This appliance is not intended for

use by young children or infirm

persons unless they have been

adequately supervised by a

responsible person to ensure that

they can use the appliance safely.

●Young children should be

supervised to ensure that they do

not play with the appliance.

●Keep all packaging well away from

children. There is risk of

suffocation.

●Keep all detergents in a safe place

out of children’s reach.

●Keep children well away from the

dishwasher when the door is open.

117994350.qxp 12/20/2006 5:45 PM Page 6

product description electrolux 7

Product description

Upper basket

Pressure balancing device

Detergent dispenser

Rinse aid dispenser

Rating plate

Filters

Lower spray arm

Upper spray arm

117994350.qxp 12/20/2006 5:45 PM Page 7

8electrolux control panel

Control panel

The digital display indicates:

- the approximate remaining time of

the running programme,

- the end of a washing program (a

zero will appear in the digital

display),

- the countdown of the delay start,

- fault codes concerning

malfunction of the dishwasher

- activation of button lock (CL).

On/Off button

Button Lock

Program selection buttons

Delay start button

Digital display

Indicator lights

Button Lock option

Press the ON button.

Press the selected program button.

Press the Delay start button if

required.

Close the door, the program starts.

To activate the Button Lock function,

press the Button Lock for 5 seconds

(the Button Lock led blinks for 15

seconds), then when is permanently

on, it indicates the function is active.

The button lock key stops anyone

from changing the selected program.

To cancel the selected program and

chose a new one reset the

dishwasher by:

- pressing the Button Lock for 5

seconds

- press and hold 2nd and 3rd button

(CANCEL) simultaneously until all

program lights illuminate, then the

program has been cancelled and

the key lock is deactivated and a

new program can be selected.

The Button Lock option is

automatically de-activated at the end

of the selected program by switching

OFF the dishwasher or opening and

closing the door.

117994350.qxp 12/20/2006 5:45 PM Page 8

control panel electrolux 9

The rinse aid indicator light is

never illuminated while a washing

program is running even if filling

with rinse aid is necessary.

Indicator lights

Ready Illuminates when a washing programme has

ended.

Button Lock When the Button lock function is selected, it

blinks for 15 seconds and then is permanently

on when the function Button lock is activated.

Rinse aid Illuminates when the rinse aid has run out.

Washing

Drying

Illuminates when the washing and rinsing

phases are running.

Illuminates when the drying phase is running.

Setting mode

To cancel a set program or a

programme in progress

Simultaneously press and hold the

two program buttons positioned over

the word Cancel, until all the program

lights will illuminate. The program has

been cancelled and the machine is

now in setting mode.

117994350.qxp 12/20/2006 5:45 PM Page 9

Before using your dishwasher for the

first time:

●Ensure that the electrical and

water connections comply with the

installation instructions

●Remove all packaging from inside

the appliance

●Fill the rinse aid dispenser

First use

The dispenser holds about 110 ml of

rinse aid, which is sufficient for

between 16 and 40 dishwashing

cycles, depending upon the dosage

setting. According to the finish and

drying results obtained, adjust the

dose of rinse aid by means of the 6

position selector (position 1 minimum

dosage, position 6 maximum dosage).

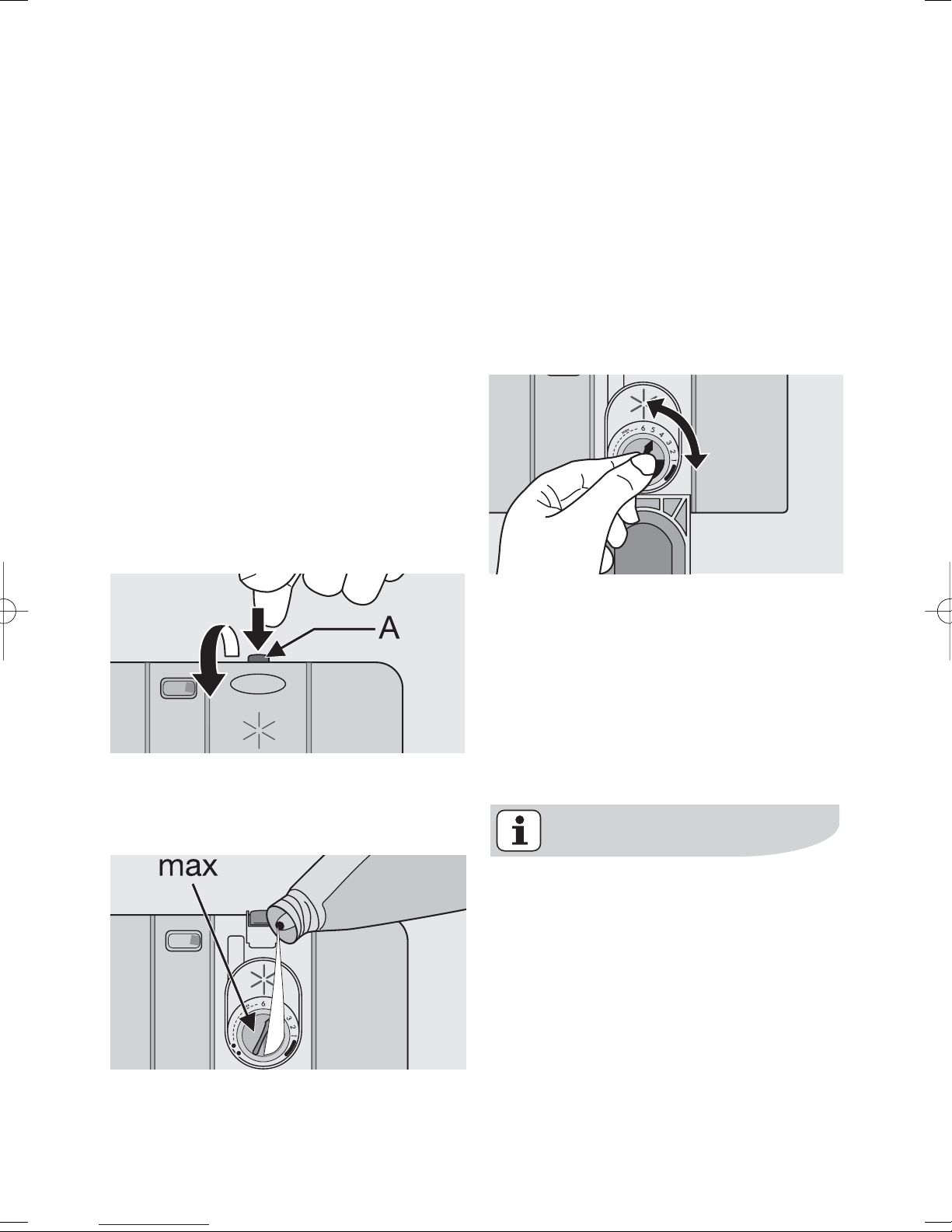

Filling with rinse aid

Rinse aid ensures thorough rinsing,

and spot and streak free drying.

Rinse aid is automatically added

during the last rinse.

1. Open the container by pressing

the release button (A).

2. Add the rinse aid in the container.

The maximum level for filling is

indicated by "max".

The dose is factory set in position 4.

Increase the dose if there are drops

of water or lime spots on the dishes

after washing.

Reduce it if there are sticky whitish

streaks on the dishes or a bluish film

on glassware or knife blades.

3. Ensure that the lid is closed after

every refill.

Clean up any rinse aid spilt during

filling with an absorbent cloth to

avoid excess foaming during the

next wash.

Only use branded rinse aid for

dishwashers.

Never fill the rinse aid dispenser

with any other substances (e.g.

dishwasher cleaning agent, liquid

detergent). This may damage the

appliance.

10 electrolux first use

117994350.qxp 12/20/2006 5:45 PM Page 10

Autres manuels pour dishlex DX303

Table des matières

Autres manuels Electrolux Lave-vaisselle

Electrolux

Electrolux WT30E Manuel utilisateur

Electrolux

Electrolux EDW 1600 Manuel utilisateur

Electrolux

Electrolux EIDW5905J S Manuel utilisateur

Electrolux

Electrolux FAVORIT 44010 VI Manuel utilisateur

Electrolux

Electrolux ESI6180X Manuel utilisateur

Electrolux

Electrolux NERT20ER533374 Guide d'installation et d'utilisation

Electrolux

Electrolux NUCA1DDG Manuel d'instructions

Electrolux

Electrolux 506033 Manuel utilisateur

Electrolux

Electrolux ASF65090 Manuel utilisateur

Electrolux

Electrolux KEAF7200L Manuel utilisateur

Electrolux

Electrolux ESL64010 Manuel utilisateur

Electrolux

Electrolux GA931IFWE Manuel utilisateur

Electrolux

Electrolux ESL 8720RA Manuel utilisateur

Electrolux

Electrolux GA55LV Manuel utilisateur

Electrolux

Electrolux BW295 Mode d’emploi

Electrolux

Electrolux ESL 7220RO Manuel utilisateur

Electrolux

Electrolux EUC1WS Manuel utilisateur

Electrolux

Electrolux WT830EAG Manuel utilisateur

Electrolux

Electrolux ESF 6220 Manuel utilisateur

Electrolux

Electrolux ESI 65010 Manuel utilisateur

Electrolux

Electrolux KESD7100L Manuel utilisateur

Electrolux

Electrolux 154743901 Manuel utilisateur

Electrolux

Electrolux ESS67300SW Manuel utilisateur

Electrolux

Electrolux ESF5542LOW Manuel utilisateur

Manuels Lave-vaisselle populaires d'autres marques

KitchenAid

KitchenAid KUDB230B Manuel utilisateur

Brandt

Brandt BDJ424DB Manuel utilisateur

Asko

Asko DSD767UXXL.AU Manuel utilisateur

Beko

Beko DFN26210W Manuel utilisateur

NEFF

NEFF S153ITX00E Fiche technique

Midea

Midea SV 4.45 wi Manuel utilisateur

LG LDF7932 Manuel utilisateur

Gorenje

Gorenje GV63214 Manuel utilisateur

Hotpoint

Hotpoint HDA1100ZWH Manuel de service

Blomberg

Blomberg LDFN2240W Manuel utilisateur

AEG

AEG FFB83836PM Manuel utilisateur

Cylinda

Cylinda DM3220RFD Manuel utilisateur

Atag

Atag DW8214MB Manuel utilisateur

GE GLD8000 Series Manuel utilisateur

Siemens

Siemens SN23HI02KE Fiche technique

Omega

Omega ODW717X Manuel utilisateur

BORETTI

BORETTI BVW-683 Manuel utilisateur

Siemens

Siemens SN 56N591 Manuel utilisateur

Electrolux dishlex DX303 Manuel utilisateur

Manuels Lave-vaisselle populaires d'autres marques
