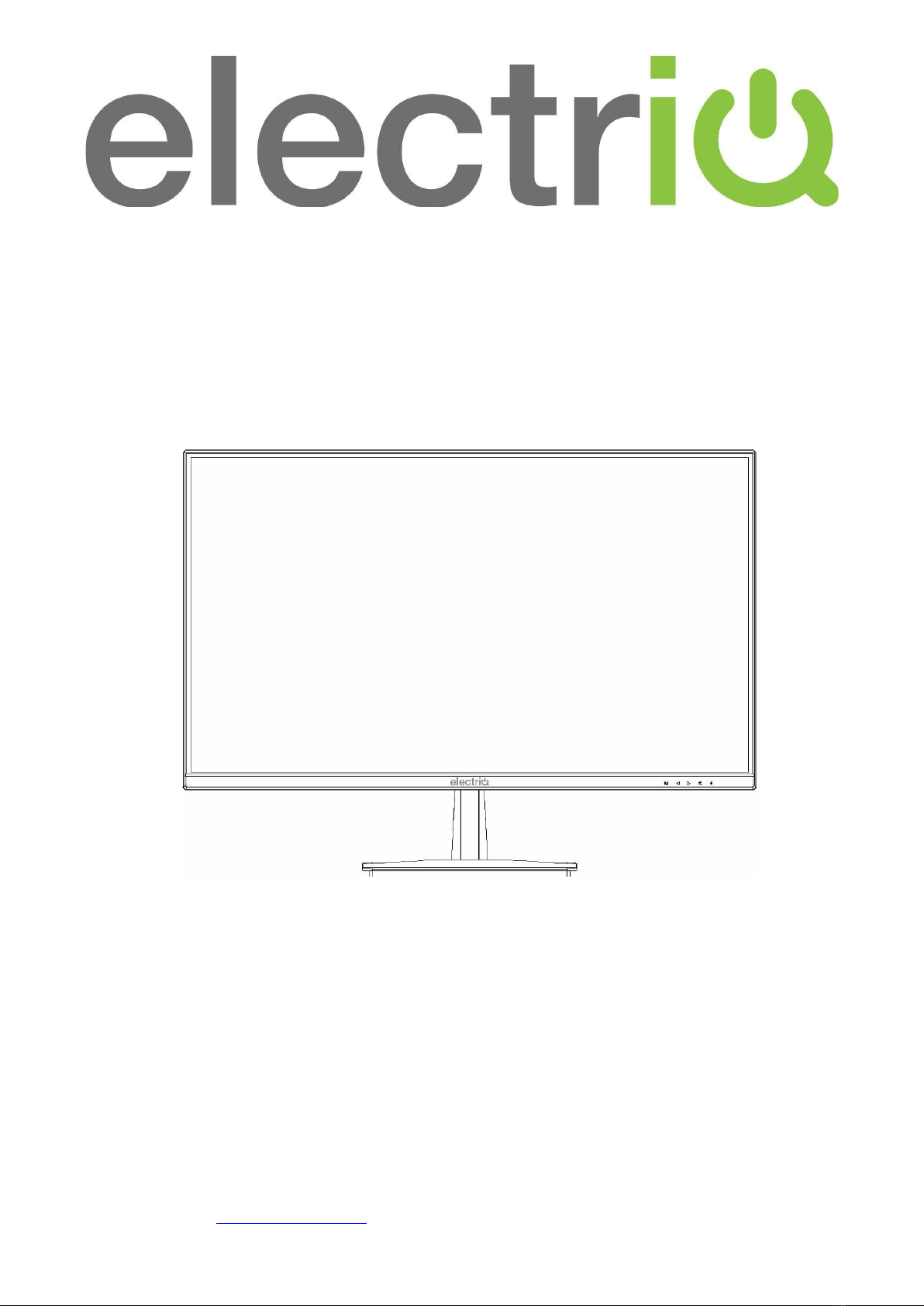

USER MANUAL

23.8 INCH SLIM LED MONITOR

eiQ-24FHD75IS

Thank you for choosing electriQ

Please read the user manual before using this monitor and keep it safe for future reference

Visit www.electriQ.co.uk to view our entire range of Intelligent Electricals.

CONTENTS

SAFETY INFORMATION

WHATS INCLUDED

MONITOR DIMENSIONS

CONNECTIONS AVAILABLE ON THE MONITOR

WALL MOUNTING

GETTING STARTED

INITIAL SET UP

MENU OPTIONS

BRIGHTNESS

IMAGE SETUP

COLOUR SETUP

OSD SETUP

RESET

EXTRA

TECHNICAL SPECIFICATION

SUPPORT

SAFETY INFORMATION

•

Read these instructions - All the safety and operating instructions should be

read before this product is operated.

•

Keep these instructions - The safety and operating instructions should be

retained for future reference.

•

Heed all warnings - All warnings on the appliance and in the operating

instructions should be adhered to.

•

Follow all instructions - All operating and usage instructions should be

followed.

•

Do not use this equipment near water, or in humid environments - The

appliance should not be used near water or moisture e.g. in a wet basement

or near a swimming pool.

•

Clean only with a dry cloth. Do not use solvents or petroleum-based fluids.

•

Do not block any ventilation openings.

•

Do not install near any heat sources such as radiators, stoves or other

apparatus (including amplifiers) that produce heat.

•

Do not tamper with the supplied plug. This plug is a BS1363 standard plug.

•

Protect the power cord from being walked on or trapped, particularly at the

plug and at the point where it exits from the appliance.

•

Only use attachments/accessories specified by the manufacturer.

•

Use only with a cart, stand, tripod, bracket or table specified by the

manufacturer or sold with the apparatus. When a cart or stand is used, use

caution when moving it to avoid any injuries or damage from it tipping over.

•

Unplug the apparatus during lightning storms or when unused for long

periods of time.

•

Refer all servicing to qualified personnel. Servicing is required when the

apparatus has been damaged in any way, such as if the power cord or plug

is damaged, liquid has been spilled or objects have fallen into the

apparatus or it has been exposed to rain or moisture, it does not operate

normally or has been dropped.

•

Please keep the unit in a well-ventilated environment.

•

The monitor should only be connected to a mains power supply as rated on

the back of the equipment.

•

To prevent overload, do not share the same power socket with too many

other electronic components.

•

Do not place any connecting wires where they may be stepped on or

tripped over.

•

Do not place heavy items on the cable as this may cause damage.

•

When removing from a socket hold by the plug and not the wires.

•

Disconnect the power immediately and seek professional help if the plug or

cable is damaged, liquid has spilt onto the unit, if accidentally exposed to

water or moisture, if anything accidentally penetrates the ventilation slots

or ifthe unit does not work normally.

•

Do not remove the safety covers. There are no user serviceable parts

inside. Trying to service the unit yourself is dangerous and may invalidate

the product's warranty. Only qualified personnel should service this

apparatus.

•

Do not block ventilation slots on the back cover. The monitor can be placed

in a cabinet but ensure at least 5cm (2") clearance all around. Do not tap or

shake the screen, this may damage internal components.

•

WARNING: To reduce the risk of fire or electric shock, do not expose this

apparatus to rain or moisture. The apparatus shall not be exposed to

dripping or splashing and objects filled with liquids, such as vases, shall not

be placed on the apparatus.

•

WARNING: The wall socket is used as a disconnection device and should

remain readily accessible.

•

WARNING: The batteries shall not be exposed to excessive heat such as

direct sunlight or fire.

•

Although every effort is made to maintain the accuracy of the manual, due to

continuous product development, some variation from the manual is possible.

•

The availability of features and settings may vary depending on the input

source and method of connection.

•

The available resolutions and refresh rates may be limited by the capabilities

and/or settings of the source device.

AT FULL VOLUME, PROLONGED LISTENING MAY DAMAGE THE

USER’S HEARING.

This warning sign is to

warn of dangerous

voltage inside the

product.

CAUTION: To reduce the risk of electric

shock, DO NOT remove the cover (or

back). No user serviceable parts inside.

Refer servicing to qualified service

personnel.

This warning sign is to alert

you of important

instructions accompanying

the product.

WHATS INCLUDED

USER MANUAL POWER SUPPLY POWER CABLE HDMI CABLE

CONNECTIONS AVAILABLE ON THE MONITOR

HDMI VGA AUDIO DC 12V

1. HDMI port: Used to connect a compatible device. Supports HDMI 1.4 & 2.0;

2. VGA: Used to connect a compatible VGA device.

3. Audio Output Port: Used for connecting headphones, or external speakers.

4. DC Input Port: Connect the supplied power supply to power the monitor

WALL MOUNTING

•The monitor is provided with mounting holes for a VESA approved wall mounting bracket (not

supplied).

•The VESA mounting pattern is: 100x100mm and the size of the screws is 4 x M6 x 10 (not supplied)

•Do not use screws longer than specified or damage will occur to the internal components.

NOTE: As the monitor is considered heavy, please consult with a professional wall mount installer to

perform the installation.

GETTING STARTED

MONITOR CONTROLS

Enter the Main OSD (On Screen Display) Menu;

(Within OSD) Select submenu.

Display the HDR Menu;

(Within OSD) Go Up or increase the value of the selected item.

Display LOS (Crosshairs);

(Within OSD) Go Down or decrease the value of the selected item.

Display the Source menu;

(Within OSD) Select signal source or Exit the menu.

POWER

Turn the monitor On or Off.

INITIAL SETUP

Connect the monitor to a power outlet.

1. Press the POWER button to turn it on (The indicator will be blue)

2. Connect the relevant cable to the corresponding input on the monitor. The source will be

automatically detected.

3. To change between inputs, press to enter the source menu. Then use the and buttons to

choose the input source between VGA and HDMI.

MENU OPTIONS

The menu for the monitor can be accessed by pressing the button on the control panel. This menu is separated

into the following sub menus: Brightness, Image Setup, Colour Setup, OSD Setup, Reset and extra. Details of the

options within each menu can be found in the following section

BRIGHTNESS SETTINGS

BRIGHTNESS

Allows the adjustment of the image brightness,

according to ambient light in the room between 0 and

100.

CONTRAST

Allows the adjustment of contrast between white and

black areas of the image between 0 and 100.

ECO MODE

Allows selection of image settings between the

following: STANDARD, TEXT, MOVIE, GAME, FPS, and

RTS.

DCR

Allows the dynamic contrast of the picture to be turned

ON and OFF.

IMAGE SETUP

H. POSITION (VGA ONLY)

Allows adjustment of the horizontal position of the

image. Use the and buttons to horizontally

move the image.

V. POSITION (VGA ONLY)

Allows adjustment of the vertical position of the

image. Use the and buttons to vertically

move the image.

CLOCK (VGA ONLY)

Allows adjustment of the CLOCK setting between

the values of 0 and 100.

PHASE (VGA ONLY)

Can reduce video distortion and instability. Adjust

between 0 and 100.

IMAGE RATIO

Allows the Image Ratio of the picture to be locked.

Can be turned ON and OFF.

COLOUR SETUP

COLOR TEMP.

Allows adjustment of the colour settings between the

following options: Warm, SRGB, User and Cool.

Within the User Colour Temp the following can be

adjusted:

RED

Allows adjustment of the red element of colour

for the image.

GREEN

Allows adjustment of the green element of

colour for the image.

BLUE

Allows adjustment of the blue element of

colour for the image.

OSD SETUP

LANGUAGE

Allows selection of desired language for the OSD

between ENGLISH, FRENCH, TURKISH, ITALIAN,

SPANISH, PORTUGUESE, CHINESE, GERMAN,

JAPANESE, POLISH, KOREAN AND DUTCH”.

H. POSITION

Allows adjustment of the horizontal position of

the OSD menu.

V.POSITION

Allows adjustment of the vertical position of the

OSD menu.

TIMEOUT

Allows adjustment of the duration the OSD remains

on the screen between 0 and 60.

TRANSPARENCY

Allows adjustment of the transparency of the OSD

menu between 0 and100.

RESET

AUTO CONFIG.

Auto adjusts the image.

AUTO COLOR

Auto adjusts the colour of the image.

RESET

Returns the monitor to its factory default settings.

EXTRA

INPUT SELECT

Allows user to choose the signal source for the

display between HDMI and VGA.

MUTE

Allows the audio output to be turned ON and

OFF

VOLUME

Allows adjustment of the volume of the monitor

between 0 and 100.

TROUBLESHOOTING

Problem

Solution

No power

Insert the plug securely into the power outlet.

No picture

Ensure that the equipment is connected properly.

Ensure the correct input is selected.

No response when buttons are

pressed.

Disconnect the power and then reconnect. (The unit may

not be operating properly due to lightning, static, or other

factors.)

Noise or other interference

Electronic equipment near the unit may be causing

interference. Relocate the unit or move the equipment.
