ElectrIQ EiQ-15FHDPM Manuel utilisateur

USER MANUAL

15.6 INCH PORTABLE DISPLAY

eiQ-15FHDPM

Thank you for choosing electriQ

Please read this user manual before using this portable

display and keep it safe for future reference

CONTENTS

SAFETY

PRODUCT OVERVIEW

OPERATION

MAIN MENU

CONNECTING A DEVICE

TROUBLESHOOTING

TECHNICAL INFORMATION

SUPPORT

CLEANING AND MAINTENANCE

SAFETY INSTRUCTIONS

•Read these instructions –All the safety and operating

instructions should be read before this product is

operated.

•Keep these instructions –The manual should be

retained for future reference.

•Heed all warnings –All warnings on the appliance and in

the operating instructions should be adhered to.

•Do not use this equipment near water –The appliance

should not be used near water or moisture e.g. in a wet

basement or near a swimming pool.

•Clean only with a dry cloth. Do not use solvents or

petroleum-based fluids.

•Only use attachments/accessories specified by the

manufacturer.

•Unplug the apparatus during lightning storms or when

unused for long periods of time.

•Refer all servicing to qualified personnel. Servicing is

required when the apparatus has been damaged in any

way, such as when liquid has been spilled or objects

have fallen into the apparatus or it has been exposed to

rain or moisture, it does not operate normally or has

been dropped.

•Do not remove the safety covers. There are no user

serviceable parts inside. Trying to service the unit

yourself is dangerous and may invalidate the product's

warranty. Only qualified personnel should service this

apparatus.

WARNING: To reduce the risk of fire or electric shock, do

not expose this apparatus to rain or moisture. The

apparatus must not be exposed to dripping or splashing

and objects filled with liquids, such as vases, must not be

placed on the apparatus.

PRODUCT OVERVIEW

Speaker

Secondary

USB Type C

(Power Only)

Rocker Switch

Power/ Return

button

HDMI Input

Main USB Type C Input

(Power and Video )

3.5 mm Headphone Socket

OPERATION

Press and hold the power button for 3 seconds to turn the monitor ON and

OFF. The screen will enter power saving mode when turned on unless

there is a suitable device connected.

The ROCKER SWITCH is used to increase or decrease the volume and

adjust the brightness. Roll the switch up or down to adjust the settings. To

change between brightness and volume press the switch.

MAIN MENU

The portable display also includes a full settings menu which is navigated

using the rocker switch. Press and hold the rocker switch for over 3

seconds to enter the Menu. When inside the menu press the rocker switch

up and down to highlight the desired option, and press the rocker switch to

select it.

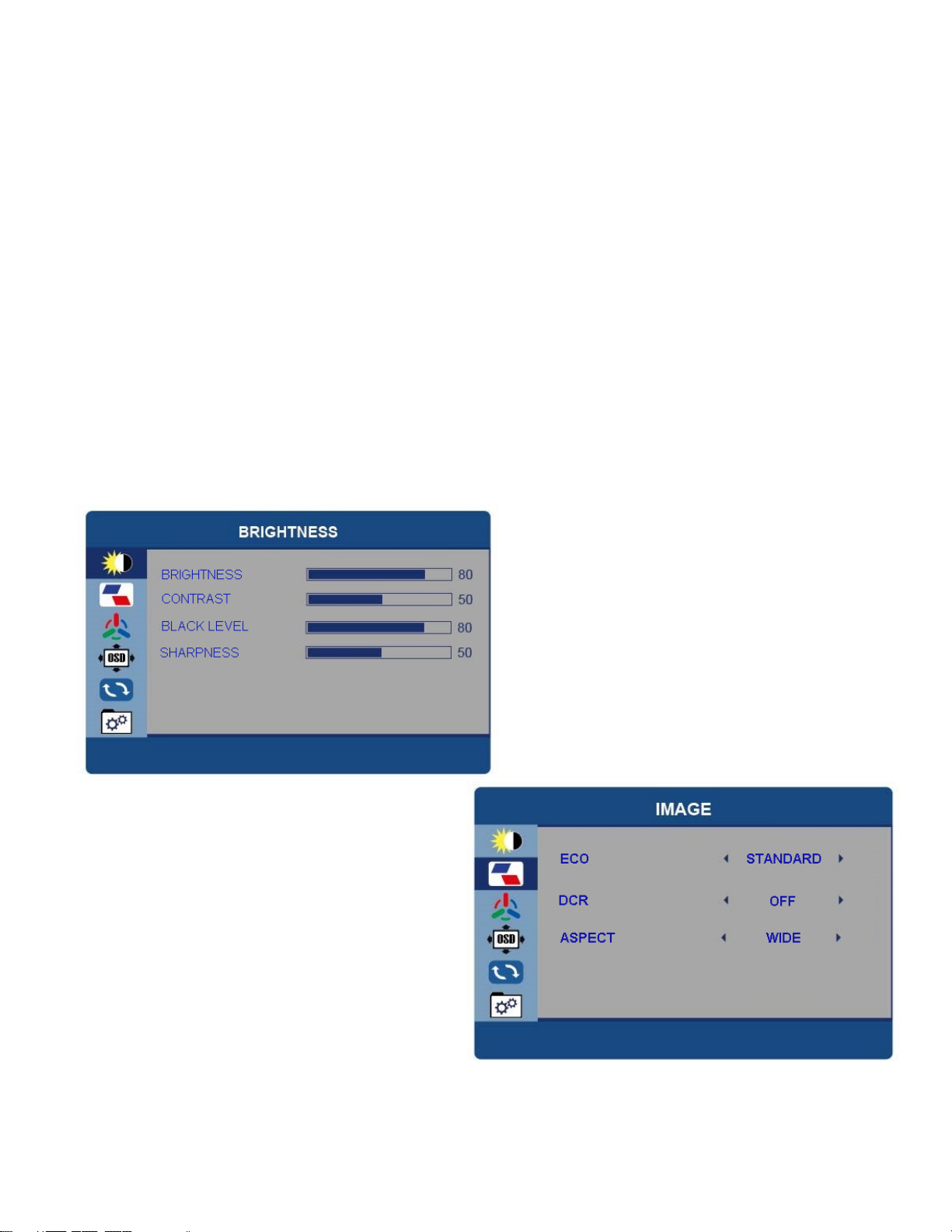

BRIGHTNESS

All options can be adjusted between 0

and 100.


ECO –Can be changed between

STANDARD, RTS, FPS, TEXT, MOVIE

and GAME.

DCR (Dynamic Contrast) –Can be

turned on and off.

ASPECT –Can change the aspect ratio

between Wide and 4:3.

COLOR TEMP

COLOUR TEMP –Change between

USER, WARM and COOL. In USER the

individual RED, GREEN and BLUE values

can be adjusted.

OSD SETTING

LANGUAGE –Change the language of the

Menus.

OSD TIMER –Adjust the amount of time the

menu is shown before the display returns to

normal operation.

TRANSPARANCY –Adjust how see through the

menus are.

RESET

RESET –Return the portable display to

factory settings.

MUTE –Turn the sound On or Off

Volume –Adjust the volume level between

0 and 100.

MISC

SIGNAL SOURCE –Change the signal source

between USB Type C and HDMI.

LOW BLUE LIGHT –Adjust the filtering of blue

light from the screen.

HDR MODE (High Dynamic Range) –Change

between On, Auto and Off.

CONNECTING A DEVICE

COMPUTER –VIA USB TYPE C

The portable display can be connected to a compatible computer using the supplied

USB C cable. This must be connected to the Main USB socket on the left of the display.

The computer will provide power and signal to the monitor and can be used for

extended display or duplicated display use.

COMPUTER – VIA HDMI

When connecting to a compatible computer using the HDMI interface, you need to

connect the supplied HDMI cable between the computer and the display. You should

also connect the display to the computer via USB, using a USB to USB Type C cable

(Not supplied), connected to the left-hand Main USB Type C socket on the left of the

display.

Depending on the power supplied by the USB port on the computer (Display required

5V/2A), additional power may need to be supplied to the monitor through the secondary

Type C socket on the right of the portable display.

MOBILE PHONE –VIA USB TYPE C

When there is no external power supply connected to the secondary USB Type C socket

on the right of the display, the mobile phone battery will supply power to the display. To

reduce power usage the energy-saving mode will be activated and the display

brightness will be reduced to 30%, and the user can adjust the brightness and volume of

the display according to the output power of the mobile phone).

When connected to an external power supply through the secondary Type C port, the

display will provide power to the mobile phone through the external power supply. (To

ensure that the display and the mobile phone can get enough working current, please

use a 16W charger or power bank as the external power supply. See “Parameters” for

information on compatible phone brands.

OTHER DEVICES

When connecting a device using HDMI, be sure to connect the power cable first, then connect

the HDMI to ensure the smooth transmission of the signal.

TROUBLESHOOTING

PROBLEM

SOLUTION

No video/ picture (led not lit)

•Make sure the video cable between the monitor and

computer is connected properly and securely.

•Use other electrical equipment to confirm that the power

outlet is working properly.

•Make sure the power button is pressed correctly.

•Make sure the correct input source is selected through

the input source menu.

No video/ power/ picture (led lit)

•Improve brightness and contrast with OSD.

•Check whether the indicators on the side are normal.

•Check if the video cable connector pins are bent or

broken.

•Check whether the power adapter is properly connected.

•Make sure the correct input source is selected through

the input source menu.

Missing pixels/ spots and light leaks on the screen

•Turn off and on again.

•Restore the monitor to factory settings.

•Use OSD to adjust brightness and contrast.

•Pixels that are permanently off are an inherent defect in

LCD technology.

•Contact us about monitor quality and pixel issues.

Display fails when switching

•Make sure that the video cables of the monitor and

HDMI output device are properly connected.

•Reset the monitor to factory settings.

Picture is missing colours

•Make sure the video cable connecting the monitor and

the computer is properly connected.

•Adjust custom r / g / b values. Colour in the colour menu

of OSD.

•In the advanced settings OSD, change the input color

format to PCRGB or

YPbPr.

Screen image is too small

•Check the aspect ratio setting in the monitor settings

OSD

•Restore the monitor to factory settings.

Osd does not appear on the screen

•Turn off the monitor, disconnect and reconnect the

power cord, and turn on the monitor.

No picture, indicator light is blue

•Check the signal source. Make sure the computer or

phone is not in sleep mode.

•Check that the signal cable is properly inserted.

Reconnect the signal cable if necessary.

•Restart your computer or phone.

The picture does not fill the entire screen.

•Since the resolution of the same screen of the mobile

phone can be re-scaled (aspect ratio), the display can

be displayed in full screen.

•Computer equipment can be set to 16: 9 resolution, the

display can be full screen display

•Play a video source with a 16: 9 video sources, and the

monitor can display full screen.

TECHNICAL INFORMATION

Product type:

Portable Display

Model No:

eiQ-15FHDPM

Visual area:

344.16*194.59mm

Screen Size:

15.6 inch

Panel type:

IPS

Dimension:

368 * 225 * 9.0 mm

Aspect ratio:

16:9

Resolution:

1920*1080

Display color:

16.7M

Colour

temperature:

6800K

Visual angle:

H：85°/85°Min V：85°/85°Min

Contrast ratio:

1000：1

Brightness:

250cd/m²

Color gamut:

72%

Input interface:

Mini HDMI (Video signal) 、Type C（Video data、Power supply

ISDN）、Type C power supply

Output Interface:

3.5mm headphone

interface

Speaker:

Built-in cavity speaker

(1W*2)

System

requirement:

devices with an HD output interface, computers with full Type C video

output capability;

SUPPORTED MODELS (Phone)

Brand

Phone model

Huawei

Mate 10、Mate 10Pro、Mate 20、Mate 20Pro、Mate 20X、P20、P20

Pro、HonorNote10

Samsung

S8、S8+、S9、S9+、Note 8、Note 9

Smartisan

R1、Pro2S

OPPO

R17 Pro

models

Updated continuously……

SUPPORTED MODELS (Computer)

Brand

Computer model

Huawei

MateBook、MateBook X、MateBook X Pro、MateBook E

Apple

MacBook 12、MacBook Pro、MacBook Air、iPad Pro 2018

Honor

Magic

Air 12.5/13.3 inch、Pro15.6-inch、Millet Game Book

Lenovo

Yoga 5Pro、ThinkPad XI Carbon 2017、Miix 720

Pavilion X2、EliteBook Folio G1

Dell

XPS13、XPS15

Google

Chromebook Pixels、PixelBook Pen

ASUS

LingYao3、U306、U321 series、U4100、ROG series

Microsoft

Surface Book2

Razer

Blade Stealth blade/blade sneak version

models

Updated continuously…

Table des matières

Autres manuels ElectrIQ Moniteur

ElectrIQ

ElectrIQ eiQ-25FHD280TFSGH Manuel utilisateur

ElectrIQ

ElectrIQ eiQ-24FHD75IS-V2 Manuel utilisateur

ElectrIQ

ElectrIQ eiQ-34SUWD144FSHQ-V3 Manuel utilisateur

ElectrIQ

ElectrIQ eiQ-32M4K144FS Manuel utilisateur

ElectrIQ

ElectrIQ eiQ-49SUWD144FSHQ-V2 Manuel utilisateur

ElectrIQ

ElectrIQ eiQ-25FHD165TFSGH Manuel utilisateur

ElectrIQ

ElectrIQ eiQ-49SUWD144FSH Manuel utilisateur

ElectrIQ

ElectrIQ eiQ-274K144IFSGHUCA Manuel utilisateur

ElectrIQ

ElectrIQ eiQ-30CVWF200VAFSGH Manuel utilisateur

ElectrIQ

ElectrIQ eiQ-34SUWD144FSHQ Manuel utilisateur

ElectrIQ

ElectrIQ eiQ-43SUWD120FSHDR600 Manuel utilisateur

ElectrIQ

ElectrIQ eiQ-35CMUWQ100GAFSH Manuel utilisateur

ElectrIQ

ElectrIQ eiQ-32CVQ165VAFSGH Manuel utilisateur

ElectrIQ

ElectrIQ eiQ-25FHDO165FSGUC Manuel utilisateur

ElectrIQ

ElectrIQ eiQ-27MF144FSHDRB Manuel utilisateur

ElectrIQ

ElectrIQ eiQ-274K144IFSGHUCA Manuel utilisateur

ElectrIQ

ElectrIQ eiQ-49CV5UWD120FSHQA-V3 Manuel utilisateur

ElectrIQ

ElectrIQ eiQ-32MCV4KAFSHDR Manuel utilisateur

ElectrIQ

ElectrIQ eiQ-27MF75I-V2 Manuel utilisateur

ElectrIQ

ElectrIQ EIQ-284KMB Manuel utilisateur

ElectrIQ

ElectrIQ eiQ-24FHD75IS Manuel utilisateur

ElectrIQ

ElectrIQ eiQ-15FHDPM-V2 Manuel utilisateur

ElectrIQ

ElectrIQ EIQ-244KMHDR Manuel utilisateur

ElectrIQ

ElectrIQ eiQ-25FHD165TFSGH Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation

ElectrIQ eiQ-15FHDPM Manuel utilisateur

Manuels Moniteur populaires d'autres marques
