ElectrIQ EiQ-DUAL15FHDPM Manuel utilisateur

USER MANUAL

15.6 INCH HD DUAL MONITOR

eiQ-DUAL15FHDPM

Thank you for choosing electriQ

Please read this user manual before using this monitor

and keep it safe for future reference

CONTENTS

SAFETY

PRODUCT OVERVIEW

SCREEN SET UP

OPERATION

MAIN MENU

CONNECTING A DEVICE

WINDOWS PC CONNECTION

APPLE PC CONNECTION

TROUBLESHOOTING

TECHNICAL INFORMATION

CLEANING AND MAINTENANCE

SUPPORT

SAFETY INSTRUCTIONS

•Read these instructions –All the safety and operating

instructions should be read before this product is operated.

•Keep these instructions –The manual should be retained for

future reference.

•Heed all warnings –All warnings on the appliance and in the

operating instructions should be adhered to.

•Do not use this equipment near water –The appliance should

not be used near water or moisture e.g. in a wet basement or

near a swimming pool.

•Clean only with a dry cloth. Do not use solvents or petroleum-

based fluids.

•Only use attachments/accessories specified by the

manufacturer.

•Do not tamper with the supplied plug. This plug is a BS1363

standard plug.

•Protect the power cord from being walked on or trapped,

particularly at the plug and at the point where it exits from the

appliance.

•Only use attachments/accessories specified by the

manufacturer.

•Use only with a cart, stand, tripod, bracket or table specified by

the manufacturer or sold with the apparatus. When a cart or

stand is used, use caution when moving it to avoid any injuries

or damage from it tipping over.

•Unplug the apparatus during lightning storms or when unused

for long periods of time.

•Refer all servicing to qualified personnel. Servicing is required

when the apparatus has been damaged in any way, such as

when liquid has been spilled or objects have fallen into the

apparatus or it has been exposed to rain or moisture, it does

not operate normally or has been dropped.The monitor should

only be connected to a mains power supply as rated on the

back of the equipment.

•To prevent overload, do not share the same power supply

socket with too many other electronic components.

•Do not place any connecting wires where they may be stepped

on or tripped over.

•Do not place heavy items on the cable as this may cause

damage.

•When removing from a socket hold by the plug and not the

wires.

•Disconnect the power immediately and seek professional help

if the plug or cable is damaged, liquid has spilt onto the unit, if

accidentally exposed to water or moisture, if anything

accidentally penetrates the ventilation slots or if the unit does

not work normally.

•Do not remove the safety covers. There are no user

serviceable parts inside. Trying to service the unit yourself is

dangerous and may invalidate the product's warranty. Only

qualified personnel should service this apparatus.

•Do not remove the safety covers. There are no user

serviceable parts inside. Trying to service the unit yourself is

dangerous and may invalidate the product's warranty. Only

qualified personnel should service this apparatus.

•WARNING: To reduce the risk of fire or electric shock, do not

expose this apparatus to rain or moisture. The apparatus shall

not be exposed to dripping or splashing and objects filled with

liquids, such as vases, shall not be placed on the apparatus.

•WARNING: The wall plug socket is used as a disconnection

device and should remain readily accessible.

•Although every effort is made to maintain the accuracy of the

manual, due to continuous product development, some

variation from the manual is possible.

•The availability of features and settings may vary depending

on the input source and method of connection.

•The available resolutions and refresh rates may be limited by

the capabilities and/or settings of the source device.

WARNING: To reduce the risk of fire or electric shock, do

not expose this apparatus to rain or moisture. The

apparatus must not be exposed to dripping or splashing

and objects filled with liquids, such as vases, must not be

placed on the apparatus.

PRODUCT OVERVIEW

Decrease

Power Button

USB Type C Input (Video)

DC12 V Power Input

15.6 Inch

Left Display Menu

Increase

Right Display Menu

Decrease

SCREEN SET UP

Ensure when setting up your screens you place the monitor on a soft

surface to prevent damage to the screens.

First take the extension tube and the stand and screw together. Using the

screw at the top of the extension tube, carefully screw into the base of the

screen. Extend the three feet on the stand and place on a flat surface.

Ensure the screen is stable and secure before use.

Alternatively the stand can be screwed directly into the base of the monitor.

STAND

Extension

Tube

OPERATION

Press and hold the power button for 3 seconds to turn the monitor ON and

OFF. The screen will enter power saving mode when turned on unless

there is a suitable device connected.

The INCREASE AND DECREASE BUTTONS are used to increase or

decrease the brightness (note the increase button should be pressed first to

enter the brightness settings).

MAIN MENU

The display includes a full settings menu which is navigated using the

buttons on the side of the monitor. The buttons on the left relate to the left

screen and the buttons on the right for the right screen). Press the menu

button to enter the Menu for the desired screen. When inside the menu

press the increase button to change between options, menu to select, and

the decrease button to go back. When an option has been selected, the

increase and decrease buttons can be used to adjust it.

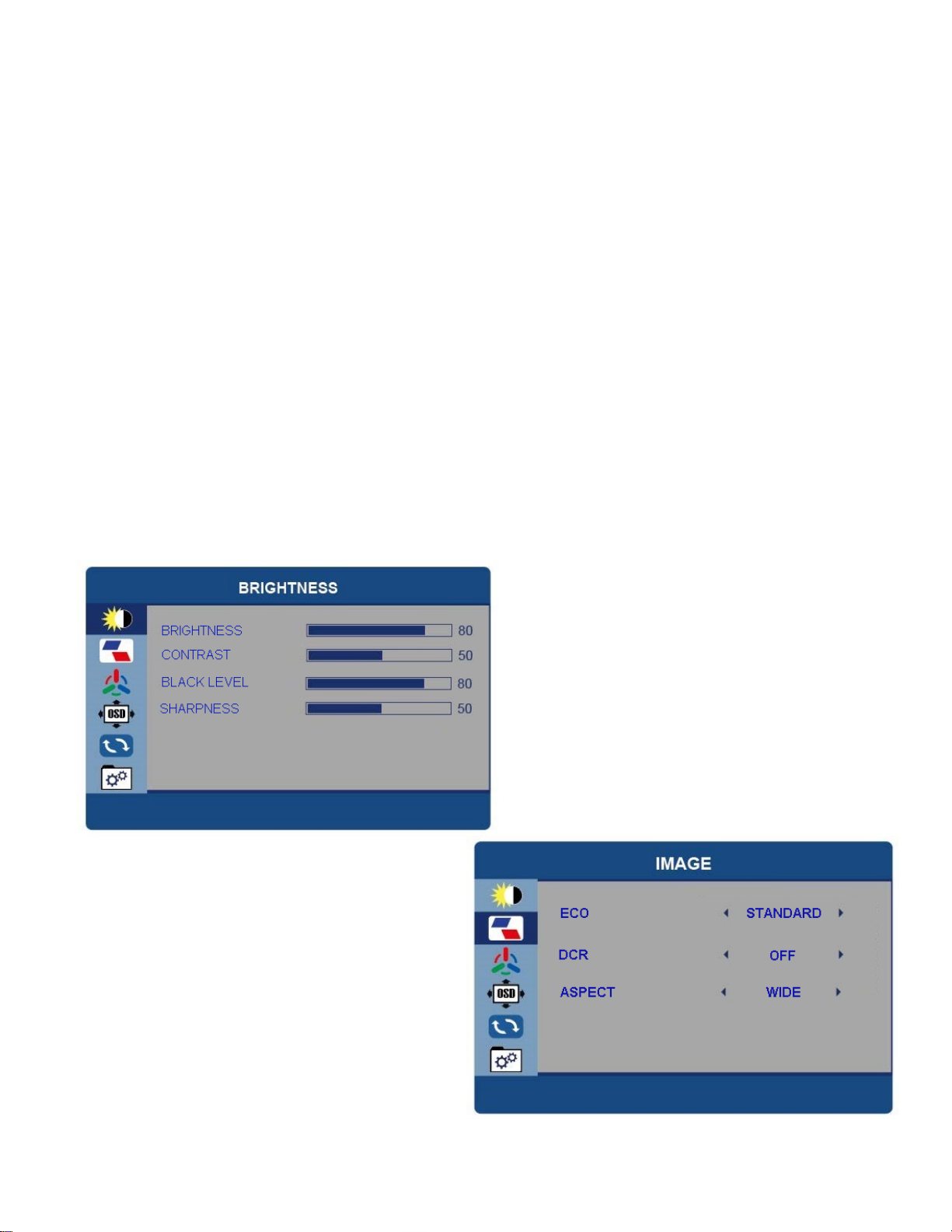

BRIGHTNESS

All options can be adjusted between 0

and 100.


ECO –Can be changed between

STANDARD, RTS, FPS, TEXT, MOVIE

and GAME.

DCR (Dynamic Contrast) –Can be

turned on and off.

ASPECT –Can change the aspect ratio

between Wide and 4:3.

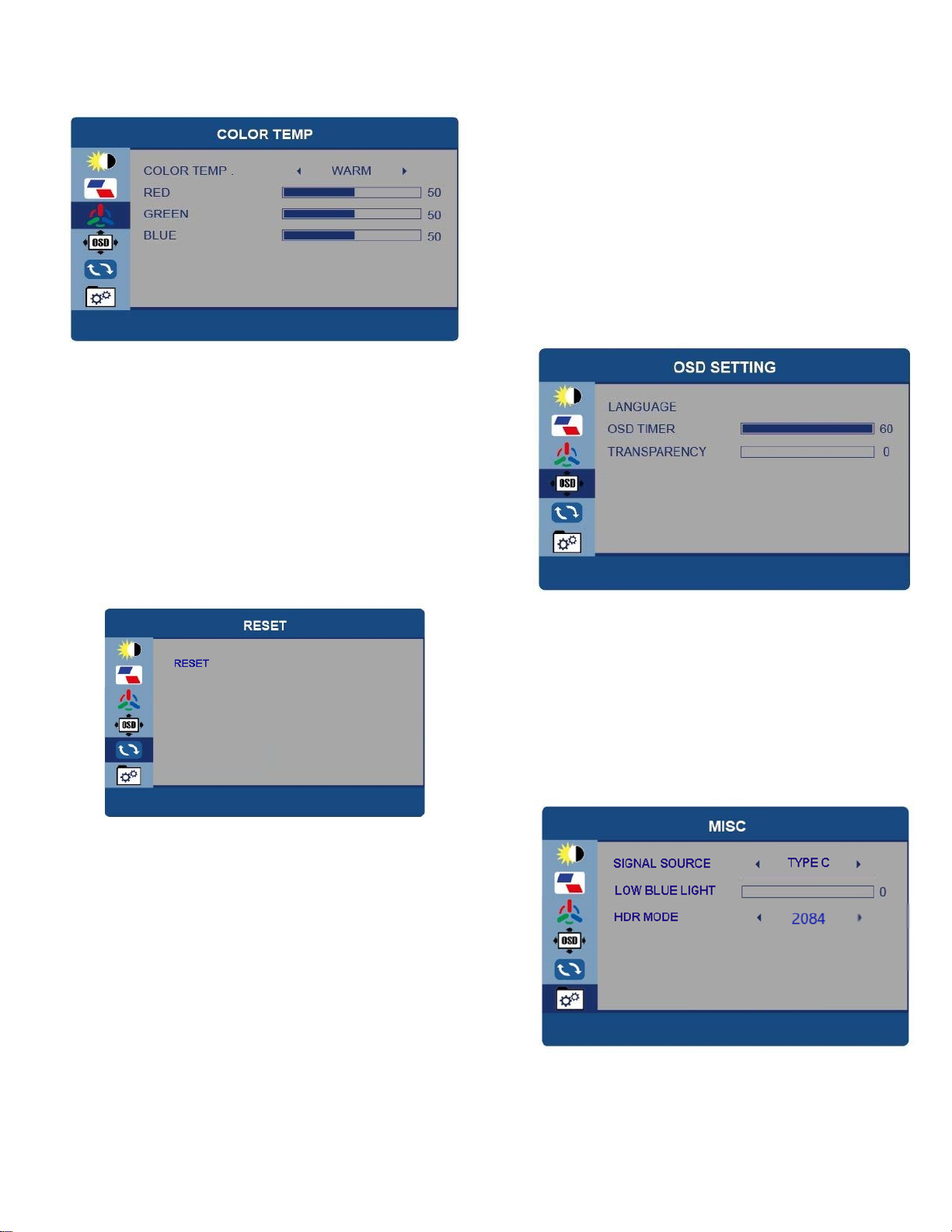

COLOR TEMP

COLOUR TEMP –Change between

USER, WARM and COOL. In USER the

individual RED, GREEN and BLUE values

can be adjusted.

OSD SETTING

LANGUAGE –Change the language of the

Menus.

OSD TIMER –Adjust the amount of time the

menu is shown before the display returns to

normal operation.

TRANSPARANCY –Adjust how see through the

menus are.

RESET

RESET –Return the portable display to factory

settings.

MUTE –Turn the sound On or Off

MISC

SIGNAL SOURCE –N/A

LOW BLUE LIGHT –Adjust the filtering of blue

light from the screen.

HDR MODE (High Dynamic Range) –Change

the HDR mode settings.

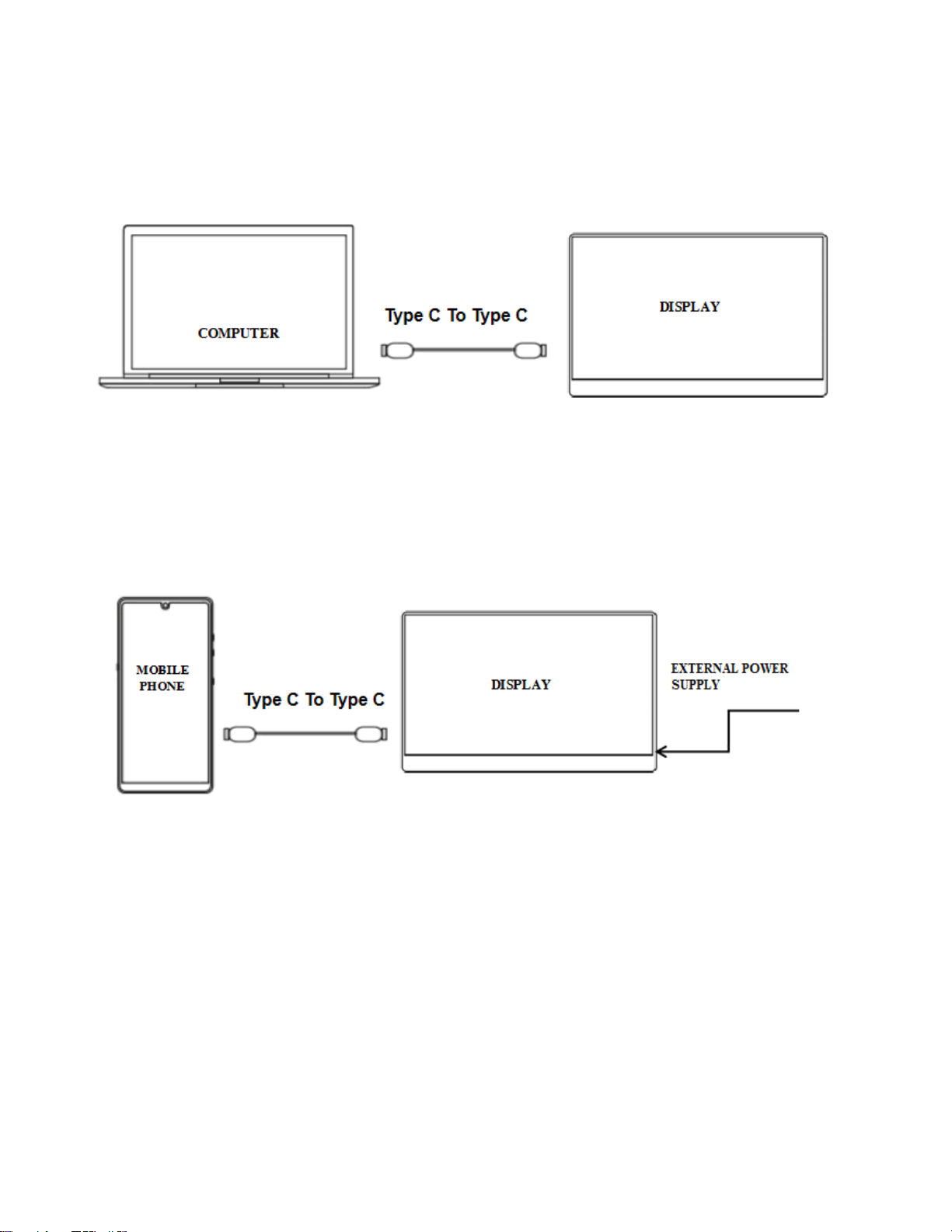

CONNECTING A DEVICE

COMPUTER –VIA USB TYPE C

The portable display can be connected to a compatible computer using the

supplied USB C cable. This can be used for extended display or duplicated

display use.

MOBILE PHONE –VIA USB TYPE C

When connected to the external power supply, the display will operate in

duplicate mode, and so the contents of the phones display will be shown on

both the screens. Unfortunately unlike when connected to PC’s, phones

and tablets do not usually provide an option to extend the display.

WINDOWS PC CONNECTION

Follow the steps to connect your dual monitor to your windows PC. You will

need a PC with a fully functional USB-C type interface that supports Display

port over USB-C.

First, plug in your dual monitor to a power source using the DC12V adaptor.

Press the power button to turn the monitor on. Then connect your PC to the

dual monitor using a USB-C to USB-C lead.

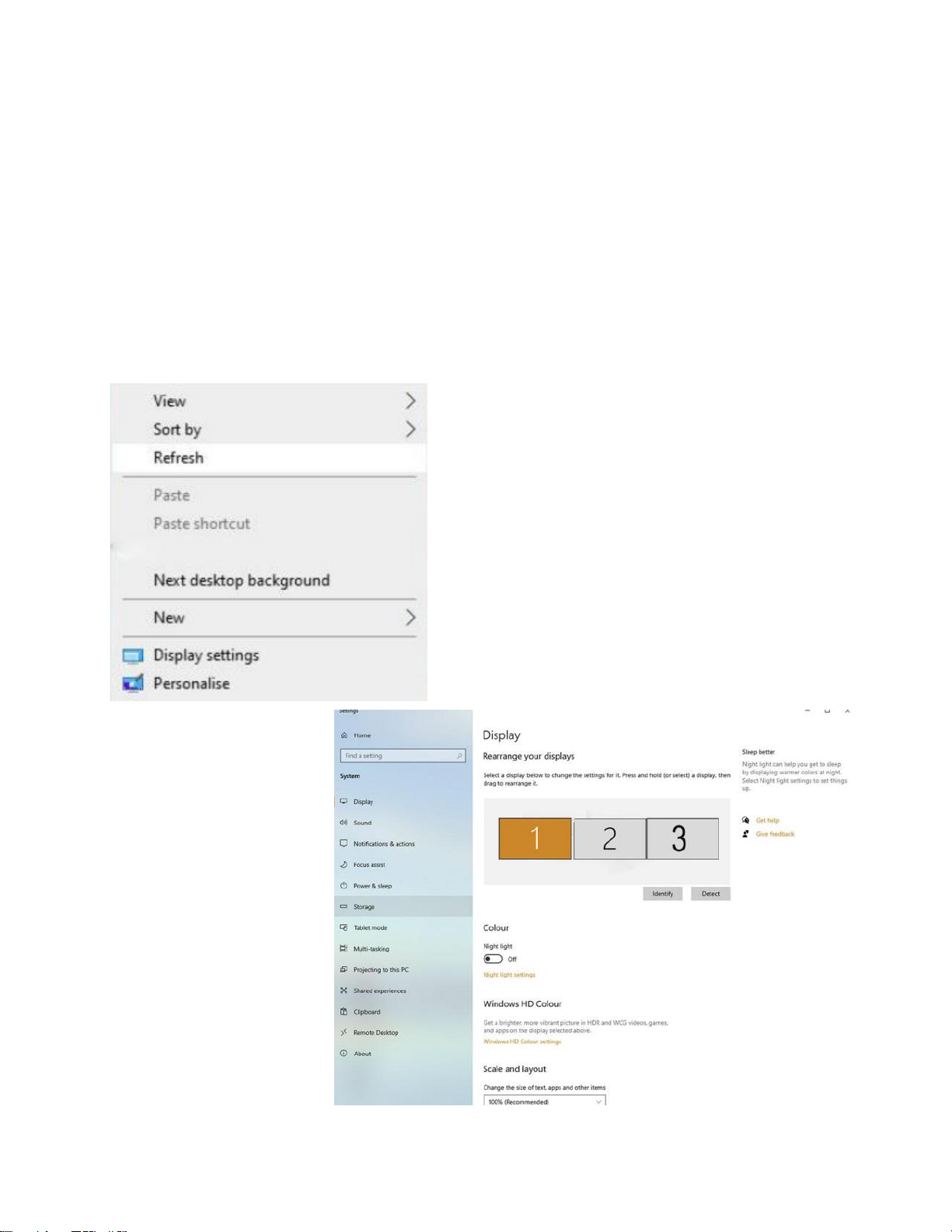

The process is very similar between all windows operating systems. On

Windows 10, right click the mouse on your computer screen.

Select “Display settings”.

You will then enter

the display settings

menu of your PC.

From this screen you

can rearrange your

displays, alter the

resolution and layout

and customize your

screens to your

preference. You can

also choose between

extended and

duplicated displays.
