EL-34
Installation Guide
VFO Stabilizerfor YAESU FT-101 Transceiver
Required Reference Manual - ELcon FLL VFO-Stabilizer

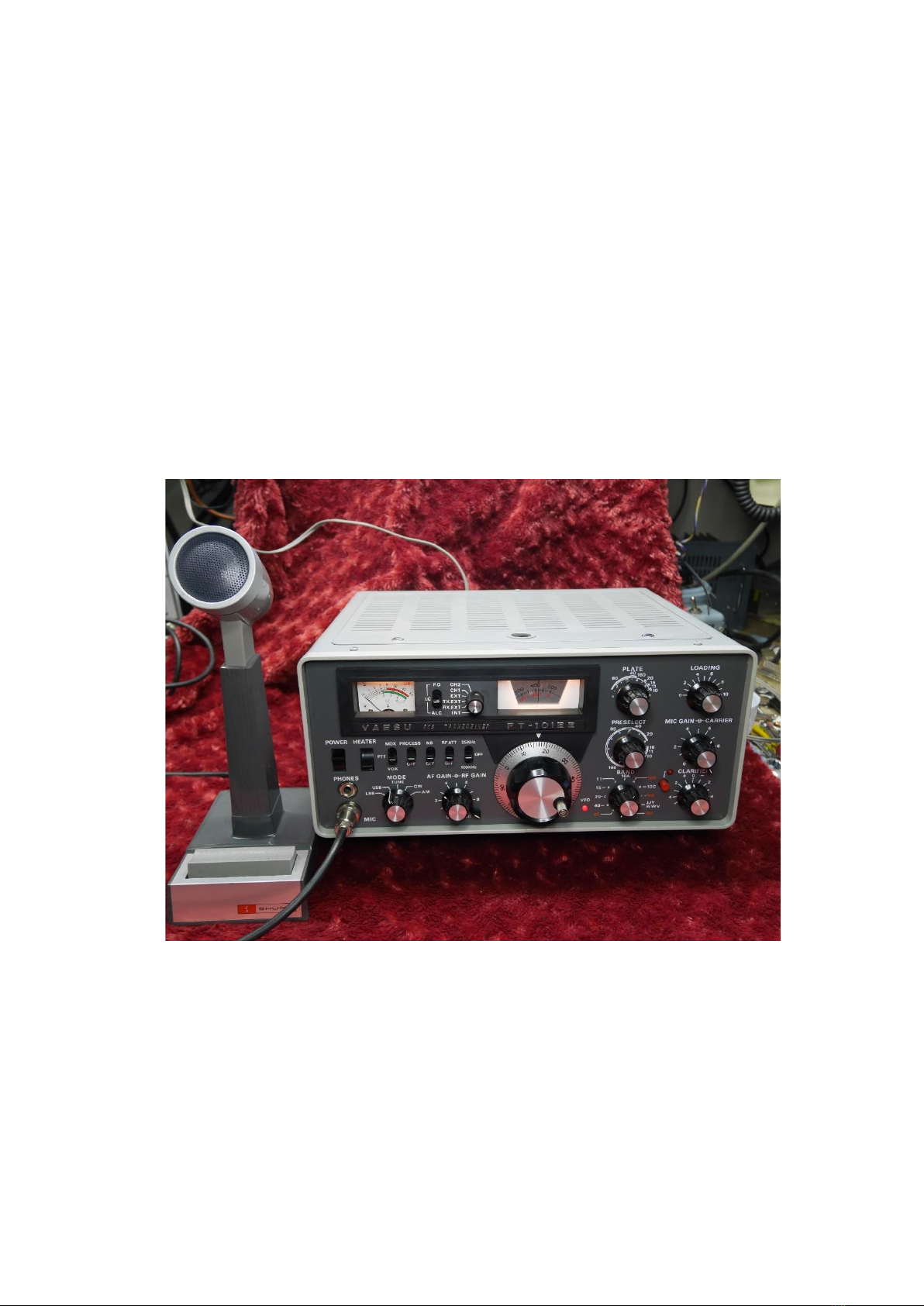

Figure 1- FT-101 after EL-34 modification
Installation description
Version 1.0b
tested and written by Dave Bohlen, N0EDS
July 24, 2020
FT-101 Installation Guide_V1.0a_en.docx July 24, 2020, © Elcon, Switzerland Page2 / 10
Table of contents
1Introductory remarks....................................................................................................................... 3
2Installation Summary ...................................................................................................................... 3
2.1 Installation Steps.................................................................................................................... 4
2.2 The modification of the CLAR control. ................................................................................... 7
2.3 Final lead dress...................................................................................................................... 9
3Appendix....................................................................................................................................... 10
3.1 Ruler..................................................................................................................................... 10
3.2 Disclaimer of liability............................................................................................................. 10
Important! Hints or tips for the correct function of the EL-34.
Watch it! Absolutely observe.
FT-101 Installation Guide_V1.0a_en.docx July 24, 2020, © Elcon, Switzerland Page3 / 10
1 Introductory remarks
Very crowded radio. 50 years ago, this was a very compact portable radio. There is the shelf I
am pointing at. The other side of that is the high voltage section.
Close to the VFO and you see double sided sticky tape. I’ll just stick it to the chassis and
voila!! To the left, the two green coaxes with the yellow sleeves? That is the VFO!
Figure 2- Space for the circuit board
2 Installation Summary
(1) Build, wire and test EL-34 per manual.
(2) Some models have a large electrolytic capacitor mounted in the position shown in pic-
ture. This capacitor is in conjunction with the transformer T-12 as a ripple filter. If you
have this big cap in yours move it out of the way or replace it with a smaller one like
some models use. The one in the picture is physically small and is soldered to the trans-
former T-12 Just observe ufd's and voltage rating.
(3) I use double sided sticky tape to secure the EL-34 to the partition.
(4) Once it is secured and wires plugged in with JST plugs it is time to interface.
FT-101 Installation Guide_V1.0a_en.docx July 24, 2020, © Elcon, Switzerland Page4 / 10
2.1 Installation Steps
(1) Assembled unit in test mode.
Figure 3- Pre-test of the EL-34
(2) Follow testing instruction in manual.
Figure 4- Ground connection
(3) There is convenient screw sticking through from the high voltage cage (see Figure 4-
Ground connection). We will turn this into ground mounting stud with the use of nut and
ground lug. Position the EL-34 so the power wires are on the right end of board next to
ground lug to keep lead length short.
FT-101 Installation Guide_V1.0a_en.docx July 24, 2020, © Elcon, Switzerland Page5 / 10
Figure 5- all PCB connections
(4) This is very convenient spot! Note picture. Solder ground wire to ground lug we created.
Then solder A+ wire to the capacitor attached to T-12. Once again, this capacitor is differ-
ent sizes in different radios? In this radio the picture is of the original capacitor. Now the
EL-34 is mounted and hooked to A+. You are now ready to begin interface.
Figure 6- EL-34 DC connection
FT-101 Installation Guide_V1.0a_en.docx July 24, 2020, © Elcon, Switzerland Page6 / 10
I have labeled the VFO just to make it easy to identify connection points. 6-volt pin is not
used.
(1) Cut wires on left side of EL-34 to approximate length. Note there is a ground between
every connection. Since the wires are short and all go to the same basic place, I opted to
leave off one ground as it would be redundant in this application.
(2) Cut RG-174 (or equivalent) to length leave short service loop, and solder the center con-
ductor to the VFO output pin. Remember any wire cut to length will be to short!
Solder the braid to the convenient ground lug sticking off of VFO. This is where the two
coaxes with yellow sleeves go.
Basically, just hook in parallel with these coaxes.
(3) Unsolder wire from pin labeled CLAR in Figure 7 which comes from the wiper of the CLAR
pot. Solder this wire from the CLAR pot to the wire coming from pin 2 (CLAR In) of the EL-
34. Use heat shrink to insulate.
Solder the wire from pin 4 (VAR, Control Voltage Out) of the EL-34 to the lug labeled
CLAR on the VFO Figure 7. The EL-34 runs in series with the CLAR wire.
Figure 7- Connections to the VFO
FT-101 Installation Guide_V1.0a_en.docx July 24, 2020, © Elcon, Switzerland Page7 / 10
2.2 The modification of the CLAR control.
(1) Because of the way the EL-34 compensates for drift the wires on the Clarifier pot have to
be reversed. Read tech manual if you want to understand why. (optional)
(2) Remove radio from case to gain access to the back of the CLAR pot.
(3) Looking at the back of the CLAR pot you can easily see the three lugs on the back of the
pot. Basically, everything on the left lug has to be moved to the right-hand lug and every-
thing on the right lug has to be moved to the left lug.
Figure 8-Components at the CLAR potentiometer
(4) Remove the blue wire the yellow wire and the CLAR calibration pot from the back of
CLAR pot. See Figure 9.
Figure 9- desoldered zero-point potentiometer and the two wires
(5) Solder the blue wire that you removed from the left lug to the right-hand lug.
(6) Solder the yellow wire that you removed from the right-hand lug and solder it to the left-
hand lug.
FT-101 Installation Guide_V1.0a_en.docx July 24, 2020, © Elcon, Switzerland Page8 / 10
(7) This leaves the CLAR calibration pot to reinstall. (see Figure 11)
(8) Fabricate extension for this step. I used the lead from a 2-watt resister. Form it per pic-
tures. 10 -15mm in length max! About (1/2 inch) MAX! If it is too long it will not align up in
original spot.
(9) Solder to pot per Figure 11. Solder to left hand lug on back of CLAR pot. This will put the
CLAR calibration pot back in the original spot.
Figure 10-Extension wire used for the zero-point potentiometer
Figure 11-Extension wire
FT-101 Installation Guide_V1.0a_en.docx July 24, 2020, © Elcon, Switzerland Page9 / 10
Figure 12-Fully installed and functional VFO stabilizer
2.3 Final lead dress
(1) Note service loop and lead dress in Figure 13. Wires are tie wrapped together and routed
so as not to interfere with existing components.
(2) Perform start-up per manual. Confirm LED turns green! Check your work! Replace in case
and enjoy.
Figure 13 - Completed Top View
FT-101 Installation Guide_V1.0a_en.docx July 24, 2020, © Elcon, Switzerland Page10 / 10
3 Appendix
3.1 Ruler
3.2 Disclaimer of liability
Any actions based on the information contained in this document are taken at the user's own
responsibility. Any liability is excluded, both for direct and indirect damages and consequen-
tial damages that may arise in connection with the use of the information contained in this
document.
