1022M
AMC-1022M SERIES
HAZARDOUS GAS MONITORING
SYSTEM INSTRUCTION MANUAL
AMC
AMCAMC
AMC-
--
-1022M
1022M1022M
1022M
iii
TABLE OF CONTENTS
Page
TABLE OF CONTENTS...................................................................................................III
WARRANTY ................................................................................................................... IV
LIABILITY................................................................................................................................................................IV
MODIFICATIONS AND SUBSTITUTIONS........................................................................................................IV
PRODUCT RETURN UNDER WARRANTY ......................................................................................................IV
SPECIFICATIONS............................................................................................................ V
1 INTRODUCTION........................................................................................................ 1
1.1 GENERAL DESCRIPTION......................................................................................................................... 1
Figure 1.1 Three circuit miniature switch........................................................................................... 2
Figure 1.2 AMC-1022M series monitor, front panel......................................................................... 3
Figure 1.3 AMC-1022M series monitor, inside front panel. ............................................................. 4
Figure 1.4 AMC-1022M series monitor, inside power/relay panel. .................................................. 5
2 INSTALLATION......................................................................................................... 6
2.1 LOCATION AND MOUNTING................................................................................................................. 6
2.2 WIRING OF THE MONITOR & SENSORS AND/OR TRANSMITTERS........................................... 6
Figure 2.1 Monitor power supply connections. ................................................................................ 7
2.3 SCHEDULE OF CABLE SIZES ................................................................................................................. 7
Figure 2.2 Monitor mounting dimensions. ........................................................................................8
Figure 2.3 remote sensor/transmitter wiring layout (one channel) .................................................... 9
Figure 2.4 Relay contact arrangement ............................................................................................. 10
3 OPERATION AND CALIBRATION ....................................................................... 11
3.1 OPERATION............................................................................................................................................... 11
3.2 CALIBRATION.......................................................................................................................................... 11
3.2.1 APPLYING CALIBRATION GAS SAMPLE(S) ................................................................ 11
3.2.2 ADJUSTMENTS.................................................................................................................. 11
Figure 3.1 Trimmer adjustments and test point locations................................................................. 13
4 MAINTENANCE....................................................................................................... 14
4.1 GENERAL................................................................................................................................................... 14
4.2 VERIFICATION OF OPERATION.......................................................................................................... 14
4.3 SENSOR REPLACEMENT....................................................................................................................... 14
AMC
AMCAMC
AMC-
--
-1022M
1022M1022M
1022M
iv
WARRANTY
The AMC-1022M series monitor is warranteed against defects in material and workmanship for a period of
two years from date of delivery. During the warranty period, we will repair or replace components that
prove to be defective in the opinion of the Armstrong Monitoring Corporation. We are not liable for
auxiliary interfaced equipment, nor consequential damage.
NOTE
ANY SUBSTITUTION OR TAMPERING WITH COMPONENTS WITHOUT THE EXPRESS
PERMISSION OF THE ARMSTRONG MONITORING CORPORATION MAY RESULT IN
DAMAGE THAT MAY CANCEL THE EFFECTIVENESS OF THE WARRANTY.
LIABILITY
All Armstrong Monitoring Systems must be installed and maintained according to instructions. Only
qualified technicians should install and maintain the equipment.
The Armstrong Monitoring Corporation shall not be responsible for any liability arising from auxiliary
interfaced equipment, consequential damage, or the installation and operation of this equipment.
Armstrong’s total liability is contained in the warranty conditions stipulated above. No other acceptance of
liability is expressed or implied by the Armstrong Monitoring Corporation.
Read this manual carefully, as the purchaser is entirely responsible for installation and operation.
MODIFICATIONS AND SUBSTITUTIONS
Due to an ongoing development program, Armstrong reserves the right to modify the design and substitute
components in any of its products without prior notice. All changes are at the sole discretion of Armstrong,
and Armstrong shall not be liable for any costs arising out of such modifications or substitutions, which
may be incurred by the user.
PRODUCT RETURN UNDER WARRANTY
All products that must be returned for warranty service will be by prepaid freight and they will only be
accepted with an R.M.A. number issued by The ARMSTRONG MONITORING CORPORATION. Goods
returned to the client will be freight collect.
AMC
AMCAMC
AMC-
--
-1022M
1022M1022M
1022M
v
SPECIFICATIONS
Monitor Serial Number........................................................................................................_______________
Power Supply Requirement ....................................................................................................120 VAC, 60 Hz
Fuse Type and Rating.............................................................................................................. 3AG, ___ Amp
Operating Temperature Range...................................................................................................... 0°C to 40°C
Sensors/Transmitters Alarm Trip Points
Chan.
No. Part No. Serial No.
Type of Gas
Low High
1
2
3
4
5
6
7
8
9
10
11
12
NOTE
ALL ARMSTRONG MONITORING SYSTEMS MUST BE INSTALLED AND MAINTAINED
ACCORDING TO INSTRUCTIONS, TO ASSURE PROPER OPERATION. ONLY QUALIFIED
TECHNICIANS SHOULD INSTALL AND MAINTAIN THE EQUIPMENT.
AMC
AMCAMC
AMC-
--
-1022M
1022M1022M
1022M
1
1 INTRODUCTION
1.1 GENERAL DESCRIPTION
NOTE
ITEMS 6 THROUGH 17 DESCRIBE FEATURES OF ONE CHANNEL ONLY. THESE
FEATURES ARE NORMALLY IDENTICAL FOR ALL CHANNELS.
The AMC-1022M is a multi-sensor gas monitoring system designed to continuously monitor for traces of
hazardous gases (listed in Specifications, page v). It can be calibrated to detect a wide variety of gases, and
each channel can monitor a different gas. The monitor comes with the following features as shown in
Figures 1-2, 1-3 and 1-4:
1. POWER SWITCH -Main AC power switch for all channels.
2. FUSE HOLDER -Front panel mounted for easy access to the fuse.
3. AUDIO ALARM INDICATOR -When operational (see item 14), the buzzer will
activate when a high alarm condition occurs.
4. CLAMPS -To secure the front panel, restricting access to internal
controls.
5. POWER TERMINAL BLOCK -For line voltage connections (120 VAC, 60 Hz.).
6. POWER ON INDICATOR -Power is indicated by a green LED.
7. FAIL INDICATOR -Sensor/transmitter signal fail is indicated by an amber
LED. (Only when this option is installed).
8. HIGH ALARM INDICATOR -High levels of gas is indicated by a red LED.
9. LOW ALARM INDICATOR -Low levels of gas is indicated by a yellow LED.
10. TEST SWITCH -The test switch is provided to electronically simulate
alarms in order to test the low and high alarm
indicators, relays, and the audio alarm indicator.
11. HIGH ALARM ADJUST -Sets the High alarm trip point.
12. LOW ALARM ADJUST -Sets the Low alarm trip point.
13. SIGNAL ADJUST -Sets the sensitivity of the sensor. (Not required for
transmitter).
AMC
AMCAMC
AMC-
--
-1022M
1022M1022M
1022M
2
14. THREE CIRCUIT MINIATURE SWITCH -Each actuator on the miniature switch controls a
different circuit as shown in Figure 1-1. If the actuator
is set in the UP position, its corresponding circuit is
ON. If the actuator is set in the DOWN position, the
circuit is OFF.
LEFT ACTUATOR: Provides a TEN minute time delay, when switch is ON, to eliminate
unnecessary alarms caused by momentary exposure to high levels of
gas.
MIDDLE ACTUATOR: Provides a FIVE minute time delay, when switch is ON, to eliminate
unnecessary alarms caused by momentary exposure to low levels of
gas.
RIGHT ACTUATOR: Controls the audio alarm indicator. When ON, the buzzer will activate
when a high alarm condition occurs.

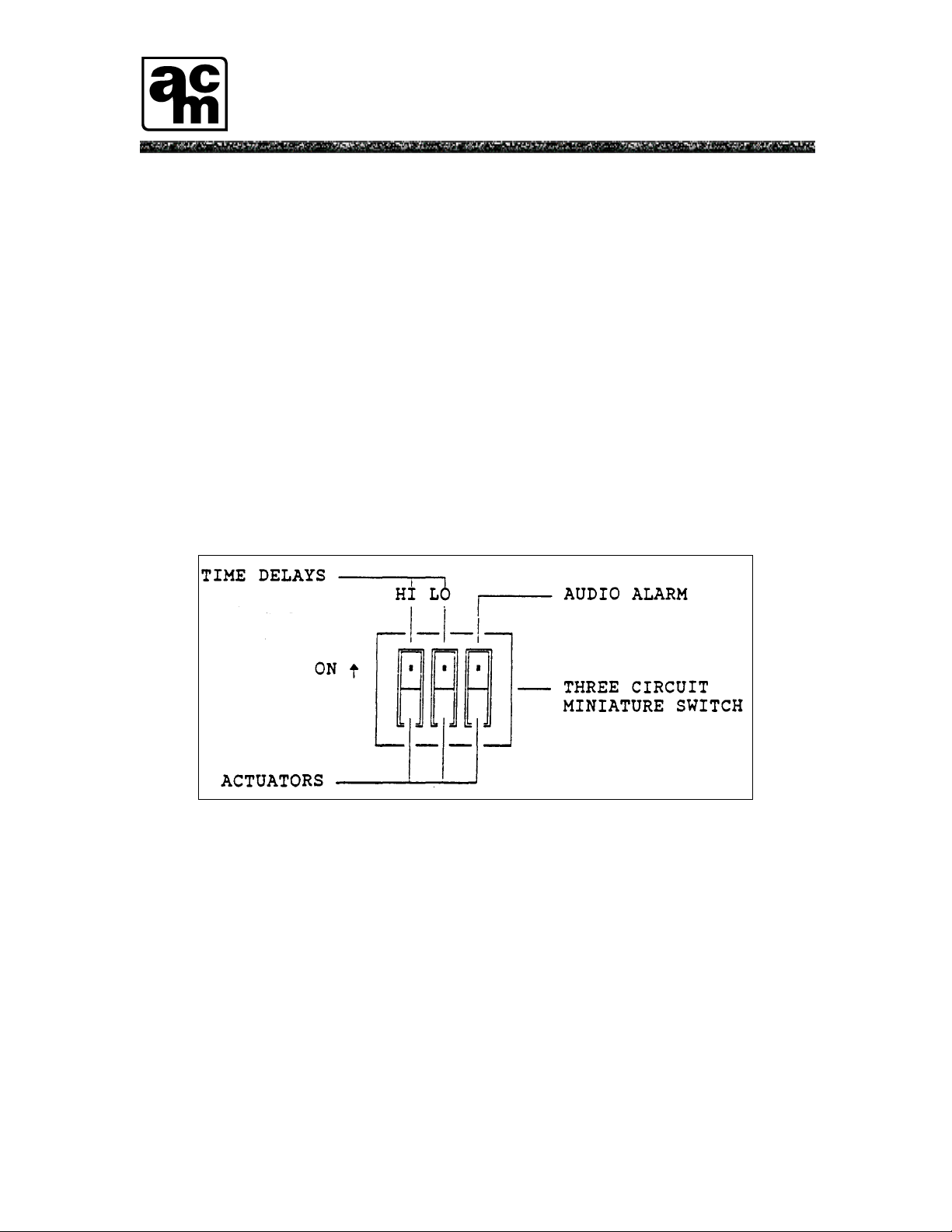

FIGURE 1.1 THREE CIRCUIT MINIATURE SWITCH
15. RELAYS -There are two DPDT relays per channel which work
with high alarm and low alarm respectively.
16. TRANSFORMER -Class II, step down transformers run the internal
circuitry at low voltages.
17. SENSOR TERMINAL BLOCK -For remote sensor or transmitter connections.
AMC
AMCAMC
AMC-
--
-1022M
1022M1022M
1022M
3
FIGURE 1.2 AMC-1022M SERIES MONITOR, FRONT PANEL.
AMC
AMCAMC
AMC-
--
-1022M
1022M1022M
1022M
4
FIGURE 1.3 AMC-1022M SERIES MONITOR, INSIDE FRONT PANEL.
AMC
AMCAMC
AMC-
--
-1022M
1022M1022M
1022M
5

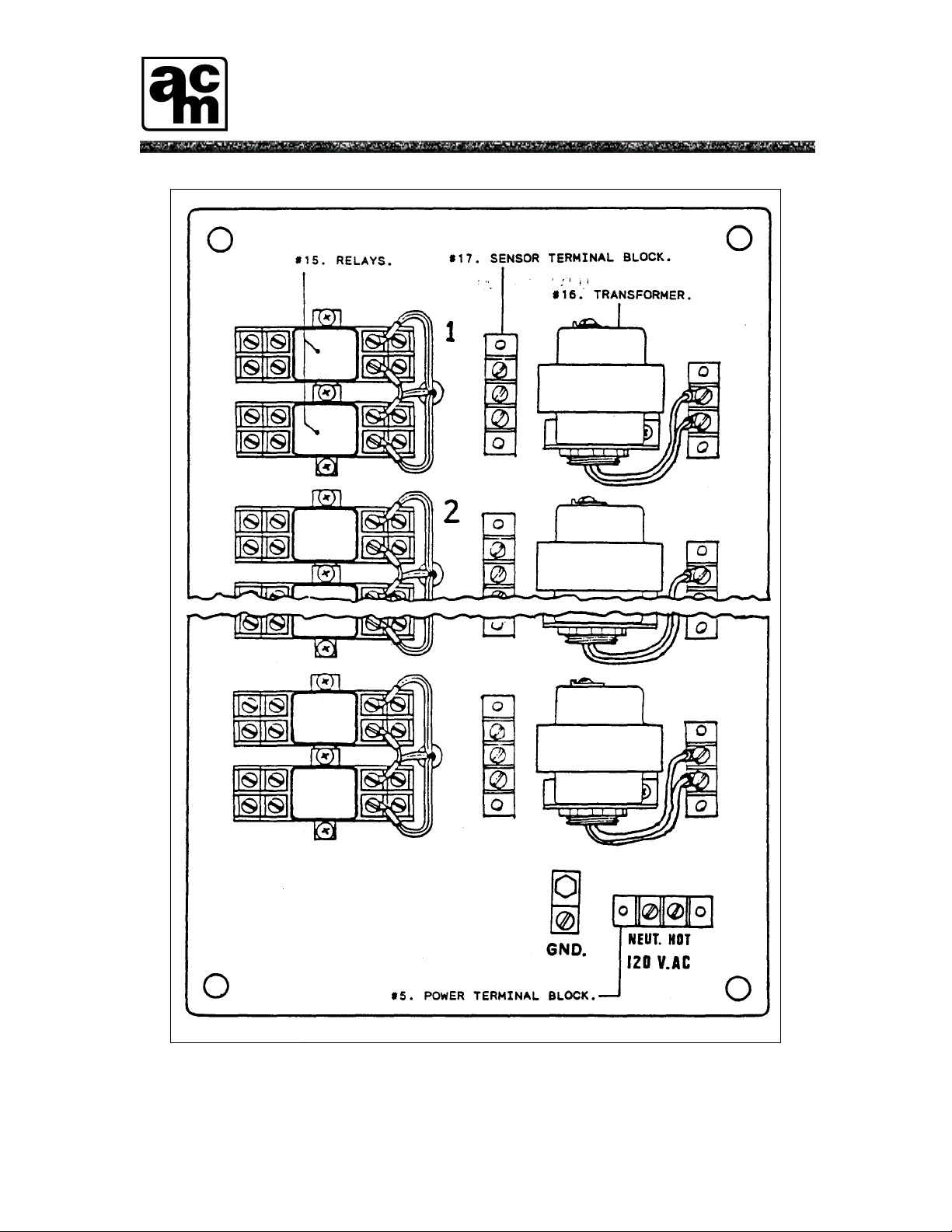

FIGURE 1.4 AMC-1022M SERIES MONITOR, INSIDE POWER/RELAY PANEL.
