Owner’s Manual

Please read this manual carefully before

operating your set.

Retain it for future reference.

Record model number and serial number

of the set.

See the label attached on the set and

quote this information to your dealer

when you require service.

For The Warranty Terms & Conditions, Please Refer To Warranty Certificate

B.I. INDUCTION CERAMIC HOB

MODEL: EICH-K7072ST(BK)

We recommend that you read the instructions in this owner’s manual carefully

before using it for the best performance and to extend the lifespan of your appliance, as

it will provide you with all the instructions you require to ensure its safe installation, use

and maintenance.

Safety Precautions

Edges of the appliance may be sharp, extra cautions must be paid to avoid injury

cause by the sharp edges.

To ensure your safety, all electric appliances should only be installed or serviced

by qualified technician. If the supply cord is damaged, it must be replaced by the

authorized service center or similarly qualified technician in order to avoidhazard.

Do not place supply cord on the edge of table and counter, or near any heating

appliance.

In order to avoid electric shock, do not immerse supply cord, plug or other parts

into water.

Do not place the appliance near electric stove, heated oven, microwave or other

heat source.

In order to avoid burning or explosion, combustibles or flammable material

(curtains, cloth, wallpaper and others) should be kept away from the appliance.

Do not place plastic or other similar items on the cooktop.

This appliance does not come with a plug preassembled and it has to be properly

installed and earthed with a connecting fuse with the load of 15A.

The glass surface may become hot during use. Please keep away from children

and never touch the glass with bare hands.

Disconnect the appliance from the power supply and wait until it is cool before carry

out cleaning or maintenance.

In order to avoid electric shock, never use metal wire brush to clean the appliance

as pieces of metal are easy to touch live part.

Never use metal scouring pads or sharp scrapers which will damage the glass

surface leading to broken or scratches.

In order to avoid burn or electric shock, never put too much food or metal utensils

on the cooktop.

Please make sure the hob has been switched off when it is not in used and

unplugged from the socket when you are planning not to use the appliance for a

longtime.

Other purpose except cooking is not allowed.

Do not rest heavy object on the glass surface. This may damage the glass.

Do not cook on a broken or cracked cooktop. If the cooktop surface has been

broken, switch off the appliance immediately at the electrical mains and contact the

service center.

Never leave the appliance unattended when in use.

This appliance is not intended for use by persons (including children) with reduced

physical sensory or mental capabilities, or lack of experience and knowledge,

unless they have been given supervision or instruction concerning use of the

appliance by a person responsible for their safety.

Do not use a steam cleaner to clean your cooktop.

Do not cook the food directly on the glass surface without any cooking utensils.

Installation

Selection of installation equipment

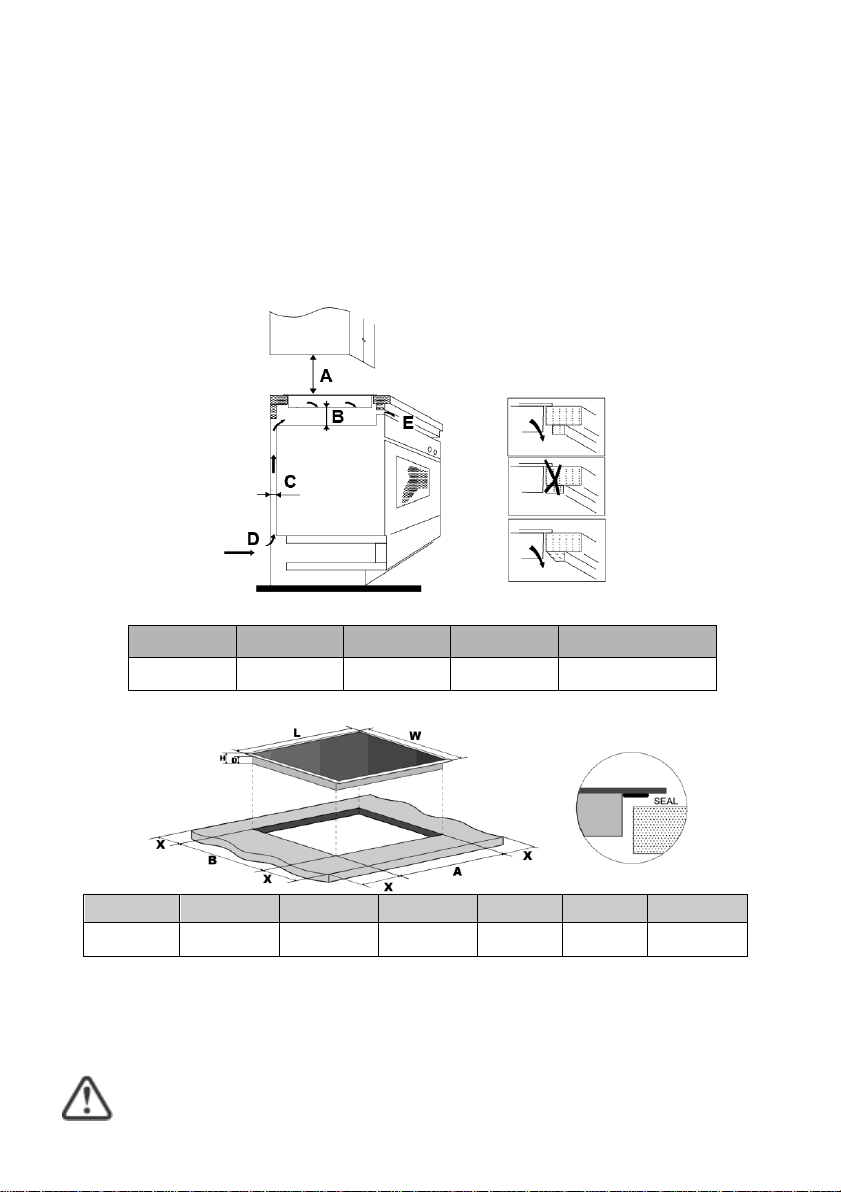

1. Cut out the work surface according to the sizes shown in the drawing. For the

purpose of installation and use, a minimum of 50mm space shall be preserved

around the hole. Be sure that the thickness of the work surface is at least 30mm.

Please select heat-resistant work surface material to avoid larger deformation

caused by the heat radiation from the appliance. Installation as shown below:

A(mm)

B(mm)

C(mm)

760

50 mini

20 mini

Air intake

Air exit 5 mm

Under any circumstances, make sure the hob is well ventilated and the air inlet and outlet

are not blocked. Ensure the hob is in good working condition as shown above.

Note: The safety distance between the hotplate and the cupboard above the

hotplate should be at least 760mm.

L(mm) W(mm) H(mm) D(mm) A(mm) B(mm) X(mm)

710 410 58 54 680 380 Min 50

Before locating the fixing brackets

The unit should be placed on a stable, smooth surface (use the packaging). Do not apply

force onto the controls protruding from the hob. Fix the hob on the work surface by screw

four brackets on the bottom of hob (see picture) after installation. Adjust the bracket

position to suit for different work surface’s thickness.

Connecting the hob to the mains power supply

The power supply should be connected in compliance with the relevant standard, or a

single-pole circuit breaker. The method of connection is shown below.

If the cable is damaged or needs replacing, this should be done by an authorized

technician using the proper tools, so as to avoid any accidents.

If the appliance is being connected directly to the mains supply, an omnipolar circuit

breaker must be installed with a minimum gap of 3mm between thecontacts.

The installer must ensure that the correct electrical connection has been made and it

complies with the safety regulations.

The cable must not be bent or compressed and shall be checked regularly.

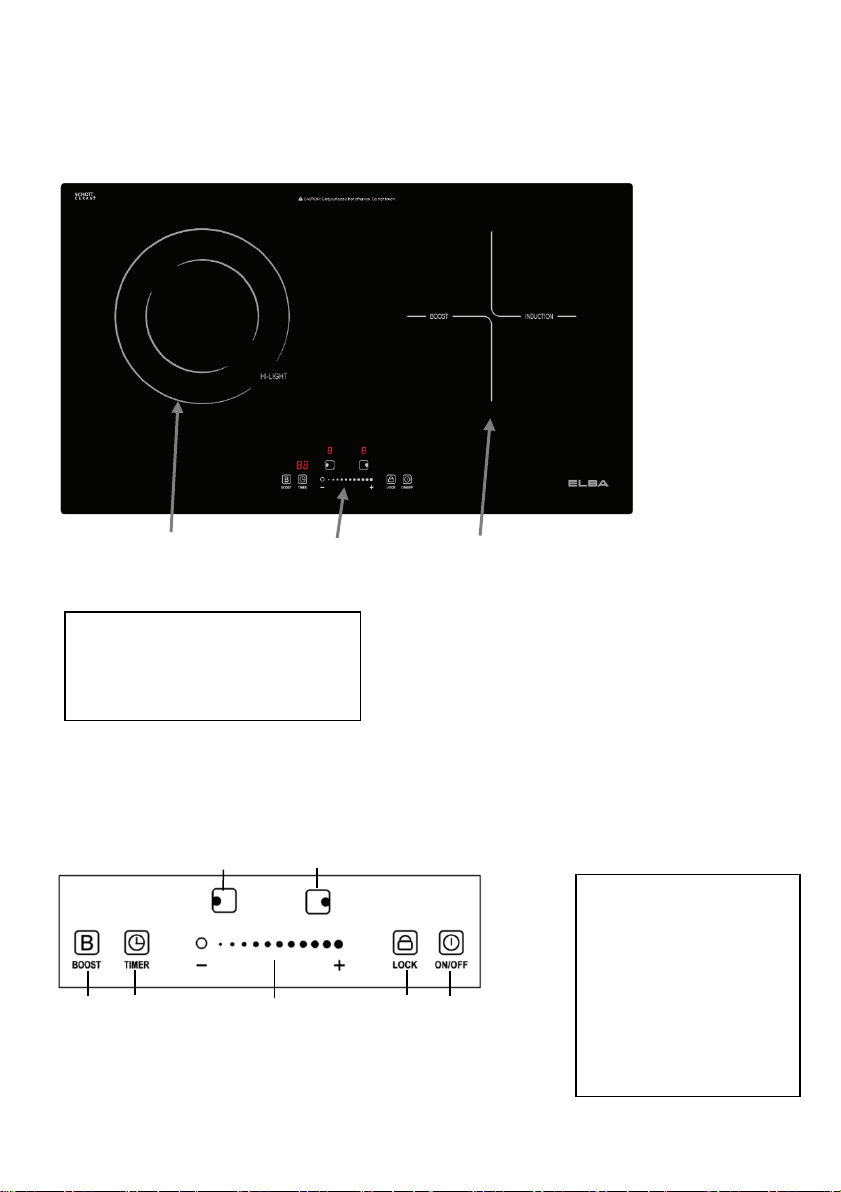

Product Overview

Top View

Control Panel

1. ON/OFF

2. Power Control

3. Timer Control

4. Child Lock

5. Heating Zone

6. Boost Control

1. Min/Max. 1100/2200 W zone

2. Min/Max. 1800/2100 W zone

3. Control panel

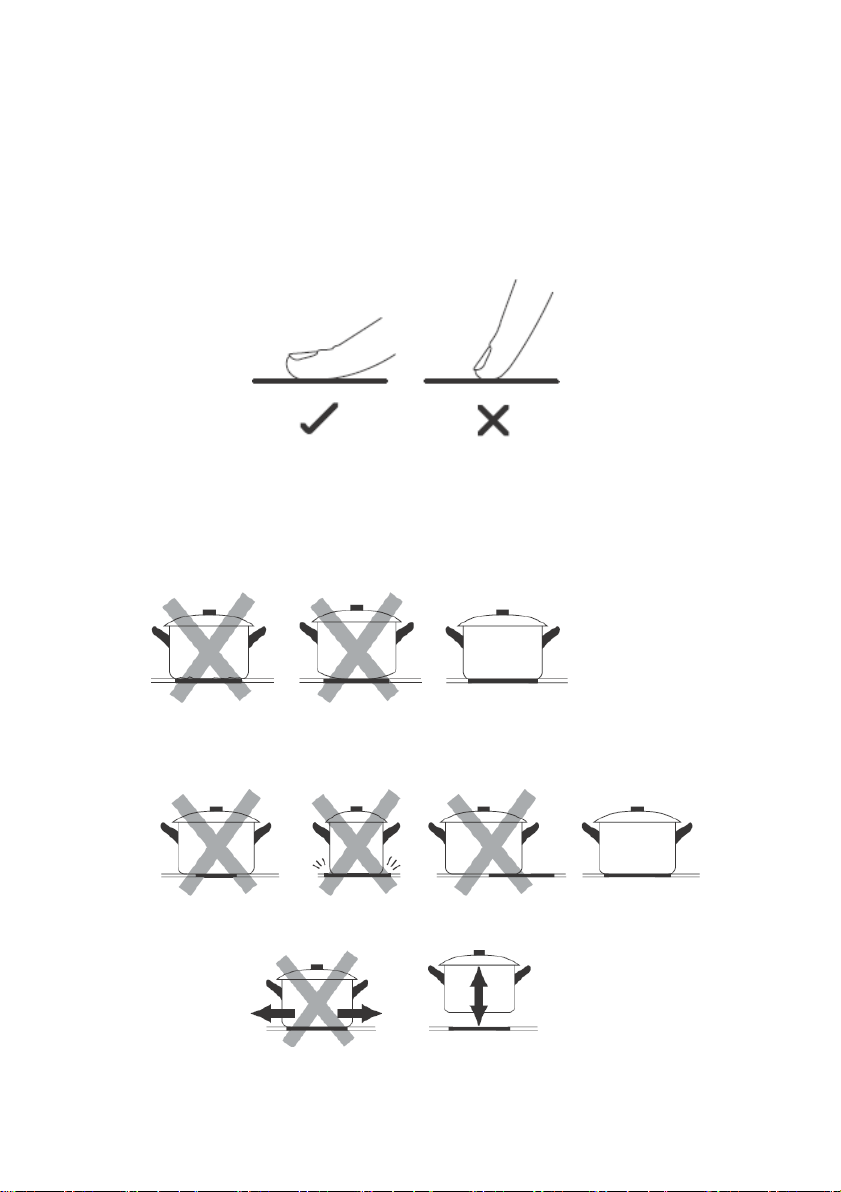

Using the Touch Controls

•

The controls respond to sensor touch, so you don’t need to apply any pressure.

•

Use the ball of your finger, not its tip.

•

You will hear a beep corresponding to the sensor touch function.

•

Make sure the controls are always clean, dry, and that there is no object (e.g. a

utensil or a cloth) covering them. Even a thin film of water may make the controls

difficult to operate.

Choosing the right Cookware

Do not use cookware with jagged edges or a curved base.

Make sure that the base of your pan is smooth, sits flat against the glass, and is the

same size as the cooking zone. Always centre your pan on the cooking zone.

Always lift pans off the hob –do not slide / touch, or they may scratch the glass.

Using Suitable Cookware for Induction

Use cookware made from ferromagnetic materials which are compatible with the induction

principle. Look for the induction symbol on the packaging or on the bottom of the pan. We

recommend cookware made from cast iron, enamel coated steel or stainless steel

cookware designed for induction cooking. Pans made of pure stainless steel, aluminum or

copper without magnetic base, glass, wood, porcelain, ceramic and stoneware are not

suitable for use in the induction zone. Cookware with aluminum bottoms is not

recommended as it can cause metallic, shiny marks to appear on the glass ceramic surface

which are difficult to remove.

To test the compatibility of the cookware

Turn on the appliance and put some water in the cookware you want to check, and then

place the cookware on a cooking zone at any power level. You will notice that the

induction cooker remain cooking. If the power display the error code , the cookware is

incompatible and unsuitable for use with induction cooking.

To obtain best results

•

Cookware with thick flat bases should be chosen for the beneﬁt of uniform heat

distribution. Avoid using cookware with rough or deformed bases.

•

Use of cookware with enamel coated base can prevent the glass top from getting

scratched.

•

Always use pans with a diameter large enough to cover the cooking zone fully to

achieve even cooking and more efficient heat distribution.

Size of burner (mm) The minimum cookware (diameter /mm)

210 160

Using your Induction/Ceramic Hob

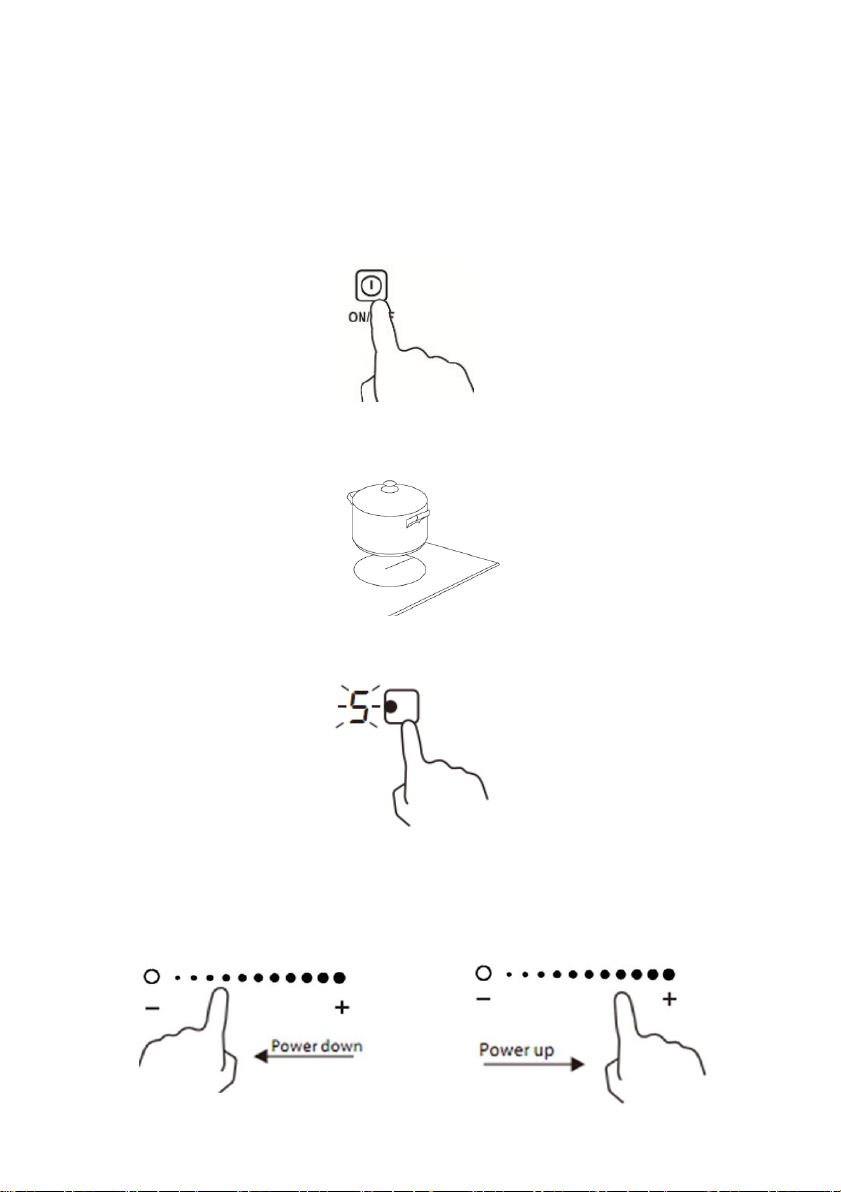

To start cooking

After power on, the buzzer beeps once. All the indicators light up for 1 second then go out.

Indicating the induction hob has entered the state of standby mode.

Touch the ON/OFF control. All the indicators show “-“.

Place a suitable pan on the cooking zone that you wish to use. Make sure the bottom

of the pan and the surface of the cooking zone are clean and dry.

Touch the heating zone selection control.

Select a heat setting by sliding the control panel. If you don’t choose a heat setting within

1 minute, the induction/ceramic hob will automatically switch off. You will need to start

again from step 1. You can modify the heat setting at any time during cooking. By sliding

to left or right direction, the value will adjust up or down.

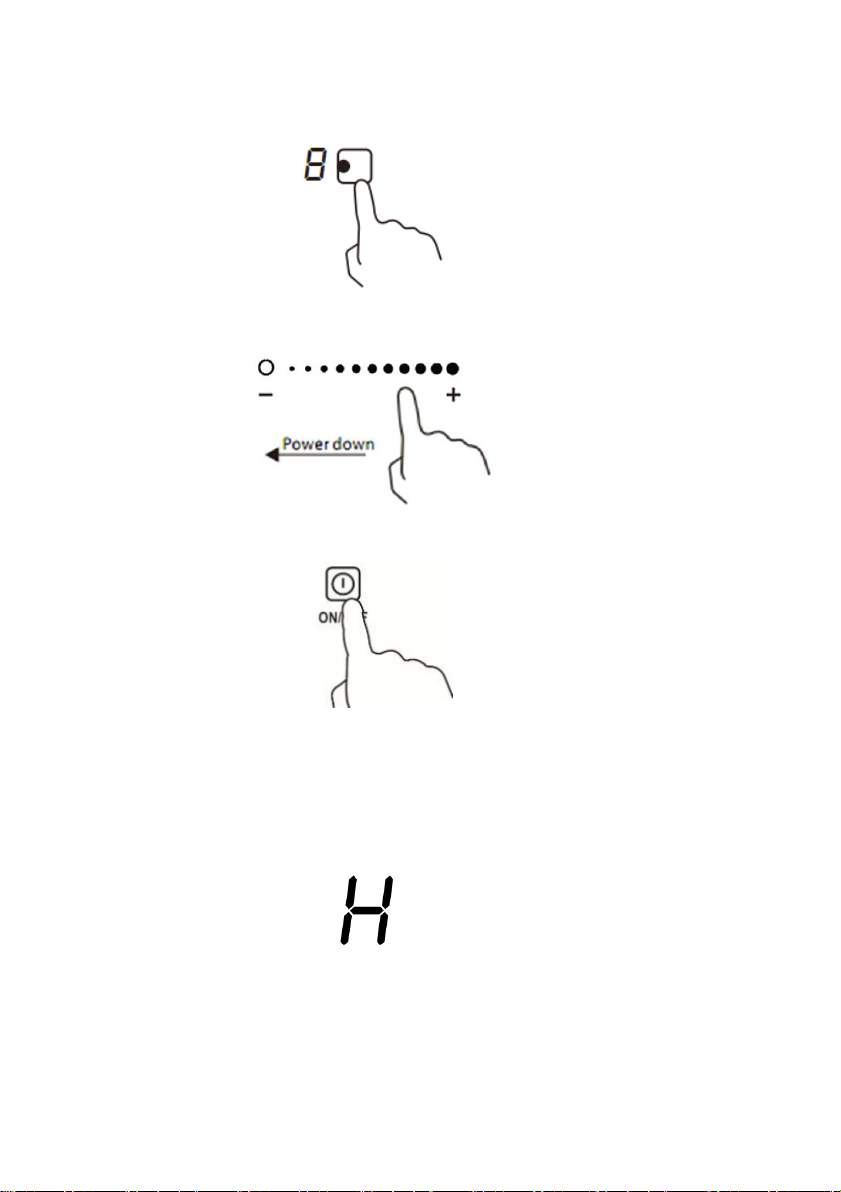

When you have finished cooking

1.Touching the heating zone selection control that you wish to switchoff.

2.Turn the cooking zone off by sliding to left to area “0” until display show “0”.

3.Turn the whole cooktop off by touching the ON/OFF control.

4.Beware of hot surfaces. “H” will show which cooking zone is hot to touch. It will

disappear when the surface has cooled down to a safe temperature. It can also be

used as an energy saving function if you want to heat further pans, use the hotplate

that is stillhot.
