BUILT-IN HOB

MODEL: EGH-K8942G(BK)

EGH-K8943G(BK)

These instructions have been drawn up for your safety and that of others. You

are therefore requested to read them carefully before installing and using the

appliance. Keep this instruction manual for future reference as necessary. If

the appliance is sold or moved, make sure that the manual is handed over to

the new user.

INSTALLATION

Installation of the appliance and its connection to the gas supplies must only

be carried out by qualified technician. It is important to check that the

appliance is connected completely to the gas supplies before using.

- It is risky to modify or attempt to modify the characteristics of this product.

- After removing the appliance from the packaging, make sure that it is not

damaged and in perfect condition. Otherwise, please contact your dealer

before installing the appliance into operation.

- The manufacturer declines all responsibility in case of failure to comply

with the accident prevention regulations.

- Make sure that air is able to circulate freely around the appliance. Installing

the appliance into the built-in cabinet must provide sufficient moving air

flow at the bottom of the appliance to avoid hazard.

- Prior to installation, ensure that the local distribution conditions (nature of

the gas and gas pressure) and the adjustment of the appliance are

compatible.

- Use of a gas cooking appliance produces heat and moisture in the room in

which it is installed. Ensure that the room is well ventilated by keeping the

air intakes open or by installing an extractor hood with discharge pipe.

- If the appliance is used intensively for a long time the effectiveness of the

ventilation will have to be increased, for example by opening a window or

increasing the power of any electric extractor fan.

- Make sure the cabinet or the bottom of the hob is well ventilated and not in

a complete closed compartment.

- After installation, please ensure no gas leakage is detected before using

the appliance.

CHILDREN’S SAFETY

- This appliance must only be used by adults. Make sure that children do not

touch the controls or play with the appliance.

- The exposed parts of this appliance heat up during cooking and remain hot

for some time even after it is switched off. Keep children well away until the

appliance has cooled down.

CLEANING AND MAINTENANCE

- Keep the appliance thoroughly cleaned. Food residues may cause the risk

of fire.

SERVICE AND PARTS

- In the instance of malfunctions, never attempt to repair the appliance

yourself.

- Repairs by unauthorized technician may cause damage and accidents.

Please refer to the contents of this manual. If you do not find the necessary

information, contact the authorized service center.

- Servicing work on this appliance must be carried out by an authorized

technical service centre. Always request the use of original spare parts.

- Use only original parts that match with the appliance, do not modify or add

parts or accessory to use with the appliance.

- This appliance is designed suitable for LPG gas source only. Should you

required to change to other gas sources, please contact our service centre

for purchasing of parts to conversion.

- Caution: Use only low pressure regulator for this appliance.

DESCRIPTION OF THE HOB

1. Control Knobs

2. Triple Ring Burners

3. Pan Support

4. Ignition Point

5. Safety Valve (Thermocouple)

INSTRUCTIONS FOR USE

The symbols on the control knobs corresponding to the following:

No gas flow

Maximum gas flow

Minimum gas flow

OPERATING INSTRUCTIONS

Before using the appliance, make sure the ignition knob is in the “OFF”

position and turn on the main cock. After using, ensure to turn off the ignition

knob and main cock.

TURN ON THE APPLIANCE

Press and turn the ignition knob counter clockwise for 3 to

5 seconds to higher flame position slowly. Make sure that

the burner has lit.

When you start to use the unit for the first time or the unit

has not been used for a long period of time, it sometimes

happens that the burner is not ignited easily. This is

because the gas needs to fill up the rubber hose before

reaching to the burners. After lighting the flame, keep the

knob pressed for about 10 seconds. This is necessary to

heat up the thermocouple and activate the safety valve (if

any), which would otherwise cut off the gas flow.

CONTROLLING THE FLAME

Control the knob between max and min to regulate the

flame. Turn the knob counter clockwise to the minimum

position to set the lowest cooking output level.

Remarks: When the flame is reduced suddenly it may

happen to turn off the burner. Always make sure the

burner is ignited when the power is in minimum level.

Turn the ignition knob clockwise up to the OFF position

without pressing it. The gas will stop supply to the burner

and the burner will be switched off.

Remarks: Always make sure the ignition knob is at OFF

position when not in use.

ATTENTION: If the flame does not light after a few attempts, check that the

burner cap and burner base are correctly positioned.

CAUTION: Always ensure the burner cap is placed in its original position

correctly as shown to avoid any incident and damage its original shape.

The manufacture denies all claim arise from the burner due to improper

placement of the burner ring.

DURING USE

This product is designed to cook food for household and for non-professional

purposes. It should not be used for any other purpose.

- After using the appliance, make sure that all controls are in “OFF” position.

- If you use an electrical socket close to this appliance, make sure that the

cables of the appliances you are using are distance away from the cooking

zones of this appliance.

RISK OF DEFLAGRATION

In the event of the burner flames being accidently extinguished, turn off the

burner control knob and open a window or the door to the room. Do not

attempt to re-ignite the burner for at least 1 minute.

The use of a gas cooking appliance results in the production of heat, moisture

and products of combustion in the room in which it is installed. Ensure that the

kitchen is well ventilated especially when the appliance is in use: keep natural

Burner ring is

not positioned properly

Burner ring is

upside down

Burner ring is

placed correctly

ventilation holes open or install a mechanical ventilation device (mechanical

extractor hood)

Prolonged intensive use of the appliance may call for additional ventilation, for

example opening of a window, or more effective ventilation, for example

increasing the level of mechanical ventilation where present.

REPLACE A BATTERY (1.5V SIZE D)

In the instance of a power cut, replace a new battery 1.5V x 1 Size D at the

bottom of the appliance.

ADJUSTMENT ON AIR SHUTTER

Air

Shutter

Air

Shutter

Should the flame be of a yellow flame, burning black smoke, floating flame or

deposit black soot beneath the cooking utensils, this would indicate mis

adjustment of the air shutter. In order to obtain the best flame output, adjust

the air shutter under the appliance by turning the air shutter up and down

direction until the blue color flames are obtained.

EXAMPLE:

Perfect amount of air

The flame is transparent blue and the difference between the inner flame and

the outer can be clearly seen.

Insufficient air

The flame turn red and burns like a handle and unstable.

Too much air

The flame is short and flutters.

Air Shutter

Turn up and down

to adjust

FOR CORRECT USE OF THE HOB

For lower gas consumption and better efficiency, use only flat-bottomed pans

of dimensions suitable for the burners, as shown in the table at the bottom.

Also, as soon as a liquid comes to the boil take care to turn the flame down to

a level that will just keep it boiling.

Burner Minimum pan diameter Maximum pan diameter

Large (Rapid) 180mm 220mm

Small (Auxiliary) 80mm 160mm

During cooking processes involving fats or oils, watch your

foods carefully because these substances may catch fire if

brought to high temperatures.

CAUTION WHEN USING

1. Only use the appliance for cooking purpose only.

2. Do not hang up clothes, towel and etc to dry on the unit.

3. Do not use oversized hot plate which totally covers the burner surface.

4. If the flame is flickering or yellow colour, do not attempt to operate the

appliance (Please refer to adjustment on air shutter).

5. Make sure the air shutter is well adjusted and the flame is properly

burning.

6. Do not use a large iron plate to cover burners.

7. In case of abnormality, including strange sound, abnormal combustion

when the burners are lit, turn off the burners and the main cock

immediately and contact the authorized service technician.

8. When the appliance will not be used for a long period of time, make

sure the cock is turn off.

Warning: The use of inappropriate hob guards can cause accidents.

CLEANING AND MAINTENANCE

Before carrying out cleaning or maintenance, disconnect the appliance from

the electrical mains and gas supplies then allow it to cool down.

GENERAL CLEANING

Wash cast iron with lukewarm water and detergent. Do not use abrasive

cleaner which might damage them.

Wash the burner caps often with boiling water and detergent, taking care to

remove all deposits after cooking.

The trivet can also be washed in a dishwasher.

For stubborn dirt, clean using non-abrasive detergents with lukewarm water.

Do not use scouring pads, steel brush or acids for cleaning.

Clean the hob regularly with a soft cloth with lukewarm water and a little liquid

detergent. Do not use the following products:

- bleaches;

- soaped scouring pads;

- steel brush scouring pads;

- stain removers for baths or sinks.

If the hob gets very dirty, use specific commercial cleansing products.

IGNITION PLUG

Automatic burner ignition is provided (when

installed) by a ceramic plug and a metal electrode.

Periodically clean these parts of the hob

thoroughly. In addition, to avoid ignition difficulties,

check that the cavities in the burner are not

obstructed. To remove deposits from the burner

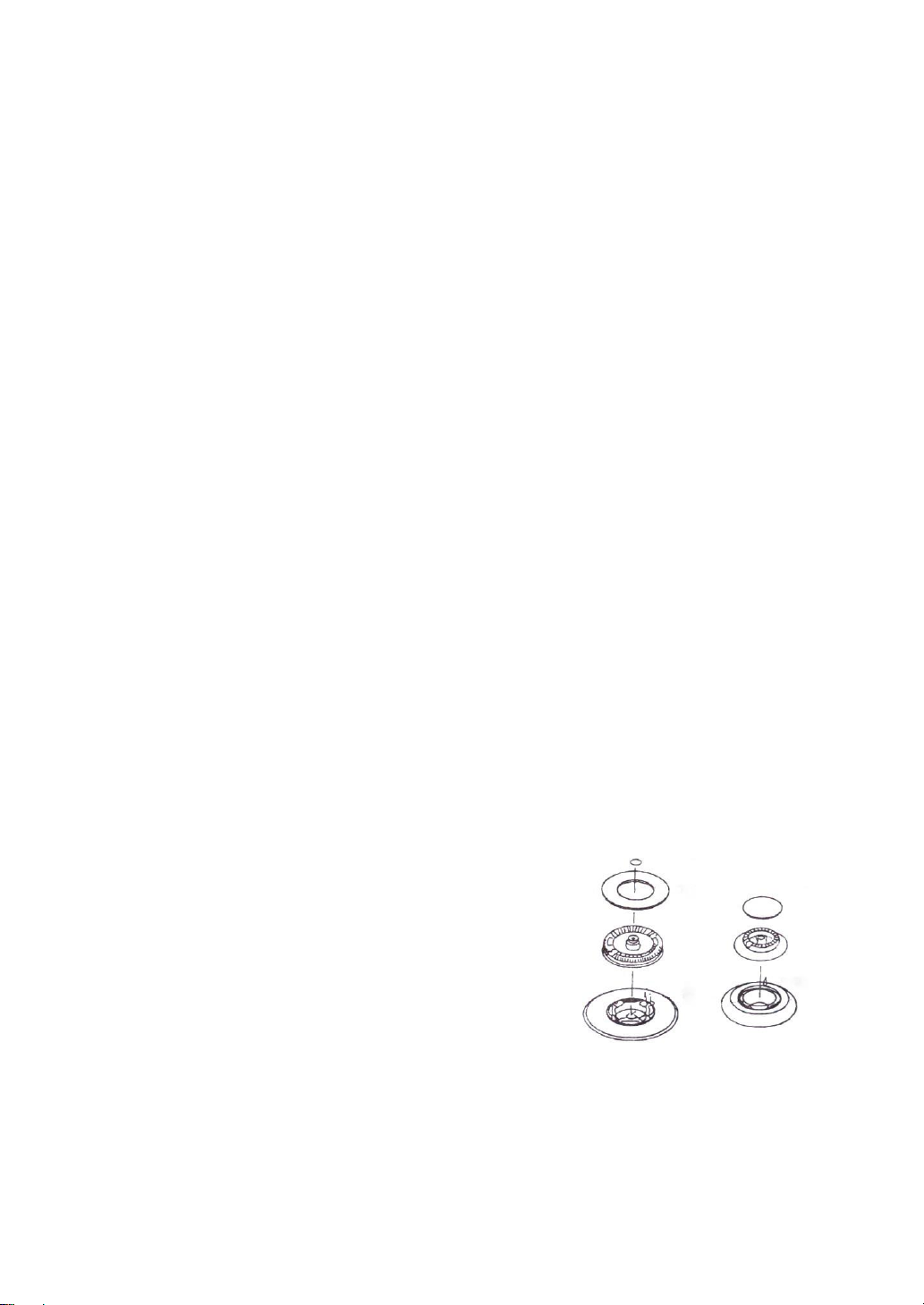

cavities, remove the cap and separate the two parts (see diagram on the right).

After cleaning, put the two parts back together and return them correctly to

their position. After washing, replace the trivet, checking that they are correctly

positioned.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Elba Plaque

Elba

Elba ECH-A9004ST Manuel utilisateur

Elba

Elba Domino E35-100 XD Instructions d'installation et d'utilisation

Elba

Elba 6E EX 397 I Instructions d'installation et d'utilisation

Elba

Elba E30-800 X Manuel technique

Elba

Elba P60 Instructions d'installation et d'utilisation

Elba

Elba EDCH-K3012ST Manuel utilisateur

Elba

Elba EGH-F9542G Manuel utilisateur

Elba

Elba ELIO 95-565 CG Instructions d'installation et d'utilisation

Elba

Elba EVNF 460 Manuel utilisateur

Elba

Elba Planum 60F Manuel utilisateur

Elba

Elba EH321 Manuel utilisateur

Elba

Elba 74-200 SS Manuel utilisateur

Elba

Elba 77-005 SS Manuel utilisateur

Elba

Elba EHS 311D1 S Instructions d'installation et d'utilisation

Elba

Elba EAVF 46 PRO Manuel utilisateur

Elba

Elba EIF 57 PRO Manuel utilisateur

Elba

Elba EGH-B9230G Manuel utilisateur

Elba

Elba P60 Guide rapide

Elba

Elba ELIO 75-300 Manuel utilisateur

Elba

Elba EHS 635 SB Instructions d'installation et d'utilisation

Elba

Elba ES60-310 XD Manuel technique

Elba

Elba DOMINO COOKING HOBS Instructions d'installation et d'utilisation

Elba

Elba P60 Instructions d'installation et d'utilisation

Elba

Elba P60 Manuel utilisateur

Manuels Plaque populaires d'autres marques

Siemens

Siemens EX875KYV1E Fiche technique

AEG

AEG CERAMIC HOB 6010 K Manuel utilisateur

VALERA

VALERA CT 70A Manuel utilisateur

Zanussi

Zanussi ZGF 6420 Manuel utilisateur

Gaggenau

Gaggenau CI 273 Manuel utilisateur

G3 Ferrari

G3 Ferrari Energy Manuel utilisateur

Pkm

Pkm IN4B Manuel utilisateur

Award

Award H903BG Manuel utilisateur

Zanussi

Zanussi VCH 5005 RZ Manuel utilisateur

Miele

Miele KM 523 Manuel utilisateur

Hotpoint

Hotpoint IS67V8CCXT/E Manuel utilisateur

AEG

AEG HK854870XB Manuel utilisateur

Cookology

Cookology SEP600BK Manuel utilisateur

Bauknecht

Bauknecht Hob Manuel utilisateur

Zanussi

Zanussi ZGM 782 Manuel utilisateur

dipo INDUCTION

dipo INDUCTION DIBK218S Manuel utilisateur

Miele

Miele KM 5987 Manuel utilisateur

Miele

Miele KM 360 G Manuel utilisateur
