Model: ELIO 75-300

Instructions for the use - Installation advices

Dear Customer,

Thank you for having purchased and given your preference to

our product.

The safety precautions and recommendations reported below are

for your own safety and that of others. They will also provide a

means by which to make full use of the features offered by your

appliance.

Please preserve this booklet carefully. It may be useful in future,

either to yourself or to others in the event that doubts should arise

relating to its operation.

This appliance must be used only for the task it has explicitly

been designed for, that is for cooking foodstuffs. Any other form

of usage is to be considered as inappropriate and therefore

dangerous.

The manufacturer declines all responsibility in the event of

damage caused by improper, incorrect or illogical use of the

appliance.

IMPORTANT SAFETY PRECAUTIONSAND RECOMMENDATIONS

IMPORTANT: This appliance is designed and manufactured

solely for the cooking of domestic (household) food and is

not suitable for any non domestic application and therefore

should not be used in a commercial environment.

The appliance guarantee will be void if the appliance is used

within a non domestic environment i.e. a semi commercial,

commercial or communal environment.

Read the instructions carefully before installing and using

the appliance.

• After having unpacked the appliance, check to ensure that it is

not damaged.

In case of doubt, do not use it and consult your supplier or a

professionally qualied technician.

• Packing elements (i.e. plastic bags, polystyrene foam, nails,

packing straps, etc.) should not be left around within easy reach

of children, as these may cause serious injuries.

• Some appliances are supplied with a protective lm on steel and

aluminium parts. Thislmmustberemovedbeforeusingthe

appliance.

• IMPORTANT: The use of suitable protective clothing/gloves is

recommended when handling or cleaning this appliance.

• Do not attempt to modify the technical characteristics of

the appliance as this may become dangerous to use. The

manufacturer declines all responsibility for any inconvenience

resulting from the inobservance of this condition.

• CAUTION: this appIiance must only be installed in a permanently

ventilated room in compliance with the applicable regulations.

• Do not carry out cleaning or maintenance operations on the

appliance without having previously disconnected it from the

electric power supply.

• Do not use a steam cleaner because the moisture can get into

the appliance thus make it unsafe.

• Do not touch the appliance with wet or damp hands (or feet).

• Do not use the appliance whilst in barefoot.

• If you should decide not to use this appliance any longer (or

decide to substitute another model), before disposing of it, it

is recommended that it be made inoperative in an appropriate

manner in accordance to health and environmental protection

regulations, ensuring in particular that all potentially hazardous

parts be made harmless, especially in relation to children who

could play with unused appliances.

• Thevariouscomponentsoftheappliancearerecyclable.Dispose

oftheminaccordancewiththeregulationsinforceinyourcountry.

If the appliance is to be scrapped, remove the power cord.

• After use, ensure that the knobs are in the off position.

• Children less than 8 years of age shall be kept away unless

continuously supervised.

• This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have

been given supervision or instruction concerning use of the

appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user

maintenance shall not be made by children without supervision.

• The manufacturer declines all liability for injury to persons or

damage to property caused by incorrect or improper use of the

appliance.

• WARNING: During use the appliance and its accessible parts

become hot; they remain hot for some time after use.

– Care should be taken to avoid touching heating elements on

the hob.

– To avoid burns and scalds, young children should be kept

away.

• Make sure that electrical cables connecting other appliances in

the proximity of the cooktop cannot come into contact with the

hob.

• WARNING: Unattended cooking on a hob with fat or oil can be

dangerous and may result in re. NEVER try to extinguish a re

with water, but switch off the appliance and then cover ame e.g.

with a lid or a re blanket.

• WARNING: Danger of re: do not store items on the cooking

surfaces.

• Do not place or leave empty pans on the glass hob.

• Do not allow heavy or sharp objects to drop on the glass hob.

• Do not scratch the hob with sharp objects. Don’t use the hob as

a work surface.

• WARNING: If the hob is cracked or otherwise damaged by falling

objects etc., disconnect the appliance from the electrical power

supply to avoid the possibility of electric shock and call Customer

Service.

• WARNING: When correctly installed, your product meets all

safety requirements laid down for this type of product category.

However special care should be taken around the underneath

of the appliance as this area is not designed or intended to be

touched and may contain sharp or rough edges, that may cause

injury.

FEATURES AND TECHNICAL DATA

1Fig. 1.1 Mod. ELIO 71-300

This appliance is Class 3 (appliance for building into a kitchen unit or worktop)

GAS BURNERS

1. Semirapid burner (SR) 1,75 kW

2. Triple ring burner (TR) 3,50 kW

CONTROL PANEL DESCRIPTION

3. Left burner control knob

4. Central burner control knob

5. Right burner control knob

NOTE:

• The electric ignition is incorporated in the knobs.

• The models has a safety valve system tted, the ow of gas will be stopped if and

when the ame should accidentally go out.

CAUTION:

If the burner is accidentally extinguished, turn the gas off at the control knob and wait at

least 1 minute before attempting to relight.

CAUTION:

Gas hobs produce heat and humidity in the environment in which they are installed.

Ensure that the cooking area is well ventilated by opening the natural ventilation grilles or

by installing an extractor hood connected to an outlet duct.

CAUTION:

If the hob is used for a prolonged time it may be necessary to provide further ventilation by

opening a window or by increasing the suction power of the extractor hood (if tted).

2 2

3 4 5

Fig. 2.1

HOW TO USE THE COOKTOP

GAS BURNERS

Gas ow to the burners is adjusted by

turning the knobs (illustrated in g. 2.1)

which control the safety valves.

Turning the knob, so that the indicator line

points to the symbols printed on the panel,

achieves the following functions:

- symbol closed valve

- symbol maximum

aperture or ow

- symbol minimum

aperture or ow

√The maximum aperture position

permitsrapidboilingofliquids,whereas

the minimum aperture position allows

slower warming of food or maintaining

boiling conditions of liquids.

√ To reduce the gas ow to minimum

rotate the knob further anti-clockwise

to point the indicator towards the small

ame symbol.

√Other intermediate operating

adjustments can be achieved by

positioning the indicator between the

maximum and minimum aperture

positions, and never between the

maximum aperture and closed

positions.

N.B. When the cooktop is not being

used, set the gas knobs to their closed

positions and also close the cock

valve on the gas bottle or the main gas

supply line.

Caution!

The cooking hob becomes very hot

during operation.

Keep children well out of reach.

The ignition device shall not be

operated for more than 15 seconds.

If after 15 seconds the burner has

not lit, stop operating the device

and open the compartment door of

the cabinet underneath (if available)

and/or wait at least 1 minute before

attempting a further ignition of the

burner.

CHOICE OF THE BURNER

On the control panel, near every knob

there is a diagram that indicates which

burner is controlled by that knob.

The suitable burner must be chosen

according to the diameter and the capacity

used.

As an indication, the burners and the pots

must be used in the following way:

DIAMETERS OF PANS WHICH MAY BE

USED ON THE BURNERS

NOTE: Depending on the model, the cooktop

may only have some of the following burners

BURNERS MINIMUM MAXIMUM

Semi-rapid 16 cm 24 cm

Triple-ring 26 cm 28 cm

Wok Max 36 cm

do not use pans with concave or

convex bases

It is important that the diameter of the pot

be suitable to the potentiality of the burner

so as not to compromise the high output

of the burners and therefore energy waste.

Asmall pot on a large burner does not give

you a boiling point in a shorter amount of

time since the capacity of heat absorption

of a liquid mass depends on the volume

and the surface of the pot.

LIGHTING THE BURNERS

To ignite the burner, the following

instructions are to be followed:

1. Press in the corresponding knob and

turn counter-clockwise (g. 2.2) to the

full ame position marked by the

symbol (g. 2.1); hold the knob in unt il

the ame has been lit.

In the case of a mains failure light the

burner with a match or lighted taper.

2. Wait for a few seconds after the gas

burner has been lit before letting

go of

the knob (valve activation delay).

3. Adjust the gas valve to the desired

position.

If the burner ame should go out for some

reason, the safety valve will automatically

stop the gas ow.

To re-light the burner, return the knob

to the closed “ ” position, wait for at

least 1 minute and then repeat the lighting

procedure.

Note: If your local gas supply makes it

difcult to light the burner with the knob set

to maximum, set the knob to minimum and

repeat the operation.

Fig. 2.3Fig. 2.2

CORRECT

WRONG

CORRECT

WRONG

CORRECT WRONG

Fig. 2.4 Fig. 2.5

SPECIAL WOK GRILLE (gs. 2.4 - 2.5)

This special grille for woks should be placed over the pan-rest for the triple ring burner.

Warning:

• Using woks without this special grille may cause the burner to malfunction.

• Do not use the grille for ordinary, at-bottomed saucepans.

IMPORTANT:

The special grille for wok pans MUST BE PLACED ONLY over the pan-rest for the

triple-ring burner.

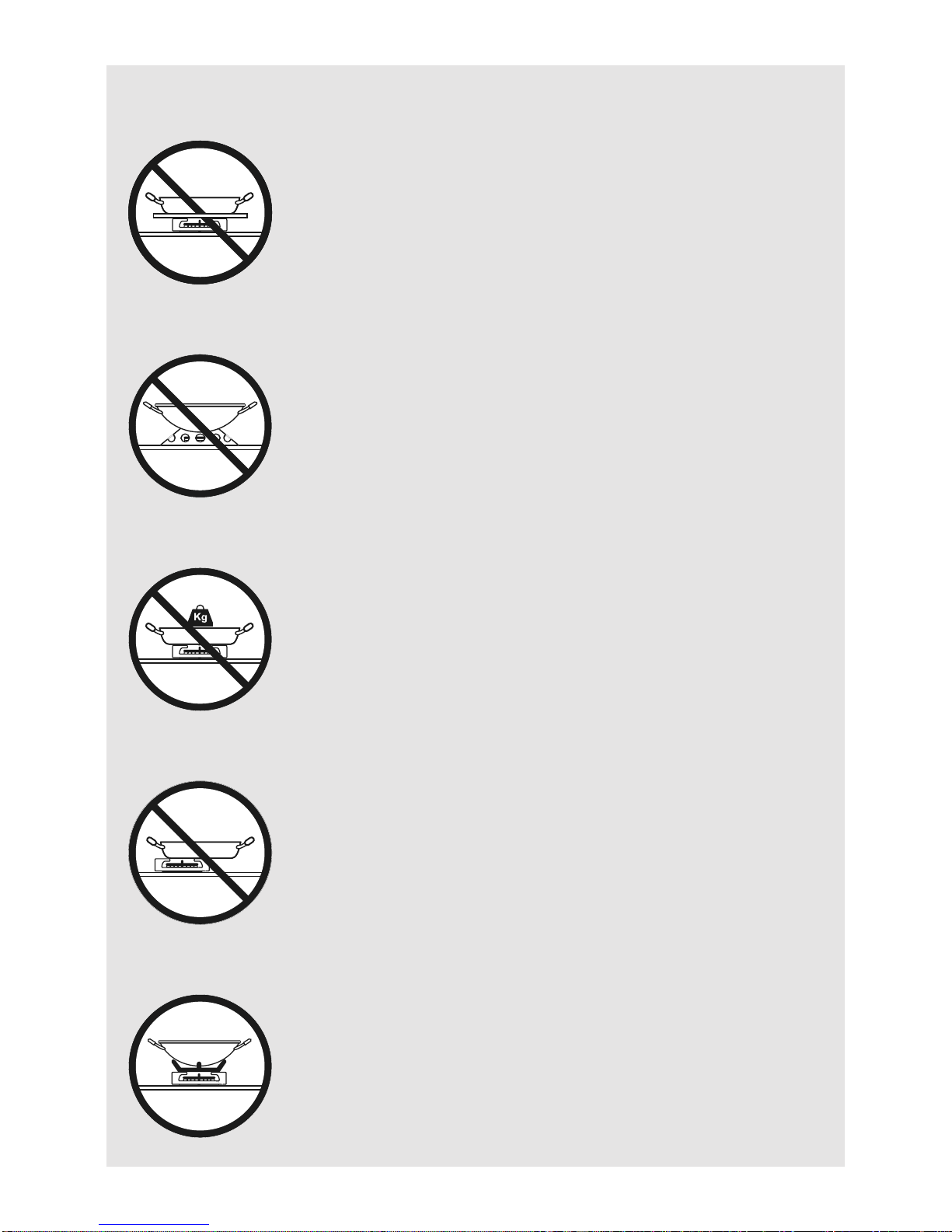

Do not place anything, e.g. flame tamer, asbestos

mat, between pan and pan support as serious

damage to the appliance may result.

Do not remove the pan support and enclose the

burner with a wok stand as this will concentrate and

deflect the heat onto the hotplate.

Do not use large pots or heavy weights which can

bend the pan support or deflect the flame onto the

hotplate.

Locate pan centrally over the burner so that it is

stable and does not overhang the appliance.

Use only a wok support supplied or recommended

by the manufacturer of the appliance.

Symbols on the glass

Table des matières

Autres manuels Elba Plaque

Elba

Elba DOMINO COOKING HOBS Instructions d'installation et d'utilisation

Elba

Elba EGH-G6404G Manuel utilisateur

Elba

Elba P60 Instructions d'installation et d'utilisation

Elba

Elba EICH-K7072ST Manuel utilisateur

Elba

Elba EGH-B9230G Manuel utilisateur

Elba

Elba EIF 57 PRO Manuel utilisateur

Elba

Elba EDCH-K3012ST Manuel utilisateur

Elba

Elba EF60-440 X.1 Manuel utilisateur

Elba

Elba COOK MASTER line Manuel utilisateur

Elba

Elba 74-200 SS Manuel utilisateur

Elba

Elba EIF 46 ASDV Manuel utilisateur

Elba

Elba Domino E35-100 XD Instructions d'installation et d'utilisation

Elba

Elba EGH-E9502G Manuel utilisateur

Elba

Elba EGH-H9592G Manuel utilisateur

Elba

Elba 345-004 Manuel technique

Elba

Elba P70 Manuel utilisateur

Elba

Elba EHS 635D1 SB Instructions d'installation et d'utilisation

Elba

Elba EAVF 46 PRO Manuel utilisateur

Elba

Elba ELIO 95-565 CG Instructions d'installation et d'utilisation

Elba

Elba E95-565 XD Instructions d'installation et d'utilisation

Elba

Elba E30-800 X Manuel technique

Elba

Elba P90 Series Manuel technique

Elba

Elba E74-200 Instructions d'installation et d'utilisation

Elba

Elba DOMINO HOBS Manuel utilisateur

Manuels Plaque populaires d'autres marques

Siemens

Siemens EX875KYV1E Fiche technique

AEG

AEG CERAMIC HOB 6010 K Manuel utilisateur

VALERA

VALERA CT 70A Manuel utilisateur

Zanussi

Zanussi ZGF 6420 Manuel utilisateur

Gaggenau

Gaggenau CI 273 Manuel utilisateur

G3 Ferrari

G3 Ferrari Energy Manuel utilisateur

Pkm

Pkm IN4B Manuel utilisateur

Award

Award H903BG Manuel utilisateur

Zanussi

Zanussi VCH 5005 RZ Manuel utilisateur

Miele

Miele KM 523 Manuel utilisateur

Hotpoint

Hotpoint IS67V8CCXT/E Manuel utilisateur

AEG

AEG HK854870XB Manuel utilisateur

Cookology

Cookology SEP600BK Manuel utilisateur

Bauknecht

Bauknecht Hob Manuel utilisateur

Zanussi

Zanussi ZGM 782 Manuel utilisateur

dipo INDUCTION

dipo INDUCTION DIBK218S Manuel utilisateur

Miele

Miele KM 5987 Manuel utilisateur

Miele

Miele KM 360 G Manuel utilisateur
