SC2-PRESTO

Product Information

SC2-PRESTO • CompactPCI ® Serial CPU Card

4th Generation Intel®Core™ Processor

Document No. 7046 • 19 June 2015

SC2-PRESTO • CompactPCI®Serial CPU Board • 4th Generation Intel® Core™ Processor

General

The SC2-PRESTO is a rich featured high

performance 4HP/3U CompactPCI®Serial CPU

board, equipped with a 4th generation Intel®

Core™ mobile processor (Haswell dual- or quad-

core). The SC2-PRESTO front panel is provided

with two Gigabit Ethernet jacks, two USB 3.0

receptacles, and two mDP connectors,

compliant with the DisplayPort 1.2 standard for

Multi-Stream-Transport (MST). Local expansion

mezzanine cards are available for additional I/O.

The SC2-PRESTO is equipped with up to 16GB

Low Power RAM with ECC support. 8GB

memory-down are provided for rugged

applications, and another 8GB are available via

the DDR3 ECC SO-DIMM socket. The on-board

SATA 6G RAID controller allows for powerful

mass storage solutions via the CompactPCI®

Serial backplane. Low profile SSD mezzanine

modules are available as on-board storage

solution, in addition.

SC2-PRESTO

SC2-PRESTO • CompactPCI®Serial CPU Board • 4th Generation Intel® Core™ Processor

Feature Summary

General

<PICMG® CompactPCI® Serial (CPCI-S.0) CPU card

<Form factor single size Eurocard (board dimensions 100x1600mm2)

<Mounting height 3U

<Front panel width 4HP (8HP/12HP assembly with optional mezzanine side card)

<Front panel I/O connectors for typical system configuration (2 x USB3, 2 x DisplayPort, 2 x GbE)

<Backplane communication via PCI Express® Gen3, SATA 6G, USB 3.0, Gigabit Ethernet

<Local mezzanine expansion option (side card), COTS and custom specific boards

Processor

<4th Generation Intel® Core™ CPU Haswell (-Refresh) Mobile

<i7-4700EQ Processor 2.4/1.7GHz • 47W/37W TDP • Quad-Core • PCIe Gen 3

<i5-4400E Processor 2.7GHz • 37W TDP • Dual-Core • PCIe Gen 3

<i5-4422E Processor 1.8GHz • 25W TDP • Dual-Core • PCIe Gen 3

i5-4402E Processor 1.6GHz • 25W TDP • Dual-Core • PCIe Gen 3

<i3-4110E Processor 2.4GHz • 25W TDP • Dual-Core • PCIe Gen 2

i3-4100E Processor 2.4GHz • 37W TDP • Dual-Core • PCIe Gen 2

<i3-4112E Processor 1.8GHz • 25W TDP • Dual-Core • PCIe Gen 2

i3-4102E Processor 1.6GHz • 25W TDP • Dual-Core • PCIe Gen 2

<Celeron 2000E Processor 2.2GHz • 37W TDP • Dual-Core • PCIe Gen 2

<Celeron 2002E Processor 1.5GHz • 25W TDP • Dual-Core • PCIe Gen 2

BIOS

<UEFI Phoenix® BIOS with ACPI

<Windows® and Linux supported (others on request)

Main Memory

<Integrated memory controller up to 16GB DDR3(L) 1600 +ECC

<DDR3(L) +ECC soldered memory up to 8GB

<DDR3(L) +ECC SO-DIMM memory module socket up to 8GB

SC2-PRESTO • CompactPCI®Serial CPU Board • 4th Generation Intel® Core™ Processor

Feature Summary

Graphics

<Integrated HD Graphics Engine, 3 symmetric independent displays

<Enhanced Media Processing, DX11.1, OpenCL 1.2, OpenGL 3.2, JPEG, MJPEG, MVC, SVC, MPEG-2

<Front panel: Dual Mini-DisplayPort (mDP) or single VGA connector option

<3rd DisplayPort connector via mezzanine side card

<DisplayPort™ 1.2 Multi-Stream Transport (MST) - display daisy chaining

<Max Resolution 3200 x 2000 @60Hz (any DisplayPort), 1920 x 1200 (VGA)

<4k x 2k @24Hz supported for Blu-ray playback

<Integrated audio

Chipset

<Intel® QM87 Lynx Point Platform Controller Hub (PCH)

<8 x PCIe Gen2 5GT/s

<6 x SATA 6G

<10 x USB2, 4 x USB3

<LPC, Audio, Legacy

On-Board Building Blocks

<Additional on-board controllers, PCIe® based

<3 x Gigabit Ethernet controllers Intel® I210IT

<one of them supporting IEEE 1588-2008 Precision Time Protocol including PPS and PPM signals

<1 x Gigabit Ethernet PHY Intel® I217LM

<PCIe Gen2 packet switch 16-lane 16-port PLX 8618

<SATA 6G RAID controller Marvell® 88SE9230, ARM powered subsystem for host CPU offload

Security

<Trusted Platform Module (Option)

<TPM 2.0 for highest level of certified platform protection

<Infineon Optiga™ SLB 9665 cryptographic processor

<Conforming to TCG 2.0 specification

<Meets Microsoft Windows 8 boot time and performance criteria

SC2-PRESTO • CompactPCI®Serial CPU Board • 4th Generation Intel® Core™ Processor

Feature Summary

Front Panel I/O (4HP)

<2 x Gigabit Ethernet RJ45 (1 = PCH & I217LM - iAMT, 2 = I210IT)

<2 x DisplayPort (from processor integrated HD graphics engine, mDP style receptacles, optional cable

connector retainer available)

<2 x USB 3.0

CompactPCI® Serial Backplane Resources

<PICMG® CPCI-S.0 CPU card & system slot controller

<16 x PCIe Gen3 8GT/s (2 links x 8 for two fat pipe slots, derived directly from the Intel® Core™ CPU

<6 x PCIe Gen2 5GT/s (6 links x 1 for peripheral slots)

<3 x SATA 6G (from PCH)

<4 x SATA 6G (Marvell hardware RAID controller)

<4 x USB2, 2 x USB3 (from PCH)

<2 x Gigabit Ethernet (I210IT networking controllers)

Local Expansion

<Mezzanine side card connectors for optional local expansion

<P-EXP - 2 x USB 2.0 & Legacy (from PCH)

<P-DP3 - 3rd DisplayPort video (from Intel® Core™ CPU)

<P-HSE - 3 x SATA 6G & 4 x USB 2.0 (from PCH)

<P-PCIE - PCIe Gen2 5GT/s 1 link x 4 lanes (from on-board PCIe® switch)

<4HP Low profile mezzanine module options

<CFast™ Card with C41-CFAST mezzanine module

<SATA 1.8-Inch Solid State Drive with C42-SATA mezzanine module

<Dual mSATA SSD with C47-MSATA mezzanine module

<Dual M.2/NGFF SATA SSD 2230 - 2280 size with C48-M2 mezzanine module

<Custom specific module design

<8HP/12HP Mezzanine side card options

<SCS-TRUMPET - 3rd DisplayPort F/P connector, RS-232, 2 x USB3, on-board 2.5-Inch SATA SSD or 2 x

M.2/NGFF SATA SSD module sockets 2230 - 2280

<Variety of other side cards available

<Custom specific side card design

SC2-PRESTO • CompactPCI®Serial CPU Board • 4th Generation Intel® Core™ Processor

Feature Summary

SC2-PRESTO

Environmental & Regulatory

<Suitable e.g. for industrial, transportation & instrumentation applications

<Designed & manufactured in Germany

<ISO 9000 certified quality management

<Long term availability

<Rugged solution

<Coating, sealing, underfilling on request

<Lifetime application support

<RoHS compliant 2002/95/EC

<Operating temperature 0°C to +70°C

<Operating temperature -40°C to +85°C (industrial temperature range) on request

<Storage temperature -40°C to +85°C, max. gradient 5°C/min

<Humidity 5% ... 95% RH non condensing

<Altitude -300m ... +3000m

<Shock 15g 0.33ms, 6g 6ms

<Vibration 1g 5-2000Hz

<MTBF 11.7 years (SC2-680D)

<EC Regulatory EN55022, EN55024, EN60950-1 (UL60950-1/IEC60950-1)

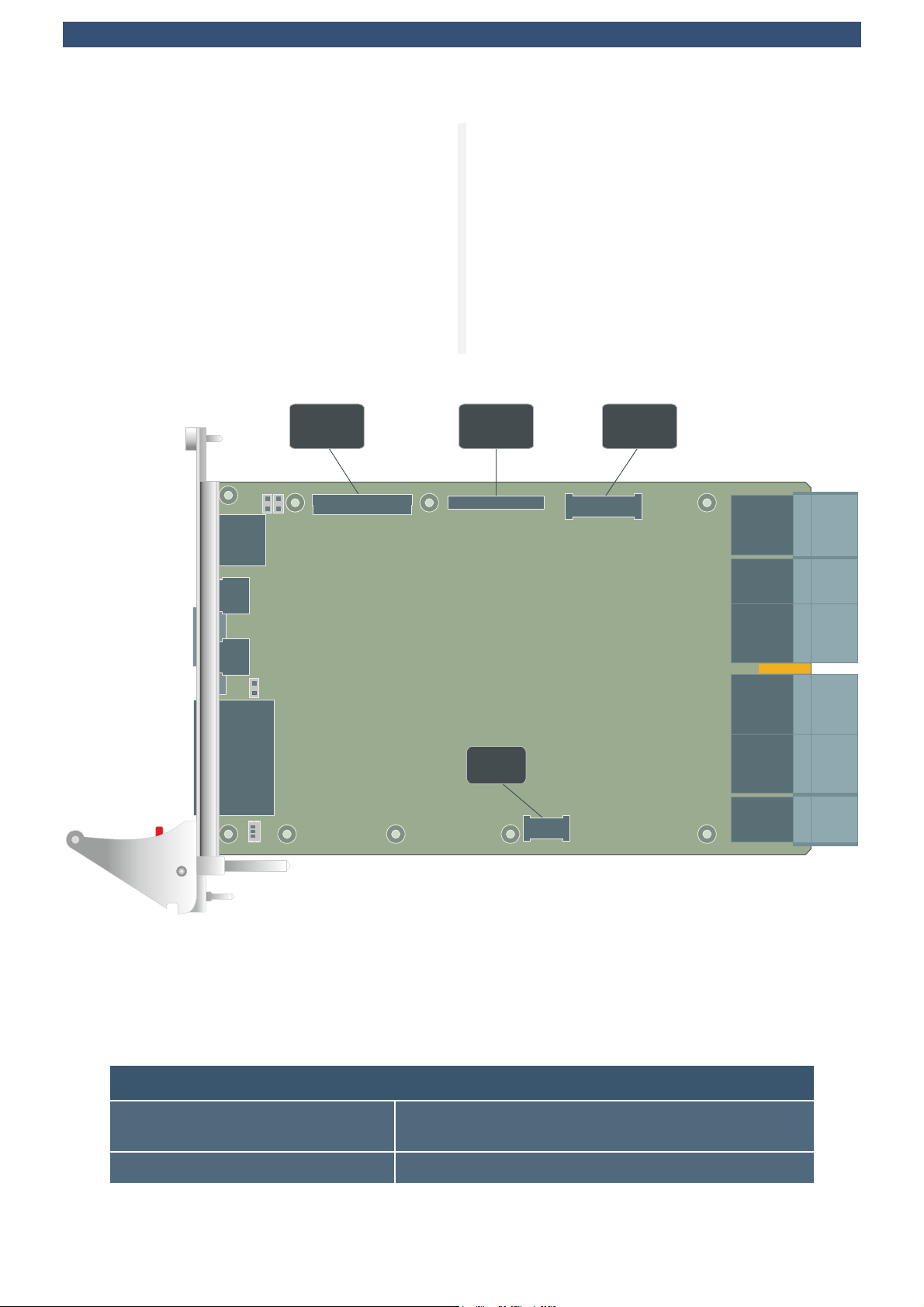

SC2-PRESTO • CompactPCI®Serial CPU Board • 4th Generation Intel® Core™ Processor

CompactPCI® Serial • © EKF • ekf.com

HSE

EXP

PCIE

SDVO/DP

Dual

GbE

VGA

2 x

USB

3.0

CompactPCI® Serial

Connectors P1-P6

System Slot

up to 40 x PCIe

8 x GE

7 x SATA

7 x USB3

4 x USB2

x PE (1)

x PE (2)

3 x USB2

I/O (DP)

4 x PE (5)

x PE (6)

x PE (4)

4 x PE (3)

4 x PE (8)

Clk PE (1-8)

x PE (7)

4 x PE (1)

1 x SATA

1 x USB2/3

Sideband

Power

General Backplane Connector Assignment

According to PICMG® CPCI-S.0

CompactPCI® Serial

While mechanically compliant to CompactPCI®

Classic, CompactPCI® Serial (PICMG® CPCIS.0)

defines a completely new card slot, based on

PCI Express®, SATA, Gigabit Ethernet and USB

serial data lines. Up to 6 high-speed backplane

connectors P1 - P6 are provided on a system

slot controller such as the SC2-PRESTO, which

can be considered as a root hub with respect to

most signal lines. A passive backplane is used

for distribution of a defined subset of I/O

channels from the system slot to each of up to

eight peripheral slots in a CompactPCI® Serial

system.

Most CompactPCI® Serial peripheral slot cards

require only the backplane connector P1, which

comprises PCIe, SATA and USB signals, resulting

in a concise and inexpensive peripheral board

design. More powerful peripheral cards profit

from two so called Fat Pipe slots (PCIe x 8).

The SC2-PRESTO is a native CompactPCI® Serial

CPU card, suitable for usage in a pure CPCI

Serial environment. Due to its generous

backplane capabilities (22 x PCI Express® lanes,

6 x USB, 7 x SATA/RAID, 2 x GbE), very powerful

industrial systems can be built.

SC2-PRESTO • CompactPCI®Serial CPU Board • 4th Generation Intel® Core™ Processor

SC - • Resources w. 1+8 Slots Backplane2PRESTOR.1 (SystemSlotLe

©EKF • ekf.com

3 x SATA (PCH)

4 x SATA (RAID)

1 x USB3 (2)

2 x USB2 (5-6)

PE Gen3 x 8 (2)

PE Gen3

½ x 8 (1)

2 x USB2 (3-4)

I/O

4 x PE (3-6)

Gen2

4 Links x 1

Clk PE (1-8)

2 x PE (7-8)

Gen2

2 Links x 1

GbE

(1-2)

GbE

(1)

GbE

(2)

PE Gen3

½ x 8 (1)

1 x USB3 (1)

Sideband

PE Gen3 x 8

USB3

PE Gen3 x 8

SATA 3G (PCH)

USB3

SC2-

PRESTO

Fat Pipe

Slot

PE Gen2 x 1

SATA 6G (RAID)

USB2

PE Gen2 x 1

SATA 6G (PCH)

PE Gen2 x 1

SATA 6G (RAID)

USB2

Fat Pipe

Slot

Peripheral

Slot

Peripheral

Slot

Peripheral

Slot

Peripheral

Slot

Peripheral

Slot

Peripheral

Slot

PE Gen2 x 1

SATA 6G (PCH)

PE Gen2 x 1

SATA 6G (RAID)

USB2

PE Gen2 x 1

SATA 6G (RAID)

USB2

PER

SYS

123456789

PER

Backplane Resources SC2-PRESTO (System Slot Left)

www.ekf.com/s/sc2/img/sc2_backplane.pdf

SC2-PRESTO • CompactPCI®Serial CPU Board • 4th Generation Intel® Core™ Processor

8 + 1 Slots CompactPCI® Serial Backplane

Related Information

SC2-PRESTO Home www.ekf.com/s/sc2/sc2.html

SC2-PRESTO User Guide www.ekf.com/s/sc2/sc2_ug.pdf

General Information CompactPCI® PlusIO & CompactPCI® Serial

CompactPCI® Serial Concise Overview www.ekf.com/s/serial_concise.pdf

CompactPCI® Serial All You Need to Know www.ekf.com/s/smart_solution.pdf

CompactPCI® Serial Home www.ekf.com/s/serial.html

CompactPCI® PlusIO Home www.ekf.com/p/plus.html

SC2-PRESTO • CompactPCI®Serial CPU Board • 4th Generation Intel® Core™ Processor

SC2-PRESTO

4th Generation

Intel® Core™ i7 CPU

EKF ekf.com©•

SC2-PRESTO CompactPCI Serial EKF ekf.com•®•©•

HSE

3 x SATA 6G

(PCH)

4 x USB

LPC USB

SMBus

HD Audio

EXP

PCI Express®

Gen2

1 x 4

PCIE

Flat-

Panel

Video

DP 3

To p S i d e

Connector Assembly

Front Panel - Mezzanine - Backplane

Dual

GbE

VGA

2 x

USB

3.0

PE Gen3 x 8 (2)

PE Gen3 ½ x 8 (1)

2 x USB2 (3-4)

PE Gen3 ½ x 8 (1)

1 x USB3 (1)

Sideband

Power

3 x SATA (PCH)

4 x SATA (RAID)

1 x USB3 (2)

2 x USB2 (5-6)

4 x PE (3-6)

Gen2

4 Links x 1

Clk PE (1-8)

2 x PE (7-8)

Gen2

2 Links x 1

GbE

(1-2)

J-GP

J-RTC

J-MFG

P-HSE

P-USB

P-FPH

P-ETH

P-DP3

P-EXP P-PCIE

P-DP1

P-DP2

P-VGA

SC2-PRESTO • Connector Assembly

Local Expansion

The SC2-PRESTO is equipped with a set of high-

speed local expansion interface connectors,

which can be optionally used to attach a

mezzanine side board. A variety of expansion

cards is available, e.g. providing legacy I/O such

as RS-232, and additional PCI Express® based

I/O controllers such as SATA, USB 3.0 and

Gigabit Ethernet, and also a third video output.

Most mezzanine side cards can accommodate

in addition a 2.5-inch drive. Typically, the

SC2-PRESTO and the related side card would

come as a readily assembled 8HP unit. As an

alternate, MicroSATA or mSATA SSD based low

profile mezzanine mass-storage modules are

available that fit into the SC2-PRESTO 4HP

envelope.

www.ekf.com/s/sc2/img/sc2_draft_mezzanine.pdf

Related Documents Mezzanine Modules and Side Cards

C4* Series

Mezzanine Storage Modules

www.ekf.com/c/ccpu/c4x_mezz_ovw.pdf

SCS-TRUMPET Mezzanine Side Card www.ekf.com/s/csc/scs.html

Autres manuels pour SC2-PRESTO CompactPCI

Table des matières

Autres manuels EKF Matériel informatique

EKF

EKF CompactPCI CC5-RAVE Manuel utilisateur

EKF

EKF PC7-FESTIVAL Manuel utilisateur

EKF

EKF SC3-LARGO Manuel utilisateur

EKF

EKF PC6-TANGO Manuel utilisateur

EKF

EKF CompactPCI CCM-BOOGIE Manuel utilisateur

EKF

EKF SC1-ALLEGRO Manuel utilisateur

EKF

EKF C40-SCFA Manuel

EKF

EKF CompactPCI SC5-FESTIVAL Manuel utilisateur

EKF

EKF SC9-TOCCATA Manuel utilisateur

EKF

EKF C23-SATA Manuel

EKF

EKF PC4-PRESTO Manuel utilisateur

EKF

EKF 82600 Manuel utilisateur

EKF

EKF SC4-CONCERTO Manuel utilisateur

EKF

EKF PCZ-NVM Manuel

EKF

EKF SC2-PRESTO CompactPCI Manuel utilisateur

EKF

EKF PC1-62-GROOVE Manuel utilisateur

EKF

EKF C41-CFAST Manuel

EKF

EKF PC3-ALLEGRO Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

Intel

Intel NUC 12 Pro Manuel utilisateur

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Intel

Intel AXXRMFBU4 Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

ST X-NUCLEO-SAFEA1B Mode d'emploi

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur
