EK Loop Vertical GPU Holder EVO Gen4 Riser Manuel utilisateur

EK-Loop

Vertical GPU Holder EVO - Gen4 Riser

INSTALLATION MANUAL

1st Revision – January 18, 2022

This product is intended for installation by expert users only. Please

consult with a qualiﬁed technician since improper installation may

result in damage to the equipment. EK assumes no liability whatsoever,

expressed or implied, for the use of this product, nor its installation. The

following instructions are subject to change without notice. Please visit

our website at www.ekwb.com for updates.

Carefully read the manual before beginning with the

installation process!

SAFETY PRECAUTIONS

1. Keep and store the product away from the reach of children.

2. Check the component list and condition of the product before

installation. In case you encounter a problem, contact the shop where

you have purchased the product to get a replacement or a refund.

3. Before installation of the Vertical GPU Holder, power off your

computer and unplug the power cables.

4. EK is not responsible for any damages due to external causes,

including but not limited to: improper use, problems with electrical

power, accident, neglect, alteration, repair, improper installation, and

improper testing.

5. CPU, GPU, and motherboard are subject to damage if the product is

incorrectly installed.

6. Product design and speciﬁcations may be revised to improve quality

and performance.

- 3 -

TABLE OF CONTENTS

WHAT IS ENCLOSED 4

REQUIRED TOOLS 5

DIMENSIONS OF THE VERTICAL GPU HOLDER 6

INSTALLATION GUIDE 7

SUPPORT AND SERVICE 16

SOCIAL MEDIA 16

- 4 -

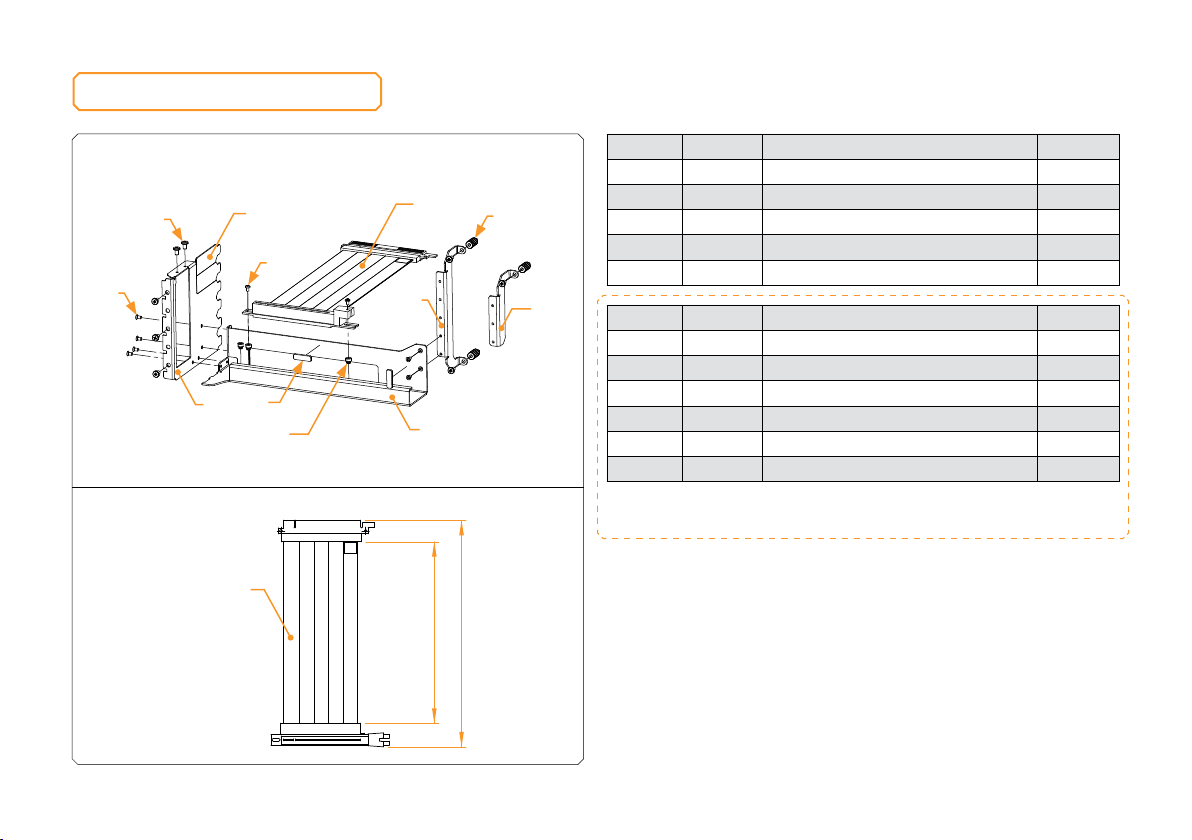

WHAT IS ENCLOSED

Position EAN Description Quantity

1104623

Bracket 1

2104625

Bracket 2

3104627

Bracket 3

410474 4

Bracket 4

5103483

PCIe Riser Cable 4.0

6102789

M3x5 Countersunk Screw

78107

M2.5x4 DIN7985 Screw

8102689

UNC 6-32x1/4" Screw

9104921

UNC 6-32x1/4" Standoff Spacer

10 104920

M3 Standoff Spacer

11 102536

Protective foam

12 8972

M4/M2.5x3.3 x3.3 STANDOFF

9 / 10

200

250

PCIe RISER CABLE 4.0

Universal Mounting Mechanism

EAN: 104785

- 5 -

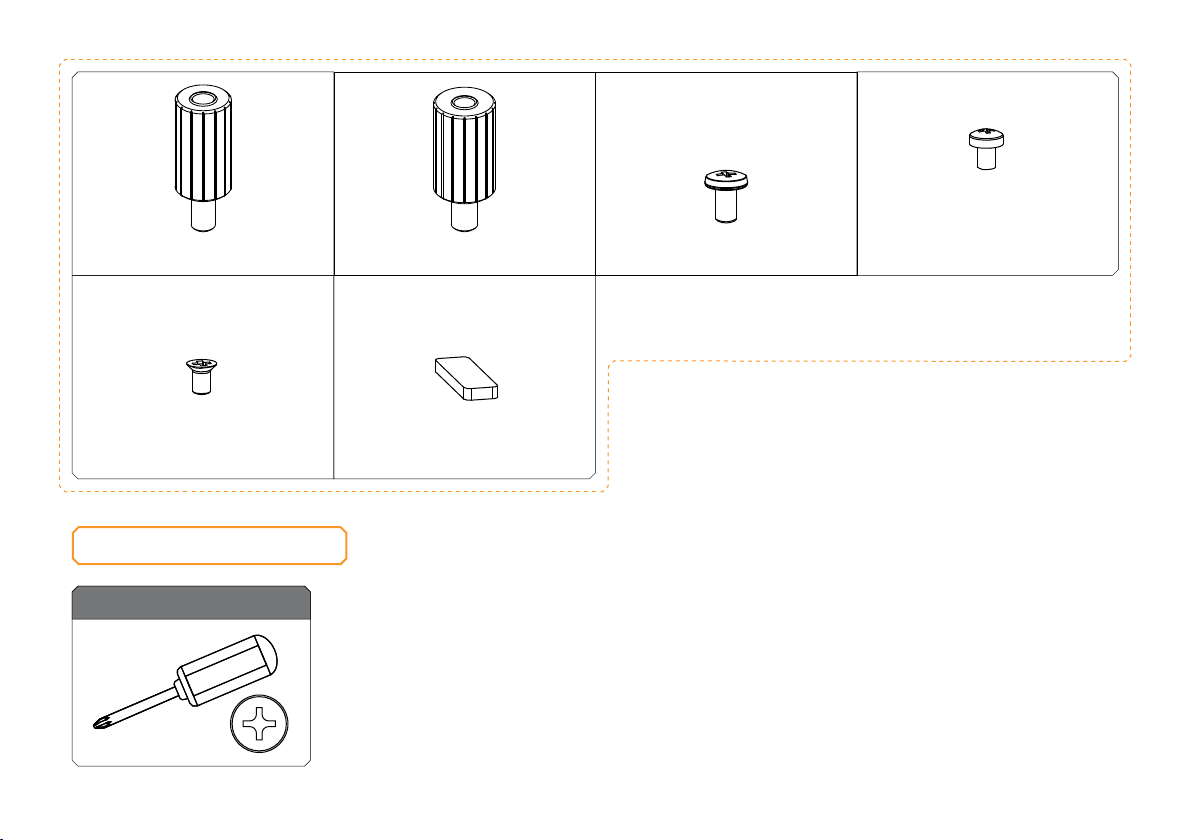

M3 Standoff Spacer (2x) UNC 6-32 Standoff Spacer (2x)

M3x5 Countersunk Screw (6x)

M2.5x4 Phillips Pan Head Screw (3x)

UNC 6-32x1/4” (7x)

Protective Foam 2mm (2x)

Phillips Head Screwdriver

REQUIRED TOOLS

Universal Mounting Mechanism – You may not need every

screw from this package.

EAN: 104785

- 6 -

DIMENSIONS OF THE VERTICAL GPU HOLDER

20.3

245

20.3

124.5

11.4

113

53.6

20.3

15.4

140.2

121

116

126

255

20.3

1.5

150

3.3

36.7

- 7 -

INSTALLATION GUIDE

STEP 1

Before you start to assemble the Holder with the GPU

to the motherboard, make sure that your computer is

powered off and the PSU power cable unplugged. It is

also recommended that you put your computer with the

motherboard in a horizontal position before you continue

with the installation process.

Assemble the three steel brackets with the six M3x5 countersunk

screws. Depending on how you want to position the GPU holder inside

your PC, you may choose between different options and Bracket 3 or

Bracket 4:

STEP 2

Plan how you will mount the GPU holder in the PC case. There are

several options:

STEP 1

STEP 2

M3x5

COUNTERSUNK

SCREW (6x)

BRACKET 3

BRACKET 4

OPTION 1 OPTION 2 OPTION 3 OPTION 4

OPTION 5 OPTION 6

- 8 -

OPTION 1

OPTION 2

- 9 -

OPTION 5

In this position, the GPU Holder may support 3-slot GPUs because

the GPU clamping part of the Holder is raised above the PCIe

bracket holder part of PC chassis. You still need to double check

that there will be no overlapping of I / O ports or interference of the

GPU with the CPU cooler.

OPTION 6

In this position, the GPU Holder may support 3-slot GPUs because

the GPU clamping part of the Holder is raised above the PCIe

bracket holder part of PC chassis. You still need to double check

that there will be no overlapping of I / O ports or interference of the

GPU with the CPU cooler.

If using the GPU Holder on the upper positions of the PC case, you

may have to break off 1 or 2 of the PCIe Brackets on the holder.

If using the GPU Holder on the upper positions of the PC case, you

may have to break off 1 or 2 of the PCIe Brackets on the holder.

-1 BREAK-OFF

PCIe BRACKET

-1 BREAK-OFF

PCIe BRACKET

-2 BREAK-OFF

PCIe BRACKET

-2 BREAK-OFF

PCIe BRACKET

- 10 -

STEP 3

Before mounting the GPU on a holder, you may stick 1 or 2 protective

adhesive foams for the extra protection of your GPU during installation.

STEP 3

cca 3 mm

STEP 4

Attach the PCIe Riser Cable 4.0 on a holder with two M2.5x4 Phillips

pan head screws. Be sure that the cable is positioned on the holder

as is shown in the scheme.

STEP 4

M2.5x4 PHILLIPS

PAN HEAD

SCREW (2x)

POSITION OF

RISER CABLE 4.0

PROTECTIVE

FOAM

RISER

CABLE
