Installation Manual
Introduction
This Installation Manual explains the procedure to install a PC compatible with PCSK-03R.
Compatible PCs
HP t520 Thin Client page 4
HP t310 Zero Client page 5
HP Z2 Mini G3 Workstation / G4 Workstation page 6
HP EliteDesk800 G3 DM page 7
HP Elite Slice page 8
HP t310 G2 Zero Client page 9
HP t530 Thin Client page 10
Dell Wyse 3010TC / T10 / 5030PCoIP / P25 page 12
Dell Wyse 5010TC / D10D / D10DP page 13
GIGABYTE GB-BKi7HT2-7500 / GB-BKi7HT-7500 page 14
Lenovo ThinkStation P320 Tiny page 15
FUJITSU FUTRO S740 page 16
EIZO DuraVision DX0211-IP page 18
HP is a registered trademark of HP Hewlett Packard Group LLC.
EliteDesk and Elite Slice are a registered trademark of Hewlett-Packard Development Company, L.P.
Dell is a registered trademark of Dell Inc.
Wyse is a trademark or a registered trademark of Dell Inc.
GIGABYTE is a registered trademark of GIGA-BYTE Technology Co., Ltd.
Lenovo,ThinkCentre and ThinkStation are registered trademarks of Lenovo Corporation.
TORX is a registered trademark of Acument Intellectual Properties, LLC.
FUTRO is a registered trademark of Fujitsu Client Computing Limited.
EIZO, the EIZO Logo and DuraVision are registered trademarks of EIZO Corporation in Japan and other
countries.
All other company names, product names, and logos are trademarks or registered trademarks of their
respective companies.
2Introduction
How to Install a PC on a Monitor
Thumb screw : M4x8
(included with PCSK-03R; 1 pcs.)
Screw: M4x80
(included with PCSK-03R; 1 pcs.)
Compact PC
Cable holder
Attention
• Attaching PCSK-03R will reduce the monitor’s tilt range.
Without PCSK-03R: -5° to 35°
With PCSK-03R: -5° to 17°
3
How to Install a PC on a Monitor

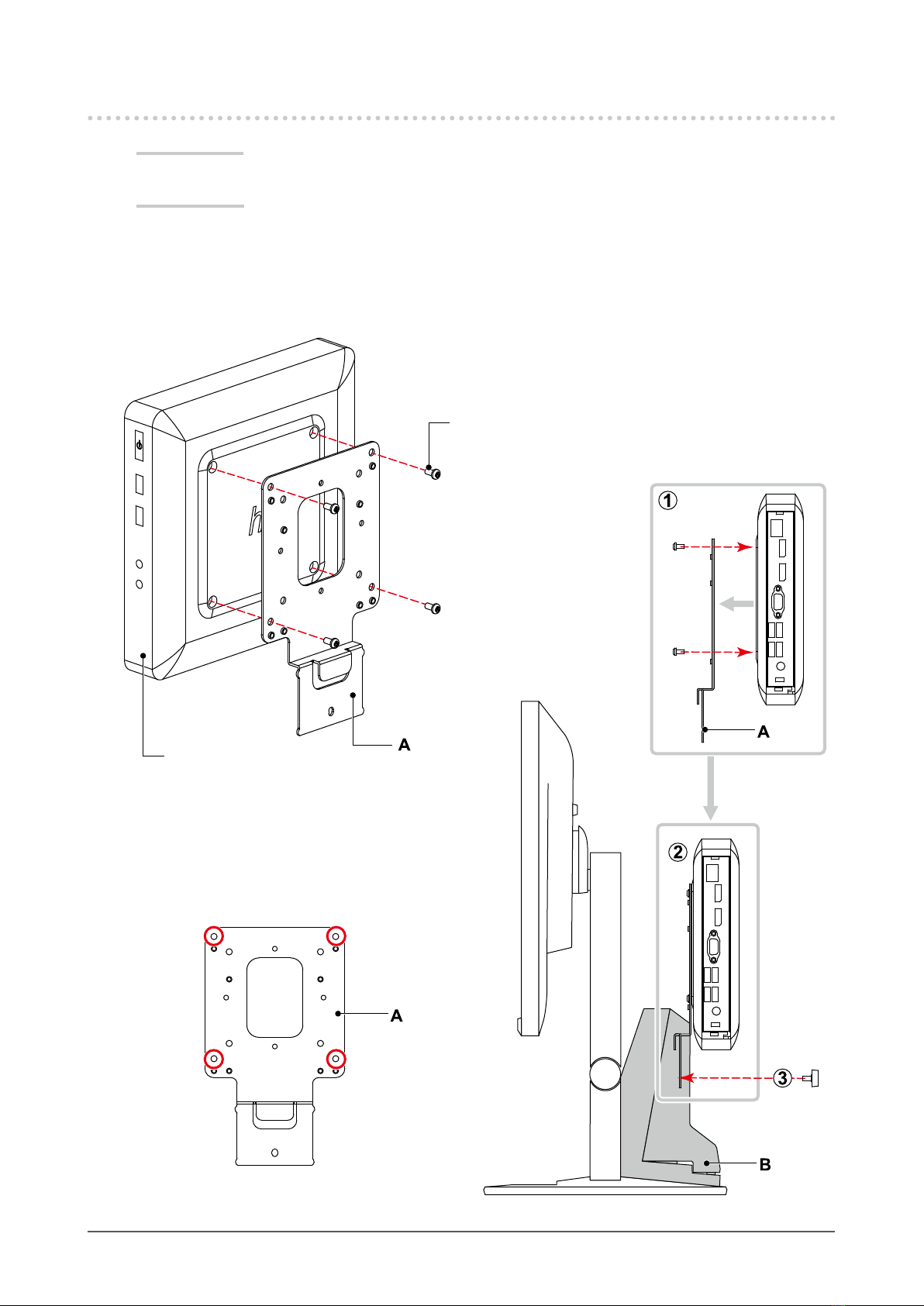

4HP t520 Thin Client
HP t520 Thin Client
Parts required
• Screws: M4x8 (included with PCSK-03R; 4 pcs.)
Tools required
• Phillips screwdriver (#2)
• TORX driver (T10)
Position of a screw hole (four positions)
Before installing A, remove the four TORX
screws attached to the PC.
HP t520 Thin Client
Screws: M4x8
(included with PCSK-03R; 4 pcs.)
5

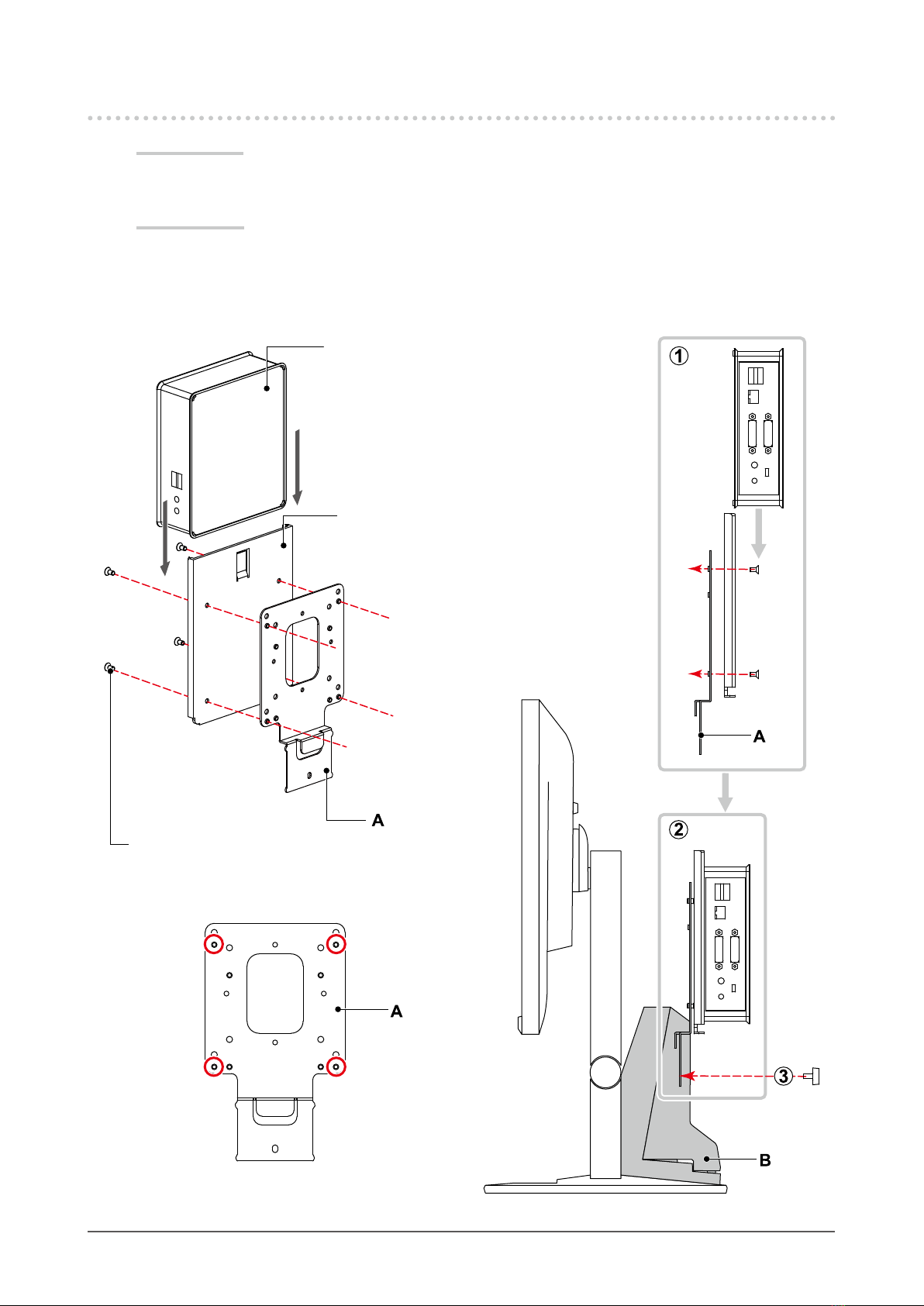

HP t310 Zero Client
HP t310 Zero Client
Parts required
• F7X24AA (Optional mounting bracket for HP)
• Screws (included with F7X24AA; 4 pcs.)
Tools required
• Phillips screwdriver (#2)
HP t310 Zero Client
F7X24AA
(Optional mounting bracket for HP)
Screws
(included with F7X24AA; 4 pcs.)
Position of a screw hole (four positions)
6HP Z2 Mini G3 Workstation / G4 Workstation
HP Z2 Mini G3 Workstation / G4 Workstation
Parts required
• Screws: M4x8 (included with PCSK-03R; 4 pcs.)
Tools required
• Phillips screwdriver (#2)
Screws: M4x8
(included with PCSK-03R; 4 pcs.)
Before installing A, remove four rubber feet attached to the PC.
HP Z2 Mini G3 Workstation / G4 Workstation
You can also install the PC in the orientations shown below.
Position of a screw hole (four positions)
7
HP EliteDesk800 G3 DM
Screws: M4x8
(included with PCSK-03R; 4 pcs.)
HP EliteDesk 800 G3 DM
You can also install the PC in the orientations shown below.
Position of a screw hole (four positions)
HP EliteDesk800 G3 DM
Parts required
• Screws: M4x8 (included with PCSK-03R; 4 pcs.)
Tools required
• Phillips screwdriver (#2)
8HP Elite Slice
HP Elite Slice
X8U74A A
(Optional mounting bracket for HP)
Screws: M4x8
(included with PCSK-03R; 4 pcs.)
Position of a screw hole (four positions)
HP Elite Slice
Parts required
• X8U74AA (Optional mounting bracket for HP)
• Screws: M4x8 (included with PCSK-03R; 4 pcs.)
Tools required
• Phillips screwdriver (#2)
9
HP t310 G2 Zero Client
HP t310 G2 Zero Client
Parts required
• Screws: M4x8 (included with PCSK-03R; 4 pcs.)
Tools required
• Phillips screwdriver (#2)
Screws: M4x8
(included with PCSK-03R; 4 pcs.)
HP t310 G2 Zero Client
You can also install the PC in the
orientations shown below.
Position of a screw hole (four positions)
10 HP t530 Thin Client
HP t530 Thin Client
Parts required
• EM870AA (Optional HP Quick Release Attachment)
- Quick Release Attachment (2 types)
- Screws : M4x12 (4 pcs.)
- Spacer with a thickness of 2 mm
• Screws: M4x8 (included with PCSK-03R; 4 pcs.)
Tools required
• Phillips screwdriver (#2)
Screws: M4x8
(included with PCSK-03R; 4 pcs.)
HP t530 Thin Client
Remove the cover.
You can also install the PC in the
orientations shown below.
Attachment supplied
with the EM870AA
Position of a screw hole (four positions)
Spacer supplied with the EM870AA
Screws supplied with
the EM870AA
Attachment supplied with
the EM870AA
