Eizo EClient SX1 Manuel utilisateur

For Microsoft Windows XP Embedded

Version A

Please confirm the version of the software built in eClient, and refer to

the suited User's Manual (Refer to the User's Manual Version List on

next page).

This is the manual for the following software version.

Microsoft Windows XP Embedded: Ver.

5.01 or later, Rev. 1.0.2 or later

Microsoft Remote Desktop Connection Software: Ver. 5.2.3 or later

* Ctrix

ICA Client Software:

Ver. 8.0 or later

- For Administrator -

User’s Manual Version List

A handling description changes with versions of the software built in eClient. Please

refer to below.

NOTE

• The version of software built in eClient can be checked with a [System] tab of

[Start]- [About] menu.

OS: Microsoft Windows XP Embedded

Software

Manual

Microsoft Windows XP

Embedded

Microsoft Remote

Desktop Connection

Software

ICA Client

Software

(This manual)

Version 5.01 or later

Rev. 1.0.2 or later Version 5.2.3 or later Version 8.0 or later

SAFETY SYMBOLS

This manual uses the safety symbols below. They denote critical information. Please read them

carefully.

WARNING

Failure to abide b

the information in a WARNING ma

result in serious in

and

can be life threatening.

CAUTION

Failure to abide by the information in a CAUTION may result in moderate injury

and/or property or product damage.

Indicates a prohibited action.

Indicates to ground for safety.

may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means,

electronic, mechanical, or otherwise, without the prior written permission of EIZO NANAO

CORPORATION.

EIZO NANAO CORPORATION is under no obligation to hold any submitted material or

information confidential unless prior arrangements are made pursuant to EIZO NANAO

CORPORATION's receipt of said information. Although every effort has been made to ensure

that this manual provides up-to-date information, please note that EIZO monitor specifications

are subject to change without notice.

ENERGY STAR is a U.S. registered mark.

Apple and Macintosh are registered trademarks of Apple Computer, Inc.

DPMS is a trademark and VESA is a registered trademark of Video Electronics Standards

Association.

VGA is a registered trademark of International Business Machines Corporation.

Windows is a registered trademark of Microsoft Corporation.

ScreenManager and PowerManager are trademarks of EIZO NANAO CORPORATION.

FlexScan and EIZO are registered trademarks of EIZO NANAO CORPORATION.

Sun, Sun Microsystems, and the Java logo are trademarks or registered trade marks of Sun

Microsystems, inc. in the United States and other countries.

As an ENERGY STAR®Partner, EIZO NANAO CORPORATION has determined

that this product meets the ENERGY STAR guidelines for energy efficiency.

TABLE OF CONTENTS

1. INTRODUCTION ..................................................................................... 5

1-1. General Description ......................................................................................5

1-2. Features ........................................................................................................5

1-3. Package Contents..........................................................................................6

1-4. Controllers & Connectors ............................................................................7

2. CONNECTION the eClient SX1 ............................................................. 9

2-1. Setting up the SX1 ........................................................................................9

3. OPERATION ......................................................................................... 15

3-1. Adding a Connection name.........................................................................15

3-2. Logging on or off the WTS .........................................................................20

3-3.Opening/Closing the Local Web Browser.....................................................24

4. Setup the environment of the operation

(by the System Administrator

)

.25

4-1. Note for the SX1 system environment ........................................................25

4-2. Log on to the SX1 as the System Administrator..........................................26

4-3. “User” authority and “Administrator” authority .......................................28

4-4. Using the control panel ...............................................................................30

4-5. [Start]-[About] menu ..................................................................................37

4-6. Software updating/Installation....................................................................38

5. TROUBLESHOOTING........................................................................... 39

6. CLEANING............................................................................................ 40

7. SPECIFICATIONS................................................................................. 41

TABLE OF CONTENTS

1. INTRODUCTION

Thank you very much for purchasing the EIZO eClient SX1.

1-1. General Description

The SX1 is used as a thin client, which connects to the terminal service installed

Windows Terminal Server (Hereafter defined WTS) as listed below and accesses

applications or data provided from the WTS.

• Server (WTS: Windows Terminal Server)

Microsoft Windows 2000 Server / Advanced Server / Datacenter Server

Microsoft Windows Server 2003 Standard Edition / Enterprise Edition / Datacenter

Edition

1-2. Features

• Lower TCO (Total Cost of Ownership)

• Saves Space and Power Consumption

• Less Heat, Less Noise

• SX1: Windows XP Embedded

• Serial Port for Modem/PDA (*Hayes AT compatible modem supported)

• 2 USB downstream ports (SX1: Standard Rev. 2.0)

• Local Web Browser added as a default connection

• PC card slot for modem card or LAN card

• Wake on LAN supported

• Network utility software, “Network Administrator Version 3.0” supported

• Two installation types; EIZO Monitor mounted / Stand alone

• EIZO Monitor detachable stand type

Output data of

applications

Input data from

keyboard/mouse/

stylus

Windows Terminal Server

(WTS)

eClient SX1

· Operation of applications

· Stora

e of data

⋅ Display data

⋅ Operation by keyboard/

mouse

Networ

1. INTRODUCTION

• Secondary power switch (wired)

1-3. Package Contents

Please contact your local dealer for assistance if any of the listed items are missing or

damaged. Please make sure that all the items listed are in the package.

•SX1

•Mouse (FDM-LCS1)

•Power Cord

•Switch Box (1.8 m)

•Signal Cable (FD-C29) (50 cm)

•User’s Manual

•Monitor Attachment Unit: for mounting monitor *1

•Power Cord (50 cm): for mounting monitor*1

•Clamp for cables: for mounting monitor*1

The monitor attachment unit, the power cord, and the clamp for cables are used when

attaching a monitor in SX1. Installation of a monitor should follow the system administrator.

NOTE

• A keyboard is not included. It must be purchased separately.

• Please use the enclosed mouse. EIZO NANAO CORPORATION will no be held

responsible for accident or damage caused by the use of a mouse manufactured by

other companies.

• We recommend that you retain the original packing materials in case of future need.

1. INTRODUCTION

1-4. Controllers & Connectors

Controllers

AC INPUT

AC OUTPUT

Power SYNC

OFF

(1)

(2)

(3)

(4)

(5)

(1) Power Button

(2) Power Indicator

Power Indicator State of the unit

Blue

•

Operation mode

•

Screen saver is active

•

No picture is displayed on the monitor

*1, *2

Off Power is off (Wake on LAN standby)

[Procedure to return to the operation mode]

- Operate the mouse or keyboard.

The monitor is in the power save mode when the power save function of the

monitor is set.

(3) Connector for Switch Box*3

(4) Switch Box*3

(5) Power Supply Control Switch (POWER SYNC) *4

*3The secondary power switch makes it easy to turn the SC1 / SX1 on and off when

stowed away under the desk or out of reach. When the enclosed switch box is

connected to the connector, it can be used as a power button. The power button on

the SC1/SX1 can be used simultaneously even if the switch box is connected.

*4Please refer to pg. 12 for details on the power supply control switch (POWER

SYNC).

NOTE

• When turning off/on the unit, leave the unit off for a few seconds before turning it on

again.

• Do your part to conserve energy, turn off the unit when your finished using it.

Complete energy use can only be stopped by disconnecting the unit from the power

supply.

Left View Right View

* SX1 used as an example

1. INTRODUCTION

Connectors

AC INPUTAC INPUT

AC OUTPUTAC OUTPUT

Power SYNCPower SYNC

OFF

(3)

(2)

(1)

(8)

(9)

(11)

(10)

(6)

(5)

(4)

(12)

(7)

(1) Power Supply Control Switch (POWER SYNC)…Same with (5) on P.7

(2) Power Connector (AC output)

(3) Power Connector (AC input)

(4) Ethernet Connector (10 Base-T, 100 Base-TX)

(5) Parallel Connector

(6) Headphone Connector

Microphone Connector

(7) PC Card Slot

(8) USB Port (Downstream) x 2

(9) DVI-I Output Connector

(10) Serial Port (RS-232C)

(11) Mouse Connector

Keyboard Connector

(12) Security Lock*1

*1 This allows for connection of a security cable. This lock supports Kensington’s

MicroSaver security system. For further information, please consult:

Kensington Technology Group

2855 Campus Drive, San Mateo, CA 94403 USA

Tel: 800-650-4242, x3348

Intl: 650-572-2700 Fax: 650-572-9675

http://www.kensington.com

1. INTRODUCTION

2. CONNECTION the eClient

SX1

This chapter explains how to connect the SX1 to a WTS.

2-1. Setting up the SX1

Please observe the following cautions when connecting the SX1.

WARNING

Place the eClient SX1 on a strong, stable surface.

A unit placed on an inadequate surface may fall, resulting in injury

or equipment damage. If the unit falls, disconnect the power

immediately and have the unit checked by a qualified service

engineer before using it again. Using a unit after it has been

dropped may result in fire or electric shock.

Set the unit in an appropriate location.

Not doing so may result in fire, electric shock, or equipment

damage.

Do not place outdoors.

Do not place in the transportation system (ship, aircraft, trains,

automobiles, etc.)

Do not place in a dusty or humid environment.

Do not place in a location where the steam comes directly on the

screen.

Do not place near heat generating devices or a humidifier.

The Monitor Attachment Unit supports only EIZO L767, L567,

L557, L367.

Mounting other monitors to the unit may result in injury or

equipment damage. Contact your system administrator for details

of the attachment.

* The illustrated monitors in this section are L567. Monitors

are not included in the package.

Maximum load capacity of AC outlet is 2 A.

Connecting unit with more than 2 A may result in fire, electric

shock or other damage.

2. CONNECTION the eClient SX1

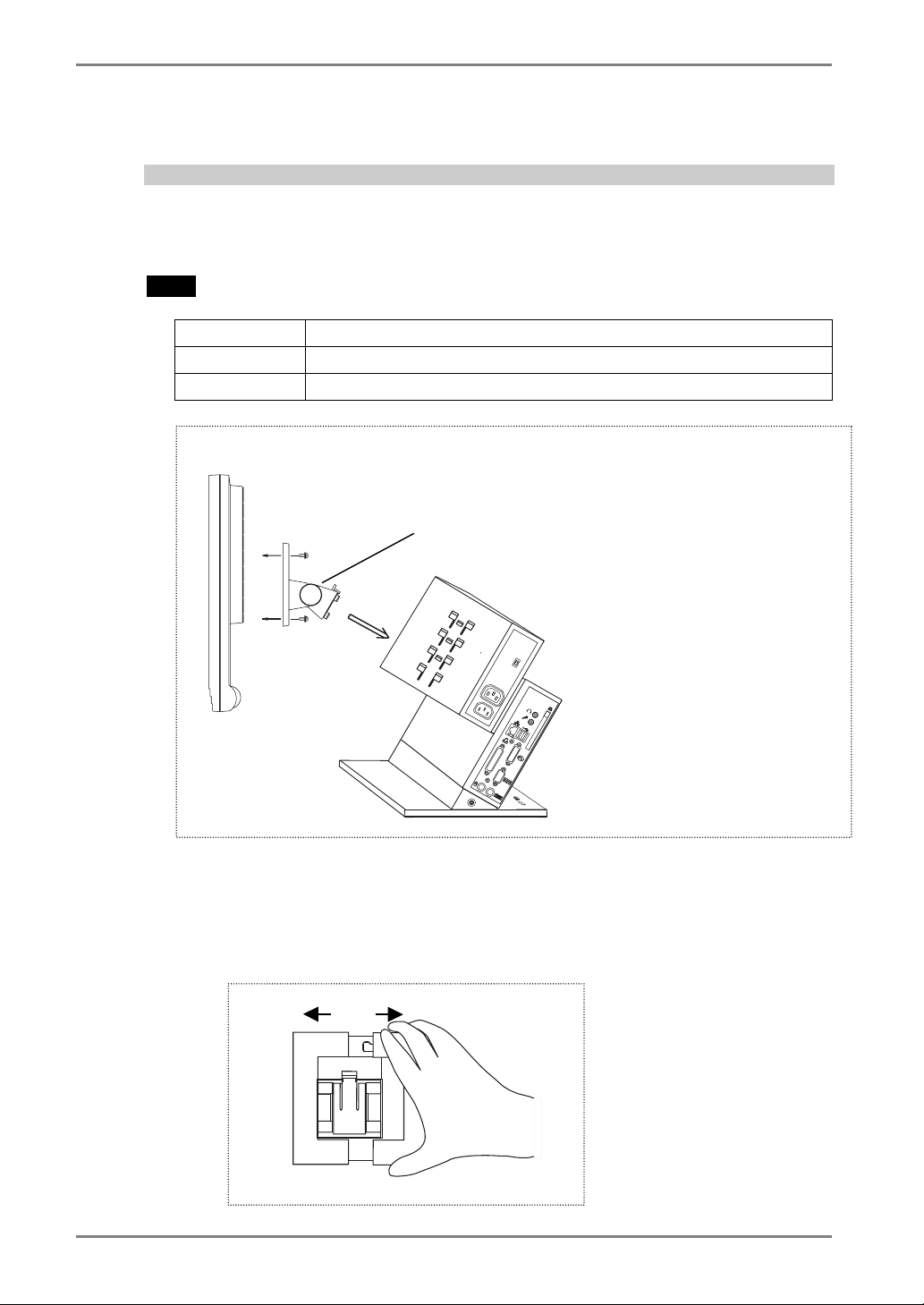

Mounting EIZO monitor to the SX1

When using other monitors than EIZO, proceed to step 3.

The Monitor Attachment Unit of SX1 supports the EIZO L767, L567, L557, and L367,

so EIZO monitor mounted SX1 is available.

NOTE

• Prepare the following, when mounting a monitor to the SX1.

Monitor L767, L567, L557, L367

Screws The screws used for the monitor original stand

Power Cord Power Cord (50 cm) which is included into the SX1 package.

Mounting EIZO monitor procedure

Step 1

Step 2

ACINPUT

POO|PQOu‘Q‘

QOO|QSOu‘Q‘

AC OUTPUTAC OUTPUT

Power SYNC

OFF

1. Attach the monitor attachment unit to the monitor.

(1) [1] Hold the center of the cover of the monitor attachment unit (upper side and

bottom side) and [2] slide them rightward or leftward to remove the covers.

Monitor Attachment Unit

Step

Attach the monitor attachment unit to the monitor.

Step 2.

Mount the monitor to the SX1.

[1][1]

[1]

[2] [2]

2. CONNECTION the eClient SX1

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Eizo Moniteur

Eizo

Eizo RadiForce MX317W Manuel utilisateur

Eizo

Eizo FLEXSCAN S2433W Manuel utilisateur

Eizo

Eizo FLEXSCAN T550 - Manuel utilisateur

Eizo

Eizo EIZO FlexScan F57 Manuel utilisateur

Eizo

Eizo FLEXSCAN T1721 Manuel utilisateur

Eizo

Eizo FLEXSCAN HD2441W - SETUP Manuel utilisateur

Eizo

Eizo FLEXSCAN EV2315W - Manuel utilisateur

Eizo

Eizo FLEXSCAN F980 Manuel utilisateur

Eizo

Eizo DuraVision FDF2121WT Guide de l'utilisateur

Eizo

Eizo FLEXSCAN S1701-X - Manuel utilisateur

Eizo

Eizo FlexScan L360 Manuel utilisateur

Eizo

Eizo RadiForce MX191 Manuel utilisateur

Eizo

Eizo CuratOR EX3242-3D Manuel utilisateur

Eizo

Eizo FlexScan M1700 M1700 M1700 Guide de l'utilisateur

Eizo

Eizo ColorEdge CG232W Guide de l'utilisateur

Eizo

Eizo COLOREDGE CG301W Guide de l'utilisateur

Eizo

Eizo FlexScan S1503-A Manuel utilisateur

Eizo

Eizo FLEXSCAN S2433W Manuel utilisateur

Eizo

Eizo DuraVision FDX1204T Manuel utilisateur

Eizo

Eizo CuratOR LX490W Manuel utilisateur

Eizo

Eizo ColorEdge CS2730 Manuel utilisateur

Eizo

Eizo FlexScan L560T-CB Manuel utilisateur

Eizo

Eizo RadiForce GX560 Manuel utilisateur

Eizo

Eizo DuraVision FDS1703-A Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation

Eizo eClient SX1 Manuel utilisateur

Manuels Moniteur populaires d'autres marques
