User’s Manual

Color LCD Monitor

English

SAFETY SYMBOLS

This manual uses the safety symbols below. They denote critical information. Please read them

carefully.

WARNING

Failure to abide by the information in a WARNING may result in serious injury and

can be life threatening.

Indicates a prohibited action.

Indicates to ground for safety.

manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any

means, electronic, mechanical, or otherwise, without the prior written permission of Eizo Nanao

Corporation.

Eizo Nanao Corporation is under no obligation to hold any submitted material or information

confidential unless

rior arran

ements are made

ursuant to Eizo Nanao Cor

oration's recei

t of

said information. Although every effort has been made to ensure that this manual provides up-

to-date information, please note that EIZO monitor specifications are subject to change without

notice.

As an ENERGY STAR

Partner, Eizo Nanao Corporation has determined that this

product meets the ENERGY STAR guidelines for energy efficiency.

CAUTION

Failure to abide by the information in a CAUTION may result in moderate injury

and/or property or product damage.

ENERGY STAR is a U.S. registered mark.

Apple and Macintosh are registered trademarks of Apple Computer, Inc.

VGA is a registered trademark of International Business Machines Corporation.

DPMS is a trademark and VESA is a registered trademark of Video Electronics Standards

Association.

Windows is a registered trademark of Microsoft Corporation.

ScreenManager and PowerManager are trademarks of Eizo Nanao Corporation.

FlexScan and EIZO are registered trademarks of Eizo Nanao Corporation.

English

TABLE OF CONTENTS

PRECAUTIONS .................................................................................... 4

1. INTRODUCTION ..................................................................................... 9

1-1. Features ........................................................................................................9

1-2. Package Contents..........................................................................................9

1-3. Controls & Connectors ..............................................................................10

3. ScreenManager .................................................................................... 16

3-1. How to use the ScreenManager ..................................................................16

3-2. Adjustments and Settings............................................................................17

3-3. Useful Functions .........................................................................................18

4. ADJUSTMENT ...................................................................................... 20

4-1. Screen Adjustment ......................................................................................20

7. CLEANING ............................................................................................ 31

8. SPECIFICATIONS ................................................................................. 32

GLOSSARY............................................................................................... 34

APPENDIX/ANHANG/ANNEXE .................................................................. i

2. CABLE CONNECTION ......................................................................... 12

2-1. Before connecting .......................................................................................12

2-2. Connecting the signal cable ........................................................................13

2-3. Sound Connections.....................................................................................15

4-2. Color Adjustment .......................................................................................24

4-3. Power-save Setup ........................................................................................25

5. ATTACHING AN ARM STAND .............................................................. 27

6. TROUBLESHOOTING........................................................................... 28

TABLE OF CONTENTS

English

PRECAUTIONS

IMPORTANT!

• This product has been adjusted specifically for use in the region to which it was

originally shipped. If operated outside the region to which it was originally shipped,

the product may not perform as stated in the specifications.

• To ensure personal safety and proper maintenance, please read this section and the

caution statements on the unit (refer to the figure below).

[Location of the Caution Statements]

Refer all servicing to qualified service personnel.

Do not attempt to service this product yourself as opening or removing covers

may expose you to dangerous voltage or other hazards.

WARNING

If the unit begins to emit smoke, smells like something is burning, or

makes strange noises, disconnect all power connections immediately

and contact your dealer for advice.

Attempting to use a malfunctioning unit can be dangerous.

Do not dismantle the cabinet or modify the unit.

Dismantling the cabinet or modifying the unit may result in electric shock or

burn.

4PRECAUTIONS

English

If an object or liquid falls/spills into the cabinet, unplug the unit immediately.

Have the unit checked by a qualified service engineer before using it again.

When the unit is dropped, please ask your dealer for advice. Do not continue

using a damaged unit. Using a damaged unit may result in fire or electric

shock.

SIG.SIG . AUTOAUTO ENT.ENT.

Set the unit in an appropriate location.

Not doing so may cause damage and could result in fire or electric shock.

* Do not place in outdoors.

* Do not

lace in the trans

ortation s

stem (shi

, aircraft, trains, automobiles,

etc.)

* Do not install in a dusty or humid environment.

* Do not place in a location where the steam comes directly on the screen.

* Do not place near heat generating devices or a humidifier.

Use the enclosed power cord and connect to the standard power outlet

of your country. Be sure to remain within the rated voltage of the

power cord.

Not doing so may cause in fire or electric shock.

To disconnect the power cord, grasp the plug firmly and pull.

Never tug on the cord, doing so may cause damage and could result in fire or

electric shock.

PRECAUTIONS

WARNING

Keep small objects or liquids away from the unit.

Small objects accidentally falling through the ventilation slots into the cabinet

or spillage into the cabinet may result in fire, electric shock, or equipment

damage.

Place the unit on a strong, stable surface.

A unit placed on an inadequate surface may fall, resulting in injury or

equipment damage.

To avoid danger of suffocation, keep the plastic packing bags away

from babies and children.

English

Not doing so may cause in fire or electric shock.

Follow local regulation or laws for safe disposal.

The backlight of the LCD panel contains mercury.

6PRECAUTIONS

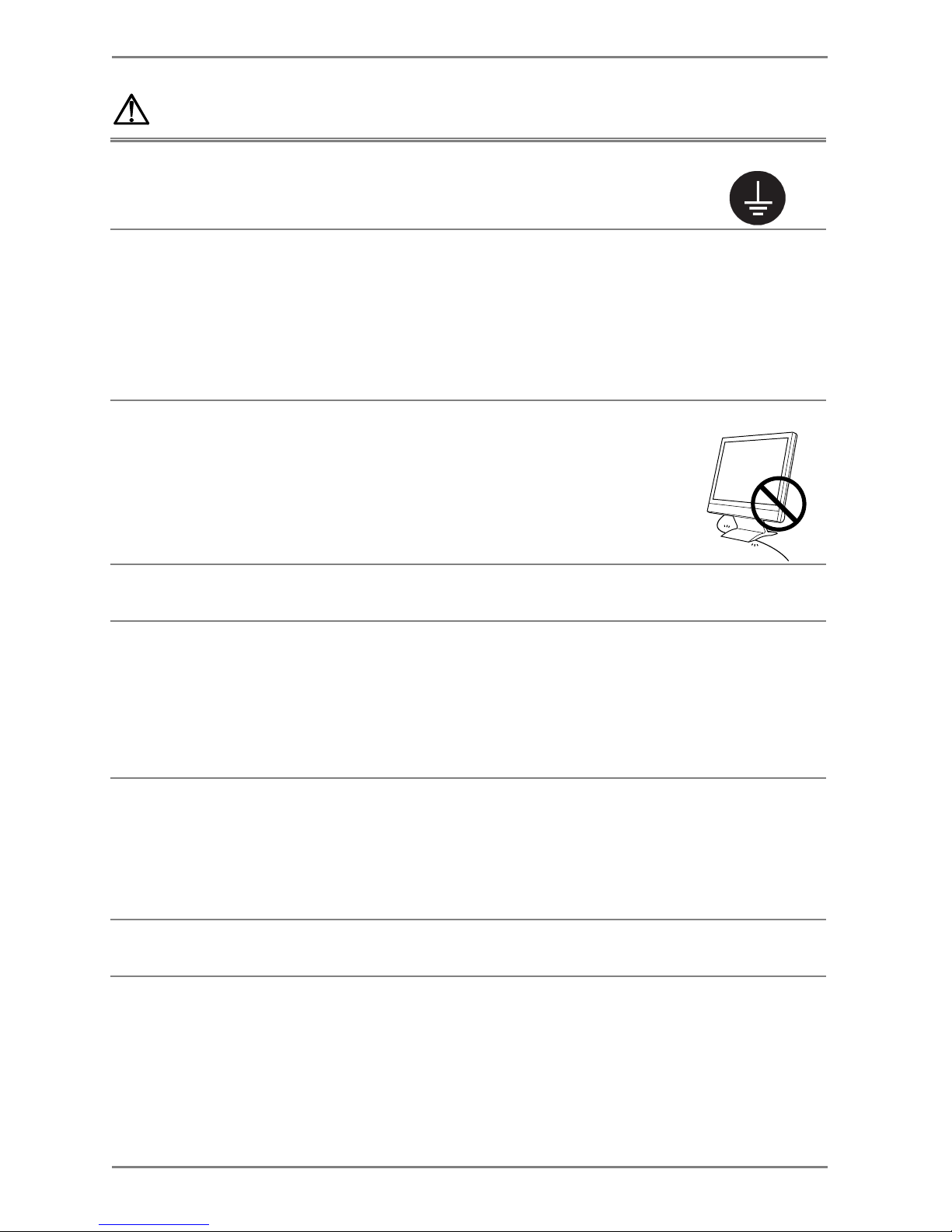

WARNING

Use the correct voltage.

* Do not overload your power circuit, as this may result in fire or electric

shock.

* The unit is designed for use with a specific voltage only. Connection to

another voltage than specified in this User’s Manual may cause fire, electric

shock, or other damage.

The equipment must be connected to a grounded main outlet.

* Do not overload your power circuit, as this may result in fire or electric

shock.

Handle the power cord with care.

* Do not place the cord underneath the unit or other heavy objects.

* Do not pull on or tie the cord.

If the power cord becomes damaged, stop using it. Use of a damaged cord

may result in fire or electric shock.

Never touch the plug and power cord if it begins to thunder.

Touching them may result in electric shock.

When attaching an arm stand, please refer to the user’s manual of the

arm stand and install the unit securely with the enclosed screws.

Not doing so may cause the unit to come unattached, which may result in

injuryor equipment damage. When the unit is dropped, please ask your dealer

for advice. Do not continue using a damaged unit. Usinga damaged unit may

result in fire or electric shock. When reattaching the tilt stand, please use the

same screws and tighten them securely.

Do not touch a damaged LCD panel directly with bare hands.

The liquid crystal which leaks from the panel is poisonous if it enters the eyes

or mouth.

If any part of the skin or body comes in direct contact with the panel, please

wash thoroughly. If some physical symptoms result, please consult your

doctor.

English

PRECAUTIONS

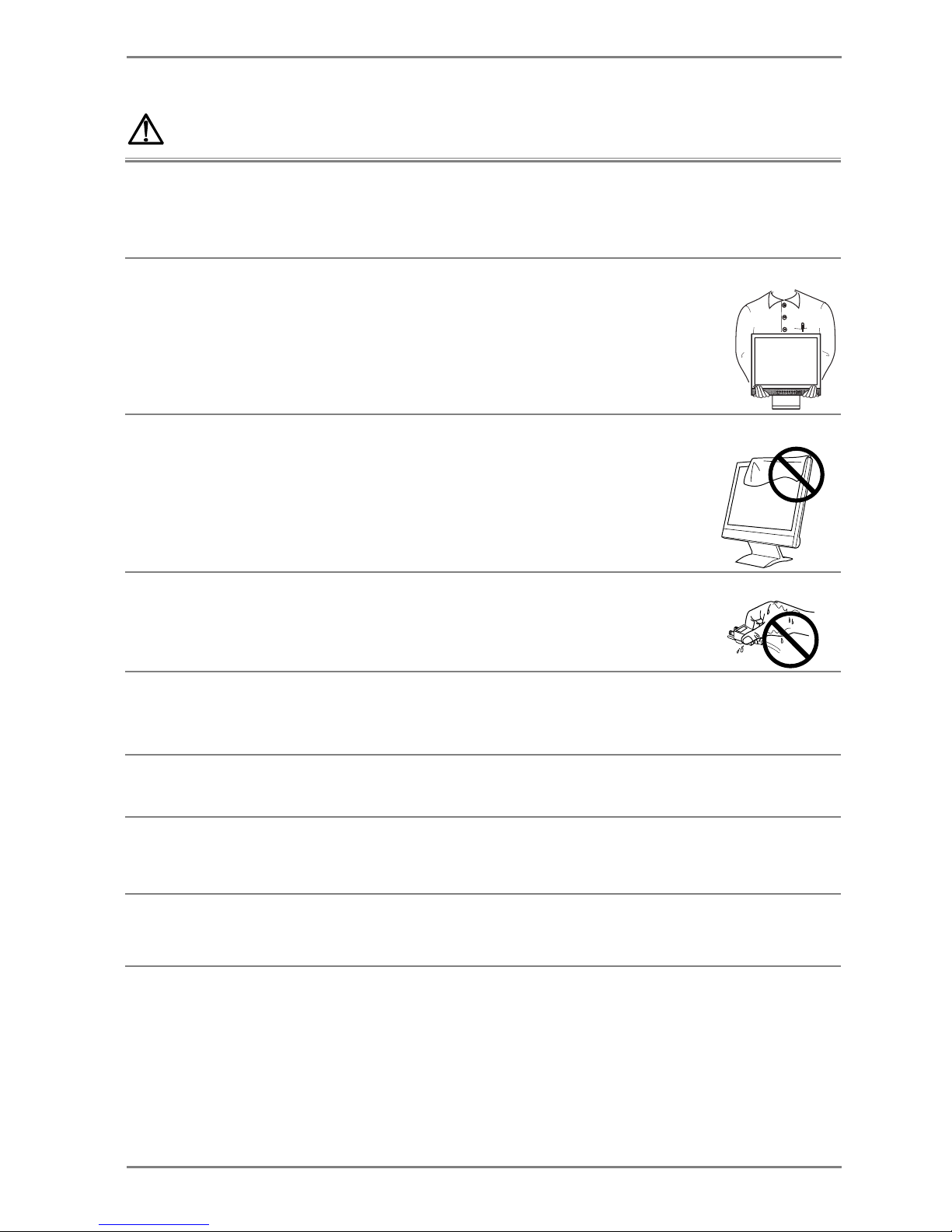

Handle with care when carrying the unit.

Disconnect the

ower cord and cables when movin

the unit. Movin

the unit

with the cord attached is dangerous. It may result in injury or equipment

damage.

When handling the unit, grip the bottom of the unit firmly with both

hands ensuring the panel faces outward before lifting.

Dropping the unit may result in injury or equipment damage.

Do not block the ventilation slots on the cabinet.

* Do not place books or any other papers on the ventilation slots.

* Do not install the unit in a closed space.

* Do not use the unit lying down or upside down.

SIG .S I G . AUTOAUTO ENT.ENT.

CAUTION

Using the unit in these ways blocks the ventilation slots and prevents proper

airflow, leading to fire or other damage.

Do not touch the plug with wet hands.

Touching them may result in electric shock.

Use an easily accessible power outlet.

This will ensure that you can disconnect the power quickly in case of a

problem.

Periodically clean the area around the plug.

Buildup of dust, water, or oil on the plug may result in fire.

Unplug the unit before cleaning it.

Cleaning the unit while it is plugged into a power outlet may result in electric

shock.

If you plan to leave the unit unused for an extended period, disconnect

the power cord from the wall socket after turning off the power switch

for the safety and the power conservation.

English

8PRECAUTIONS

LCD Panel

The screen may have defective pixels. These pixels may appear as slightly light

or dark area on the screen. This is due to the characteristics of the panel itself,

and not the product.

The backli

ht of the LCD

anel has a fixed life s

an. When the screen becomes

dark or begins to flicker, please contact your dealer.

Do not press on the panel or edge of the frame strongly, as this will result in

damage to the screen. There will be prints left on the screen if the pressed

image is dark or black. If pressure is repeatedly applied to the screen, it may

deteriorate or damage your LCD panel. Leave the screen white to decrease the

prints.

Do not scratch or press on the

anel with an

shar

ects, such as a

encil or

pen as this may result in damage to the panel. Do not attempt to brush with

tissues as this may scratch the LCD panel.

English

1. INTRODUCTION

Thank you very much for choosing an EIZO Color Monitor.

1-1. Features

• Dual inputs compliant

• DVI (p.34) Digital input (TMDS (p.35)) compliant.

• Horizontal scanning frequency: 24 - 60 kHz (Digital input: 31.5 - 48 kHz)

Vertical scanning frequency: 55 - 75 Hz Vertical (Digital: 60 Hz (VGA text: 70 Hz))

Resolution: 1024 dots x 768 lines

• Auto Adjustment compliant

• ColorManagement function incorporated

• Built-in speaker system

1-2. Package Contents

Please contact your local dealer for assistance if any of the listed items are missing or

damaged.

•LCD Monitor

•Power Cord

•Signal cable (MD-C87/MD-C100)

•Stereo mini-jack cable

•User’s Manual

•ScreenManager Quick Reference

•LIMITED WARRANTY

•Mounting Screws: M4 x 12 (mm) x 4 pcs

NOTE

• Please retain the packing materials for future transference.

English

(3) Headphone jack (stereo mini-jack)

(4) Input signal selection button

(5) Auto Adjustment Button

(6) Enter Button

(7) Control Buttons (Up, Down, Left, Right)

(8) Power Button

(9) Power Indicator

1-3. Controls & Connectors

Front

S I G .S I G . AUTOAUTO ENT.

(4) (5) (6) (7) (8) (9)

(3)

(1)

(2)

SIG. AUTO ENT.

(1) ScreenManager

(2) Speaker*1

Volume Control Press the right and left buttons.

Mute Press the up or down button for a while after

pressing the right or left button to display the

volume control bar.

Press the right or left button to mute off.

Blue Operation

Yellow Power saving

Flashing yellow (2

times for each)

Power save mode Digital only

Off Power off

*1 Regarding the sound connection, see page 15.

Regarding the power indicator for the “Off Timer”, see page18.

Control Panel

10 1. INTRODUCTION

Autres manuels pour FLEXSCAN L365 -

Table des matières

Autres manuels Eizo Moniteur

Eizo

Eizo Foris FS2332-BK Manuel utilisateur

Eizo

Eizo FlexScan L 350 L350 L350 Guide de démarrage rapide

Eizo

Eizo FlexScan S2233W Manuel utilisateur

Eizo

Eizo RadiForce RX240 Manuel utilisateur

Eizo

Eizo FlexScan L885 Manuel utilisateur

Eizo

Eizo FlexScan MX-Series Manuel utilisateur

Eizo

Eizo Radiforce MX240W Manuel utilisateur

Eizo

Eizo COLOREDGE CG303W Manuel d'utilisation et d'entretien

Eizo

Eizo ColorEdge CG245W Manuel utilisateur

Eizo

Eizo 23" Full-HD monitor EIZO Foris FS2333 Manuel utilisateur

Eizo

Eizo ColorEdge CS2420 Manuel utilisateur

Eizo

Eizo FlexScan F730 Manuel utilisateur

Eizo

Eizo DuraVision FDX1502T Guide de l'utilisateur

Eizo

Eizo FlexScan EV2460 Manuel utilisateur

Eizo

Eizo ColorEdge CS2740 Manuel utilisateur

Eizo

Eizo IEC60601-1-1 Manuel utilisateur

Eizo

Eizo FLEXSCAN S1701-X - Manuel utilisateur

Eizo

Eizo COLOREDGE CG301W Guide de l'utilisateur

Eizo

Eizo DuraVision FDS1904 Manuel utilisateur

Eizo

Eizo Raptor SQ2801 Manuel utilisateur

Eizo

Eizo RadiForce ES240W Manuel utilisateur

Eizo

Eizo DURAVISION FDH3601 Manuel utilisateur

Eizo

Eizo FlexScan S2231W Manuel utilisateur

Eizo

Eizo FLEXSCAN L551 - Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
