Ei Electronics Ei650 Series Manuel utilisateur

Ei650 Series

SmokeAlarm

Operating Instructions

Congratulations on

buying an Ei650

smoke alarm

from Ei Electronics!

Achtung – Attention – Attenzione

Dieses Produkt ist ausschließlich für den Verkauf im deutschsprachigen Raum bestimmt. Rechtliche

Ansprüche in anderen Ländern entfallen. Sollten Sie das Produkt anderswo erworben haben,

returnieren Sie es bitte an den Händler, bei dem Sie es gekauft haben.

This product is intended exclusively for sale in German-speaking countries. Legal claims in any other

countries shall be excluded. If you acquired the product elsewhere, please return it to the dealer

where you purchased it.

Ce produit est en vente exclusivement dans l’espace germanophone. Personne ne pourra donc faire

valoir un droit dans d’autres pays. Si vous avez acheté le produit ailleurs, veuillez le retourner au

détaillant auprès duquel vous l’avez acheté.

Questo prodotto è destinato esclusivamente per la vendita nei paesi di lingua tedesca. Non è possibile

far valere pretese legali in altri paesi. Se avete acquistato il prodotto altrove, si prega di ritornarlo al

rivenditore presso il quale è stato acquistato.

Model Can be

wire-linked

Wireless

compatibility

Optional radio

module

Ei650 No No No

Ei650W No Yes Ei650M/Ei600MRF

Ei650C Yes Yes Ei650M/Ei600MRF

Ei650RF No Yes Included

Ei650i No No No

Ei650iW No Yes Ei650M/Ei600MRF

Ei650iC Yes Yes Ei650M/Ei600MRF

Ei650iRF No Yes Included

For an early warning in the event of a ﬁre, install this smoke alarm on every ﬂoor in your building and in

escape routes, hallways and enclosed rooms to make sure you are protected against ﬁre. Heat detectors

can be installed in kitchens and other areas where smoke alarms are not suitable (if these rooms are not

going to be used as escape routes).

The i series has been specially developed as a high-end, sophisticated product range. An integrated

microprocessor and the extra yellow diagnosis LED allow potential faults to be minimised during regular

maintenance, which means unscheduled servicing can be avoided.

The Ei650C and Ei650iC models can be wire-linked or interlinked wirelessly to form a network, ensuring

the alarm can be heard throughout the building in an emergency. Wireless interlinking requires special

radio models (Ei650M/Ei600MRF). The modules must be purchased separately. The Ei650W and Ei650iW

models can only be interlinked using radio modules.

The Ei650 and Ei650i models are stand-alone smoke alarms that cannot be interlinked using wires or

wirelessly (see table).

Contents

1. Quick guide 7

2. Choosing a location 8

2.1 How smoke alarms and heat detectors work 9

2.2 Location 10

2.3 Positioning 13

3. Installation 18

4. Interlinking 24

4.1 Radio-linking 25

4.2 Wire-linking 25

5. Testing, maintenance and readiness for use 28

5.1 Manually testing the alarm 29

5.2 Test/silencer button for controlling false alarms 30

5.3 Power supply – monitoring 32

5.4 Cleaning the alarm 33

5.5 Automatic self-test 33

5.6 Dust and contamination from insects 34

5.7 Replacing an alarm 35

6. Interpreting signals 36

6.1 Normal mode 37

6.2 Fault indicators 38

6.3 Diagnosis for i series 44

7. Troubleshooting 48

8. Fire safety information 50

9. Customer service and warranty 54

9.1 Customer service 55

9.2 Warranty 56

2. Choosing a location

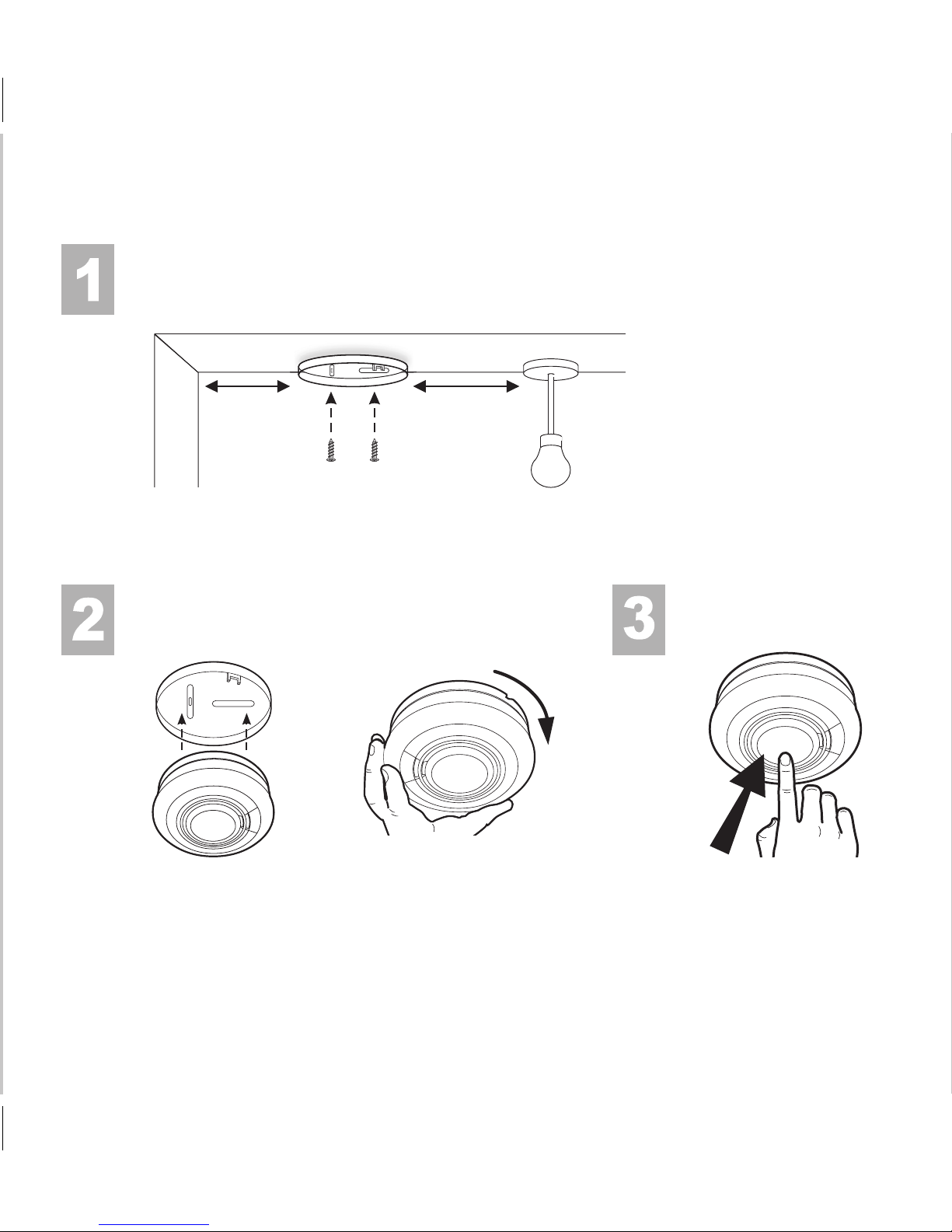

Quick guide

Test alarm

Place the alarm onto the base and

turn it.

Look for the right place to install the alarm.

Fix the mounting plate onto the ceiling.

The smoke alarm should be

installed on the ceiling, at

least 50 cm away from walls

and obstructions and ideally

in the centre of the room.

50 cm

(min.)

50 cm

(min.)

The battery is automatically

activated by twisting the

device onto the base.

Press the test button.

Test the alarm at regular

intervals, at least once per

year, in accordance with

DIN 14676.

2. Choosing a location

Choosing

alocation

2.1 How smoke alarms and heat detectors work

Before a smoke alarm goes off, a sufficient amount of smoke must have entered the

smoke chamber. The smoke alarm should be located less than 7.5 m from the source of

the fire in order to respond quickly. The devices must be installed in locations where

they can be heard throughout the building, so that all inhabitants can wake up and

get out quickly in an emergency. A single smoke alarm can offer limited protection if

it is installed properly, but two or more alarms (preferably interlinked) are needed in

most houses to ensure that a warning is given quickly enough. For optimum protection,

a smoke alarm should be installed in every room in which a fire could break out (except

the kitchen and bathroom).

The first smoke alarm to be installed should be placed between the bedroom and the

most likely source of a fire (for example, the living room). It should be located no more

than 7.5 m from the door of a room in which a fire could break out and block the

escape route.

Heat detectors sound when the temperature on the heat detector reaches 58 °C.

They are recommended for use in kitchens, garages, boiler rooms and other areas in

which there is often a large amount of steam or dust. Smoke alarms cannot be installed

in these locations without the risk of repeated false alarms. A heat detector should only

be used in rooms that adjoin escape routes in which smoke alarms are installed.

2. Choosing a location

2.2 Location

First check what legal requirements there are in your federal state for installing smoke

alarms. Please refer to local building regulations for the exact requirements*. Fire

prevention experts recommend that smoke alarms should be installed at least in every

bedroom and every child’s room, as well as in the escape routes for these rooms (except

in unsuitable rooms such as the kitchen and bathroom).

Multi-storey homes

If there is more than one storey in your home (see Figure 1), at least one alarm should

be installed on every floor. Preferably, the alarms should be interlinked (if this function

is available on your device) so that the alarm sounds throughout the building. Radio

modules, which are easy to install, are ideal for this, as the alarms can be interlinked by

radio – no wires are needed.

For even better protection, you should install heat detectors in kitchens, garages, boiler

rooms, etc. Smoke alarms are not suitable for these rooms.

Heat detectors should be interlinked to the Smoke Alarms.

* Visit www.rauchmelder-lebensretter.de/rauchmelderpﬂicht for further information
