starting motor is cut off.
When engine starts, if oil pressure switch is detected owing to its▶
operating, the power of starting motor is cut off after 3sec even without engine
operating input.
If engine normally operates, and therefore if operating signal over 30%▶
of rated speed is input to MP1 terminal, RUN lamp is turned on.
When oil pressure switch does not operate for more than OPT waiting▶
time at more than 30%(IDLE SPEED) of rated speed, OPL(low oil pressure) lamp
is turned on and Engine stops.
If no engine operating signal and no oil pressure switch signal, start▶
output is put out for 7sec. and then cut off.
If engine operating signal has no input(less than 30% of regular▶
speed) and if oil pressure switch operates, starter motor output is cut off and
engine operates normally.

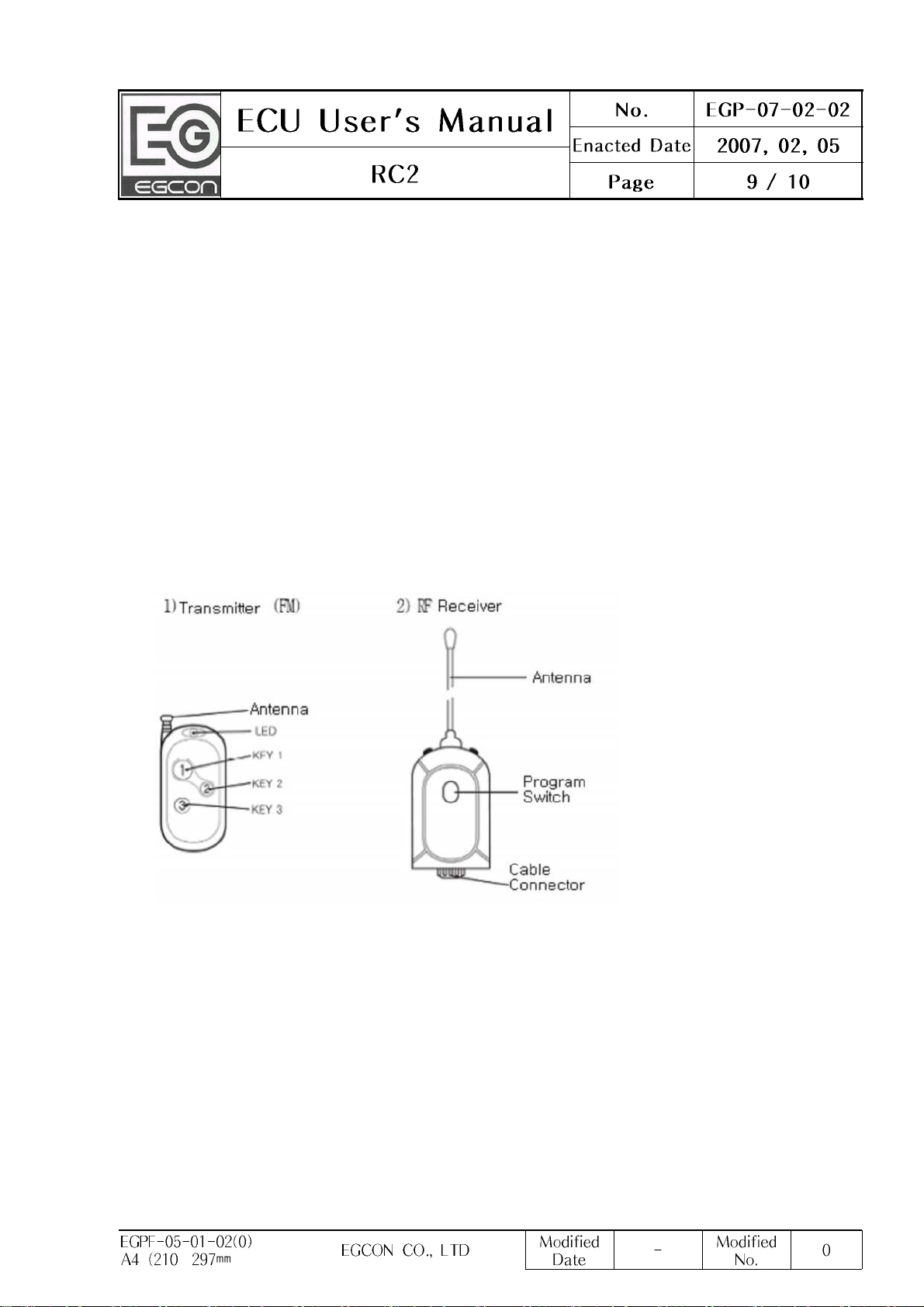

If RUN lamp is turned on, battery “+” is output from G+ terminal, and▶
operating power of gauge is supplied, and 6X operates, and so operating signal
is sent remotely.
ETR : If electricity is supplied to Fuel Solenoid, engine operates, and if
electricity is cut off to Fuel Solenoid, engine stops.
ETS : Engine stops when electricity is supplied to Fuel Solenoid.
If oil pressure switch is OFF, the power output is cut off. If oil
pressure switch is not OFF, the power is output only for about
20sec. and cut off.
14. CHANGING ENGINE MODE OF IDLE/RUN SPEED
